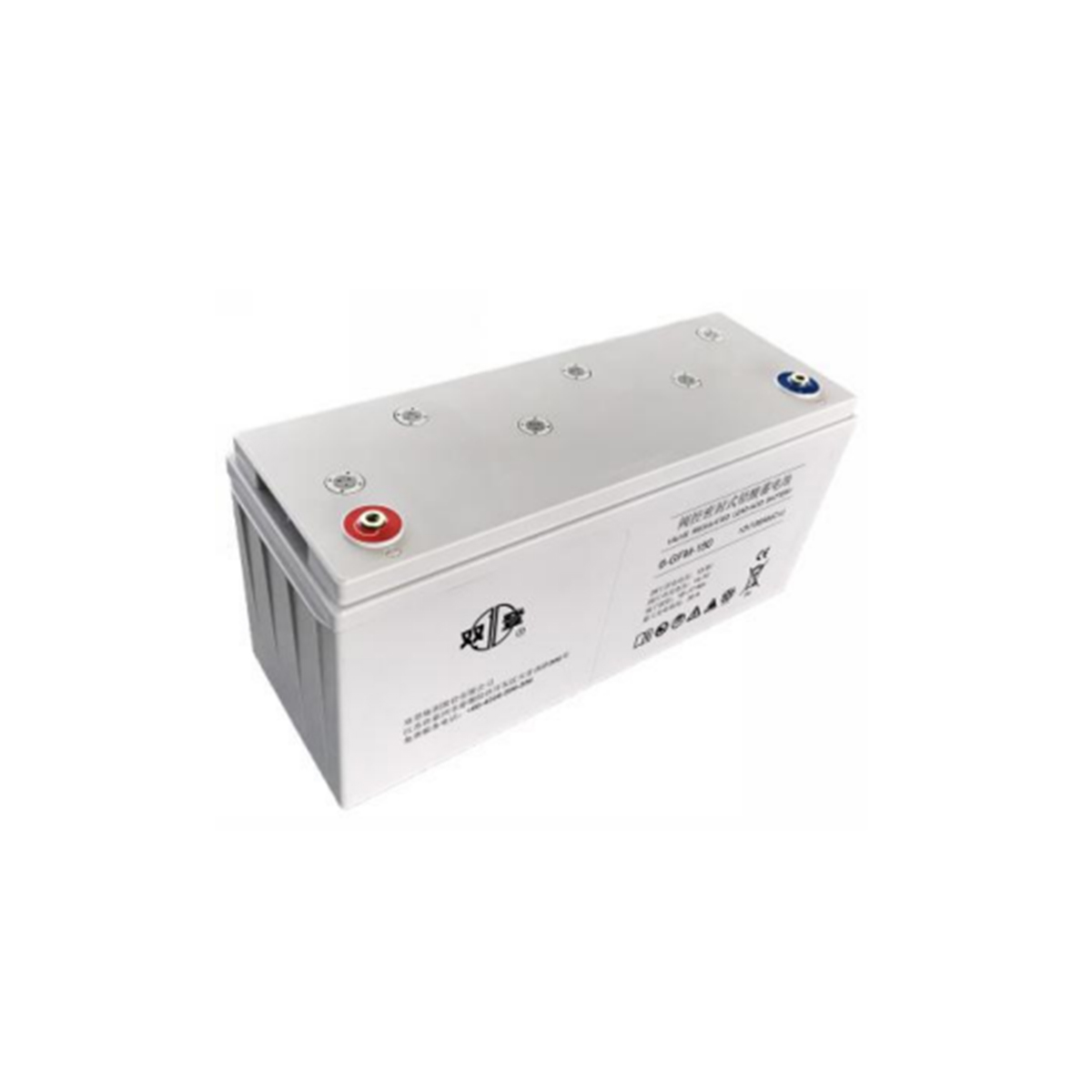

Shoto 6-GFM series 6-GFM-150 alve-regulated lead-acid battery



Description

6-GFM-150 Main Applications

  • Backup power for telecom and signal system
  • Military field, railway system, power system
  • UPS & emergency lighting system
  • Fire alarm and security system



Benefits

  • 10 years design life
  • Safely and reliably sealed
  • High energy density, low internal resistance and low
    discharge rate
  • Excellent charging acceptability and high sealed reaction
    effciency



Product Certificates

  • ISO 9001
  • ISO 14001
  • GB/T 28001
  • UL
  • CE



Technical Features

  • Adopt high strength ABS plastic, compactstructure for battery container and valve,good impact resistance, and shock resistantperformance
  • Adopt multi-element alloy grids, lowinternal resistance, good corrosionresistance ability and charging acceptability.
  • New production process for plate, improvethe utilization of active material
  • High-purity electrolyte and special
    additives, low self-discharge
  • Multi-layer seal technology and special sealglue, no leakage and no acid mist escape,safe and reliable
6-GFM-150 Datasheet
Item 6-GFM-150
Normal Voltage 12V
Capacity 150Ah @ 10hr to 1.80V per cell @ 25˚C(77˚F)
Weight Approx. 44 kg (97 lbs)
Dimensions Length:481 mm Width:174 mm Height:225 mm Total Height:232 mm
Internal Resistance (full charged) Approx.3.3 mΩ@ 25˚C(77˚F)
Maximum Discharge Current 930 A (5sec)
Self Discharge @25°C(77 ℉) Less than 4% after 30 days storage
Operating Temperature Range Discharge:-40℃~50C(-40℉~122℉) Charge:-20℃~45C(4℉~113℉) Storage:-20℃~40C(4P~104℉)
Recommended operating Temperature 15℃~25℃(59℉~77℉)
Maximum Charging Current Limited 30 A
Charging Voltage @25°C(77°F) Float: 2.25 V/cell, Temps coefficient -3 mV/˚C Equalize: 2.35 V/cell
Terminal M8
Container Materials ABS V0
Capacity Affected by Temperature 105%@40℃ 85% @0℃ 60%@-20℃
Desion L @25°C(77°F) 10 years
