Huawei S5735S-L48P4S-A1 switch supports 48 10/100/1000BASE-T PoE+ ports, 4 1000BASE-X ports, 1 AC power.

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

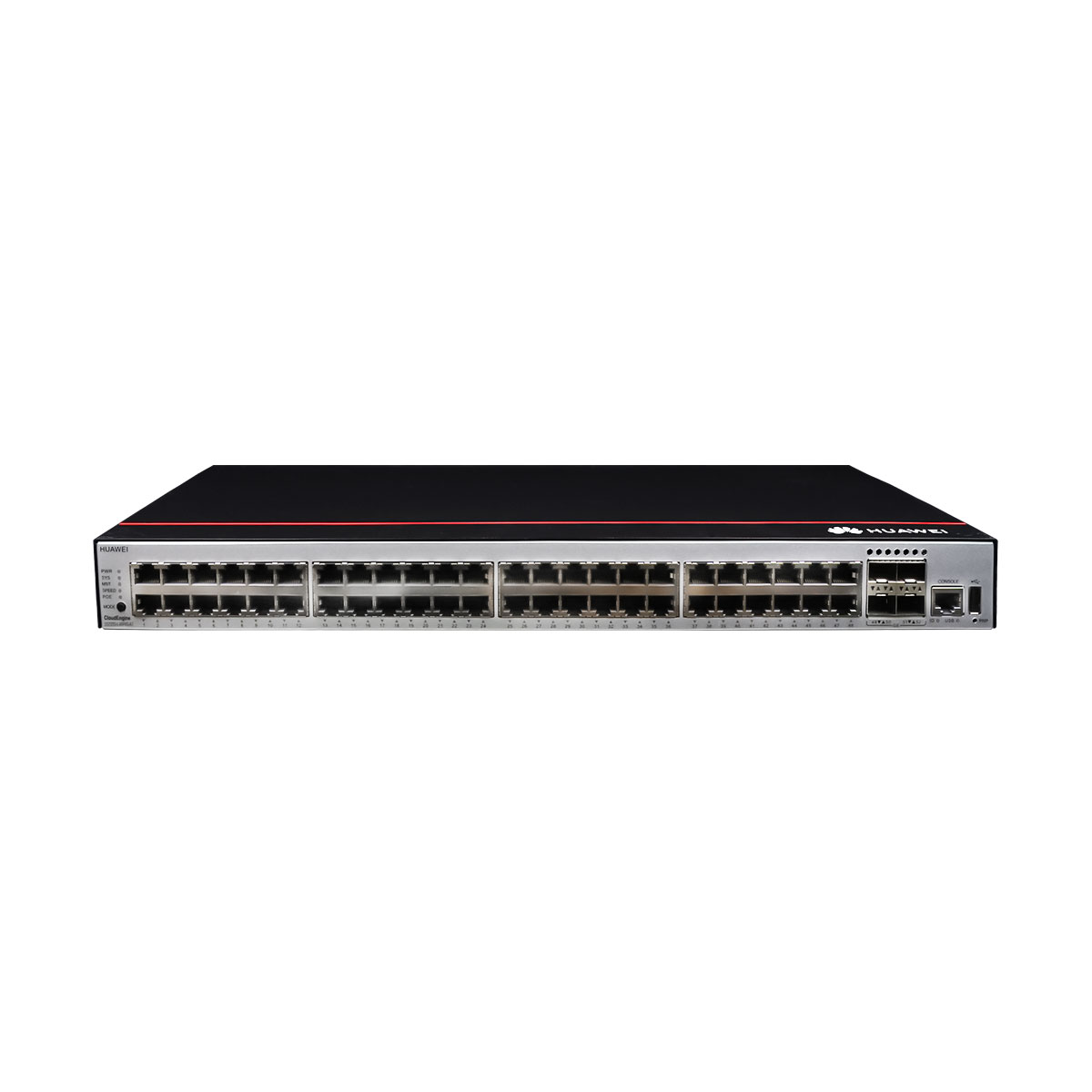

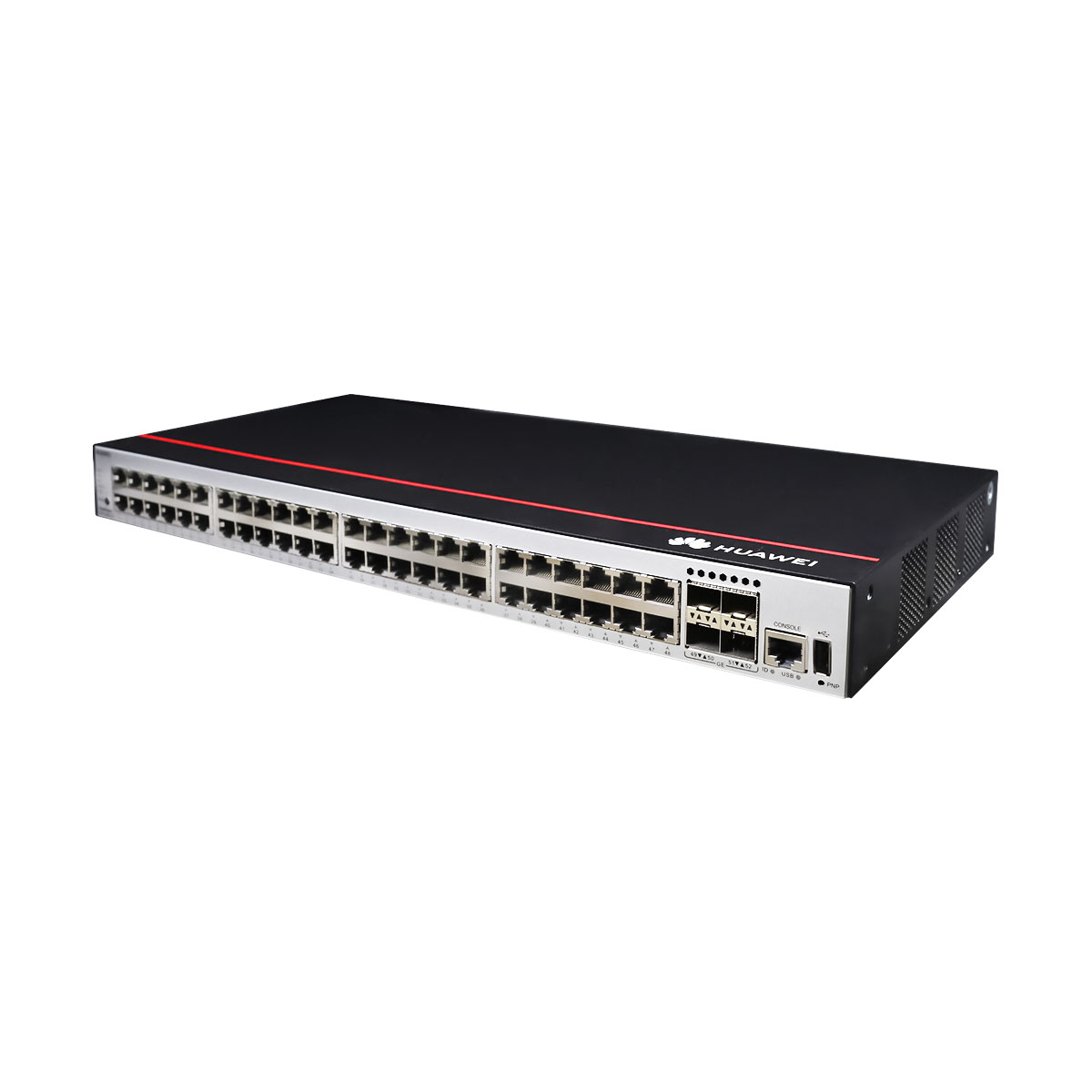

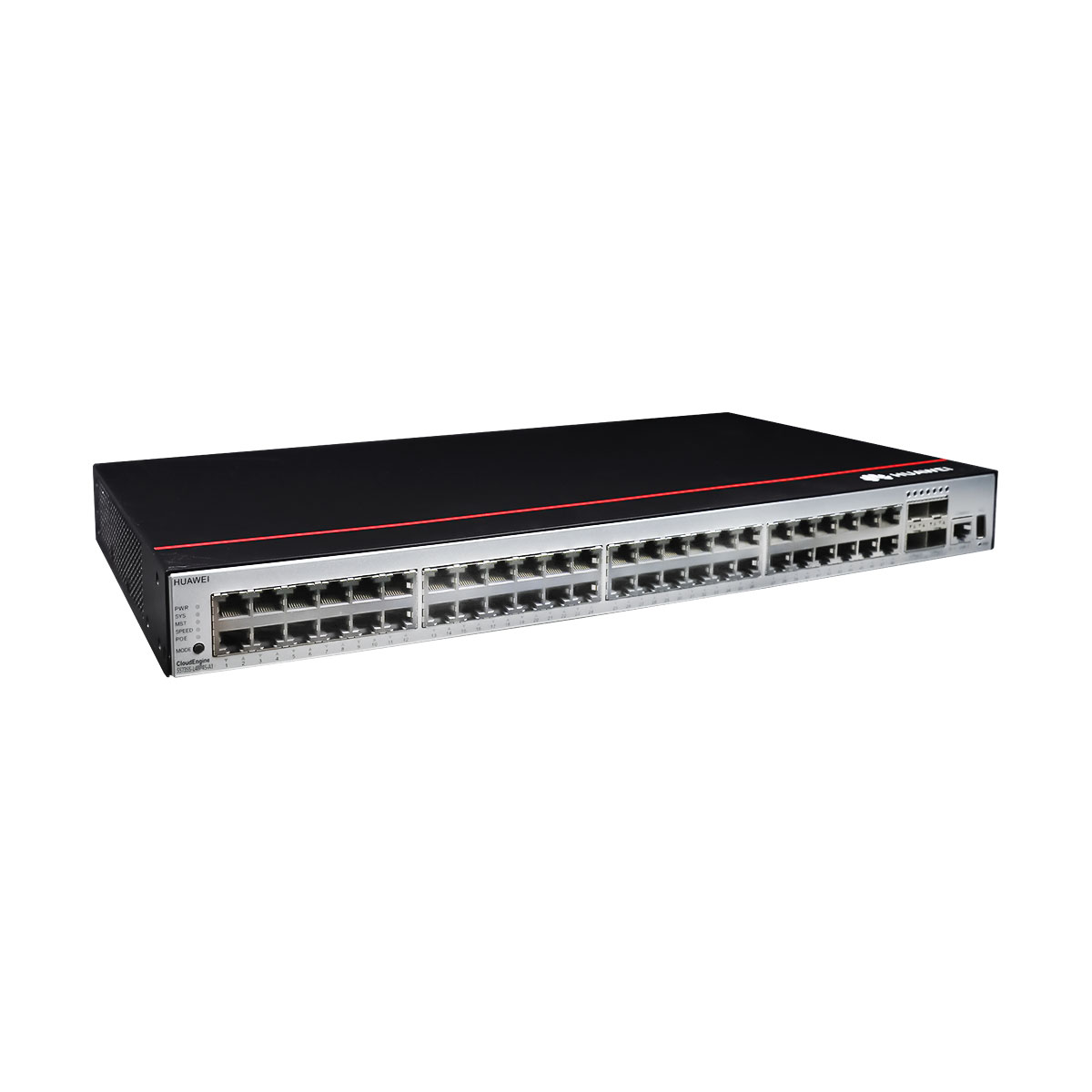

S5735S-L48P4S-A1 overview

This Huawei S5735S-L48P4S-A1 switch comes with 48  10/100/1000BASE-T PoE+ ports, 4 1000BASE-X ports, and AC power fixed, which is one of the S5735 series switches.

Huawei CloudEngine S5735-L series are simplified Gigabit Ethernet switches that provide allGE downlink ports and GE or 10GE uplink ports.

Telecomate.com provides a full range of Huawei switch series, if you have any demands, please contact: csd@telecomate.com



S5735S-L48P4S-A1 quick spec

48  10/100/1000BASE-T PoE+ ports

4 1000BASE-X ports

AC Power



S5735S-L48P4S-A1 appearance and structure



1 48 10/100/1000BASE-T PoE+ ports
2 4 1000BASE-X ports

eSFP-GE-SX-MM850 eSFP-GE-ZX100-SM1550 LE2MGSC40DE0
3 One console port
4 One USB port
5 One PNP button
6 Ground screw
7 Jack for AC power cable locking strap
8 AC socket



Item S5735S-L48P4S-A1
Memory 512 MB
Flash memory 512 MB
Console port RJ45
Eth Management port Not supported
USB Supported
RTC Not supported
RPS input Not supported
Service port surge protection [kV] Common mode: ±7 kV
Power supply surge protection [kV] ±6 kV in differential mode, ±6 kV in common mode
Types of fans Built-in
Heat dissipation mode Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction Air intake from left and front, air exhaustion from right
PoE Supported
Certification EMC certification
Safety certification
Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Chassis height [U] 1 U
Weight without packaging [kg(lb)] 3.23 kg (7.12 lb)
Weight with packaging [kg(lb)] 4.28 kg (9.44 lb)
Typical power consumption [W] 58.7 W
Typical heat dissipation [BTU/hour] 200.29 BTU/hour
Maximum power consumption [W] Not providing the PoE function: 76.1 W
100% PoE loads: 456.1 W (PoE: 380 W)
Maximum heat dissipation [BTU/hour] Not providing the PoE function: 259.66
100% PoE loads: 1556.26
MTBF [year] 44.9 year
MTtr [hour] 2 hour
Availability >0.99999
Noise at normal temperature (acoustic power) [dB(A)] 50 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)] 38.2 dB(A)
Number of card slots 0
Number of power slots 0
Number of fans modules 2
Redundant power supply Not supported
Long-term operating temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature [°C(°F)] -5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH] 5% to 95%, noncondensing
Long-term operating altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode AC built-in
Rated input voltage [V] AC input: 100 V AC to 240 V AC, 50/60 Hz
High-Voltage DC input: 240 V DC
Input voltage range [V] AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
High-Voltage DC input: 190 V DC to 290 V DC
Maximum input current [A] 6 A
