Huawei AirEngine 5761-11W wall plate access point (AP) in compliance with the Wi-Fi 6 standard

Description

AirEngine 5761-11W overview

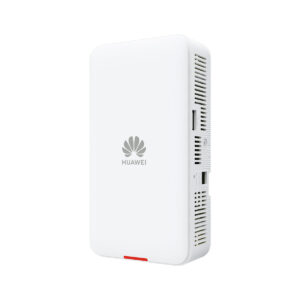

Huawei AirEngine 5761-11W is a wall plate access point (AP) in compliance with the Wi-Fi 6 standard. It can simultaneously provide services on the 2.4 GHz (2×2 MIMO) and 5 GHz (2×2 MIMO) frequency bands.

The AP uses built-in smart antennas to ensure always-on Wi-Fi signals for users, significantly enhancing users’ wireless network experience. It is ideal for scenarios with high-density rooms, such as hotel guest rooms, dormitory rooms, and hospital wards.

  • Uplink: 1 x GE electrical port; downlink: 4 x GE electrical ports + 2 x RJ45 passthrough ports
  • Mounting on a junction box or wall, facilitating deployment
  • Built-in smart antennas that automatically adjust the coverage direction and signal strength based on the intelligent switchover algorithm to adapt to the application environment change, and provide accurate and stable coverage as STAs move
  • USB port for IoT expansion (such as ZigBee and RFID)
  • Bluetooth serial interface-based O&M through the built-in Bluetooth module by collaborating with CloudCampus APP; collaboration with a location server to accurately locate Bluetooth terminals and tags
  • Working modes: Fit, Fat, and cloud management

Front panel of the AirEngine 5761-11W board

AirEngine 5761-11W

Front panel of the AirEngine 5761-11W board

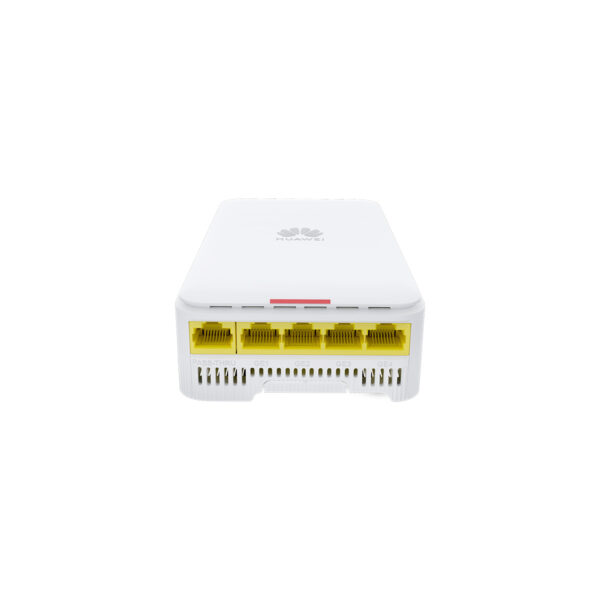

Ports on the AirEngine 5761-11W

1

PASS-THRU

2

GE1 to GE4

3

GE0/PoE_IN

4

USB

5

DC 12V



Item AirEngine 5761-12W
Installation Type  Wall
Dimensions without packaging (H x W x D) [mm(in.)] 160 mm x 86 mm x 38 mm (6.30 in. x 3.39 in. x 1.50 in.)
Weight without packaging [kg(lb)] 0.320 kg (0.705 lb)
Storage NAND Flash 512 MB
Console port BLE console
Maximum power consumption [W] 13.1 (excluding USB and PoE OUT)
Maximum heat dissipation [BTU/hour] 42.6 BTU (without USB and PoE OUT)
Power supply mode
  • DC adapter
  • PoE
Rated input voltage [V] 48 V
Input voltage range [V]

DC: 43.2 V to 57.6 V

PoE: 802.3at/af

Service port surge protection

PoE port:

Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B

Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B

Maximum PoE output power [W] 11 W (Max distance: 20 m)
Maximum number of physical ports on the entire device GE (RJ45) x 5, 10M/100M/1000M auto-sensing
Long-term operating temperature [°C(°F)] 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Ground floating ground
USB USB 2.0
BLE BLE5.2
Radio number 2
Operating frequency band
  • 2.4GHz
  • 5GHz
MIMO spatial streams

Radio 0 (2.4 GHz): 2x2

Radio 1 (5 GHz): 2x2

Wi-Fi standard

2.4 GHz: 802.11b/g/n/ax

5 GHz: 802.11a/n/ac/ac Wave 2/ax

Radio interface Built-in smart antennas
Antenna gain

2.4 GHz:

2.5 dBi/chain (peak)

1 dBi (combined gain)

5 GHz:

3 dBi/chain (peak value)

1 dBi (combined gain)

BLE: 4 dBi

Maximum transmit power

2.4 GHz:

20 dBm/chain

23 dBm (combined power)

5 GHz:

20 dBm/chain

23 dBm (combined power)

BLE: < 10 dBm

Singal radio transmit power [dBm]

2.4G: -10 dBm to 20 dBm/chain

5G: -10 dBm to 20 dBm/chain

MTBF [year] 246 year
MTTR [hour] 0.5 hour
Frequency stability [ppm] +/-20
802.3at power supply description The PoE out (802.3af) and USB functions are mutually exclusive. PoE OUT function takes precedence. PoE out supports a maximum of 11 W output power.
802.3af power supply description The USB function and PoE out are not supported. Other functions are not restricted.
DC power supply description PoE out supports a maximum of 11 W output power. Other functions are not restricted.
