AirEngine 5761S-13

0 Reviews Write a review
PN02354JQF
Brands
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Huawei AirEngine 5761S-13 access point (AP) with 11ax indoor, 2+2 dual bands, smart antenna, USB, BLE

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

AirEngine 5761S-13 overview

Huawei AirEngine 5761S-13 is an access point (AP) in compliance with the Wi-Fi 6 standard. It can simultaneously provide services on the 2.4 GHz (2×2 MIMO) and 5 GHz (2×2 MIMO) frequency bands. The AP uses built-in smart antennas to ensure always-on Wi-Fi signals for users, significantly enhancing users’ wireless network experience. It is ideal for indoor coverage scenarios, such as small- and medium-sized enterprise offices, hospitals, and cafes.

  • 1 x GE electrical port
  • Built-in smart antennas that automatically adjust the coverage direction and signal strength based on the intelligent switchover algorithm to adapt to the application environment change, and provide accurate and stable coverage as STAs move
  • USB port for IoT expansion (such as ZigBee and RFID)
  • Bluetooth serial interface-based O&M through the built-in Bluetooth module by collaborating with CloudCampus APP; collaboration with a location server to accurately locate Bluetooth terminals and tags
  • Working modes: Fit, Fat, and cloud management

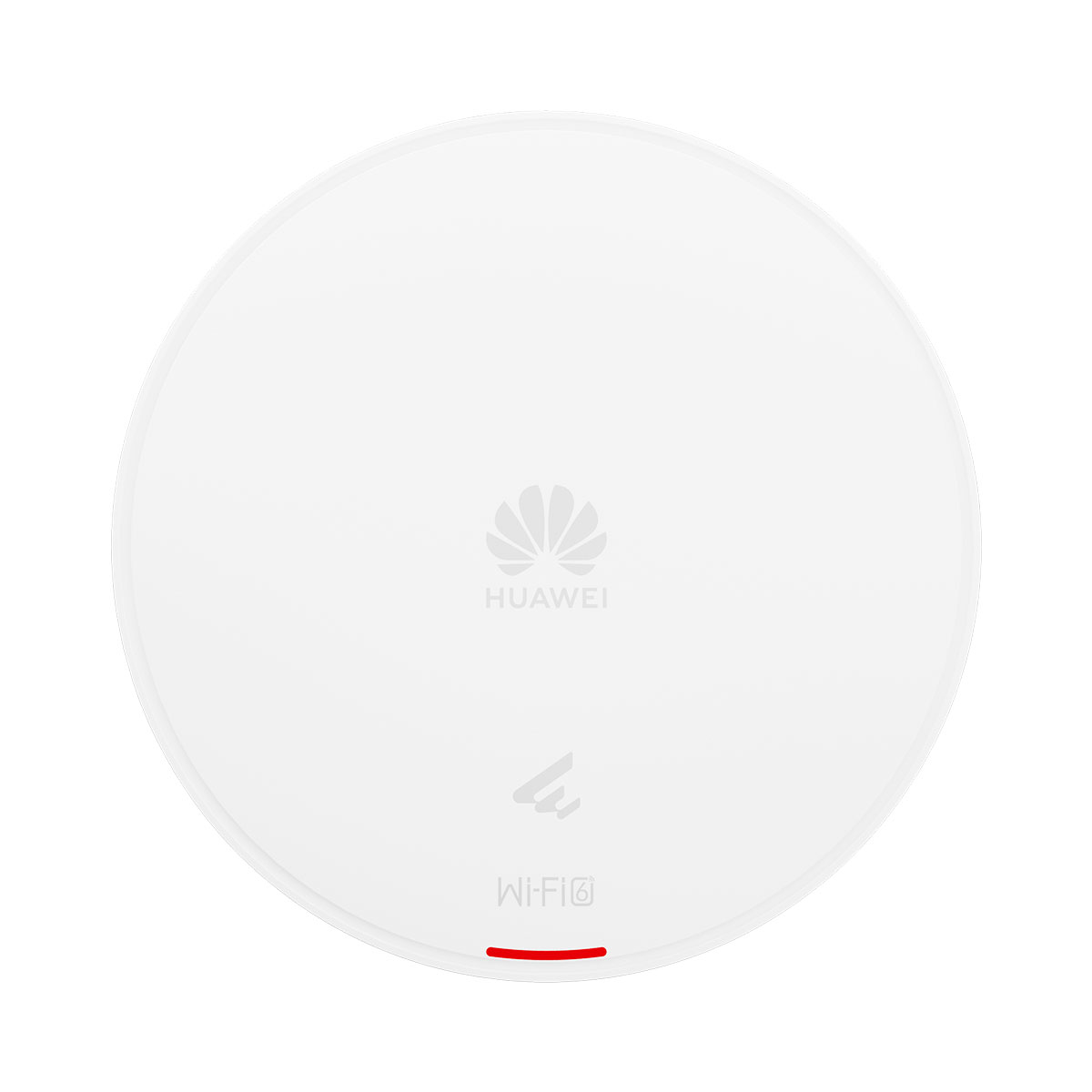

Front panel of the AirEngine 5761S-13

AirEngine 5761S 13

Front panel of the AirEngine 5761S-13

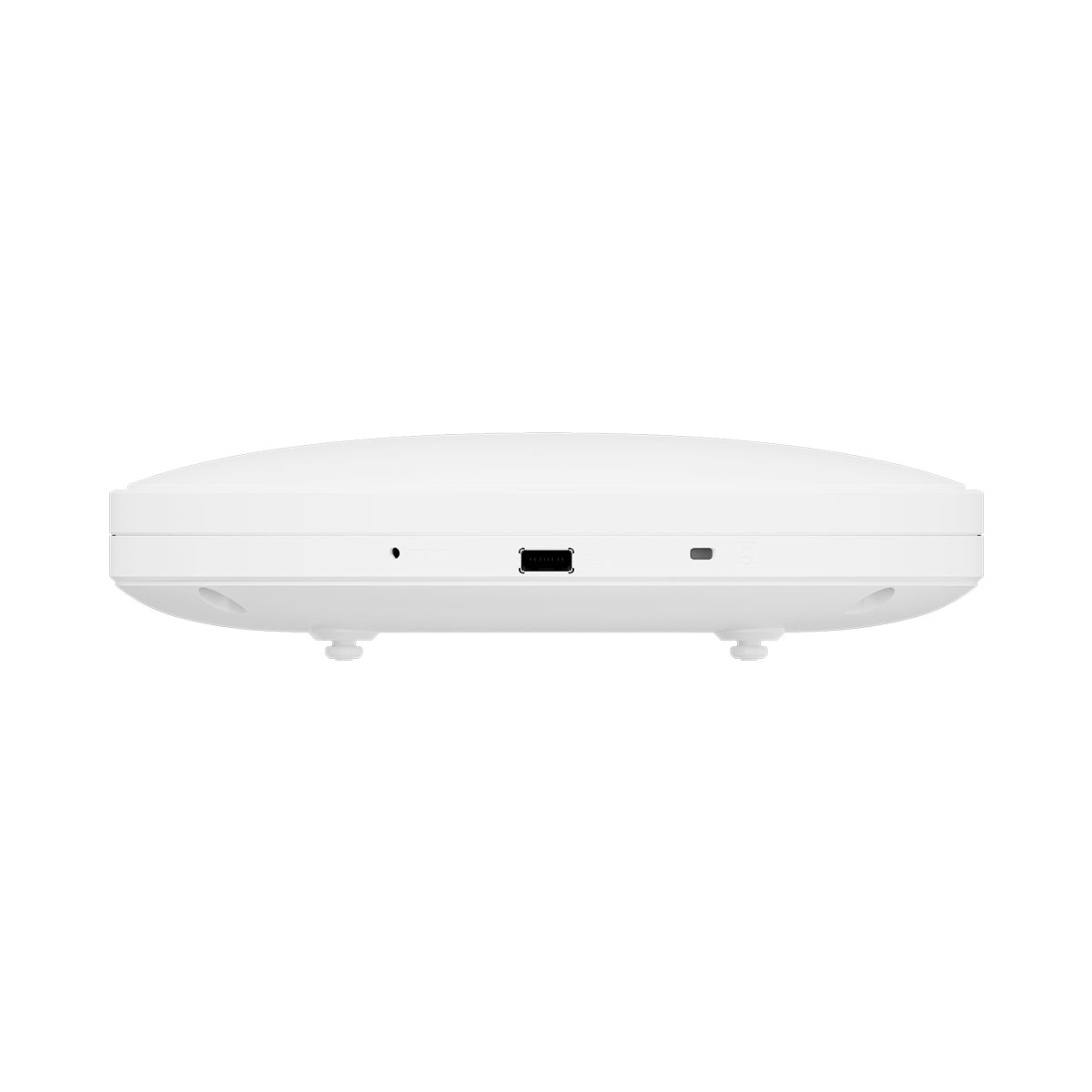

Ports on the AirEngine 5761S-13

1

Security slot

2

USB

3

GE/PoE_IN

4

DC 12V



Item AirEngine 5761S-13
Storage NAND Flash 512 MB
Console port Bluetooth console
Maximum power consumption [W] 15.3 (excluding USB)
Maximum heat dissipation [BTU/hour] 52.2 BTU/hour
Power supply mode
  • PoE
  • DC power adapter
Rated input voltage [V] 12 V
Input voltage range [V]

DC: 12 V ± 10%

PoE: 802.3at/af
Service port surge protection

PoE port:

Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B

Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B
Maximum number of physical ports on the entire device GE (RJ45) x 1, 10M/100M/1000M auto-sensing
Long-term operating temperature [°C(°F)] –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Ground floating ground
USB USB 2.0
BLE BLE5.2
Radio number 2
Operating frequency band
  • 2.4GHz
  • 5GHz
MIMO spatial streams

Radio 0 (2.4 GHz): 2x2

Radio 1 (5 GHz): 2x2
Wi-Fi standard

2.4 GHz: 802.11b/g/n/ax

5 GHz: 802.11a/n/ac/ac Wave 2/ax
Radio interface Built-in smart antennas
Antenna gain

2.4G:

4 dBi/chain (peak value)

2 dBi (combined gain)

5G:

5 dBi/chain (peak value)

3 dBi (combined gain)

BLE: 4 dBi
Maximum transmit power

2.4G:

24 dBm/chain

27 dBm (combined power)

5G:

24 dBm/chain

27 dBm (combined power)

BLE: < 10 dBm
Singal radio transmit power [dBm]

2.4G: -10 dBm to 24 dBm/chain

5G: -10 dBm to 24 dBm/chain
MTBF [year] 134 year
MTTR [hour] 0.5 hour
Frequency stability [ppm] +/-20
802.3bt power supply description No function is limited.
802.3at power supply description No function is limited.
802.3af power supply description

Wi-Fi: 2.4 GHz (2x2)+5 GHz (2x2). The maximum combined power is adjusted to 22 dBm (2.4 GHz radio) and 22 dBm (5 GHz radio).

Wired network port: No restriction is posed on wired network ports.

Other ports: The USB port is unavailable.
DC power supply description No function is limited.
Installation Type
  • Wall
  • Ceiling
  • T-Rail
Dimensions without packaging (H x W x D) [mm(in.)] Diameter x depth: 220 mm x 50 mm (8.66 in. x 1.97 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 94 mm x 306 mm x 285 mm (3.70 in. x 12.05 in. x 11.22 in.)
Weight without packaging [kg(lb)] 1.05 kg (2.31 lb)

Additional information

Brand

Huawei
Item AirEngine 5761S-13
Storage NAND Flash 512 MB
Console port Bluetooth console
Maximum power consumption [W] 15.3 (excluding USB)
Maximum heat dissipation [BTU/hour] 52.2 BTU/hour
Power supply mode
  • PoE
  • DC power adapter
Rated input voltage [V] 12 V
Input voltage range [V]

DC: 12 V ± 10%

PoE: 802.3at/af
Service port surge protection

PoE port:

Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B

Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B
Maximum number of physical ports on the entire device GE (RJ45) x 1, 10M/100M/1000M auto-sensing
Long-term operating temperature [°C(°F)] –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Ground floating ground
USB USB 2.0
BLE BLE5.2
Radio number 2
Operating frequency band
  • 2.4GHz
  • 5GHz
MIMO spatial streams

Radio 0 (2.4 GHz): 2x2

Radio 1 (5 GHz): 2x2
Wi-Fi standard

2.4 GHz: 802.11b/g/n/ax

5 GHz: 802.11a/n/ac/ac Wave 2/ax
Radio interface Built-in smart antennas
Antenna gain

2.4G:

4 dBi/chain (peak value)

2 dBi (combined gain)

5G:

5 dBi/chain (peak value)

3 dBi (combined gain)

BLE: 4 dBi
Maximum transmit power

2.4G:

24 dBm/chain

27 dBm (combined power)

5G:

24 dBm/chain

27 dBm (combined power)

BLE: < 10 dBm
Singal radio transmit power [dBm]

2.4G: -10 dBm to 24 dBm/chain

5G: -10 dBm to 24 dBm/chain
MTBF [year] 134 year
MTTR [hour] 0.5 hour
Frequency stability [ppm] +/-20
802.3bt power supply description No function is limited.
802.3at power supply description No function is limited.
802.3af power supply description

Wi-Fi: 2.4 GHz (2x2)+5 GHz (2x2). The maximum combined power is adjusted to 22 dBm (2.4 GHz radio) and 22 dBm (5 GHz radio).

Wired network port: No restriction is posed on wired network ports.

Other ports: The USB port is unavailable.
DC power supply description No function is limited.
Installation Type
  • Wall
  • Ceiling
  • T-Rail
Dimensions without packaging (H x W x D) [mm(in.)] Diameter x depth: 220 mm x 50 mm (8.66 in. x 1.97 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 94 mm x 306 mm x 285 mm (3.70 in. x 12.05 in. x 11.22 in.)
Weight without packaging [kg(lb)] 1.05 kg (2.31 lb)
