Description
AirEngine 5762-17W overview

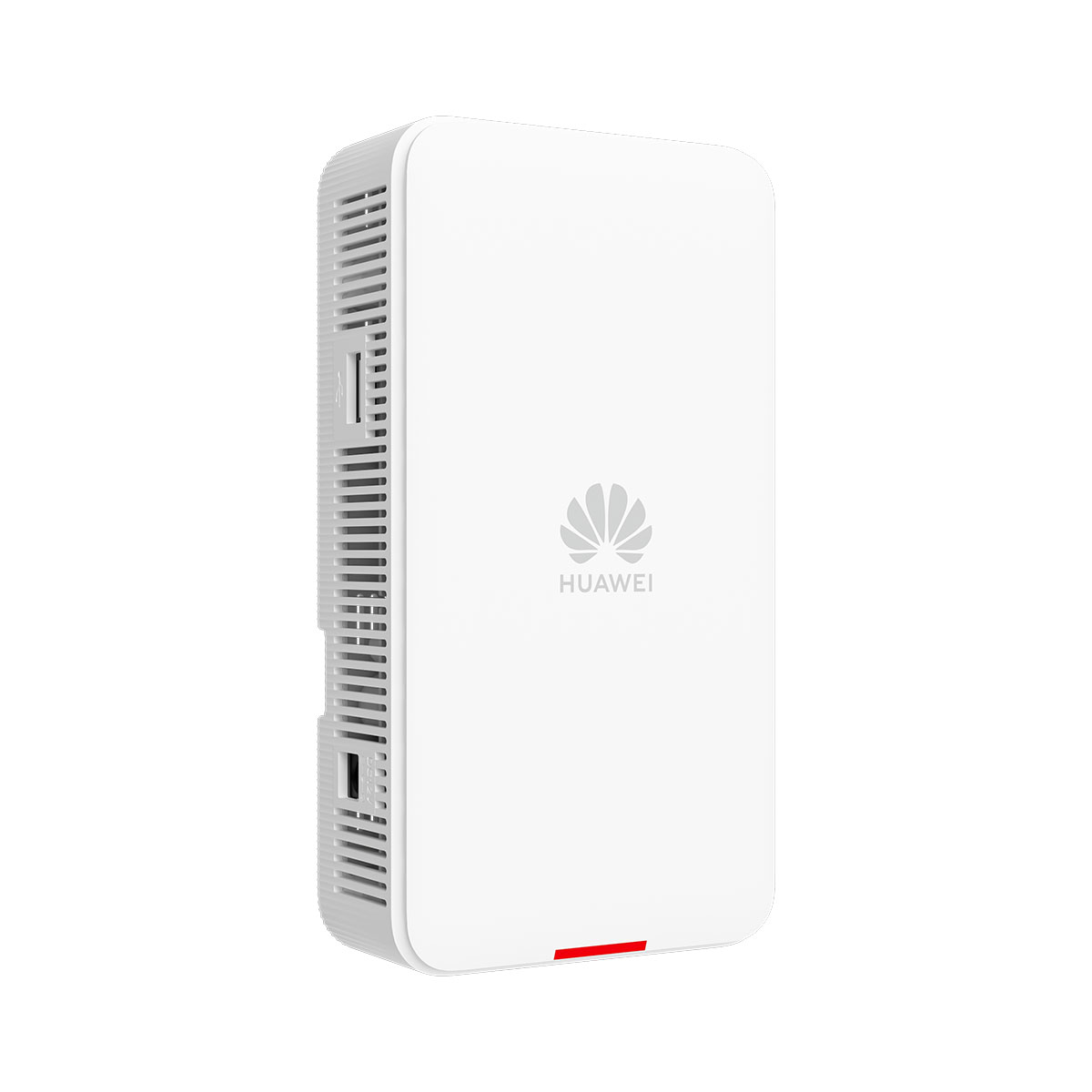

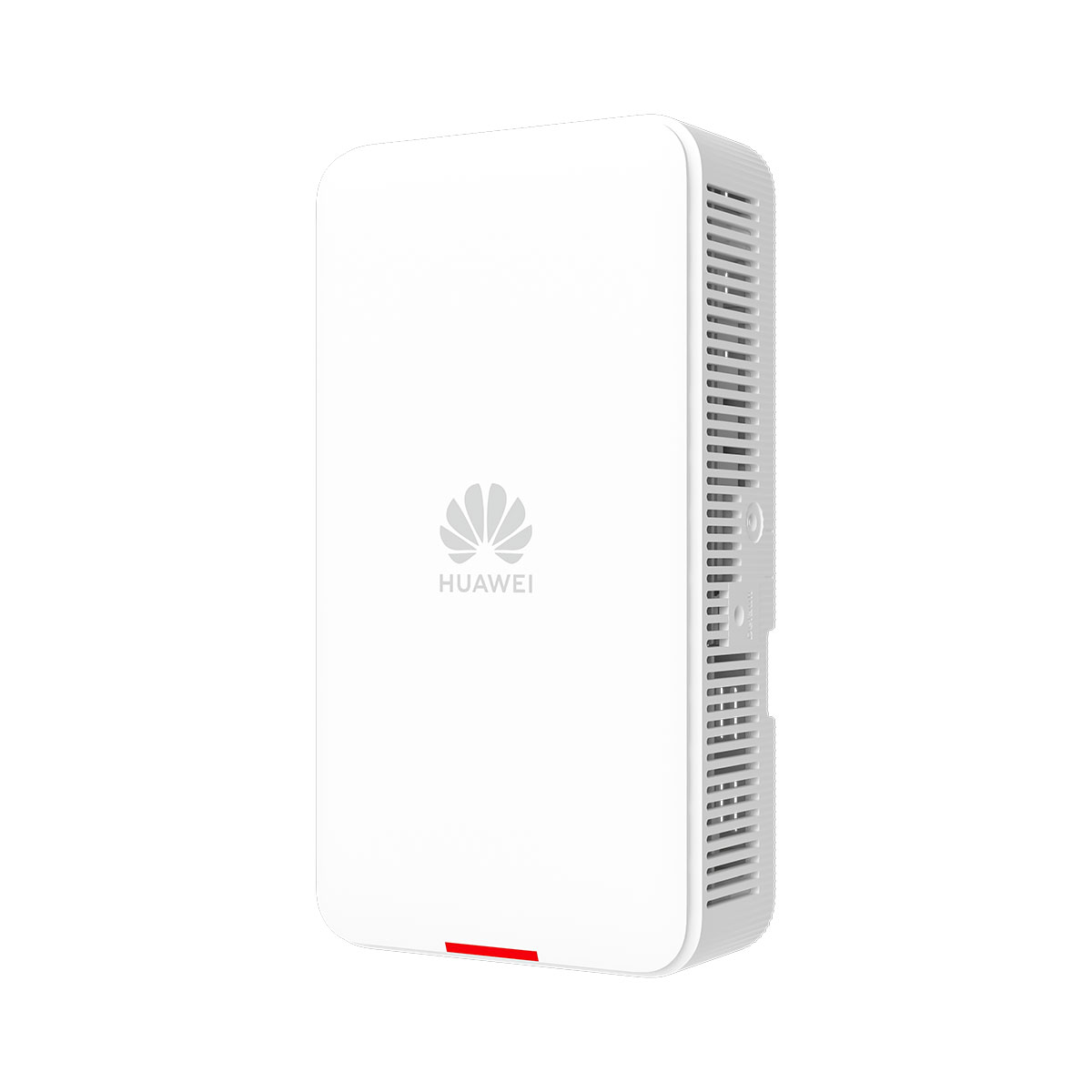

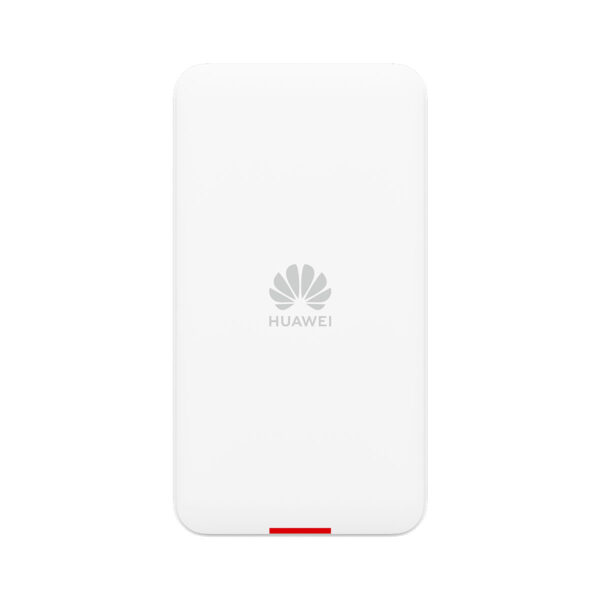

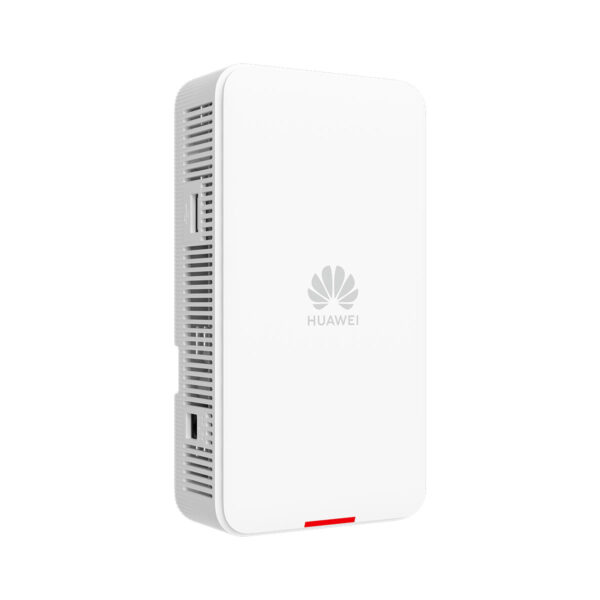

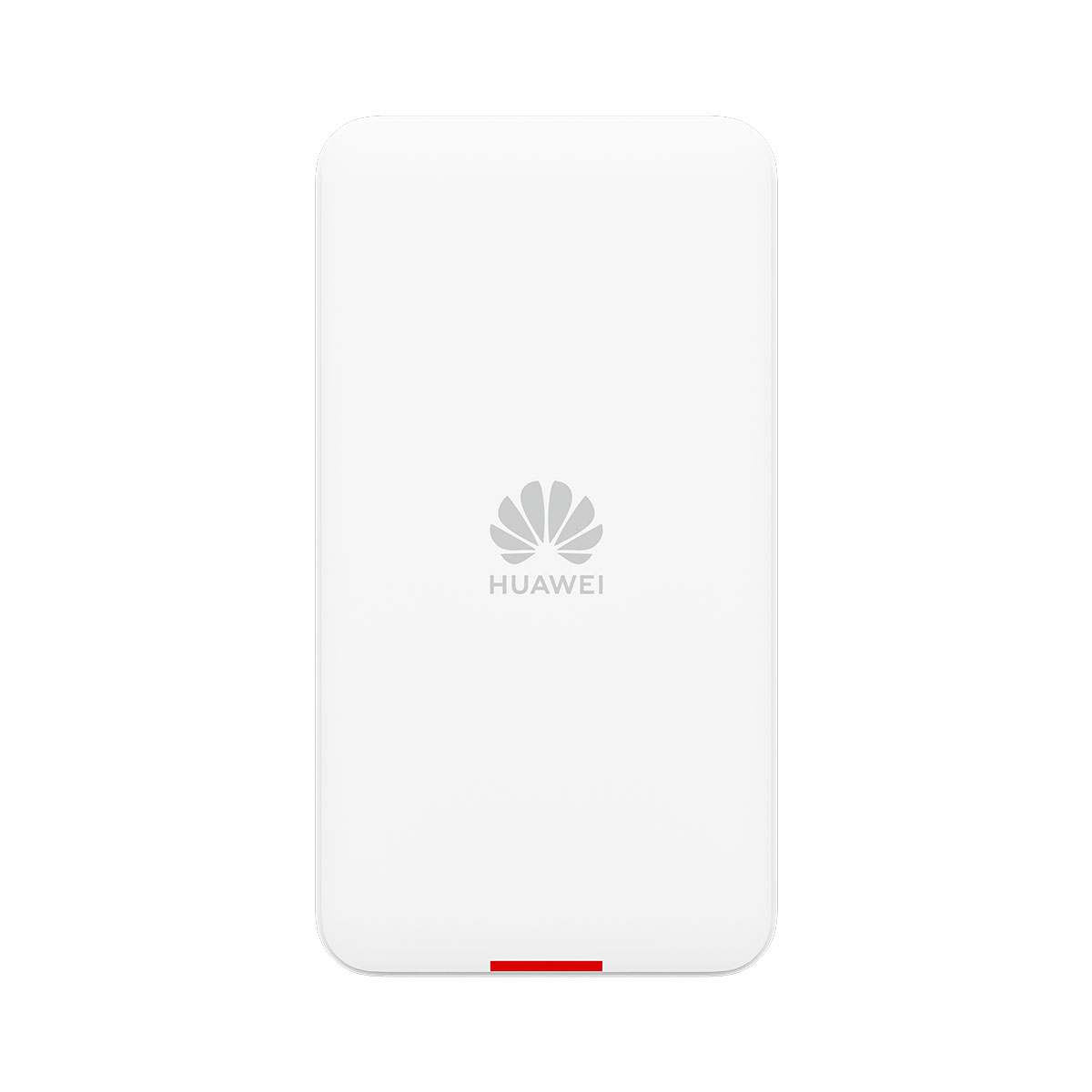

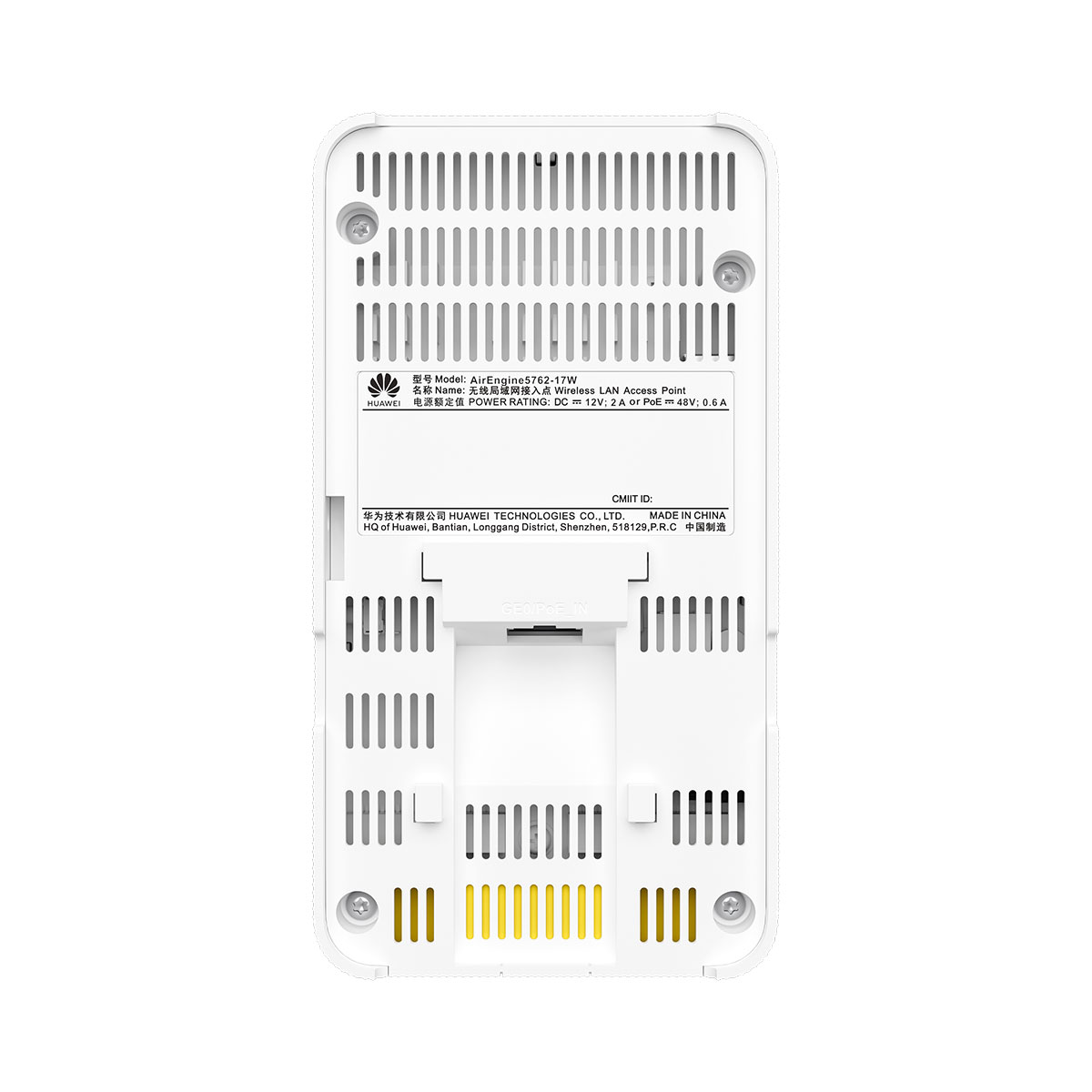

Huawei AirEngine 5762-17W is a Wi-Fi 6 (802.11ax) wall plate access point (AP) that has built-in smart antennas.
It can simultaneously provide services on 2.4 GHz (2×2 MIMO) and 5 GHz (2×2 MIMO) frequency bands. With four downlink GE ports, the AP is free of downlink bandwidth bottlenecks. Such strengths make the AP a good fit for high-density scenarios such as hotels, hospitals, and dormitories.
- Dual-radio mode: 2.4 GHz (2×2 MIMO) + 5 GHz (2×2 MIMO).
- Uplink: 1 x GE; downlink: 4 x GE.
- Various installation modes for easy deployment, including wall-mounting and plate-mounting.
- Built-in smart antennas to provide precise coverage for STAs, reduce interference, and improve signal quality.
- USB port for external IoT expansion (supporting protocols such as ZigBee, and RFID)
- Supports Bluetooth serial interface-based O&M through built-in Bluetooth and CloudCampus APP.
- Supports the Fat, Fit, and Cloud three working modes.
Front panel of the AirEngine 5762-17W board
Front panel of the AirEngine 5762-17W board

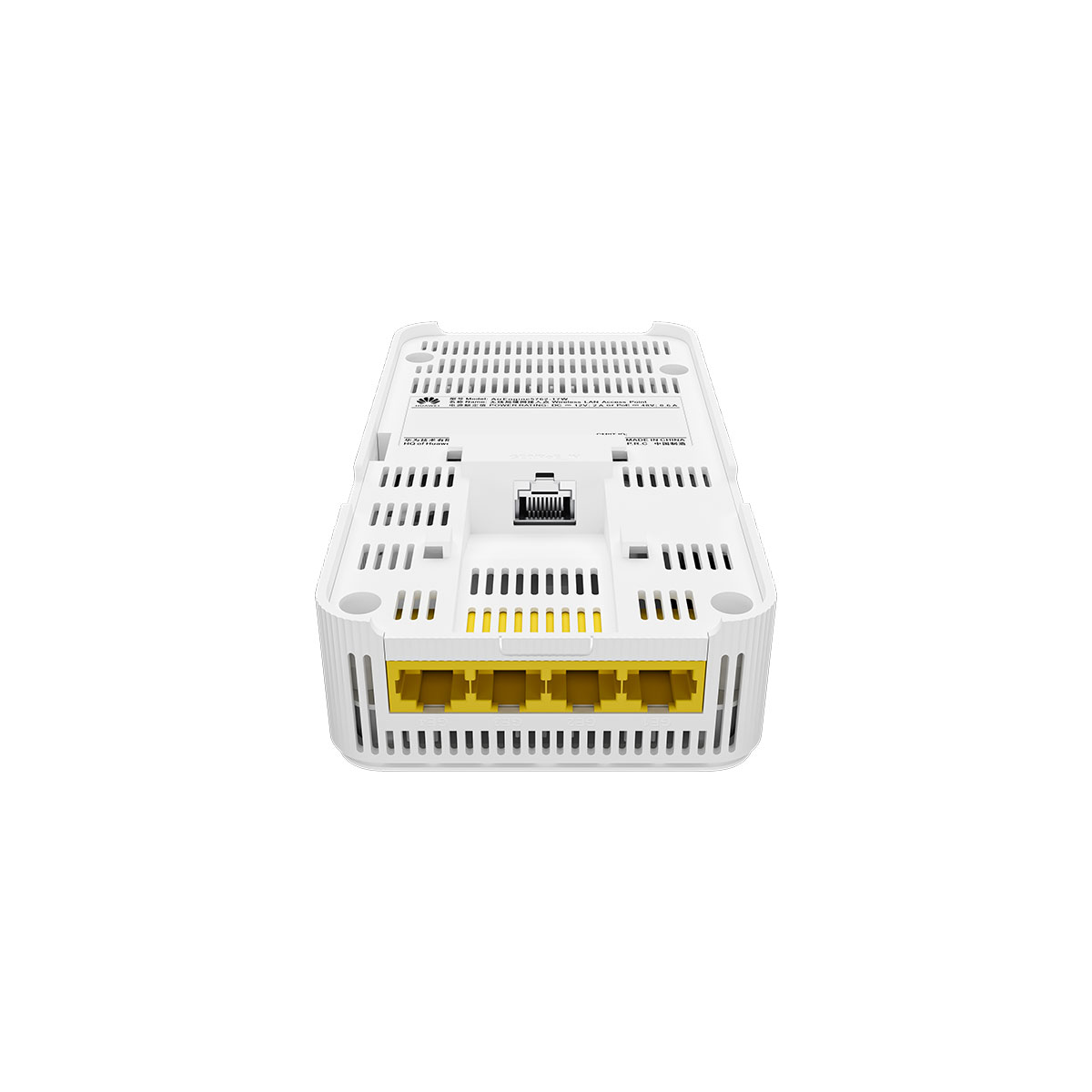

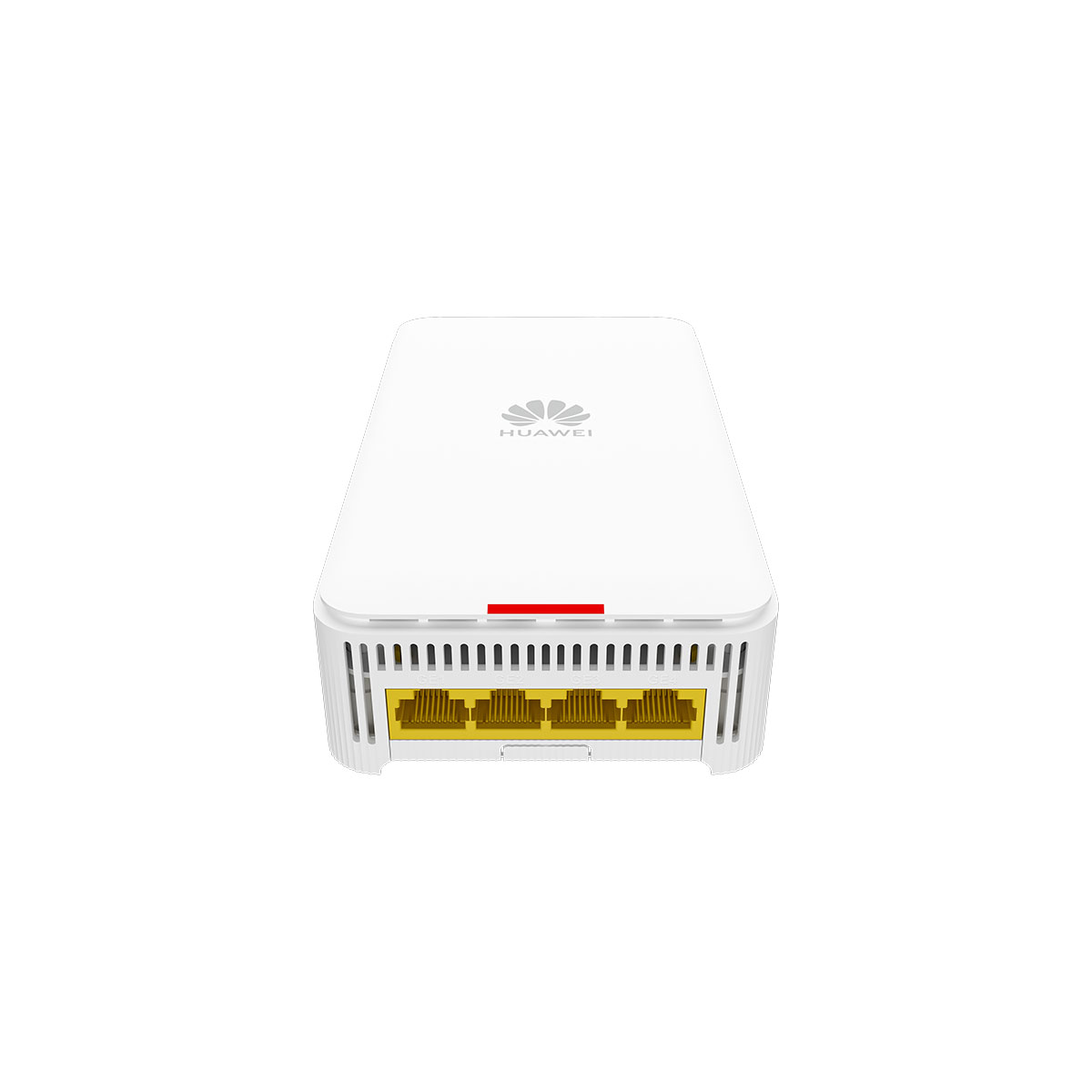

Ports on the AirEngine 5762-17W
1 |
GE0/PoE_IN |
2 |
GE1 to GE4 |
3 |
USB |
4 |
DC 12V |
