AirEngine 6760-X1 overview

Huawei AirEngine 6760-X1 is an indoor access point (AP) in compliance with the Wi-Fi 6 (802.11ax) standard. The AP uses built-in smart antennas to ensure always-on Wi-Fi signals for users, significantly enhancing users’ wireless network experience. It provides uplink optical and electrical ports, allowing customers to select different deployment modes and saving customers’ investment. These strengths make the AP ideal for scenarios such as enterprise office and education.

  • Working simultaneously on the 2.4 GHz and 5 GHz frequency bandsBy default, the dual-radio mode is supported with 4×4:4 MIMO on 2.4 GHz and 6×6:6 MIMO on 5 GHz.After an RTU license is loaded, more radio modes are supported.
    • Dual-radio mode: 2.4 GHz (4×4:4 MIMO) + 5 GHz (8×8:8 MIMO)
    • Triple-radio mode: 2.4 GHz (4×4:4 MIMO) + 5 GHz (4×4:4 MIMO) + 5 GHz (4×4:4 MIMO)
    • Dual-radio + independent scanning radio mode: 2.4 GHz (4×4:4 MIMO) + 5 GHz (6×6:6 MIMO)
  • 1 x 10GE electrical port + 1 x GE electrical port + 1 x 10GE SFP+ optical port
  • Built-in smart antennas that automatically adjust the coverage direction and signal strength based on the intelligent switchover algorithm to adapt to the application environment change, and provide accurate and stable coverage as STAs move
  • Built-in IoT slots, supporting IoT expansion such as BLE 5.0, ZigBee, RFID, and Thread
  • USB port for IoT expansion
  • Bluetooth serial interface-based O&M through the built-in Bluetooth module by collaborating with CloudCampus APP; collaboration with a location server to accurately locate Bluetooth terminals and tags
  • Working modes: Fit, Fat, and cloud management

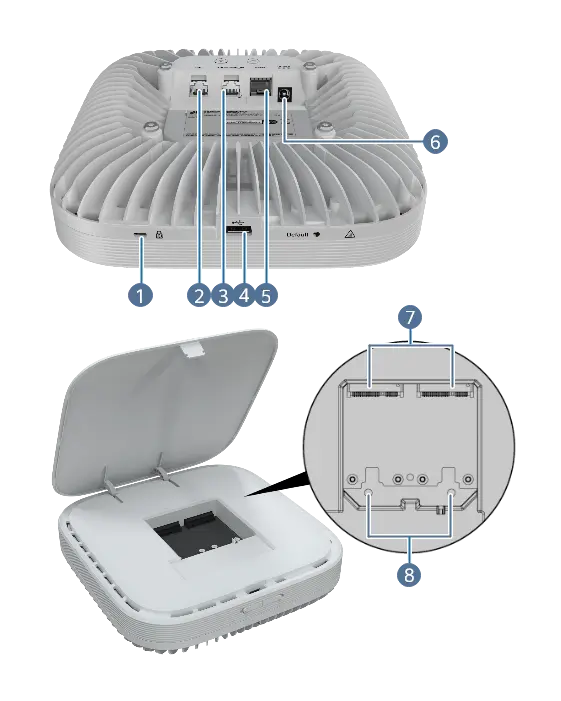

Front panel of the AirEngine 6760-X1

EN US IMAGE 0000001313553645

Front panel of the AirEngine 6760-X1



Ports on the AirEngine 6760-X1

1

Security slot

2

GE

3

10GE/PoE_IN

4

USB

5

SFP+

6

DC 48V

7

IoT slot

8

Built-in radio port connecting to an IoT card



Item AirEngine 6760-X1
Storage NAND Flash 512 MB; NOR Flash 16 MB
Console port BLE console
Maximum power consumption [W] 39.9 (excluding USB and IoT cards)
Maximum heat dissipation [BTU/hour] 136.1 (without USB or IoT card)
Power supply mode
  • PoE
  • DC power adapter
Rated input voltage [V] 48 V
Input voltage range [V]

DC: 43.2 V to 57.6 V

PoE: 802.3bt/at
Service port surge protection

PoE port:

Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B

Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B
Maximum number of physical ports on the entire device

10GE (RJ45) x 1, 10M/100M/1000M/2.5GE/5GE/10GE auto-sensing

GE (RJ45) x 1, 10M/100M/1000M auto-sensing

10GE optical port (SFP+), GE/10GE auto-sensing
Long-term operating temperature [°C(°F)] –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Ground Ground
USB USB 2.0
IoT slot IoT card
BLE BLE5.2
Radio number 2/3
Operating frequency band
  • 2.4GHz
  • 5GHz
MIMO spatial streams

Triple-radio mode:

  • Radio 0 (2.4 GHz): 4x4, maximum bandwidth of 40 MHz
  • Radio 1 (5 GHz): 4x4 (high frequency band), maximum bandwidth of 80 MHz
  • Radio 2 (5 GHz): 4x4 (low frequency band), maximum bandwidth 160 MHz

Dual-radio mode:

  • Radio 0 (2.4 GHz): 4x4, maximum bandwidth of 40 MHz
  • Radio 1 (5 GHz): 8x8, maximum bandwidth 160 MHz
Wi-Fi standard

2.4 GHz: 802.11b/g/n/ax

5 GHz: 802.11a/n/ac/ac Wave 2/ax
Radio interface Built-in smart antennas
Antenna gain

2.4 GHz: 4.5 dBi

5 GHz: 6 dBi

BLE: 4 dBi
Maximum transmit power

2.4 GHz: 26 dBm

5 GHz: 29 dBm

(Note: This is the total MIMO radio power, the same as:

2.4 GHz: 20 dBm/chain

5 GHz: 20 dBm/chain)

BLE: < 10 dBm
Singal radio transmit power [dBm]

2.4G: -10 dBm to 20 dBm/chain

5G: -10 dBm to 20 dBm/chain
MTBF [year] 74 year
MTTR [hour] 0.5 hour
Frequency stability [ppm] +/-20
802.3bt power supply description

In 802.3bt Class 8 power supply mode:

  • If an RTU license is loaded, no function is restricted.
  • If no RTU license is loaded, Wi-Fi works in 2.4 GHz (4x4) + 5 GHz (6x6) mode and other functions are not restricted.

In 802.3bt Class 6 power supply mode:

- With an RTU license loaded:

Wi-Fi: If the USB and IoT card slots are not used, the number of spatial streams and transmit power are not affected. If they are used, the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact the product manager.

Wired network port: not restricted

Other ports: The USB port and IoT card slot are available. If they are used, the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact the product manager.

- Without an RTU license loaded:

Wi-Fi: 2.4 GHz (4x4) + 5 GHz (6x6). The radio transmit power is not affected. If the USB port and IoT card slot are used, the radio working bandwidth may be affected. For details, contact the product manager.

Wired network port: not restricted

Other ports: The USB port and IoT card slot are available. If they are used, the radio working bandwidth may be affected. For details, contact the product manager.
802.3at power supply description

With an RTU license loaded:

Wi-Fi:

If the USB and IoT card slots are not used, the radio transmit power is not affected.

  • Dual-radio mode: 2.4 GHz (2x2) + 5 GHz (4x4)
  • Triple-radio mode: 2.4 GHz (2x2) + 5 GHz (2x2, high band) + 5 GHz (2x2, low band)
  • Dual-radio + independent radio scanning mode: 2.4 GHz (2x2) + 5 GHz (2x2) + 5 GHz independent radio scanning

If the USB and IoT card slot are both used, the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact the product manager.

Wired network port:

The speed of the 10GE electrical port is reduced to GE or lower. The 10GE electrical port and SFP+ optical port are combo ports, and only one of them is available at the same time. (In V200R021C10 and later versions, the GE electrical port is also available in standard dual-radio mode.)

Other ports:

Either the 2.5 W USB port or IoT card slot can be used at the same time. The IoT card slot takes precedence. If both of them are used, Wi-Fi can only work in 2.4 GHz (2x2) + 5 GHz (2x2) mode. For details, contact the product manager.

Without an RTU license loaded:

Wi-Fi:

  • If no USB or IoT card slot is used, Wi-Fi can work only in 2.4 GHz (2x2) + 5 GHz (4x4) mode, and the radio transmit power is not affected.
  • If the USB and IoT card slot are both used, the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact the product manager.

Wired network port:

The speed of the 10GE electrical port is reduced to GE or lower. The 10GE electrical port and SFP+ optical port are combo ports, and only one of them is available at the same time. (In V200R021C10 and later versions, the GE electrical port is also available in standard dual-radio mode.)

Other ports:

Either the 2.5 W USB port or IoT card slot can be used at the same time. The IoT card slot takes precedence. If both of them are used, Wi-Fi can only work in 2.4 GHz (2x2) + 5 GHz (2x2) mode. For details, contact the product manager.
DC power supply description

If an RTU license is loaded, no function is restricted.

If no RTU license is loaded, Wi-Fi works in 2.4 GHz (4x4) + 5 GHz (6x6) mode and other functions are not restricted.
Installation Type
  • Wall
  • Ceiling
  • T-Rail
Dimensions without packaging (H x W x D) [mm(in.)] 61 mm x 220 mm x 220 mm (2.40 in. x 8.66 in. x 8.66 in.)
Weight without packaging [kg(lb)] 1.85 kg (4.08 lb)

Additional information

Brand

Huawei
Item AirEngine 6760-X1
Storage NAND Flash 512 MB; NOR Flash 16 MB
Console port BLE console
Maximum power consumption [W] 39.9 (excluding USB and IoT cards)
Maximum heat dissipation [BTU/hour] 136.1 (without USB or IoT card)
Power supply mode
  • PoE
  • DC power adapter
Rated input voltage [V] 48 V
Input voltage range [V]

DC: 43.2 V to 57.6 V

PoE: 802.3bt/at
Service port surge protection

PoE port:

Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B

Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B
Maximum number of physical ports on the entire device

10GE (RJ45) x 1, 10M/100M/1000M/2.5GE/5GE/10GE auto-sensing

GE (RJ45) x 1, 10M/100M/1000M auto-sensing

10GE optical port (SFP+), GE/10GE auto-sensing
Long-term operating temperature [°C(°F)] –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Ground Ground
USB USB 2.0
IoT slot IoT card
BLE BLE5.2
Radio number 2/3
Operating frequency band
  • 2.4GHz
  • 5GHz
MIMO spatial streams

Triple-radio mode:

  • Radio 0 (2.4 GHz): 4x4, maximum bandwidth of 40 MHz
  • Radio 1 (5 GHz): 4x4 (high frequency band), maximum bandwidth of 80 MHz
  • Radio 2 (5 GHz): 4x4 (low frequency band), maximum bandwidth 160 MHz

Dual-radio mode:

  • Radio 0 (2.4 GHz): 4x4, maximum bandwidth of 40 MHz
  • Radio 1 (5 GHz): 8x8, maximum bandwidth 160 MHz
Wi-Fi standard

2.4 GHz: 802.11b/g/n/ax

5 GHz: 802.11a/n/ac/ac Wave 2/ax
Radio interface Built-in smart antennas
Antenna gain

2.4 GHz: 4.5 dBi

5 GHz: 6 dBi

BLE: 4 dBi
Maximum transmit power

2.4 GHz: 26 dBm

5 GHz: 29 dBm

(Note: This is the total MIMO radio power, the same as:

2.4 GHz: 20 dBm/chain

5 GHz: 20 dBm/chain)

BLE: < 10 dBm
Singal radio transmit power [dBm]

2.4G: -10 dBm to 20 dBm/chain

5G: -10 dBm to 20 dBm/chain
MTBF [year] 74 year
MTTR [hour] 0.5 hour
Frequency stability [ppm] +/-20
802.3bt power supply description

In 802.3bt Class 8 power supply mode:

  • If an RTU license is loaded, no function is restricted.
  • If no RTU license is loaded, Wi-Fi works in 2.4 GHz (4x4) + 5 GHz (6x6) mode and other functions are not restricted.

In 802.3bt Class 6 power supply mode:

- With an RTU license loaded:

Wi-Fi: If the USB and IoT card slots are not used, the number of spatial streams and transmit power are not affected. If they are used, the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact the product manager.

Wired network port: not restricted

Other ports: The USB port and IoT card slot are available. If they are used, the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact the product manager.

- Without an RTU license loaded:

Wi-Fi: 2.4 GHz (4x4) + 5 GHz (6x6). The radio transmit power is not affected. If the USB port and IoT card slot are used, the radio working bandwidth may be affected. For details, contact the product manager.

Wired network port: not restricted

Other ports: The USB port and IoT card slot are available. If they are used, the radio working bandwidth may be affected. For details, contact the product manager.
802.3at power supply description

With an RTU license loaded:

Wi-Fi:

If the USB and IoT card slots are not used, the radio transmit power is not affected.

  • Dual-radio mode: 2.4 GHz (2x2) + 5 GHz (4x4)
  • Triple-radio mode: 2.4 GHz (2x2) + 5 GHz (2x2, high band) + 5 GHz (2x2, low band)
  • Dual-radio + independent radio scanning mode: 2.4 GHz (2x2) + 5 GHz (2x2) + 5 GHz independent radio scanning

If the USB and IoT card slot are both used, the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact the product manager.

Wired network port:

The speed of the 10GE electrical port is reduced to GE or lower. The 10GE electrical port and SFP+ optical port are combo ports, and only one of them is available at the same time. (In V200R021C10 and later versions, the GE electrical port is also available in standard dual-radio mode.)

Other ports:

Either the 2.5 W USB port or IoT card slot can be used at the same time. The IoT card slot takes precedence. If both of them are used, Wi-Fi can only work in 2.4 GHz (2x2) + 5 GHz (2x2) mode. For details, contact the product manager.

Without an RTU license loaded:

Wi-Fi:

  • If no USB or IoT card slot is used, Wi-Fi can work only in 2.4 GHz (2x2) + 5 GHz (4x4) mode, and the radio transmit power is not affected.
  • If the USB and IoT card slot are both used, the number of spatial streams, transmit power, and bandwidth may be affected. For details, contact the product manager.

Wired network port:

The speed of the 10GE electrical port is reduced to GE or lower. The 10GE electrical port and SFP+ optical port are combo ports, and only one of them is available at the same time. (In V200R021C10 and later versions, the GE electrical port is also available in standard dual-radio mode.)

Other ports:

Either the 2.5 W USB port or IoT card slot can be used at the same time. The IoT card slot takes precedence. If both of them are used, Wi-Fi can only work in 2.4 GHz (2x2) + 5 GHz (2x2) mode. For details, contact the product manager.
DC power supply description

If an RTU license is loaded, no function is restricted.

If no RTU license is loaded, Wi-Fi works in 2.4 GHz (4x4) + 5 GHz (6x6) mode and other functions are not restricted.
Installation Type
  • Wall
  • Ceiling
  • T-Rail
Dimensions without packaging (H x W x D) [mm(in.)] 61 mm x 220 mm x 220 mm (2.40 in. x 8.66 in. x 8.66 in.)
Weight without packaging [kg(lb)] 1.85 kg (4.08 lb)
