Description

AirEngine 6760R-51E overview

Huawei AirEngine 6760R-51E is an outdoor AP in compliance with the Wi-Fi 6 standard. It stands out with excellent outdoor coverage performance, IP68 waterproof and dustproof design, and strong surge protection capability. The AP provides uplink optical and electrical ports, allowing customers to select different deployment modes and saving customers’ investment. These strengths make AirEngine 6760R-51E ideal for high-density scenarios such as stadiums, squares, pedestrian streets, and amusement parks.

  • The dual-radio mode is supported with 4×4:4 MIMO on 2.4 GHz and 4×4:4 MIMO on 5 GHz
  • 1 x 5GE electrical port + 1 x GE electrical port + 1 x 10GE SFP+ optical port
  • 6 kA surge protection for Ethernet ports, IP68 waterproof and dustproof level, and extended operating temperature range of –40°C to +65°C, meeting industrial-grade requirements
  • The external antenna port of the AirEngine 6760R-51E supports 5 kA surge protection, eliminating the need to install an external surge protector, simplifying installation, and reducing the overall cost.
  • Bluetooth serial interface-based O&M through the built-in Bluetooth module by collaborating with CloudCampus APP; collaboration with a location server to accurately locate Bluetooth terminals and tags
  • Working modes: Fit, Fat, and cloud management

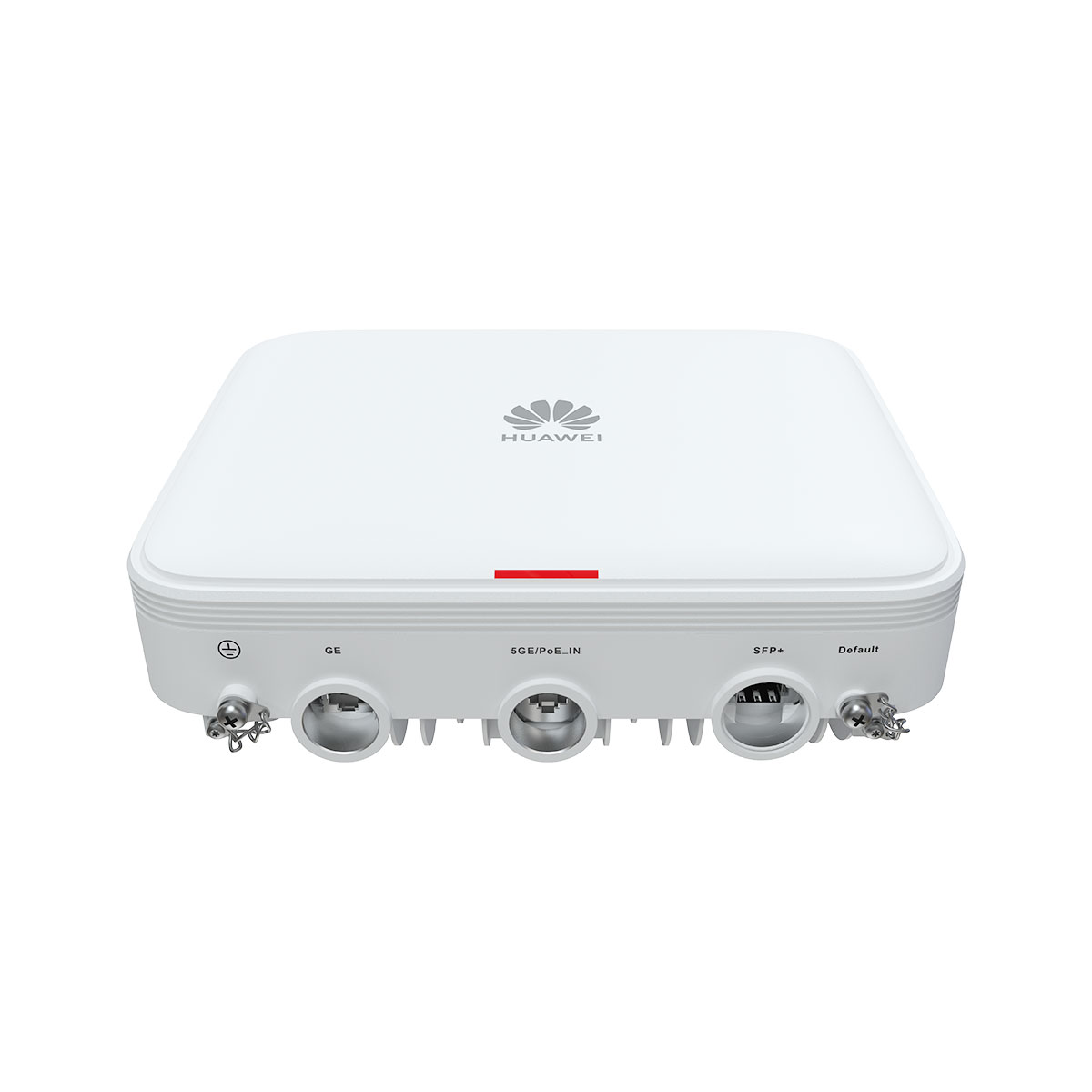

Front panel of the AirEngine 6760R-51E

AirEngine 6760R-51E

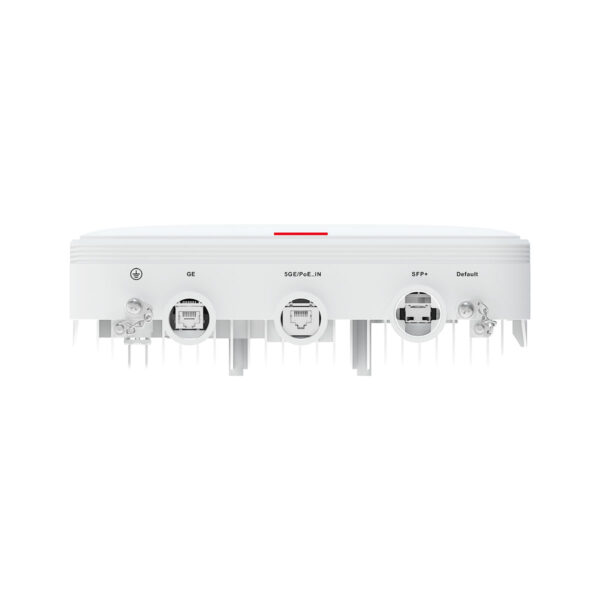

Front panel of the AirEngine 6760R-51E



Ports on the AirEngine 6760R-51E

1

Ground screw

2

GE

3

5GE/PoE_IN

4

SFP+

5

Security slot

6

Antenna port



Item AirEngine 6760R-51E
Installation Type
  • Wall
  • Pole
Dimensions without packaging (H x W x D) [mm(in.)] 85 mm x 270 mm x 220 mm (3.35 in. x 10.63 in. x 8.66 in.)
Weight without packaging [kg(lb)] 3.1 kg (6.83 lb)
Storage NAND Flash 512 MB; NOR Flash 16 MB
Console port BLE console
Maximum power consumption [W] 35.3 W
Maximum heat dissipation [BTU/hour] 120.4 BTU/hour
Power supply mode PoE
Input voltage range [V] PoE: 802.3bt/at
Service port surge protection 6 kA in common mode
Maximum number of physical ports on the entire device

5GE (RJ45) x 1, 10M/100M/1000M/2.5GE/5GE auto-sensing

GE (RJ45) x 1, 10M/100M/1000M auto-sensing

10GE optical port (SFP+), GE/10GE auto-sensing
Long-term operating temperature [°C(°F)] –40°C to +65°C (–40°F to +149°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)] –40°C to +85°C (–40°F to +185°F)
Long-term operating relative humidity [RH] 0% RH to 100% RH
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Ingress protection level (dustproof/waterproof) IP68
Ground Ground
Antenna port surge protection [kA] 5 kA surge protection capability without external surge protection devices
Wind resistance 67 m/s
BLE BLE5.2
Radio number 2
Operating frequency band
  • 2.4GHz
  • 5GHz
MIMO spatial streams

Radio 0 (2.4 GHz): 4x4

Radio 1 (5 GHz): 4x4
Wi-Fi standard

2.4 GHz: 802.11b/g/n/ax

5 GHz: 802.11a/n/ac/ac Wave 2/ax
Radio interface External antenna
Antenna gain BLE: 5 dBi
Maximum transmit power

2.4 GHz: 30 dBm

5 GHz: 30 dBm

(Note: This is the total MIMO radio power, the same as:

2.4 GHz: 24 dBm/chain

5 GHz: 24 dBm/chain)

BLE: < 10 dBm
Singal radio transmit power [dBm]

2.4G: -10 dBm to 24 dBm/chain

5G: -10 dBm to 24 dBm/chain
MTBF [year] 91.9 year
MTTR [hour] 0.5 hour
Frequency stability [ppm] +/-20
802.3bt power supply description No function is limited.
802.3at power supply description

Wi-Fi: 2.4 GHz (2x2) + 5 GHz (2x2), without affecting the transmit power of radios;

Wired network port: The rate of the 5GE electrical port is reduced to GE or lower. The 5GE electrical port and the SFP+ optical port work as combo ports, and when one of them is working, the other is unavailable. The GE electrical port is unavailable.
