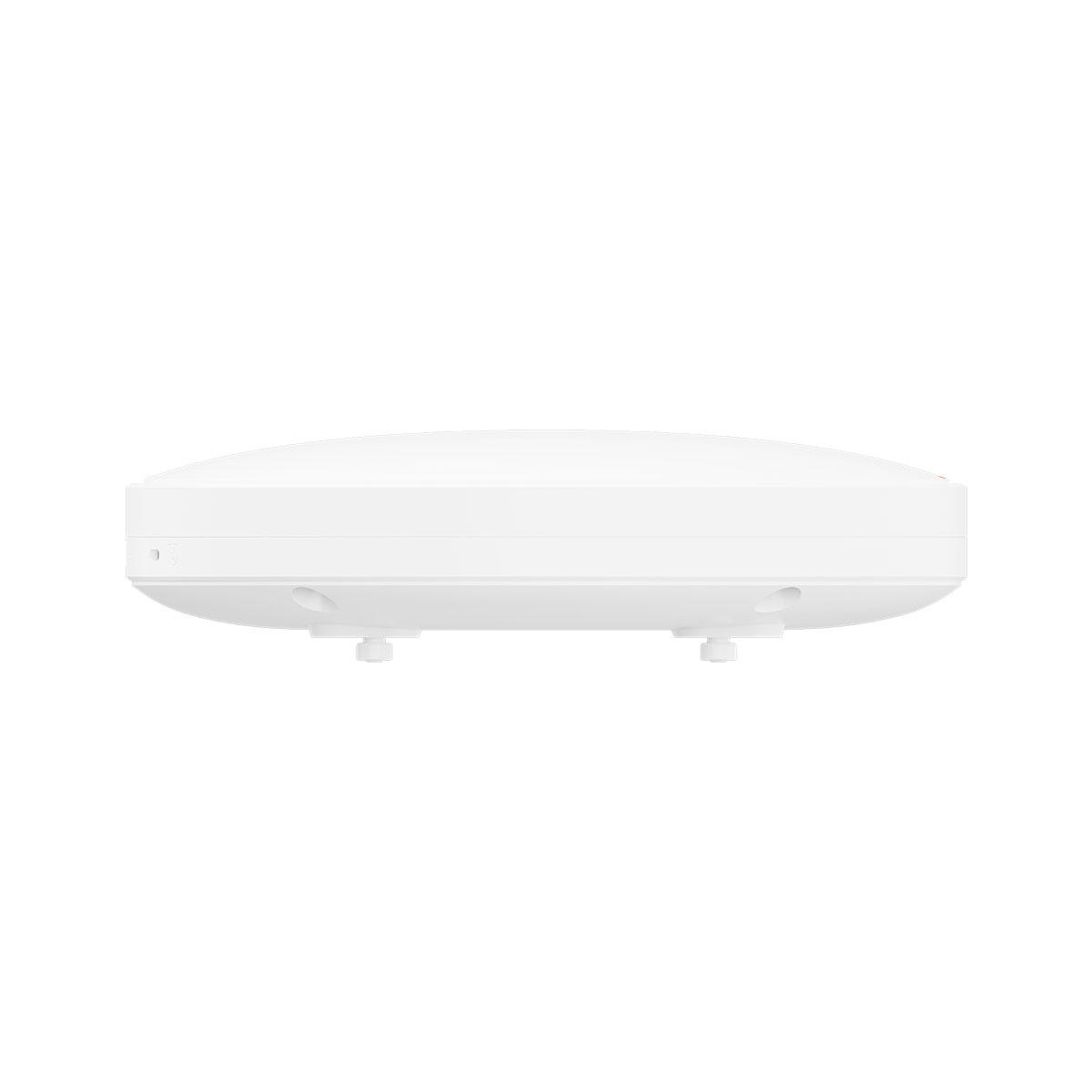

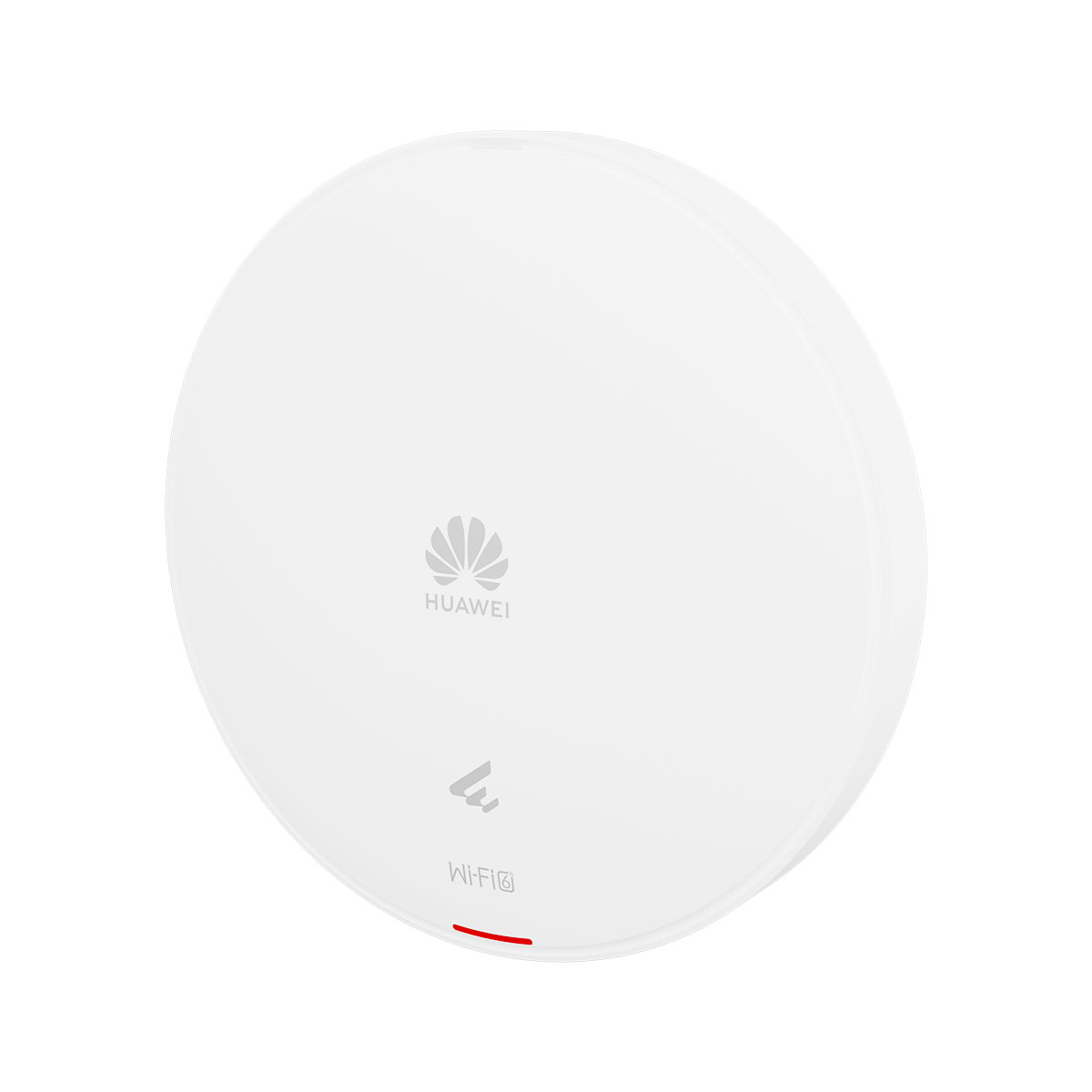

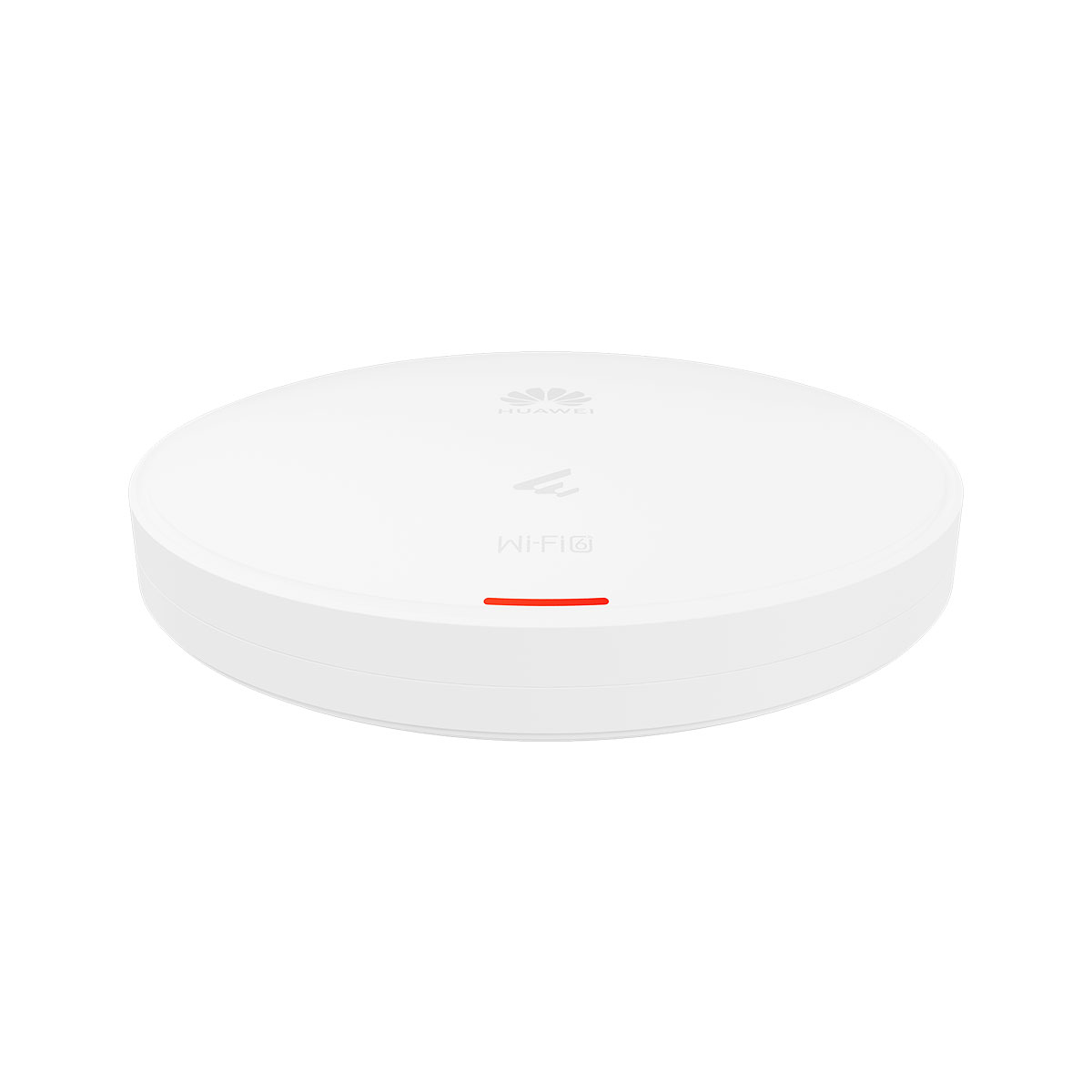

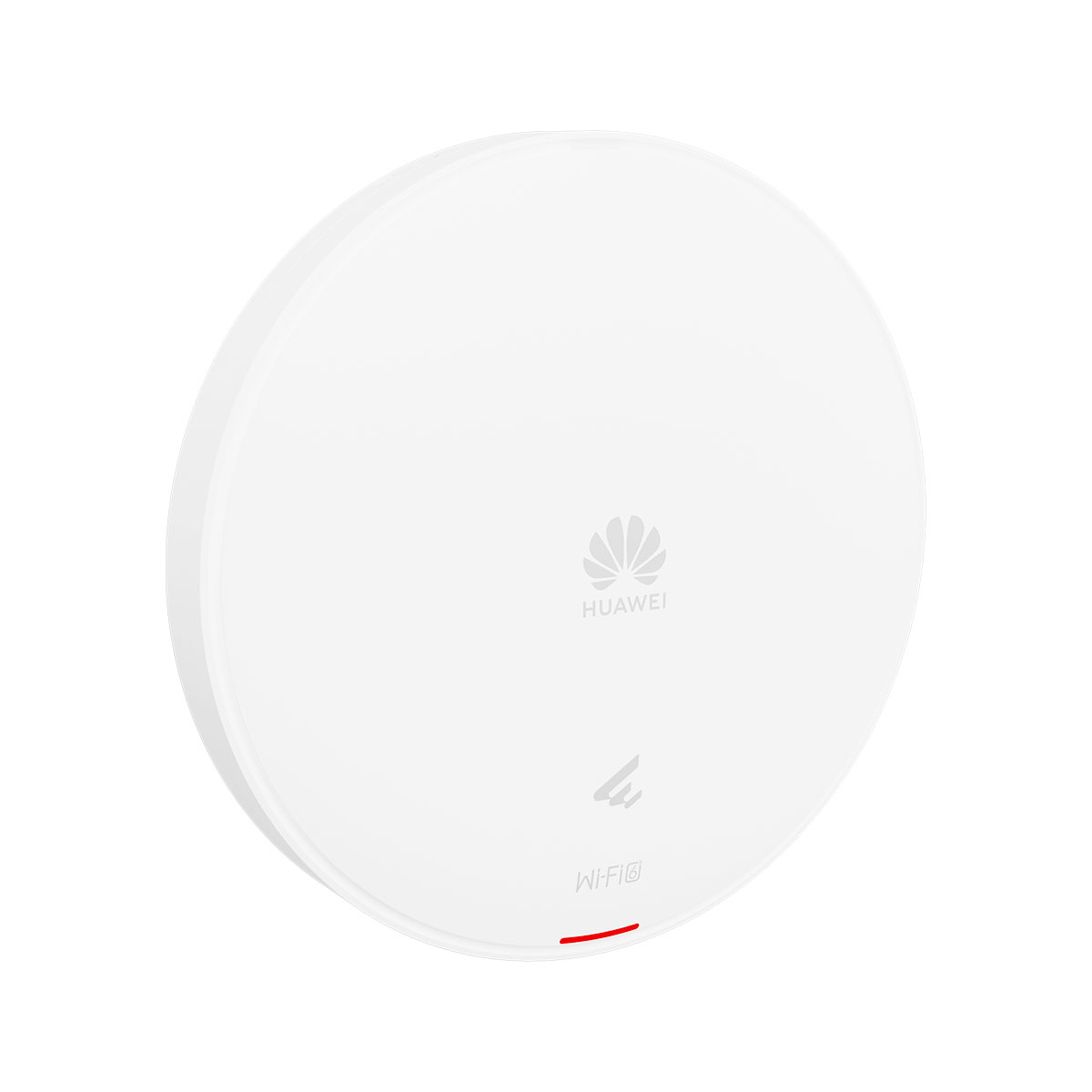

AirEngine 6761S-21

0 Reviews Write a review
PN02354JQH
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Huawei AirEngine 6761S-21 indoor access point (AP) with 11ax indoor, 4+4 dual bands, smart antenna, USB, BLE, Scan

Description

AirEngine 6761S-21 overview

Huawei AirEngine 6761S-21 is an indoor access point (AP) in compliance with the Wi-Fi 6 (802.11ax) standard. The AP uses built-in smart antennas to ensure always-on Wi-Fi signals for users, significantly enhancing users’ wireless network experience. It provides uplink 10GE optical and 2.5GE electrical ports, facilitating flexible deployment and saving the customer investment. These strengths make the AP ideal for densely populated scenarios such as mobile office, education, and stadiums.

  • Working simultaneously on the 2.4 GHz (4×4) + 5 GHz (4×4) frequency bands
  • 1 x 2.5GE electrical port + 1 x 10GE optical port
  • Independent scanning radio for scanning the air interface without affecting service performance, thereby achieving real-time monitoring and optimization for WLAN network quality
  • Built-in smart antennas that automatically adjust the coverage direction and signal strength based on the intelligent switchover algorithm to adapt to the application environment change, and provide accurate and stable coverage as STAs move

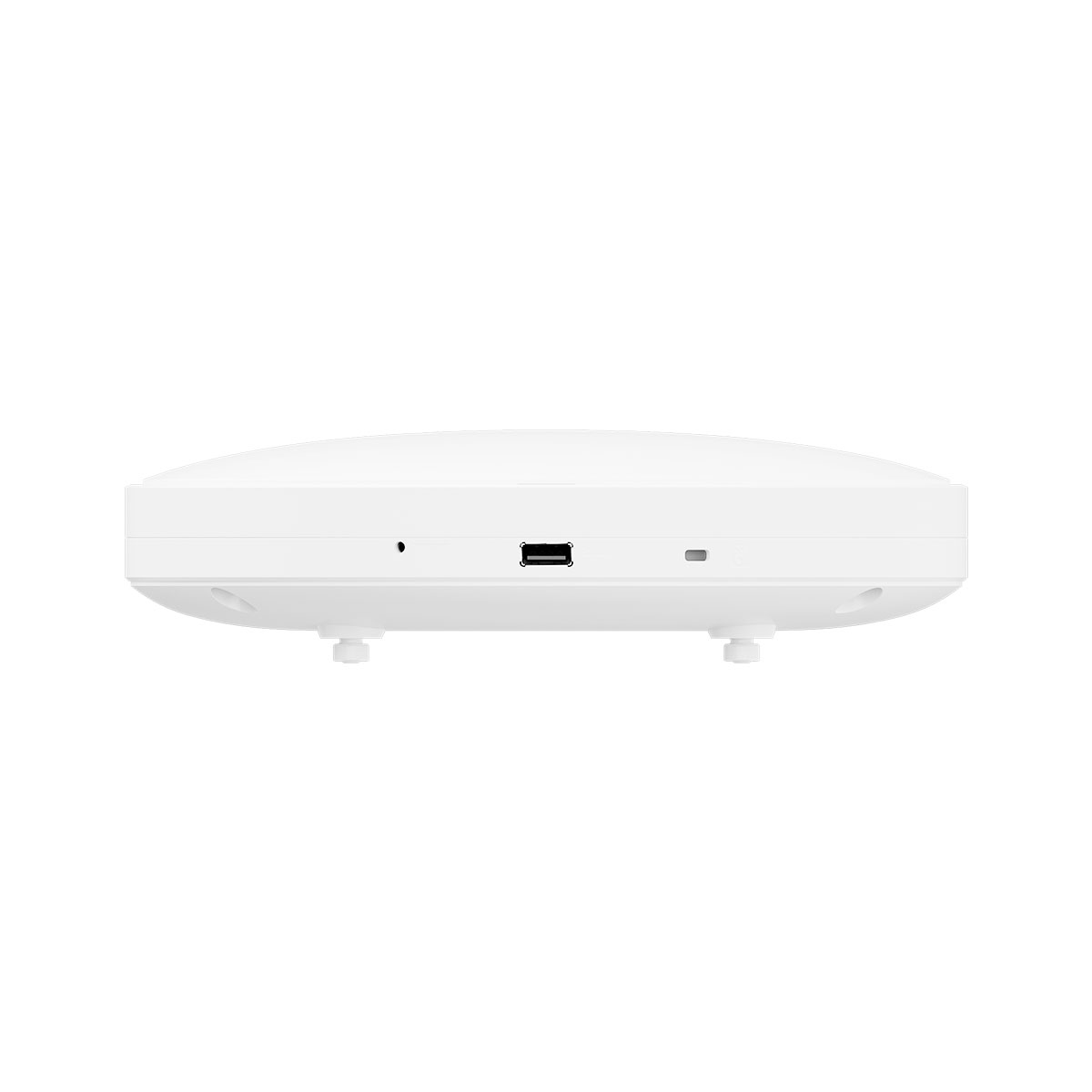

  • USB port for IoT expansion
  • Bluetooth serial interface-based O&M through the built-in Bluetooth module by collaborating with CloudCampus APP; collaboration with a location server to accurately locate Bluetooth terminals and tags
  • Working modes: Fit, Fat, and cloud management

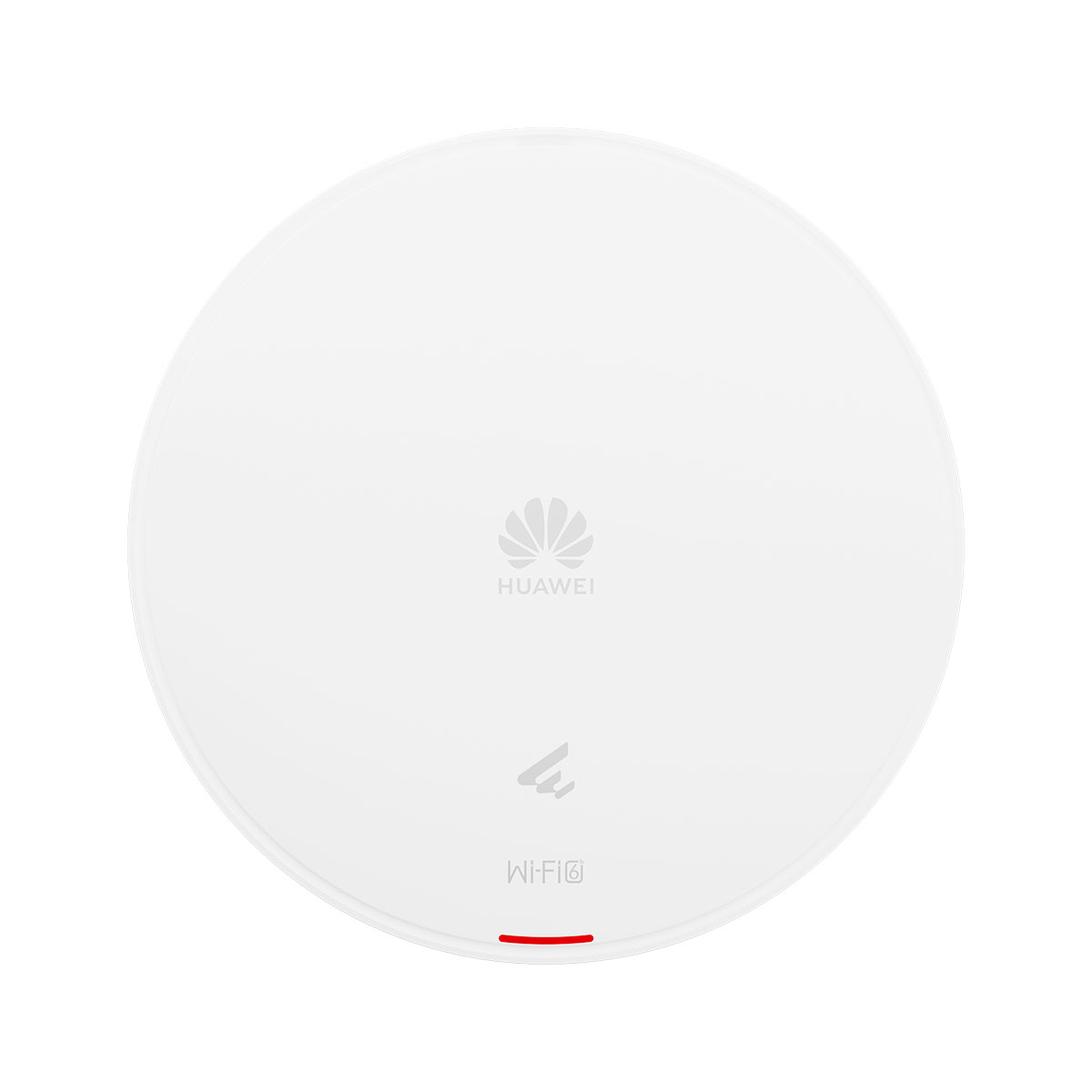

Front panel of the AirEngine 6761S-21

AirEngine 6761S 21

Front panel of the AirEngine 6761S-21

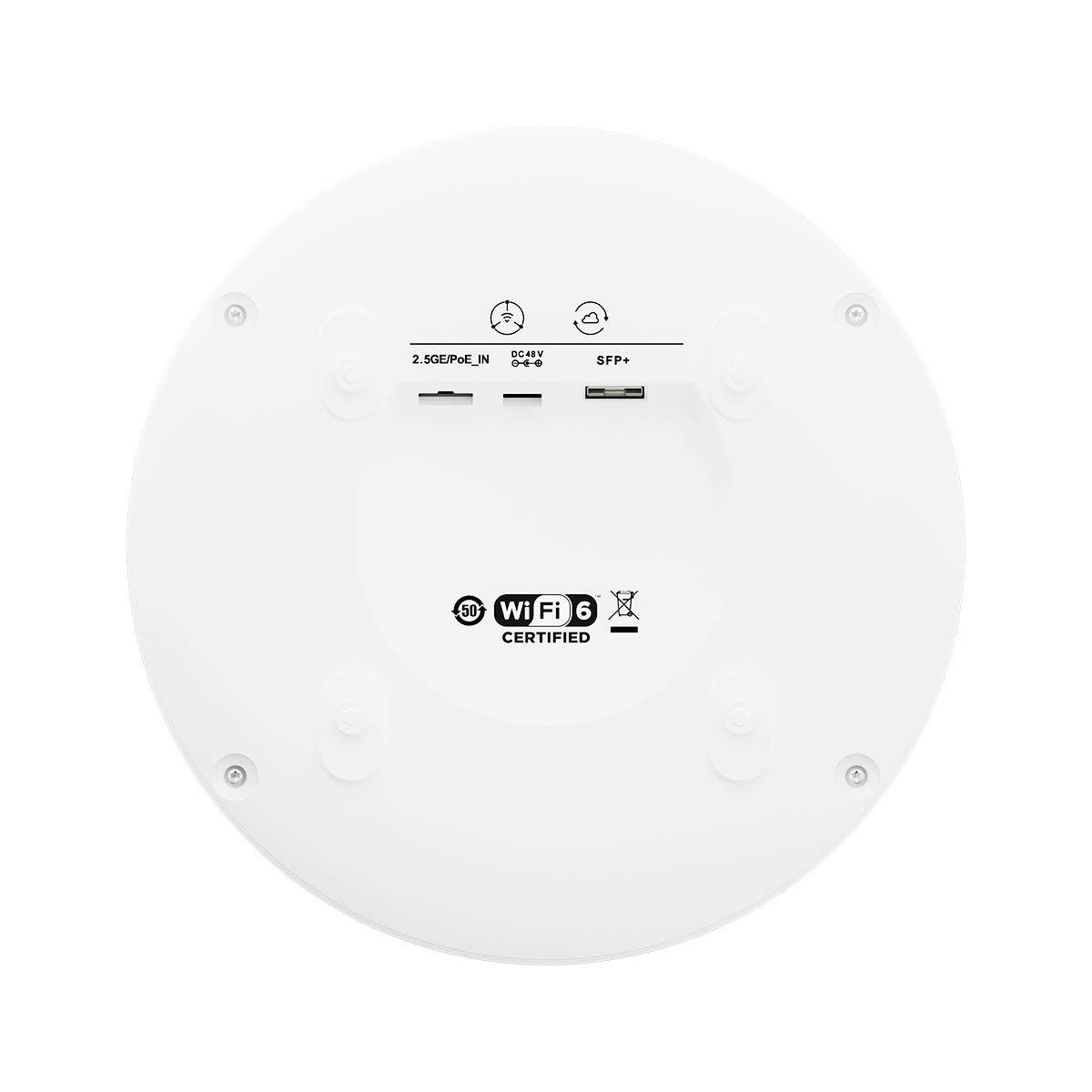

Ports on the AirEngine 6761S-21

1

Security slot

2

2.5GE/PoE_IN

3

DC 48V

4

USB

5

SFP+



Item AirEngine 6761S-21
Storage NAND Flash 512 MB
Console port BLE console
Maximum power consumption [W] 22.6 (excluding USB)
Maximum heat dissipation [BTU/hour] 77.1 (without USB)
Power supply mode
  • PoE
  • DC power adapter
Rated input voltage [V] 12 V
Input voltage range [V]

DC: 42.5 V to 57 V

PoE: 802.3at/af

Service port surge protection

PoE port:

Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B

Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B

Relationship between PoE and system power modules [W]

No priorities are distinguished for the following power supply modes: DC power supply, PoE power supply over an Ethernet cable, and PoE power supply over a hybrid cable, which do not support hot backup.

Either of the electrical port or the SFP+ hybrid port can be used for PoE input, but not both.

Maximum number of physical ports on the entire device

2.5GE (RJ45) x 1, 100M/1000M/2.5GE auto-sensing

10GE (SFP+) x 1, 1000M/10GE auto-sensing

Either the 2.5GE electrical port or SFP+ optical port can be used for data communication at the same time. If both ports are connected, the optical port is preferentially used for communication.

Long-term operating temperature [°C(°F)] –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Ground floating ground
USB USB 2.0
BLE BLE5.2
Radio number 2
Operating frequency band
  • 2.4GHz
  • 5GHz
MIMO spatial streams

Radio 0 (2.4 GHz): 4x4

Radio 1 (5 GHz): 4x4

Wi-Fi standard

2.4 GHz: 802.11b/g/n/ax

5 GHz: 802.11a/n/ac/ac Wave 2/ax

Radio interface Built-in Dynamic-Zoom Smart Antennas
Antenna gain

2.4G:

4.5 dBi/chain (peak value)

2 dBi (combined gain)

5G:

5.5 dBi/chain (peak value)

3 dBi (combined gain)

BLE: 4 dBi

Beamwidth of the built-in antenna [degrees]
  • Common indoor coverage scenario: omnidirectional coverage
  • Indoor high-density coverage scenario: lobe angle of 120°
Maximum transmit power

2.4 GHz: 26 dBm

5 GHz: 26 dBm

(Note: This is the total MIMO radio power, the same as:

2.4 GHz: 20 dBm/chain

5 GHz: 20 dBm/chain)

BLE: < 10 dBm

Singal radio transmit power [dBm]

2.4G: -10 dBm to 20 dBm/chain

5G: -10 dBm to 20 dBm/chain

MTBF [year] 69.7 year
MTTR [hour] 0.5 hour
Frequency stability [ppm] +/-20
802.3at power supply description

Wi-Fi:

  • If the USB port is not used or the USB port works at the 2.5 W output power, there is no restriction.
  • If the USB port works at the 5 W output power, the number of MIMO spatial streams on the 2.4 GHz radio decreases to 2x2.

Wired network port: Either the 2.5GE electrical port or SFP+ optical port can be used for data communication at the same time. If both ports are connected, the optical port is preferentially used for communication.

802.3af power supply description

Wi-Fi:

The number of MIMO spatial streams decreases to 2x2 on the 2.4 GHz frequency band, the maximum combined power is 23 dBm, and the 5 GHz frequency band is unavailable.

Wired network port:

  • In V200R021C00, the rate of the 2.5GE electrical port is reduced to GE and the SFP+ optical port is unavailable.
  • In V200R021C10 and later versions, either the 2.5GE electrical port or SFP+ optical port can be used for data communication at the same time. If both ports are connected, the optical port is preferentially used for communication.

Other ports:

The USB port is unavailable.

DC power supply description Either the 2.5GE electrical port or SFP+ optical port can be used for data communication. If both ports are connected, the optical port is preferentially used for communication.
Installation Type
  • Wall
  • Ceiling
  • T-Rail
Dimensions without packaging (H x W x D) [mm(in.)] Diameter x depth: 220 mm x 53 mm (8.66 in. x 2.09 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 93 mm x 284 mm x 251 mm (3.66 in. x 11.18 in. x 9.88 in.)
Weight without packaging [kg(lb)] 1.22 kg (2.69 lb)
Weight with packaging [kg(lb)] 1.76 kg (3.88 lb)

Additional information

Brand

Huawei

Item AirEngine 6761S-21
Storage NAND Flash 512 MB
Console port BLE console
Maximum power consumption [W] 22.6 (excluding USB)
Maximum heat dissipation [BTU/hour] 77.1 (without USB)
Power supply mode
  • PoE
  • DC power adapter
Rated input voltage [V] 12 V
Input voltage range [V]

DC: 42.5 V to 57 V

PoE: 802.3at/af

Service port surge protection

PoE port:

Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B

Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B

Relationship between PoE and system power modules [W]

No priorities are distinguished for the following power supply modes: DC power supply, PoE power supply over an Ethernet cable, and PoE power supply over a hybrid cable, which do not support hot backup.

Either of the electrical port or the SFP+ hybrid port can be used for PoE input, but not both.

Maximum number of physical ports on the entire device

2.5GE (RJ45) x 1, 100M/1000M/2.5GE auto-sensing

10GE (SFP+) x 1, 1000M/10GE auto-sensing

Either the 2.5GE electrical port or SFP+ optical port can be used for data communication at the same time. If both ports are connected, the optical port is preferentially used for communication.

Long-term operating temperature [°C(°F)] –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Ground floating ground
USB USB 2.0
BLE BLE5.2
Radio number 2
Operating frequency band
  • 2.4GHz
  • 5GHz
MIMO spatial streams

Radio 0 (2.4 GHz): 4x4

Radio 1 (5 GHz): 4x4

Wi-Fi standard

2.4 GHz: 802.11b/g/n/ax

5 GHz: 802.11a/n/ac/ac Wave 2/ax

Radio interface Built-in Dynamic-Zoom Smart Antennas
Antenna gain

2.4G:

4.5 dBi/chain (peak value)

2 dBi (combined gain)

5G:

5.5 dBi/chain (peak value)

3 dBi (combined gain)

BLE: 4 dBi

Beamwidth of the built-in antenna [degrees]
  • Common indoor coverage scenario: omnidirectional coverage
  • Indoor high-density coverage scenario: lobe angle of 120°
Maximum transmit power

2.4 GHz: 26 dBm

5 GHz: 26 dBm

(Note: This is the total MIMO radio power, the same as:

2.4 GHz: 20 dBm/chain

5 GHz: 20 dBm/chain)

BLE: < 10 dBm

Singal radio transmit power [dBm]

2.4G: -10 dBm to 20 dBm/chain

5G: -10 dBm to 20 dBm/chain

MTBF [year] 69.7 year
MTTR [hour] 0.5 hour
Frequency stability [ppm] +/-20
802.3at power supply description

Wi-Fi:

  • If the USB port is not used or the USB port works at the 2.5 W output power, there is no restriction.
  • If the USB port works at the 5 W output power, the number of MIMO spatial streams on the 2.4 GHz radio decreases to 2x2.

Wired network port: Either the 2.5GE electrical port or SFP+ optical port can be used for data communication at the same time. If both ports are connected, the optical port is preferentially used for communication.

802.3af power supply description

Wi-Fi:

The number of MIMO spatial streams decreases to 2x2 on the 2.4 GHz frequency band, the maximum combined power is 23 dBm, and the 5 GHz frequency band is unavailable.

Wired network port:

  • In V200R021C00, the rate of the 2.5GE electrical port is reduced to GE and the SFP+ optical port is unavailable.
  • In V200R021C10 and later versions, either the 2.5GE electrical port or SFP+ optical port can be used for data communication at the same time. If both ports are connected, the optical port is preferentially used for communication.

Other ports:

The USB port is unavailable.

DC power supply description Either the 2.5GE electrical port or SFP+ optical port can be used for data communication. If both ports are connected, the optical port is preferentially used for communication.
Installation Type
  • Wall
  • Ceiling
  • T-Rail
Dimensions without packaging (H x W x D) [mm(in.)] Diameter x depth: 220 mm x 53 mm (8.66 in. x 2.09 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 93 mm x 284 mm x 251 mm (3.66 in. x 11.18 in. x 9.88 in.)
Weight without packaging [kg(lb)] 1.22 kg (2.69 lb)
Weight with packaging [kg(lb)] 1.76 kg (3.88 lb)
