AirEngine 6761S-21T overview

Huawei AirEngine 6761S-21T is an access point (AP) in compliance with the Wi-Fi 6 standard. It can simultaneously provide services on three frequency bands: 2.4 GHz (2×2 MIMO), 5 GHz (2×2 MIMO), and 5 GHz (4×4 MIMO). The AP uses built-in smart antennas to ensure always-on Wi-Fi signals for users, significantly enhancing users’ wireless network experience. It is ideal for densely populated scenarios such as mobile office, education, shopping malls, and supermarkets.

  • 02354VQJ: 1 x 2.5GE electrical port + 1 x GE electrical port; 02353XBR: 2 x GE electrical ports
  • Built-in smart antennas that automatically adjust the coverage direction and signal strength based on the intelligent switchover algorithm to adapt to the application environment change, and provide accurate and stable coverage as STAs move
  • USB port for IoT expansion (such as ZigBee and RFID)
  • Bluetooth serial interface-based O&M through the built-in Bluetooth module by collaborating with CloudCampus APP; collaboration with a location server to accurately locate Bluetooth terminals and tags
  • Working modes: Fit, Fat, and cloud management

Front panel of the AirEngine 6761S-21T

EN US IMAGE 0000001263074343

Front panel of the AAirEngine 6761S-21T

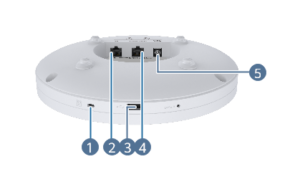

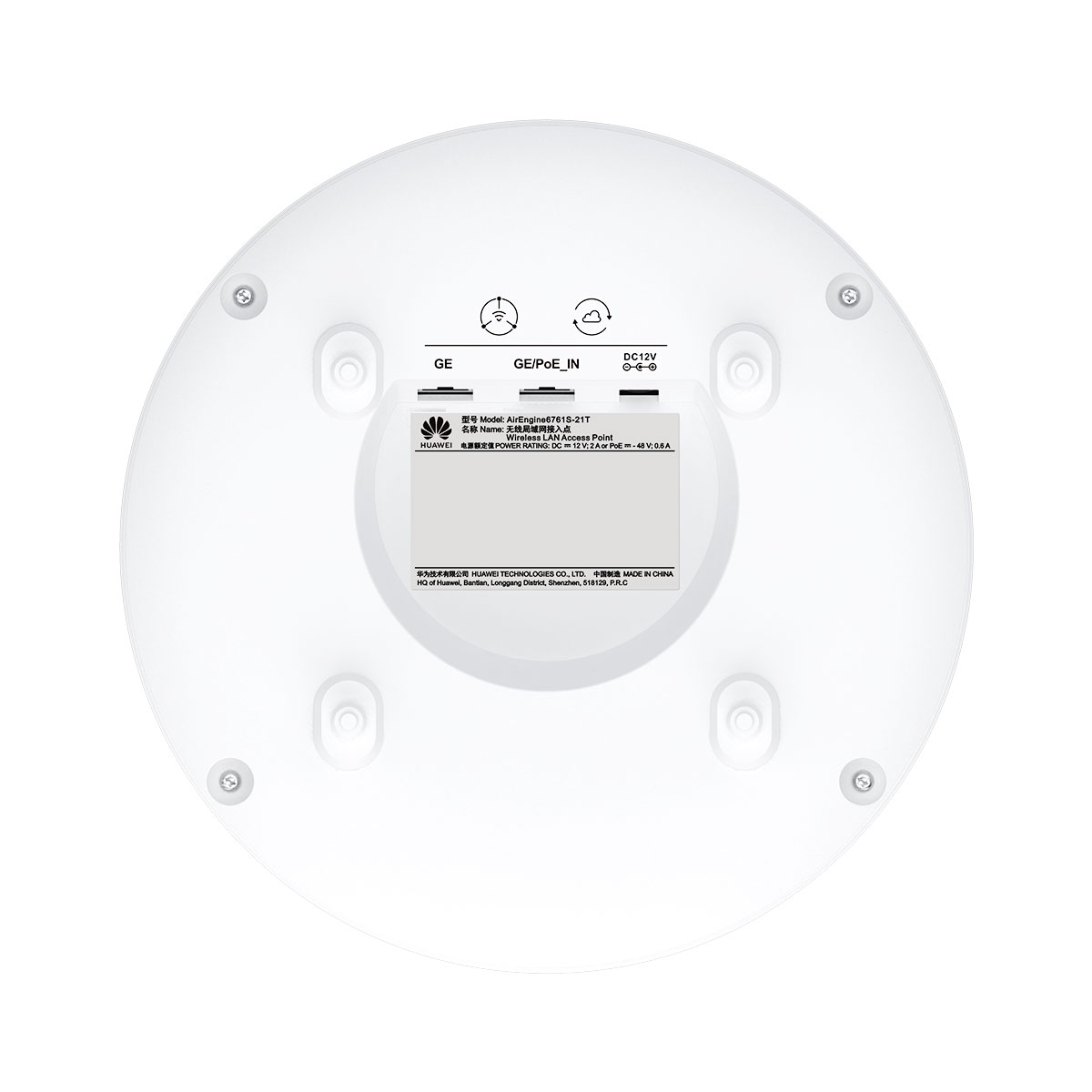

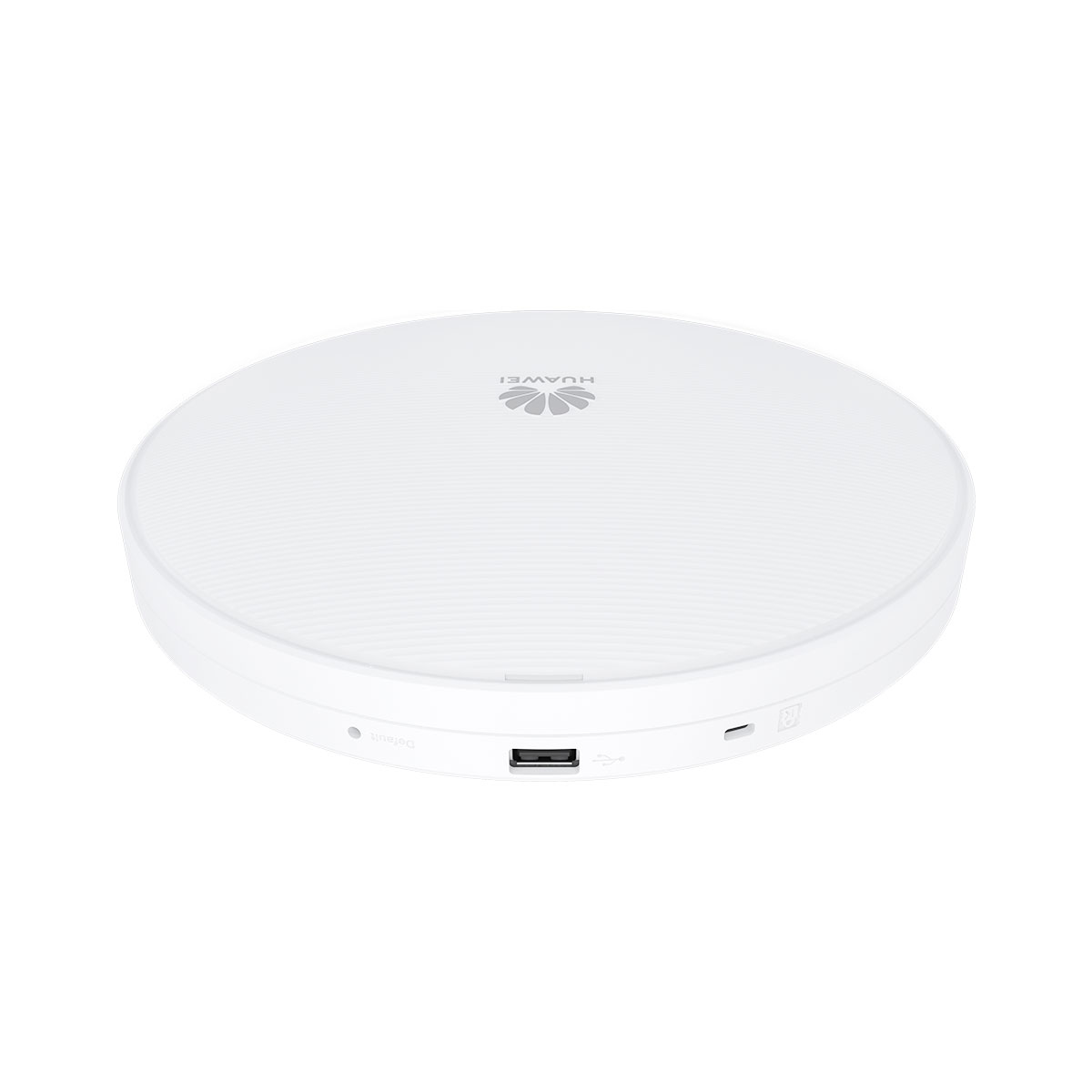

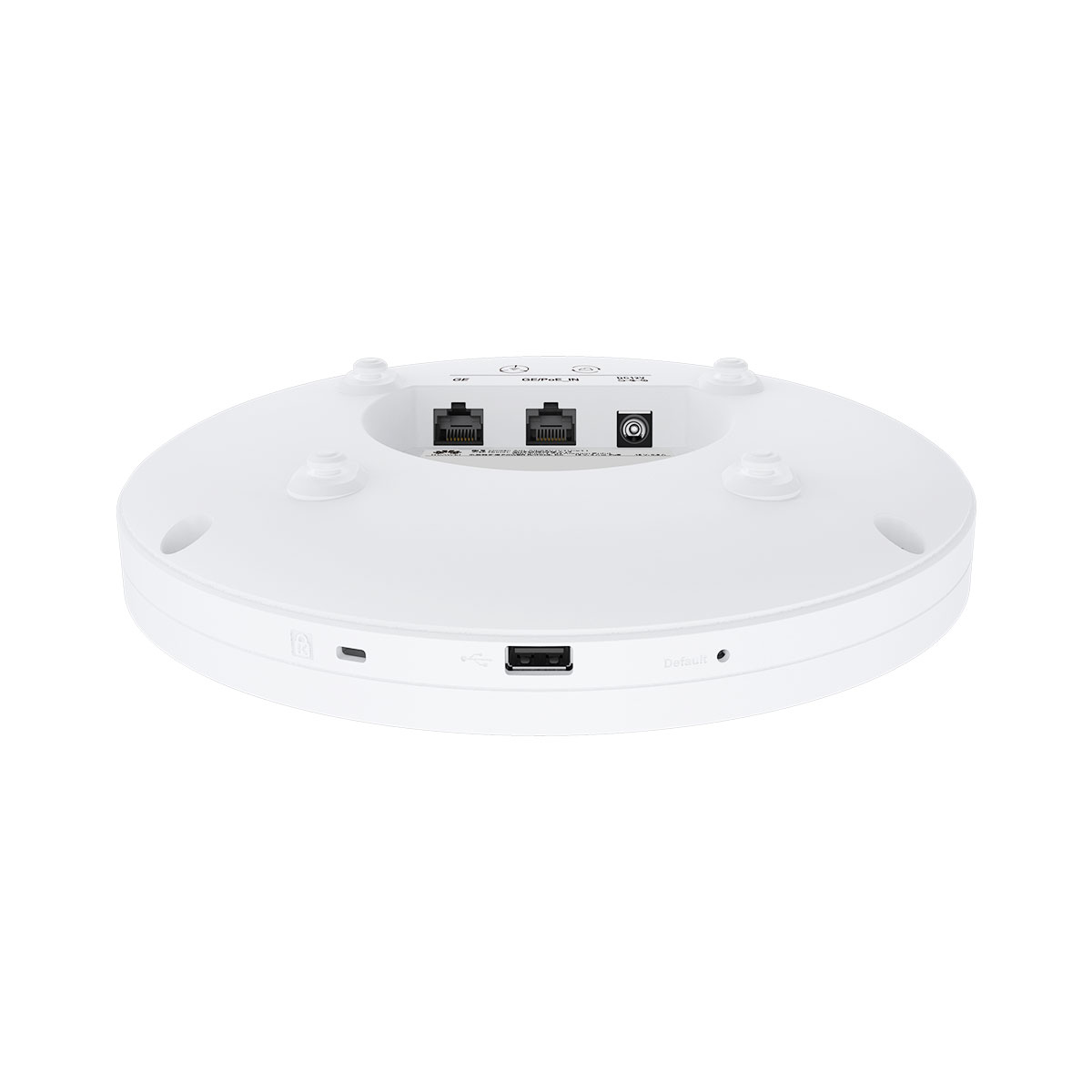

Ports on the AirEngine 6761S-21T

1

Security slot

2

GE

3

USB

4

2.5GE/PoE_IN

5

DC 12V

–

–



Item AirEngine 6761S-21T
Storage NAND Flash 512 MB
Console port BLE console
Maximum power consumption [W] 21.2 (excluding USB), 802.3at/af power supply
Power supply mode
  • PoE
  • DC power adapter
Rated input voltage [V] 12 V
Input voltage range [V]

DC: 12 V ± 10%

PoE: 802.3at/af
Service port surge protection

PoE port:

Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B

Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B
Maximum number of physical ports on the entire device

2.5GE (RJ45) x 1, 100M/1000M/2.5G auto-sensing

GE (RJ45) x 1, 10M/100M/1000M auto-sensing
Long-term operating temperature [°C(°F)] –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Ground floating ground
USB USB 2.0
BLE BLE5.2
Radio number 3
Operating frequency band
  • 2.4GHz
  • 5GHz
MIMO spatial streams

Radio 0 (2.4 GHz): 2x2

Radio 1 (5 GHz-H): 2x2 (high frequency band: 5490–5850 MHz)

Radio 2 (5 GHz-L): 4x4 (low frequency band: 5150–5330MHz)
Wi-Fi standard

2.4 GHz: 802.11b/g/n/ax

5 GHz: 802.11a/n/ac/ac Wave 2/ax
Radio interface Built-in smart antennas
Antenna gain

2.4G:

4 dBi/chain (peak value)

2 dBi (combined gain)

5G:

5 dBi/chain (peak value)

3 dBi (combined gain)

BLE: 4 dBi
Maximum transmit power

2.4 GHz:

22 dBm/chain

25 dBm (combined power)

5 GHz (2x2):

20 dBm/chain

23 dBm (combined power)

5 GHz (4x4):

20 dBm/chain

26 dBm (combined power)

BLE: < 10 dBm
Singal radio transmit power [dBm]

2.4G: -10 dBm to 22 dBm/chain

5G: -10 dBm to 20 dBm/chain
MTBF [year] 135 year
MTTR [hour] 0.5 hour
Frequency stability [ppm] +/-20
802.3at power supply description No function is limited.
802.3af power supply description

Wi-Fi: 2.4 GHz (2x2) + 5 GHz (1x1, high band) + 5 GHz (1x1, low band). The maximum combined power is adjusted to 21 dBm (2.4 GHz radio) and 18 dBm (5 GHz radio).

Wired network port: The 2.5GE/PoE_IN electrical port is used as a GE port, and the GE electrical port is unavailable.

Other ports: The USB port is unavailable.
DC power supply description No function is limited.
Installation Type
  • Wall
  • Ceiling
  • T-Rail
Dimensions without packaging (H x W x D) [mm(in.)] Diameter x depth: 220 mm x 50 mm (8.66 in. x 1.97 in.)
Weight without packaging [kg(lb)] 1.08 kg (2.38 lb)

Additional information

Brand

Huawei
Item AirEngine 6761S-21T
Storage NAND Flash 512 MB
Console port BLE console
Maximum power consumption [W] 21.2 (excluding USB), 802.3at/af power supply
Power supply mode
  • PoE
  • DC power adapter
Rated input voltage [V] 12 V
Input voltage range [V]

DC: 12 V ± 10%

PoE: 802.3at/af
Service port surge protection

PoE port:

Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B

Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B
Maximum number of physical ports on the entire device

2.5GE (RJ45) x 1, 100M/1000M/2.5G auto-sensing

GE (RJ45) x 1, 10M/100M/1000M auto-sensing
Long-term operating temperature [°C(°F)] –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Ground floating ground
USB USB 2.0
BLE BLE5.2
Radio number 3
Operating frequency band
  • 2.4GHz
  • 5GHz
MIMO spatial streams

Radio 0 (2.4 GHz): 2x2

Radio 1 (5 GHz-H): 2x2 (high frequency band: 5490–5850 MHz)

Radio 2 (5 GHz-L): 4x4 (low frequency band: 5150–5330MHz)
Wi-Fi standard

2.4 GHz: 802.11b/g/n/ax

5 GHz: 802.11a/n/ac/ac Wave 2/ax
Radio interface Built-in smart antennas
Antenna gain

2.4G:

4 dBi/chain (peak value)

2 dBi (combined gain)

5G:

5 dBi/chain (peak value)

3 dBi (combined gain)

BLE: 4 dBi
Maximum transmit power

2.4 GHz:

22 dBm/chain

25 dBm (combined power)

5 GHz (2x2):

20 dBm/chain

23 dBm (combined power)

5 GHz (4x4):

20 dBm/chain

26 dBm (combined power)

BLE: < 10 dBm
Singal radio transmit power [dBm]

2.4G: -10 dBm to 22 dBm/chain

5G: -10 dBm to 20 dBm/chain
MTBF [year] 135 year
MTTR [hour] 0.5 hour
Frequency stability [ppm] +/-20
802.3at power supply description No function is limited.
802.3af power supply description

Wi-Fi: 2.4 GHz (2x2) + 5 GHz (1x1, high band) + 5 GHz (1x1, low band). The maximum combined power is adjusted to 21 dBm (2.4 GHz radio) and 18 dBm (5 GHz radio).

Wired network port: The 2.5GE/PoE_IN electrical port is used as a GE port, and the GE electrical port is unavailable.

Other ports: The USB port is unavailable.
DC power supply description No function is limited.
Installation Type
  • Wall
  • Ceiling
  • T-Rail
Dimensions without packaging (H x W x D) [mm(in.)] Diameter x depth: 220 mm x 50 mm (8.66 in. x 1.97 in.)
Weight without packaging [kg(lb)] 1.08 kg (2.38 lb)
