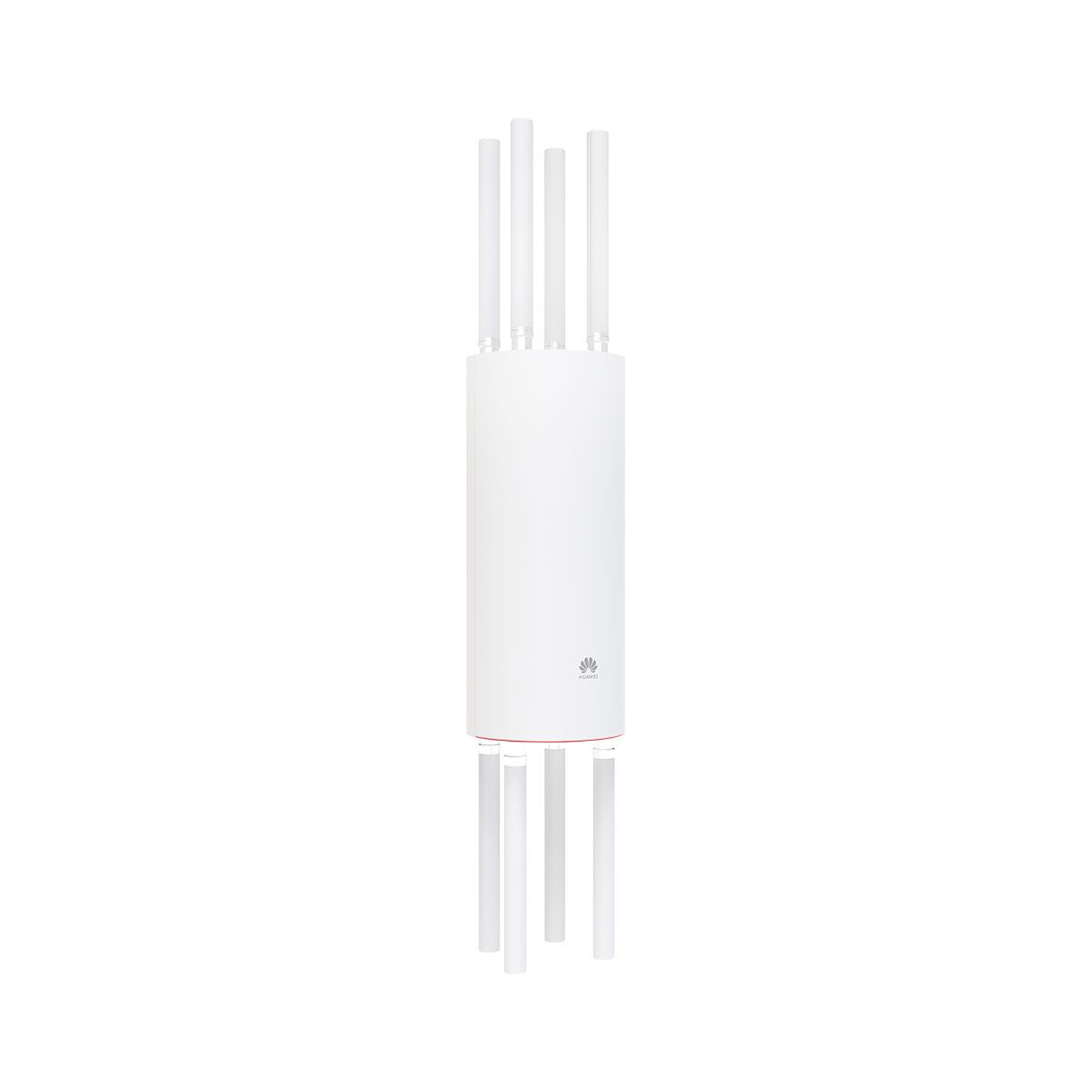

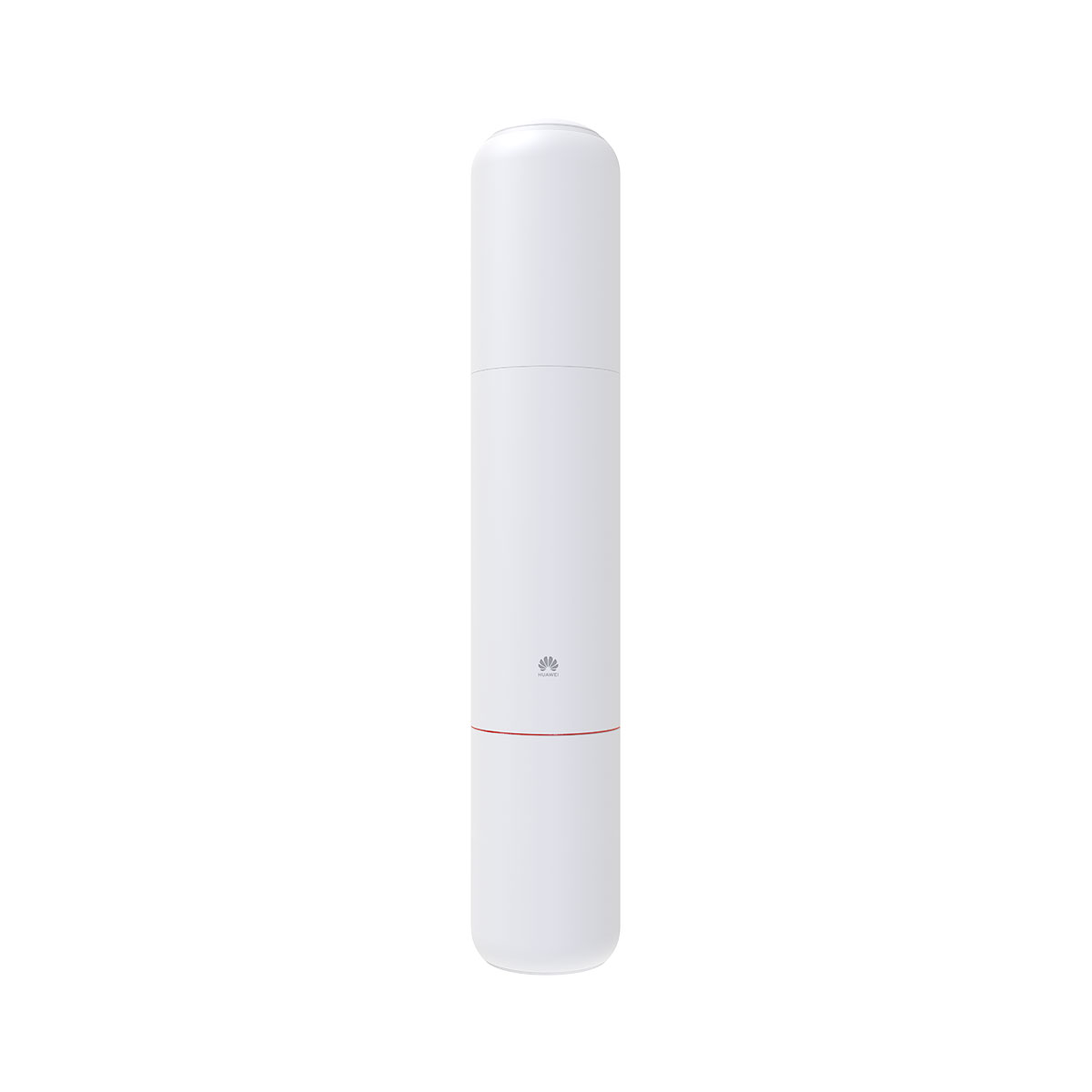

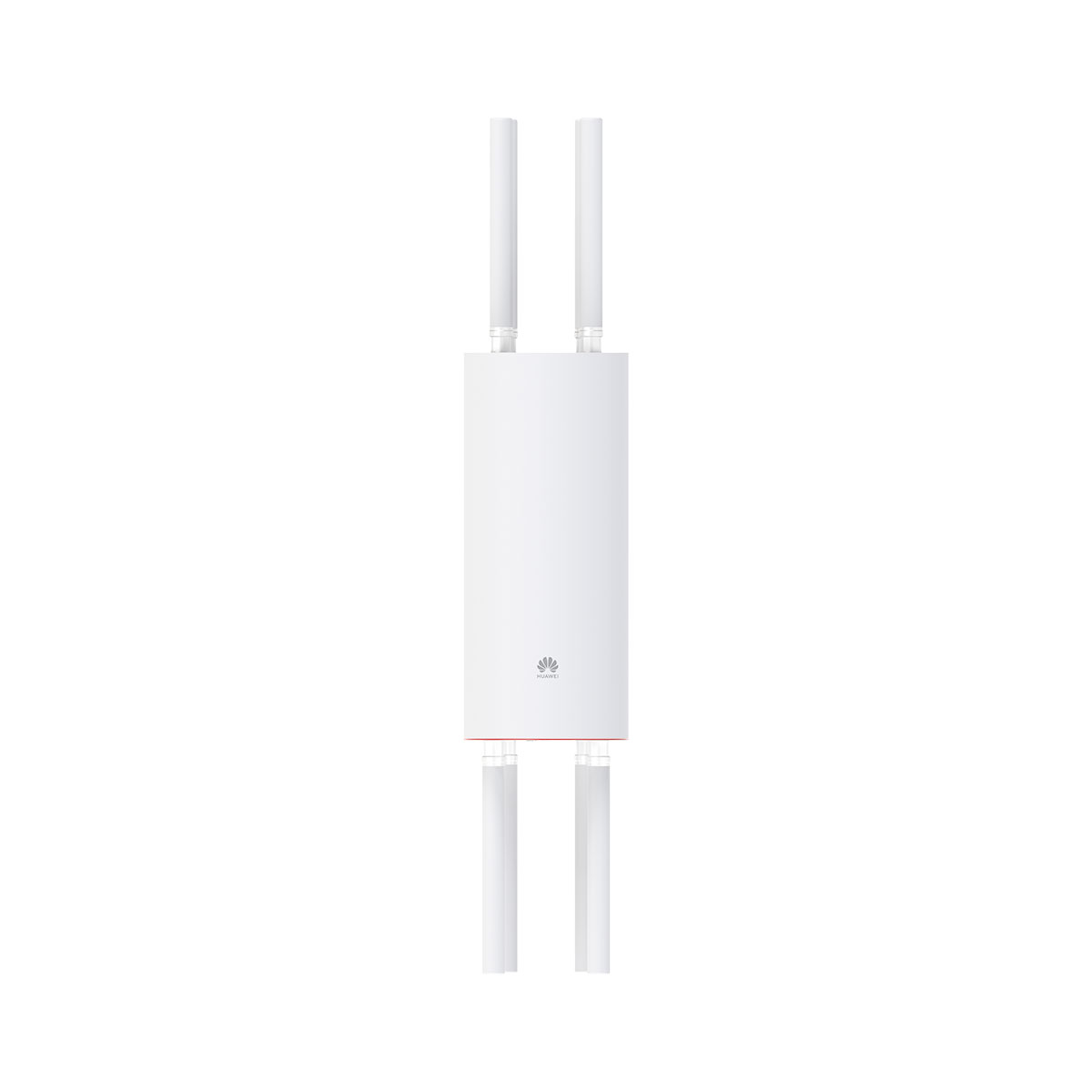

AirEngine 8760R-X1E overview

Huawei AirEngine 8760R-X1E is a next-generation flagship outdoor access point (AP) in compliance with the Wi-Fi 6 standard. It stands out with excellent outdoor coverage performance, IP68 waterproof and dustproof design, and strong surge protection capability. The AP provides uplink optical and electrical ports, allowing customers to select different deployment modes and saving customers’ investment. These strengths make AirEngine 8760R-X1E ideal for high-density scenarios such as stadiums, squares, pedestrian streets, and amusement parks.

  • The AirEngine 8760R-X1E provides services simultaneously on both the 2.4 GHz and 5 GHz frequency bands.
    • Dual-radio mode: 2.4 GHz (8×8:4 MIMO) + 5 GHz (8×8:8 MIMO)
    • Triple-radio mode: 2.4 GHz (8×8:4 MIMO) + 5 GHz (4×4:4 MIMO) + 5 GHz (4×4:4 MIMO)
    • Dual-radio + independent scanning radio mode: 2.4 GHz (4×4:4 MIMO) + 5 GHz (4×4:4 MIMO)
  • 1 x 10GE electrical port + 1 x GE electrical port + 1 x 10GE SFP+ optical port
  • 6 kA surge protection for Ethernet ports, IP68 waterproof and dustproof level, and extended operating temperature range of –40°C to +65°C, meeting industrial-grade requirements
  • The external antenna port of the AirEngine 8760R-X1E supports 5 kA surge protection, eliminating the need to install an external surge protector, simplifying installation, and reducing the overall cost.
  • Built-in independent scanning radio, achieving real-time detection for interference and rogue devices in real time and timely network optimization
  • Bluetooth serial interface-based O&M through the built-in Bluetooth module by collaborating with CloudCampus APP; collaboration with a location server to accurately locate Bluetooth terminals and tags
  • Working modes: Fit, Fat, and cloud management

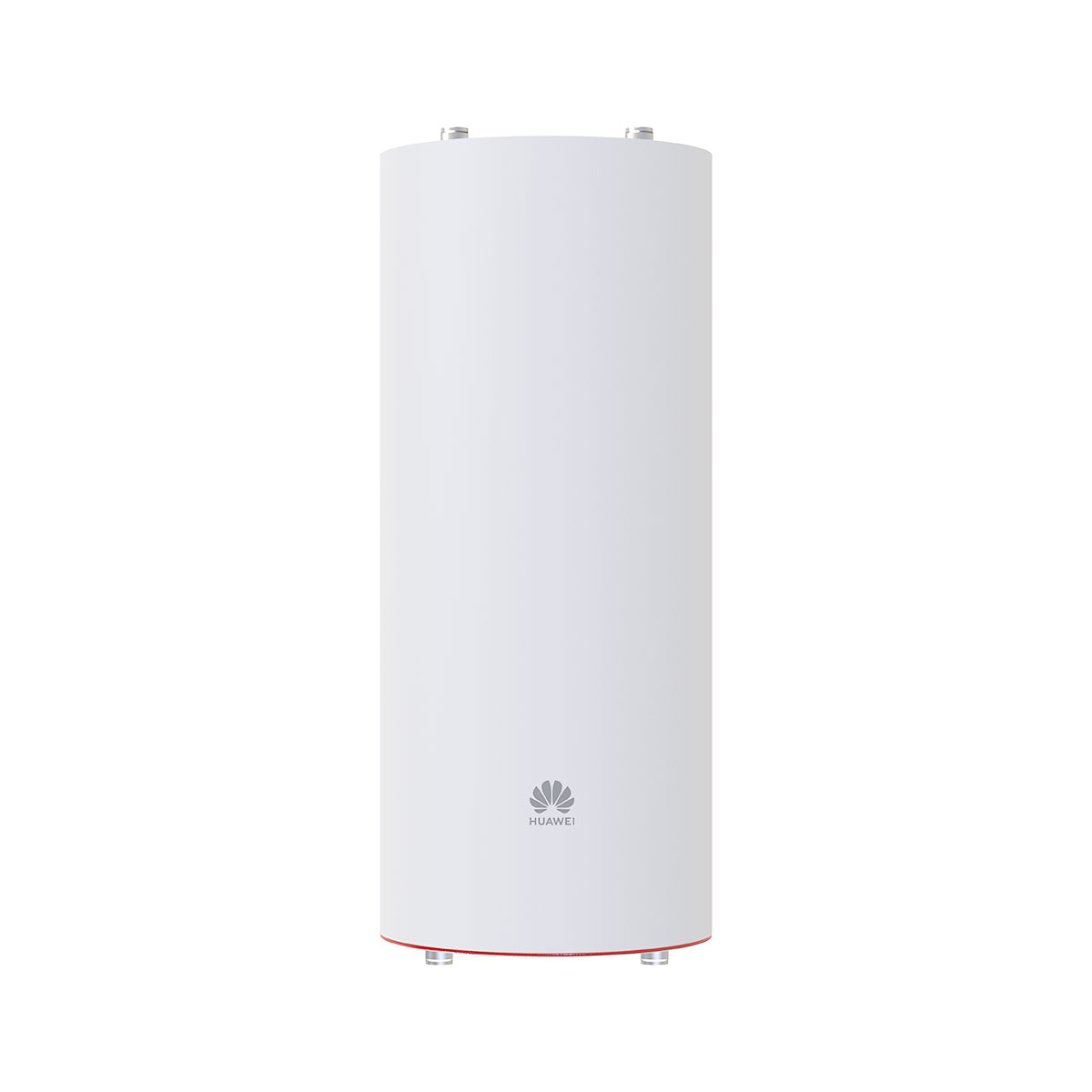

Front panel of the AirEngine 8760R-X1E

AirEngine 8760R-X1E

Front panel of the AirEngine 8760R-X1E

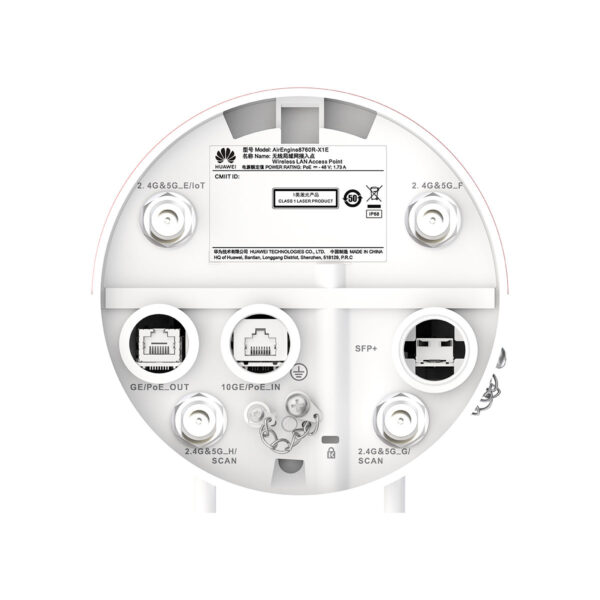

Ports on the AirEngine 8760R-X1E

1

GE/PoE_OUT

2

10GE/PoE_IN

3

Ground screw

4

Security slot

5

SFP+

6

Antenna ports E to H

7

Antenna ports A to D

–

–



Item AirEngine 5762-16W
Installation Type Wall
Dimensions without packaging (H x W x D) [mm(in.)] 32 mm x 220 mm x 130 mm (1.26 in. x 8.66 in. x 5.12 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 73 mm x 285 mm x 185 mm (2.87 in. x 11.22 in. x 7.28 in.)
Weight without packaging [kg(lb)] 0.485 kg (1.069 lb)
Weight with packaging [kg(lb)] 0.79 kg (1.74 lb)
Storage NAND Flash 256 MB
Console port Bluetooth console
Maximum power consumption [W] 17.1 (excluding USB)
Maximum heat dissipation [BTU/hour] 58 BTU/hour
Power supply mode
  • DC adapter
  • PoE
Rated input voltage [V] 12 V
Input voltage range [V]

DC: 12 V ± 10%

PoE: 802.3at/af
Service port surge protection

PoE port:

Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B

Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B
Maximum number of physical ports on the entire device GE (RJ45) x 1, 10M/100M/1000M auto-sensing
Long-term operating temperature [°C(°F)] 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Ground floating ground
USB USB 2.0
BLE BLE5.0
Radio number 2
Operating frequency band
  • 2.4GHz
  • 5GHz
MIMO spatial streams

Radio 0 (2.4 GHz): 2x2

Radio 1 (5 GHz): 2x2
Wi-Fi standard

2.4 GHz: 802.11b/g/n/ax

5 GHz: 802.11a/n/ac/ac Wave 2/ax
Radio interface Built-in butterfly-pattern smart antennas
Antenna gain

2.4G:

4 dBi/chain (peak value)

2 dBi (combined gain)

5G:

6 dBi/chain (peak value)

4 dBi (combined gain)

BLE: 4 dBi
Maximum transmit power

2.4G:

24 dBm/chain

27 dBm (combined power)

5G:

24 dBm/chain

27 dBm (combined power)

BLE: < 10 dBm
Singal radio transmit power [dBm]

2.4G: -10 dBm to 24 dBm/chain

5G: -10 dBm to 24 dBm/chain
MTBF [year] 278 year
MTTR [hour] 2 hour
Frequency stability [ppm] +/-20
802.3bt power supply description No function is limited.
802.3at power supply description No function is limited.
802.3af power supply description

Wi-Fi: 2.4 GHz (2 x 2)+5 GHz (2 x 2). The maximum combined power is adjusted to 23 dBm (2.4 GHz) and 23 dBm (5 GHz).

Wired network port: not affected

Other ports: The USB port is unavailable.
DC power supply description No function is limited.

Additional information

Brand

Huawei
