Huawei AirEngine 8771-X1T indoor access point (AP) with 11be indoor, 4+4+4 Triple bands, Scan radio, Dynamic-zoom smart antenna, USB, BLE

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

AirEngine 8771-X1T overview

Huawei AirEngine 8771-X1T is an indoor access point (AP) in compliance with Wi-Fi 7 (802.11be). It has built-in dynamic-zoom smart antennas and supports a maximum of 12 spatial streams. It can simultaneously provide services on 2.4 GHz (4×4 MIMO), 5 GHz (4×4 MIMO), and 6 GHz (4×4 MIMO) frequency bands, achieving a device rate of up to 18.67 Gbps. The AirEngine 8771-X1T excels in innovative application scenarios such as metacosm, XR remote collaboration, XR telemedicine, and XR interactive teaching.

  • Triple-radio: 2.4 GHz (4×4 MIMO) + 5 GHz (4×4 MIMO) + 6 GHz (4×4 MIMO), achieving rates of up to 1.376 Gbps, 5.765 Gbps, and 11.53 Gbps respectively, and 18.67 Gbps for the device.
  • 6 GHz radio that can be switched to the 5 GHz radio flexibly, adapting to scenarios where the use of the 6 GHz frequency band is not clear yet.
  • 2 x 10GE electrical ports and 1 x 10G SFP+ port. The 10G SFP+ optical port supports 300 m long-distance PoE++ power supply with a hybrid cable.
  • Built-in dynamic-zoom smart antennas that can flexibly work in omnidirectional or high-density coverage mode. The former mode promises wider coverage, while the latter mode maximizes performance and optimizes user experience in dense environments. It makes the AP capable of adapting to omnidirectional and high-density scenarios dynamically based on STA access requirements.
  • USB interface can be used for external IoT expansion (supporting protocols such as ZigBee and RFID).
  • Fit and cloud working modes.

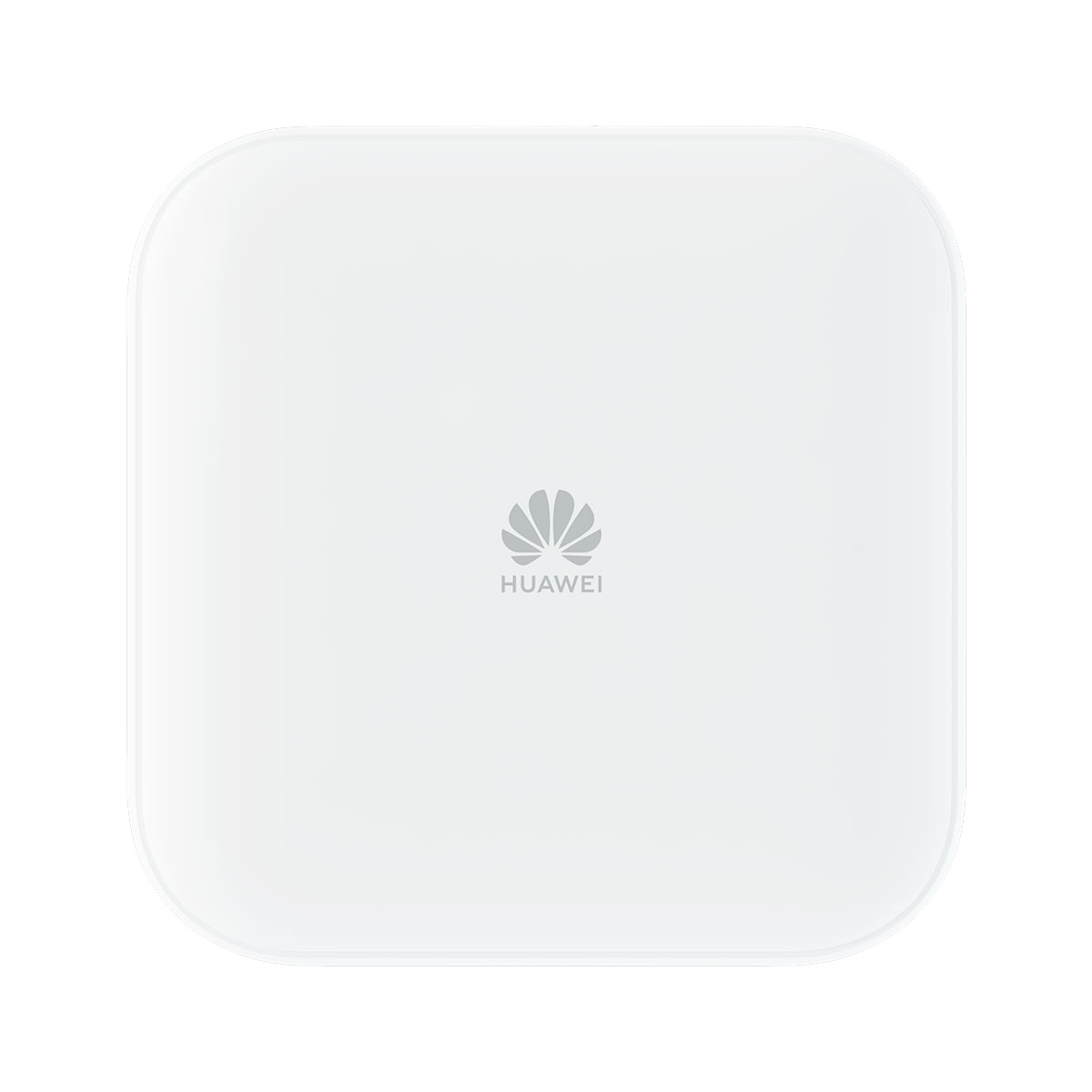

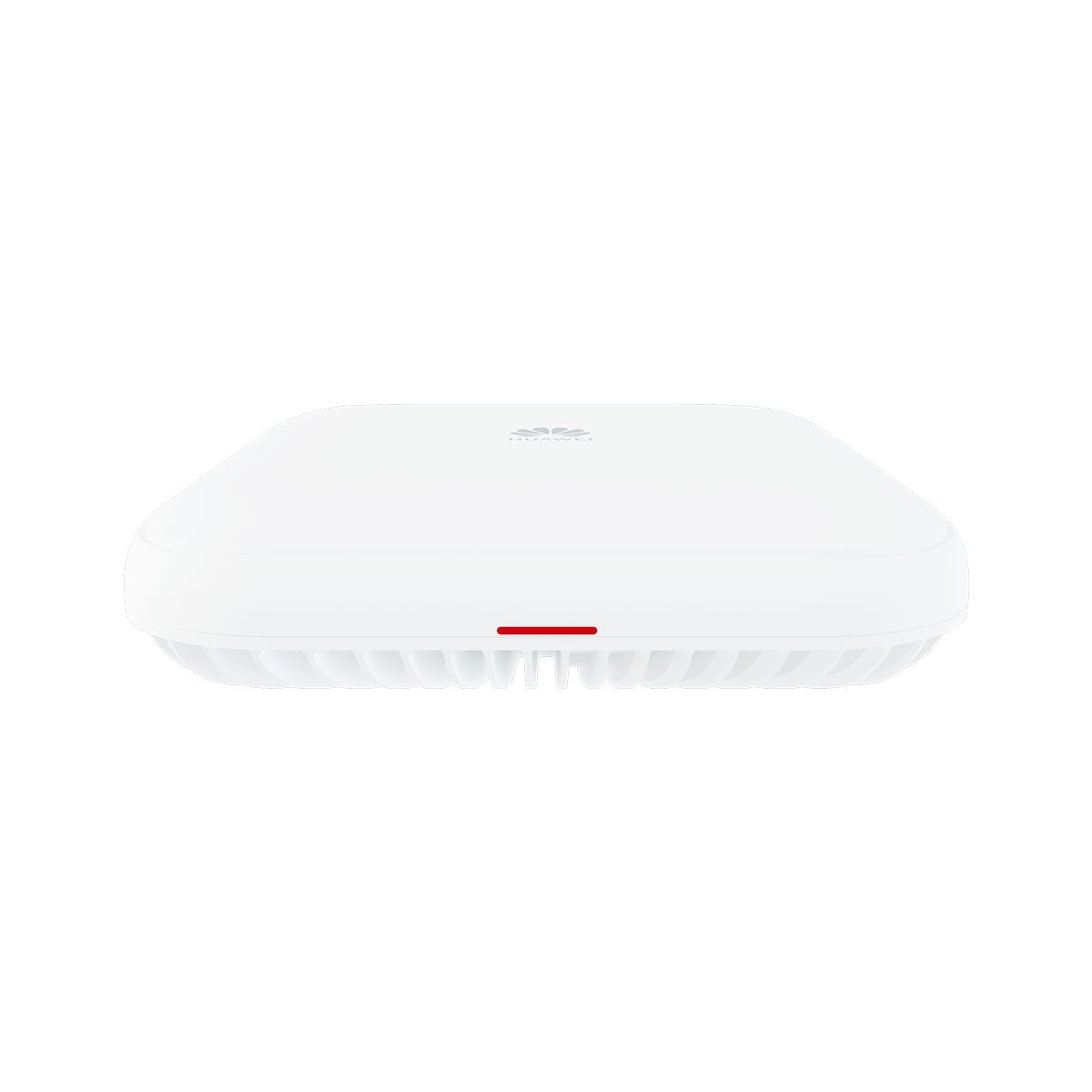

Front panel of the AirEngine 8771-X1T

AirEngine 8771 X1T

Front panel of the AirEngine 8771-X1T

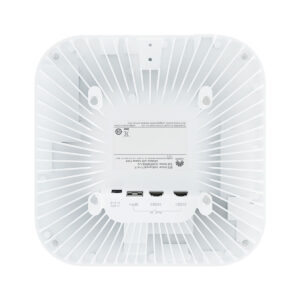

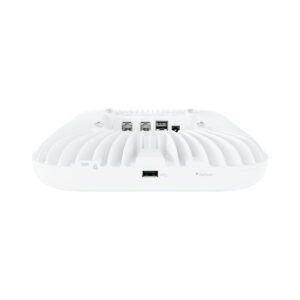

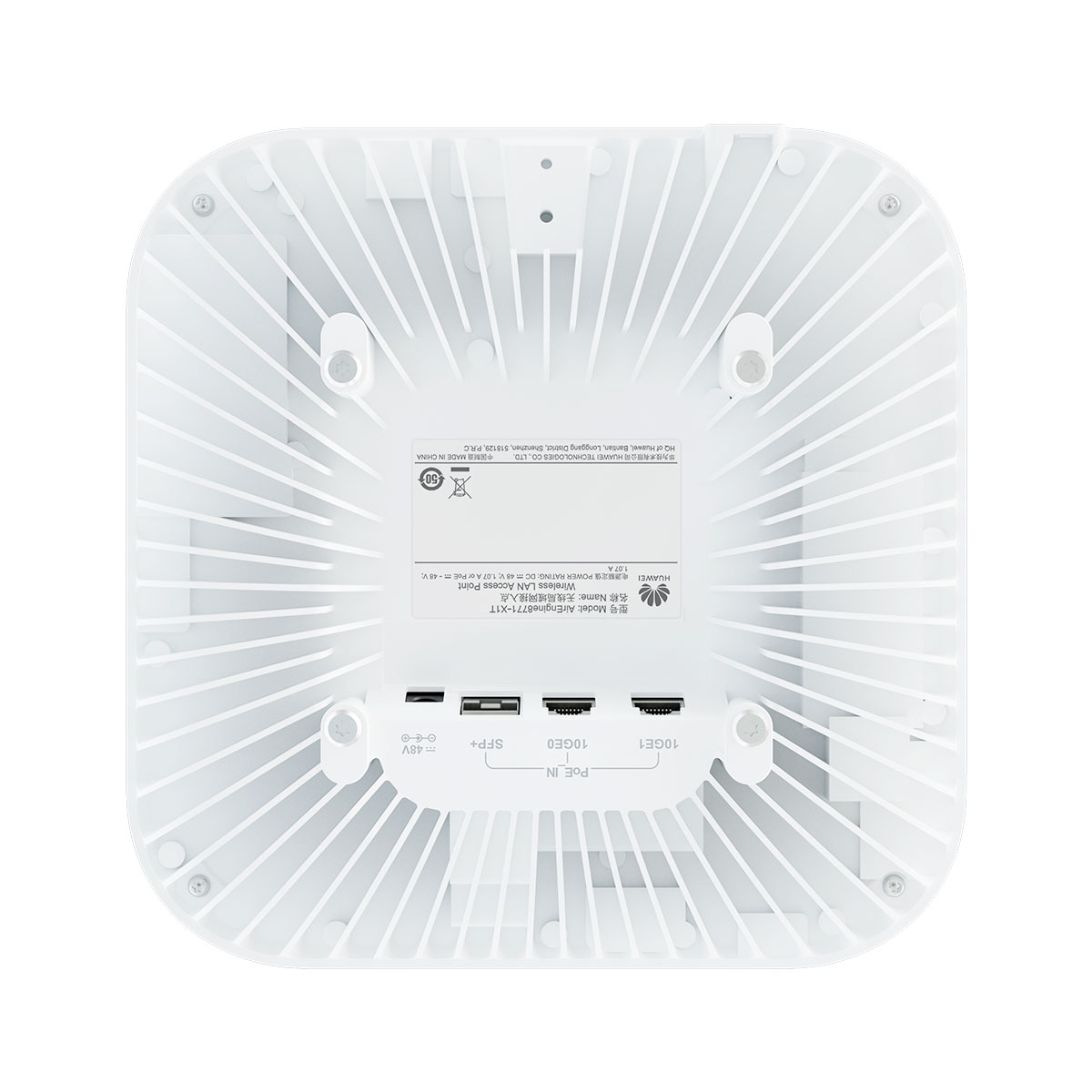

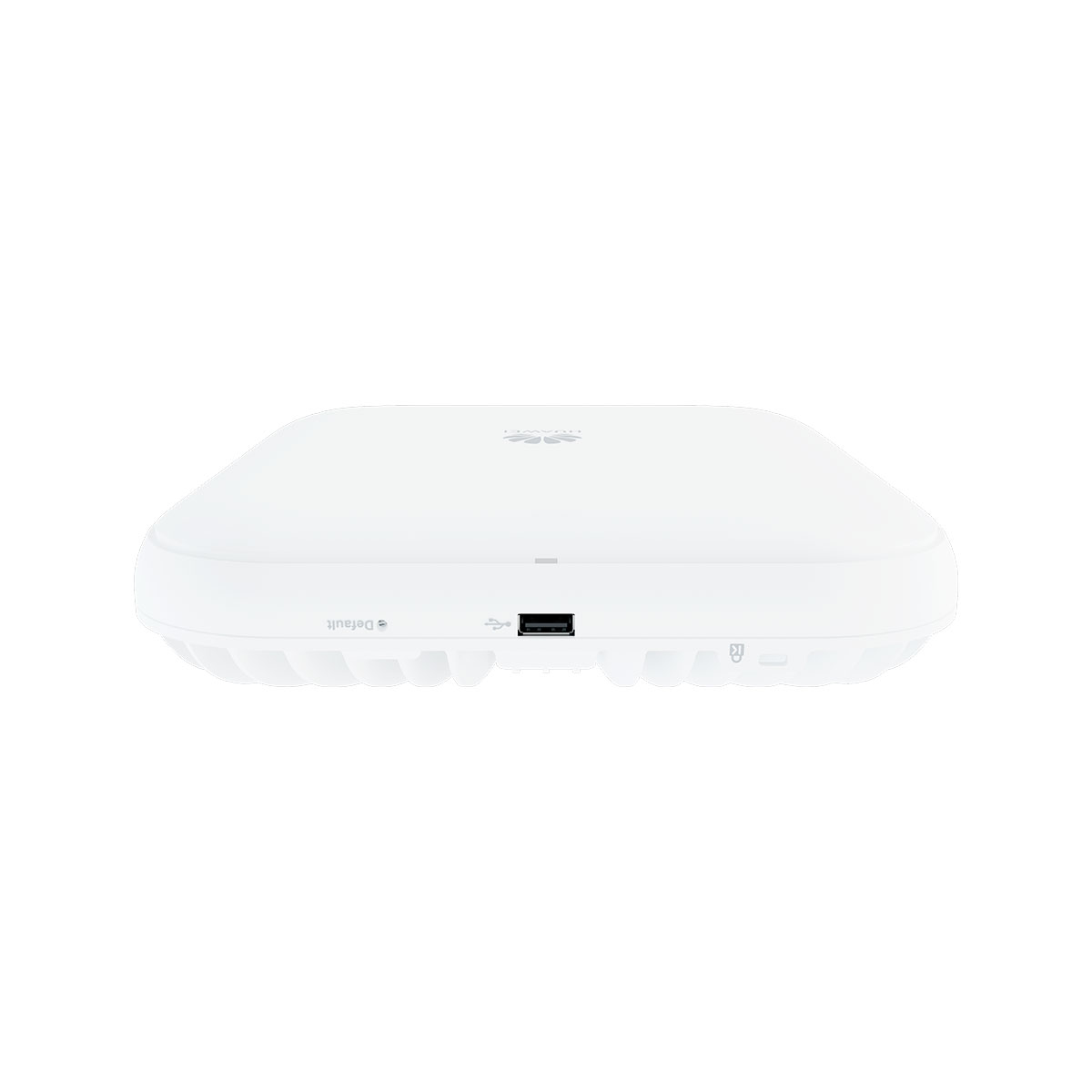

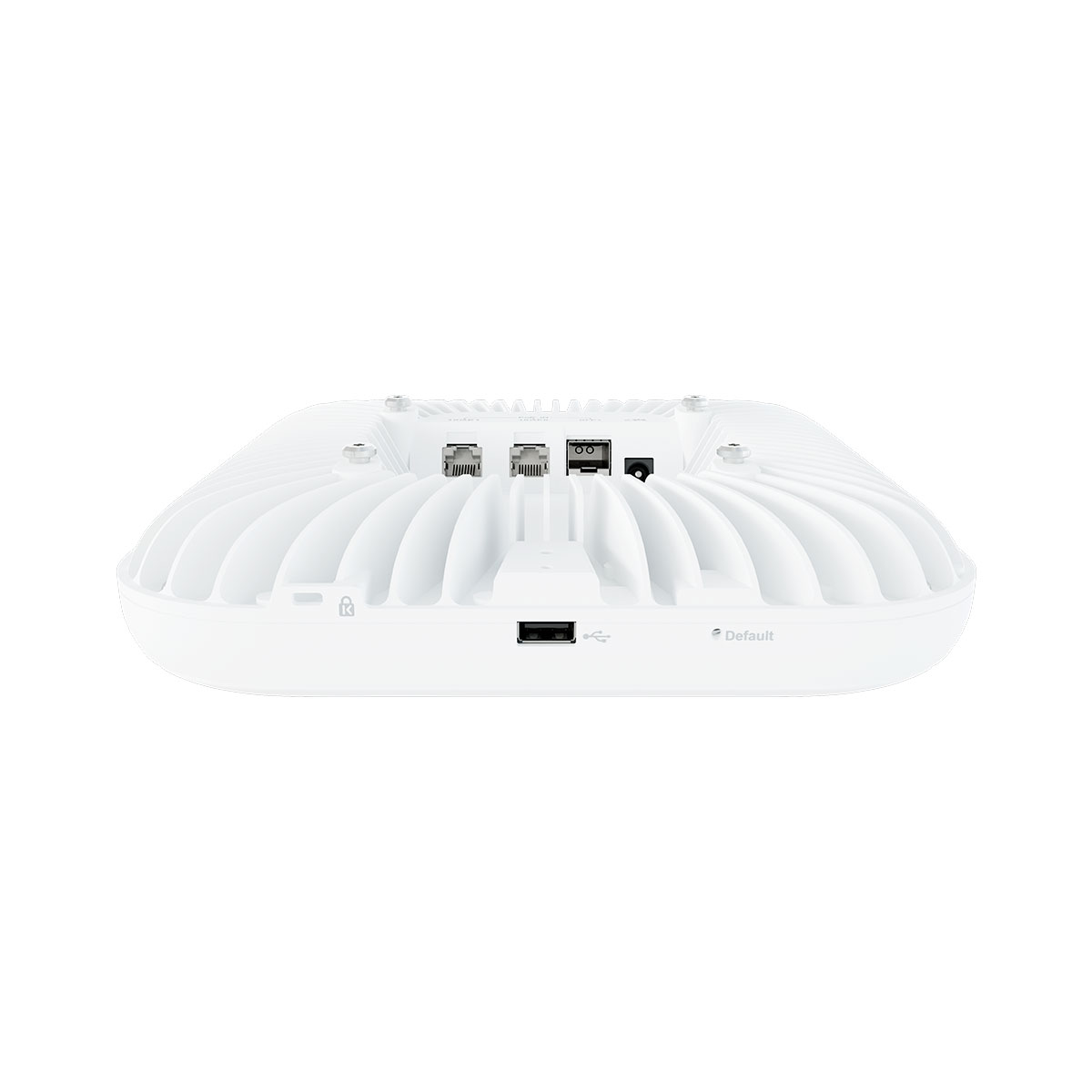

Ports on the AirEngine 8771-X1T

1

Indicator

2

Default



Item AirEngine 8771-X1T
Storage NAND Flash 512 MB
Console port BLE console
Eth Management port N/A
Maximum power consumption [W] 44.4 (excluding USB)
Maximum heat dissipation [BTU/hour] 151.5 BTU/hour
Power supply mode
  • PoE
  • PoE (hybrid cable)
  • DC power adapter
Rated input voltage [V]

DC: 48 V

PoE: 802.3bt/at
Input voltage range [V]

DC: 43.2–57.6 V

PoE: 802.3bt/at x 3, supporting hybrid cables

When multiple ports are used for receive PoE power: If the power supply classes are different, the port with the highest power class is used. If the power supply classes are the same, power supply backup can be implemented.
Service port surge protection

PoE port:

Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B

Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B
Maximum number of physical ports on the entire device

10GE (RJ45) x 2, 100M/1000M/2.5GE/5GE/10GE auto-sensing

10GE (SFP+) x 1, GE/2.5GE/10GE auto-sensing
Long-term operating temperature [°C(°F)] –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Ground Ground
USB USB 2.0
BLE BLE5.2
Radio number 4 (including the independent scanning radio)
Operating frequency band
  • 2.4GHz
  • 5GHz
  • 6GHz
MIMO spatial streams

Four-radio 6G mode:

  • Radio 0 (2.4 GHz): 4x4
  • Radio 1 (5 GHz): 4x4
  • Radio 2 (6 GHz): 4x4
  • Radio 3 (independent scanning radio, limited to 2.4 GHz and 5 GHz frequency bands): 1x1

Four-radio dual-5G mode:

  • Radio 0 (2.4 GHz): 4x4
  • Radio 1 (5 GHz, low band: 5150–5330 MHz): 4x4
  • Radio 2 (5 GHz, high band: 5490–5850 MHz): 4x4
  • Radio 3 (independent scanning radio, limited to 2.4 GHz and 5 GHz frequency bands): 1x1
Wi-Fi standard

2.4G: 802.11b/g/n/ax/be

5G: 802.11a/n/ac/ac Wave 2/ax/be

6G: 802.11ax/be
Radio interface Built-in Dynamic-Zoom Smart Antennas
Antenna gain

Peak gain:

2.4 GHz: 4 dBi

5 GHz: 5 dBi

6 GHz: 5 dBi

Independent scanning radio: 4 dBi

BLE: 3 dBi

Combined gain:

2.4 GHz: 2 dBi

5 GHz: 3 dBi

6 GHz: 3 dBi

Independent scanning radio: 4 dBi

BLE: 3 dBi
Maximum transmit power

MIMO combined power, excluding antenna gains

2.4 GHz: 26 dBm

5 GHz: 25 dBm

6 GHz: 25 dBm

BLE: 10 dBm
Singal radio transmit power [dBm]

2.4G: –10 dBm to +20 dBm/chain

5G: –10 dBm to +19 dBm/chain

6G: –10 dBm to +19 dBm/chain
MTBF [year] 53.2 year
MTTR [hour] 2 hour
Frequency stability [ppm] +/-20
802.3bt power supply description

If the power class is 802.3bt Class 7 or Class 8, no function is restricted, and the USB port supports a maximum of 9 W output.

If the power class is 802.3bt Class 6, the USB port supports a maximum of 2.5 W output, and other functions are not restricted.
802.3at power supply description

Wi-Fi service: 2.4 GHz (2x2) + 5 GHz (4x4) + 6 GHz (4x4) + independent scanning radio

Wired network ports: 10GE0/10GE1/SFP+. Only one of them is reserved, among which the optical port is preferentially used. If the optical port is not used, electrical ports are reserved based on the PoE supply sequence, and the rate is lowered to 5 Gbit/s.

Other ports: The USB port supports a maximum of 2.5 W output. If the USB port is used, the Wi-Fi service supports a maximum of 2.4 GHz (2x2) + 5 GHz (4x4) + 6 GHz (2x2) + independent scanning radios.
802.3af power supply description Not supported
DC power supply description No function is restricted. The USB port supports a maximum of 9 W output.
Installation Type
  • Wall
  • Ceiling
  • T-Rail
Dimensions without packaging (H x W x D) [mm(in.)] 50 mm x 220 mm x 220 mm (1.97 in. x 8.66 in. x 8.66 in.)
Weight without packaging [kg(lb)] 1.4 kg (3.09 lb)
