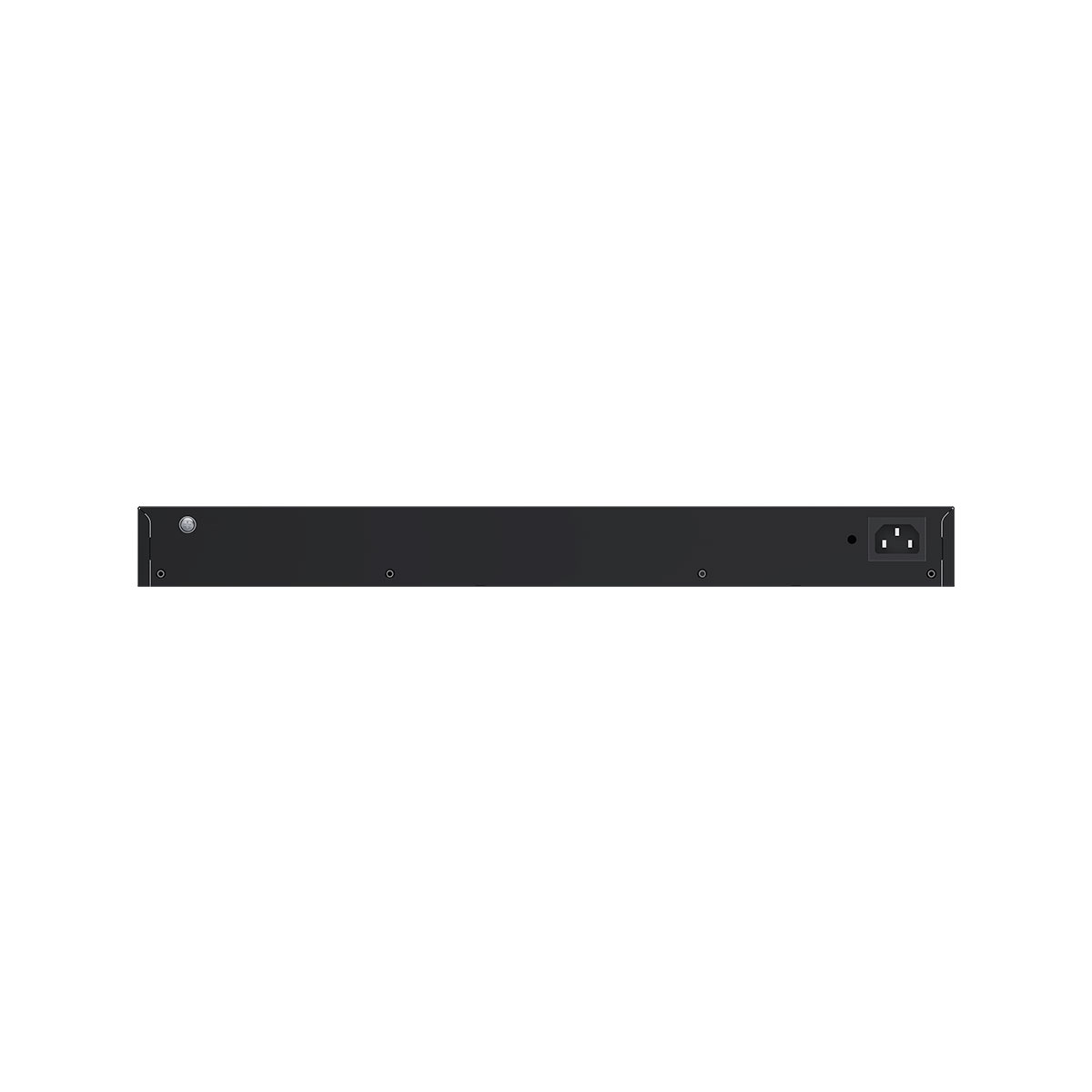

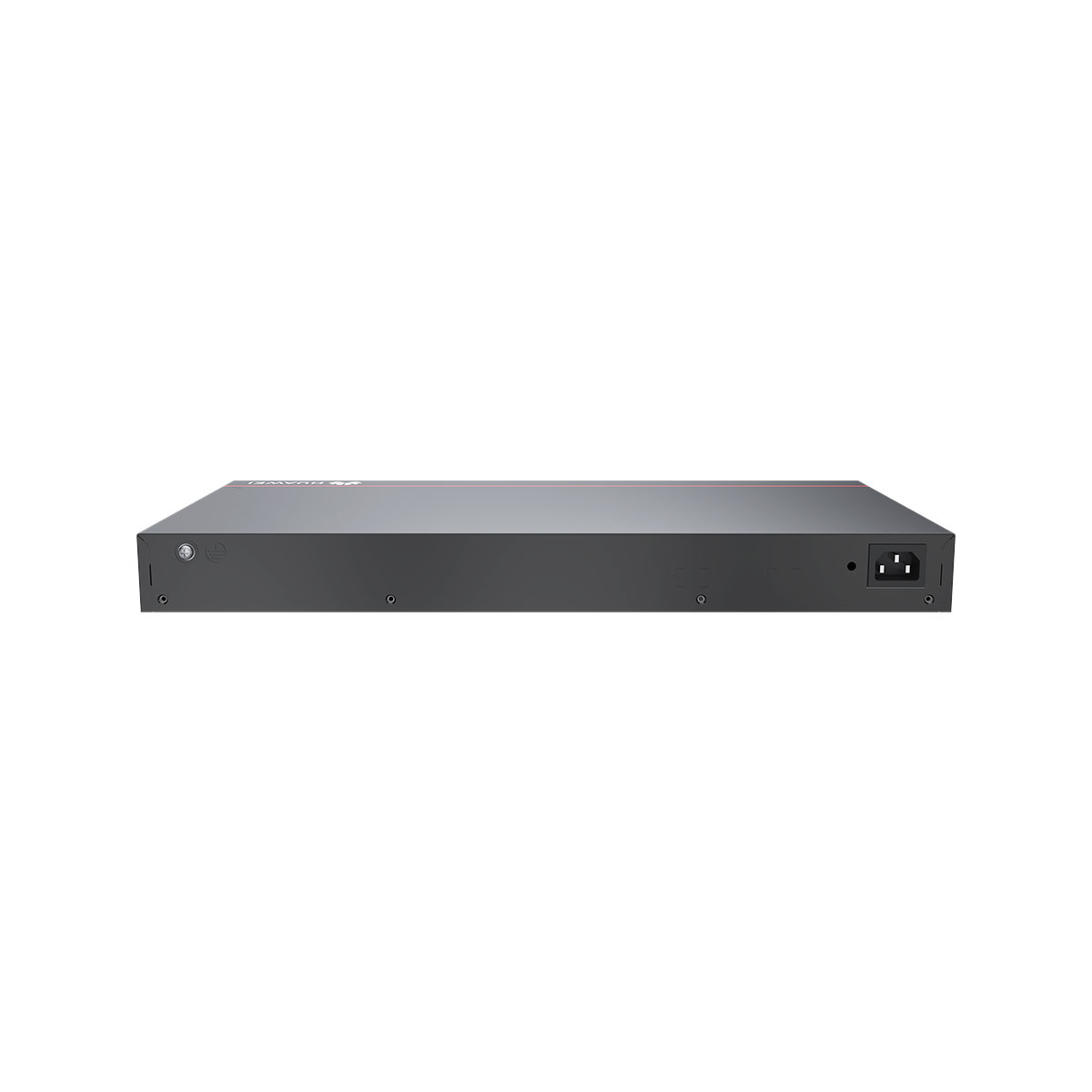

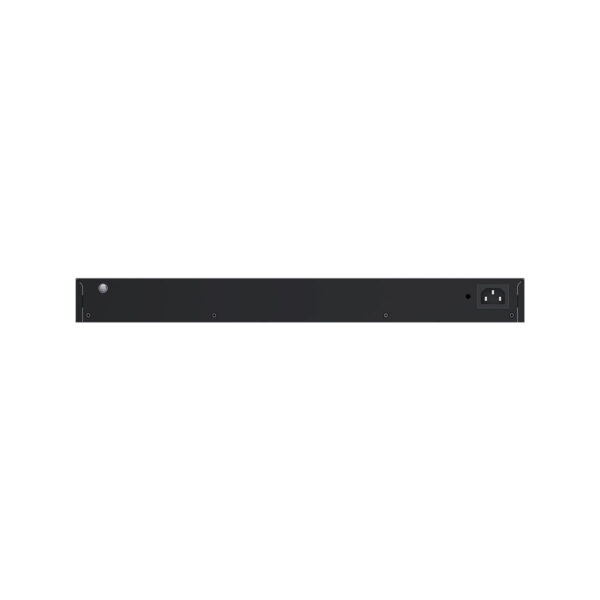

AirEngine 9700D-M1 overview

The AirEngine 9700D-M1 is a 10GE central access point (AP) launched by Huawei, and has four 10GE uplink ports and twenty-four GE downlink ports. The AirEngine 9700D-M1 can connect to Wi-Fi 6 remote units (RUs) through Ethernet cables to centrally process and forward services. Such a WLAN formed by the central AP and RUs can fully utilize the RU throughput. Additionally, only one AP license is required, reducing customer investment. The AirEngine 9700D-M1 can be deployed in an equipment room, weak-current well, or corridor, and RUs are deployed in rooms. This architecture is recommended for environments with high-density rooms and complex wall structures, such as schools, hotels, hospitals, and office meeting rooms.

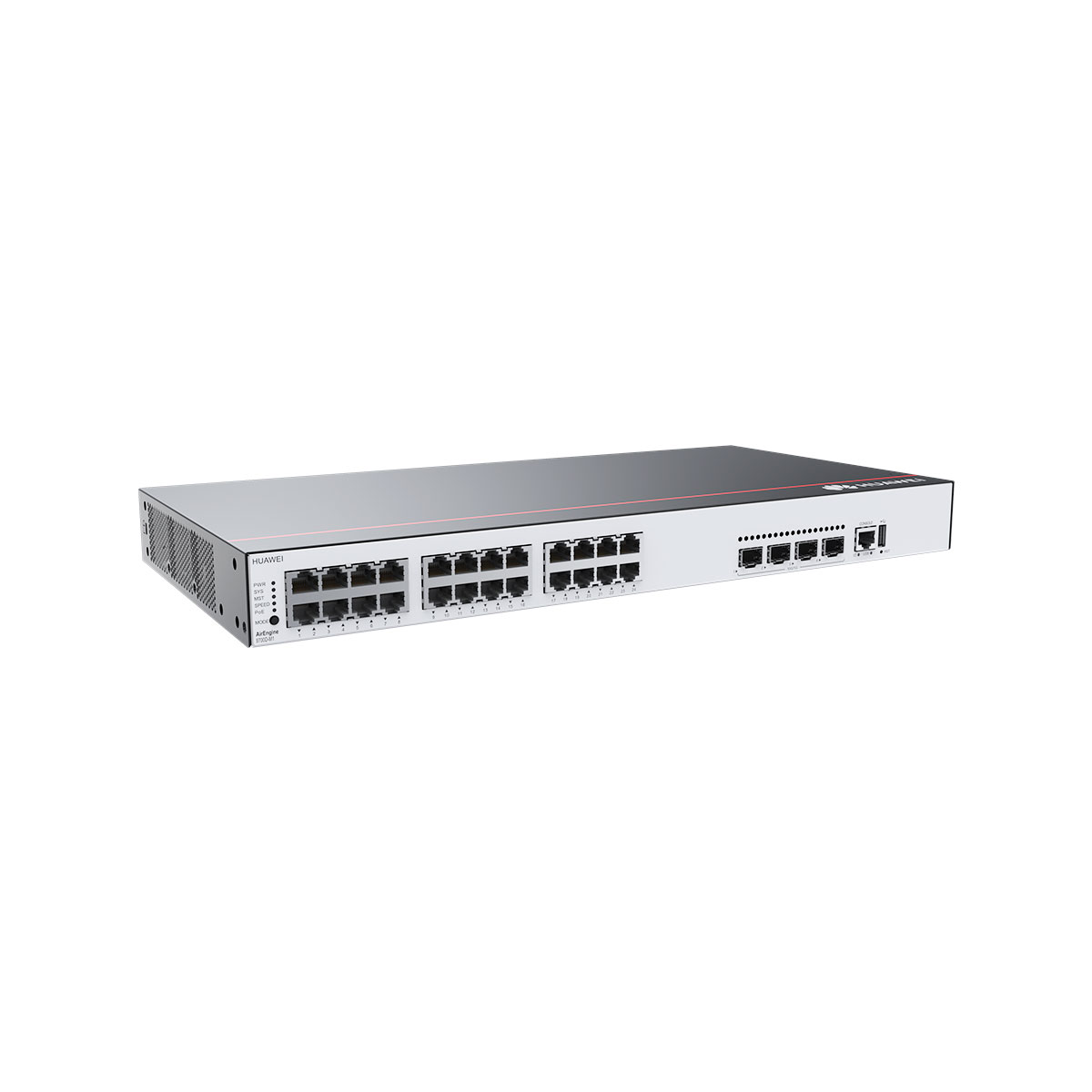

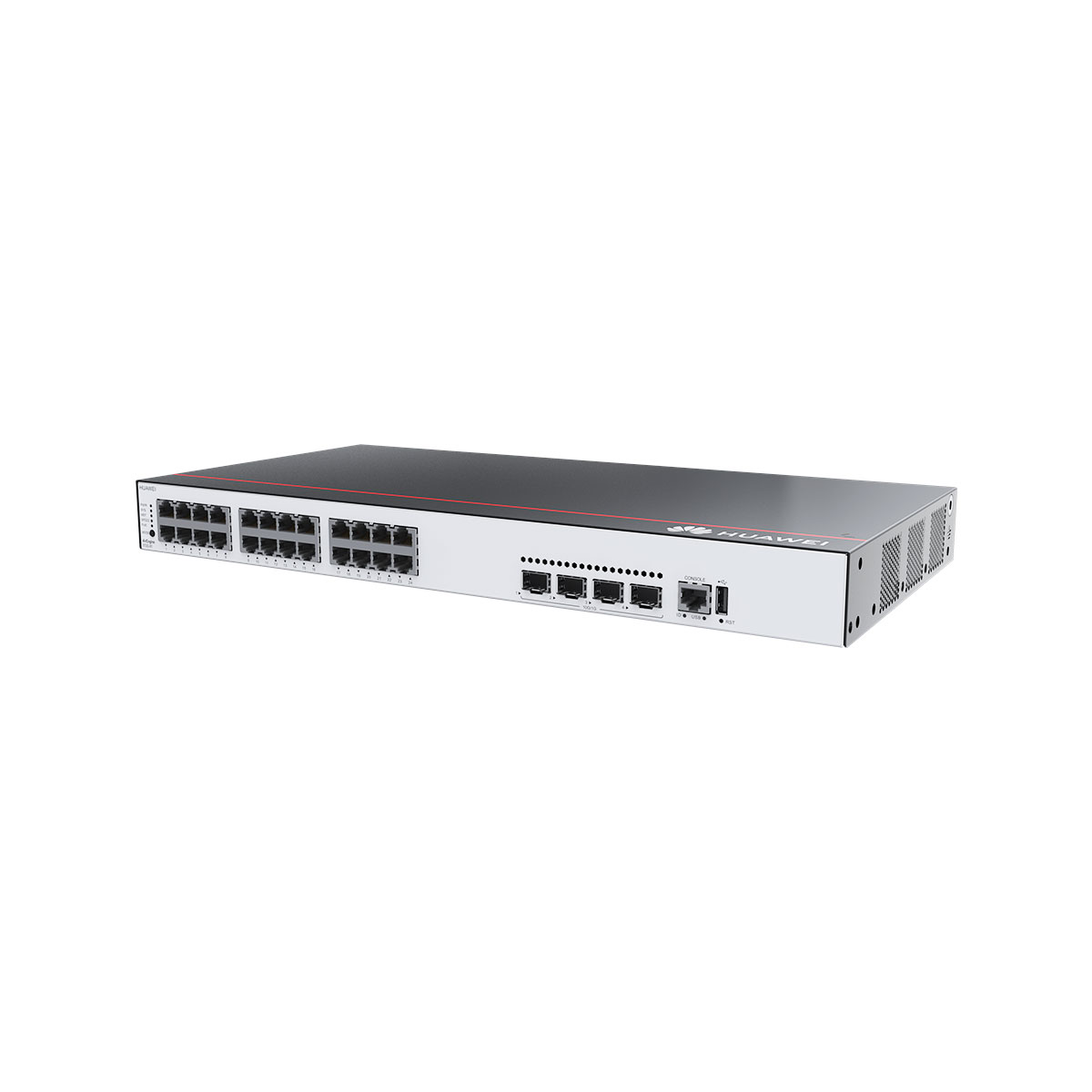

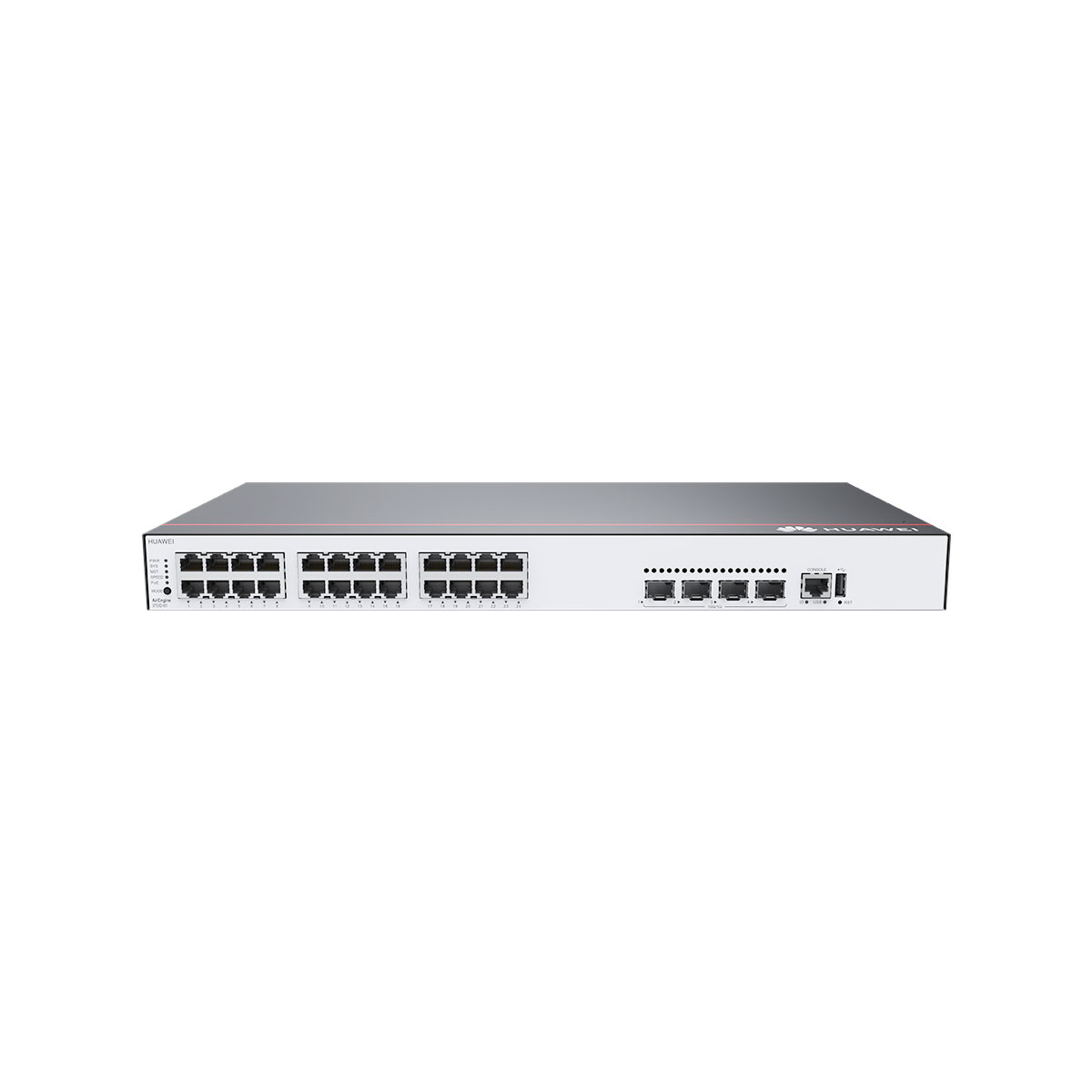

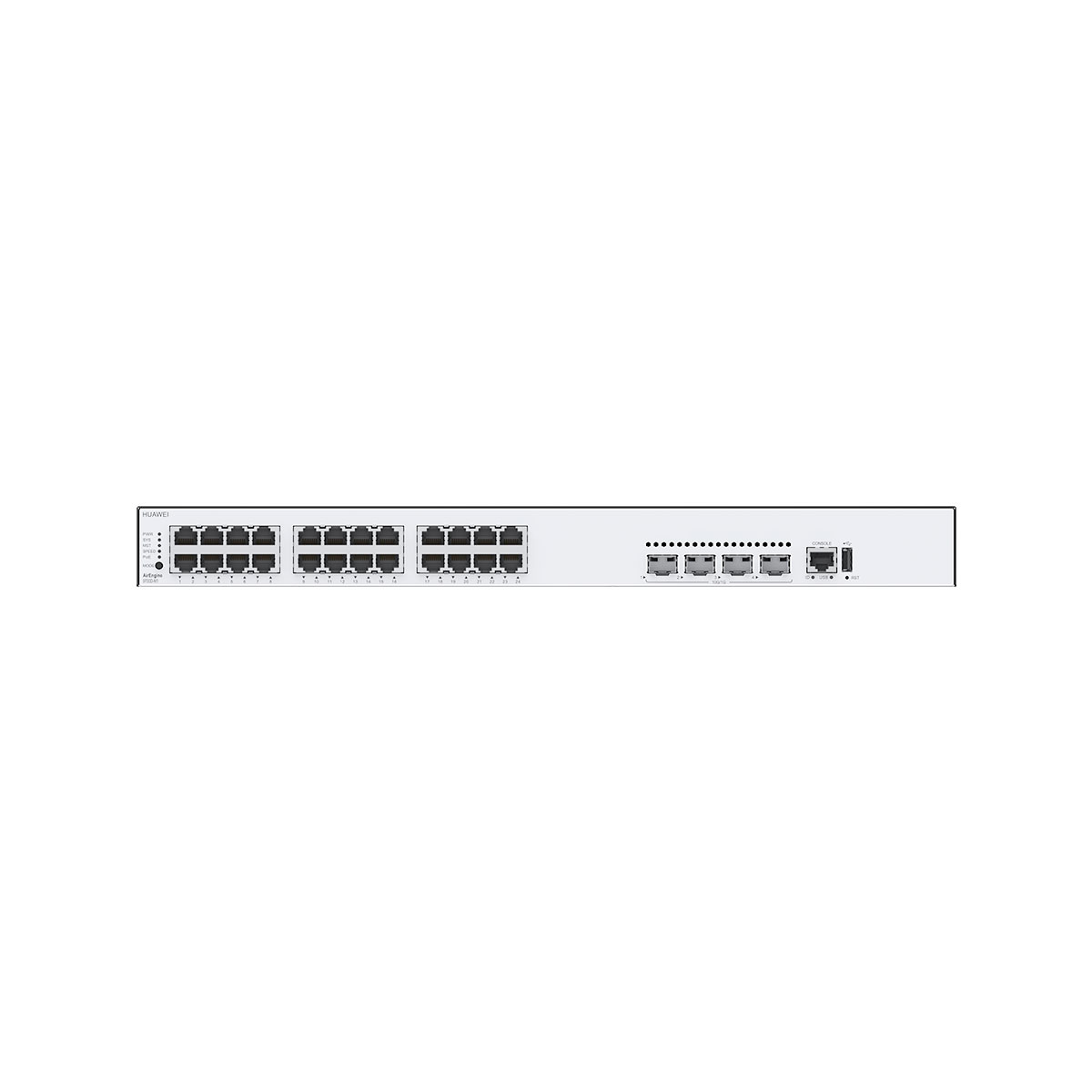

Front panel of the AirEngine 9700D-M1

AirEngine 9700D M1

Front panel of the AirEngine 9700D-M1



Ports on the AirEngine 9700D-M

1

GE

2

10G/1G

3

CONSOLE

4

USB



Item AirEngine 9700D-M1
Storage 512 MB
Console port RJ45
Maximum power consumption [W] 53.8 W (PoE output disabled); 433.8 W (PoE full load, including 380 W PoE output)
Maximum heat dissipation [BTU/hour] 183.57 (PoE output disabled); 1480.17 (PoE full load)
Power supply mode Pluggable power supply
Rated input voltage [V] AC input: 100 V AC to 240 V AC, 50/60 Hz
Input voltage range [V] AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
Service port surge protection

GE(PoE):

Differential mode (48 V-RTN), ±0.5 kV

Common mode: ±6 kV
PoE Supported
Relationship between PoE and system power modules [W]

Pluggable AC power module

Rated voltage range: 100–240 V AC; 50/60 Hz

Maximum voltage range: 90–290 V AC; 45–65 Hz
Maximum PoE output power [W] 380 W
Types of fans Built-in
Number of fan modules 2
Maximum number of physical ports on the entire device 10/100/1000BASE-T (PoE out) x 24 + SFP+ (10GE) x 4
Long-term operating temperature [°C(°F)] –5°C to +50°C (23°F to 122°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 300 m.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] 0 m to 5000 m (0 ft to 16404.20 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Noise at normal temperature (acoustic power) [dB(A)] 50 dB(A)
Ground Ground
USB USB 2.0
MTBF [year] 57 year
MTTR [hour] 2 hour
Installation Type
  • Rack
  • Wall
  • Work bench
Dimensions without packaging (H x W x D) [mm(in.)]

Basic: 43.6 mm x 442 mm x 220 mm (1.72 in. x 17.4 in. x 8.66 in.)

Maximum: 43.6 mm x 442 mm x 227 mm (1.72 in. x 17.4 in. x 8.94 in.)

The depth is the distance from ports on the front panel to the parts protruding from the rear panel.
Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Weight without packaging [kg(lb)] 2.96 kg (6.53 lb)
Weight with packaging [kg(lb)] 3.93 kg (8.66 lb)

Additional information

Brand

Huawei
Item AirEngine 9700D-M1
Storage 512 MB
Console port RJ45
Maximum power consumption [W] 53.8 W (PoE output disabled); 433.8 W (PoE full load, including 380 W PoE output)
Maximum heat dissipation [BTU/hour] 183.57 (PoE output disabled); 1480.17 (PoE full load)
Power supply mode Pluggable power supply
Rated input voltage [V] AC input: 100 V AC to 240 V AC, 50/60 Hz
Input voltage range [V] AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
Service port surge protection

GE(PoE):

Differential mode (48 V-RTN), ±0.5 kV

Common mode: ±6 kV
PoE Supported
Relationship between PoE and system power modules [W]

Pluggable AC power module

Rated voltage range: 100–240 V AC; 50/60 Hz

Maximum voltage range: 90–290 V AC; 45–65 Hz
Maximum PoE output power [W] 380 W
Types of fans Built-in
Number of fan modules 2
Maximum number of physical ports on the entire device 10/100/1000BASE-T (PoE out) x 24 + SFP+ (10GE) x 4
Long-term operating temperature [°C(°F)] –5°C to +50°C (23°F to 122°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 300 m.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] 0 m to 5000 m (0 ft to 16404.20 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Noise at normal temperature (acoustic power) [dB(A)] 50 dB(A)
Ground Ground
USB USB 2.0
MTBF [year] 57 year
MTTR [hour] 2 hour
Installation Type
  • Rack
  • Wall
  • Work bench
Dimensions without packaging (H x W x D) [mm(in.)]

Basic: 43.6 mm x 442 mm x 220 mm (1.72 in. x 17.4 in. x 8.66 in.)

Maximum: 43.6 mm x 442 mm x 227 mm (1.72 in. x 17.4 in. x 8.94 in.)

The depth is the distance from ports on the front panel to the parts protruding from the rear panel.
Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Weight without packaging [kg(lb)] 2.96 kg (6.53 lb)
Weight with packaging [kg(lb)] 3.93 kg (8.66 lb)
