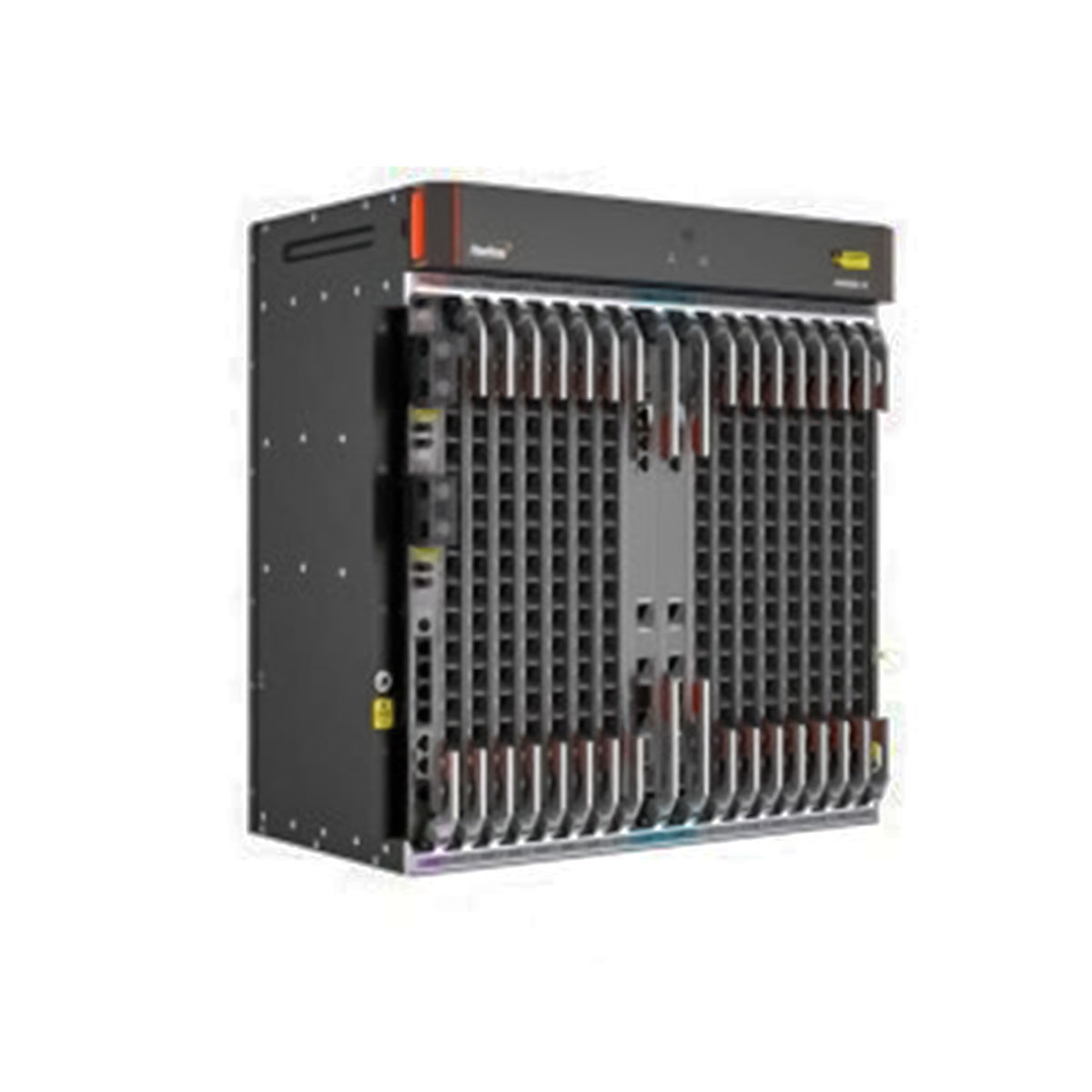

AN6000-15
Fiberhome AN6000-15 OLT supports 15 service slots, with 2* HSCA core switch cards and 2* PIBA DC power cards
Fiberhome
3-5 days
Shenzhen Warehouse
- Description
- DATASHEET
- Packing info
- Reviews (2)
Description
AN6000-15 overview
The AN6000-15 is a large-sized optical line terminal deployed in a central office. Providing 15 service slots and featuring large capacity and high bandwidth, the device can cater to the access demand in a densely-populated area.
AN6000-15 is the next-generation OLT platform that has the ultra-broadband capability for PON smooth evolution. Their distributed architecture design can support high-density GPON, XG(S)-PON, XG(S)-PON Combo, TWDM-PON, WDM-PON, and P2P card, which will bring higher bandwidth and enhance capacity for access network. Cloudization and virtualization can also be implemented on them. All of these will improve user experience, and reduce long-term investment and maintenance costs of operators.
- Huawei MA5800-X15
- ZTE C600
AN6000-15 appearance and structure
| No. | Name | Function |
| 1 | Vertical card slot | Houses a fan unit. |
| 2 | Horizontal card slot | Accommodates cards to implement various functions of the equipment. |
| 3 | ESD protection earth ground fastener | Connects with an ESD protection unit. |
| 4 | Mounting ears | Secure the subrack in a cabinet |
| 5 | Fiber puller hanger | Holds a fiber puller. |
| 6 | Subrack earth ground point | Connects with the subrack protection earth ground cable. |
AN6000-15 slot distribution
The AN6000-15 subrack provides 12 horizontal slots and one vertical slot.
AN6000-15 card supported
The slots can be classified as follows according to the cards they house:
| Type | Slot | Card Supported |
| Service card slot | 1-7 and 10- 17 | GPOA, EX8A, EXOA, GX8A, GM8A, GM8B, GMOA, GNOA, GFOA and PXNA |
| Uplink card slot | 16- 17 | HU8A, KU1B |
| Core switch card slot | 8-9 | HSCA |
| Fan unit slot | 23 | FAN |
| Power card slot | 24-25 | PIBA |
| Common interface card slo | 26 | CIOA |
| Item | AN6000-15 | ||||||||||||||||||||||||||||||||||||||
| Slot configuration | Two slots for core switch cards (slots 8 and 9)
15 slots for service cards (slots 1 to 7 and 10 to 17) Two slots for uplink cards (slots 16 and 17) Two slots for power cards (slots 24 and 25) One slot for the common interface card (slot 26) One slot for the fan unit (slot 23) |
||||||||||||||||||||||||||||||||||||||
| Dimensions (H × W × D) of a subrack with mounting ears for 19-inch cabinetsNote 1 | 486 mm × 480 mm × 282 mm | ||||||||||||||||||||||||||||||||||||||
| Dimensions (H × W × D) of a subrack with mounting ears for 21-inch cabinets | 486 mm × 530 mm × 282 mm | ||||||||||||||||||||||||||||||||||||||
| Weight of an empty subrack (excluding the fan unit) | 12. 15 kg | ||||||||||||||||||||||||||||||||||||||
| Weight of an empty subrack (including the fan unit) | 16.65 kg | ||||||||||||||||||||||||||||||||||||||
| Maximum input current | 63 A | ||||||||||||||||||||||||||||||||||||||
| Power supply mode | DC (two channels of power supplies forming redundancy protection) | ||||||||||||||||||||||||||||||||||||||
| Working voltage range | -38.4 V to -57.6 V | ||||||||||||||||||||||||||||||||||||||
| Rated voltage | -48 V | ||||||||||||||||||||||||||||||||||||||
| Operating temperature | -40℃ to 65℃ | ||||||||||||||||||||||||||||||||||||||
| Operating relative humidity | 5% to 95% (non-condensing) | ||||||||||||||||||||||||||||||||||||||
| Storage temperature | -40℃ to 70℃ | ||||||||||||||||||||||||||||||||||||||
| Relative humidity for storage | 5% to 95% (non-condensing) | ||||||||||||||||||||||||||||||||||||||
| Atmospheric pressure | 70 kPa to 106 kPa | ||||||||||||||||||||||||||||||||||||||
| Slot bandwidth | 200 Gbit/s | ||||||||||||||||||||||||||||||||||||||
| Switch capacity of the backplane bus | 12 Tbit/s | ||||||||||||||||||||||||||||||||||||||
| Core switch card capacity (in the load sharing mode) | 6.8 Tbit/s | ||||||||||||||||||||||||||||||||||||||
| Maximum number of MAC addresses in the system | 262144 | ||||||||||||||||||||||||||||||||||||||
| Maximum number of IPv4 routing tables in the system | 16384 | ||||||||||||||||||||||||||||||||||||||
| Maximum number of IPv6 routing tables in the system | 8192 | ||||||||||||||||||||||||||||||||||||||
| Maximum number of ARP tables in the system | 18432 | ||||||||||||||||||||||||||||||||||||||
| Maximum number of ND tables in the system | 9216 | ||||||||||||||||||||||||||||||||||||||
| Maximum number of multicast groups in the system | 4096 | ||||||||||||||||||||||||||||||||||||||
| Full-load bit error rate | ＜ 10 e-7 | ||||||||||||||||||||||||||||||||||||||
| System reliability specifications | System availability with typical configuration: ＞ 99.999% Mean time between failures (MTBF) of the system: approx. 45 years Note: The mean time to repair (MTtr) for the entire system is 2 hours. | ||||||||||||||||||||||||||||||||||||||
| Maximum number of GPON ports in the system | 240 | ||||||||||||||||||||||||||||||||||||||
| Maximum number of 10G EPON ports in the system | 240 | ||||||||||||||||||||||||||||||||||||||
| Maximum number of XG-PON ports in the system | 240 | ||||||||||||||||||||||||||||||||||||||
| Maximum number of GPON & XG-PON Combo ports in the system | 240 | ||||||||||||||||||||||||||||||||||||||
| Maximum number of GPON & XGS-PON Combo ports in the system | 240 | ||||||||||||||||||||||||||||||||||||||
| Maximum number of Agile-PON ports in the system | 240 | ||||||||||||||||||||||||||||||||||||||
| Maximum number of uplink ports in the system | 8 × 10GE / GE uplink ports (HSCA) (Only core switch cards are used to provide uplink ports.) | ||||||||||||||||||||||||||||||||||||||
| 16 × 10GE / GE uplink ports (HU8A) + 8 × 10GE / GE uplink ports (HSCA) (Both core switch cards and uplink cards are used to provide uplink ports.) | |||||||||||||||||||||||||||||||||||||||
| 8 × 10GE / GE uplink ports (KU1B) + 2 × 100GE uplink ports (KU1B) + 8 × 10GE / GE uplink ports (HSCA) (Both core switch cards and uplink cards are used to provide uplink ports.) | |||||||||||||||||||||||||||||||||||||||
| Maximum number of Ethernet ports in the system | 360 | ||||||||||||||||||||||||||||||||||||||
| Maximum number of ONUs connected to the system | 17408 | ||||||||||||||||||||||||||||||||||||||
| Maximum number of multicast users in the system | 17408 | ||||||||||||||||||||||||||||||||||||||
| Maximum transmission distance (PON port) | 60 km | ||||||||||||||||||||||||||||||||||||||
| Maximum uplink transmission distance | 80 km | ||||||||||||||||||||||||||||||||||||||
| Time for active-standby switching of core switch cards / uplink cards | ≤ 50 ms | ||||||||||||||||||||||||||||||||||||||
| Time for optical path protection switching (Type B / Type C) | ≤ 50 ms | ||||||||||||||||||||||||||||||||||||||
| Bandwidth allocation granularity of DBA | GPOA: 64 kbit/s | ||||||||||||||||||||||||||||||||||||||
| EX8A: 640 kbit/s | |||||||||||||||||||||||||||||||||||||||
| EXOA: 640 kbit/s | |||||||||||||||||||||||||||||||||||||||
| GX8A: 256 kbit/s | |||||||||||||||||||||||||||||||||||||||
| GM8A: 256 kbit/s (XG-PON) / 64 kbit/s (GPON) | |||||||||||||||||||||||||||||||||||||||
| GM8B: 256 kbit/s (XG-PON) / 64 kbit/s (GPON) | |||||||||||||||||||||||||||||||||||||||
| GMOA: 256 kbit/s (XG-PON) / 64 kbit/s (GPON) | |||||||||||||||||||||||||||||||||||||||
| GNOA: 64 kbit/s (XGS-PON) / 64 kbit/s (GPON) | |||||||||||||||||||||||||||||||||||||||
| GFOA: 64 kbit/s (XGS-PON) / 256 kbit/s (XG-PON) / 64 kbit/s (GPON) | |||||||||||||||||||||||||||||||||||||||
| Minimum configurable bandwidth of DBA | GPOA: 1024 kbit/s | ||||||||||||||||||||||||||||||||||||||
| EX8A: 2560 kbit/s | |||||||||||||||||||||||||||||||||||||||
| EXOA: 2560 kbit/s | |||||||||||||||||||||||||||||||||||||||
| GX8A: 1024 kbit/s | |||||||||||||||||||||||||||||||||||||||
| GM8A: 1024 kbit/s | |||||||||||||||||||||||||||||||||||||||
| GM8B: 1024 kbit/s | |||||||||||||||||||||||||||||||||||||||
| GMOA: 1024 kbit/s | |||||||||||||||||||||||||||||||||||||||
| GNOA: 1024 kbit/s | |||||||||||||||||||||||||||||||||||||||
| GFOA: 1024 kbit/s | |||||||||||||||||||||||||||||||||||||||
| DBA accuracy | Better than ±5% | ||||||||||||||||||||||||||||||||||||||
| Long-term packet loss rate | When the traffic accounts for 90% of the throughput, the 24-hour packet loss rate is 0. | ||||||||||||||||||||||||||||||||||||||
| Overall power consumption | Typical configuration: 2 × HSCA + 15 × GNOA + 2 × PIBA + FAN + CIOA
Static power consumption: 1098 W Typical power consumption: 1880 W Maximum power consumption: 2435 W The equipment can only be used together with a PDP with a rated current of 63 A. For details of the matching PDPs, see PDPs. Note: For other card configurations, calculate the overall power consumption according to this formula: overall power consumption = power consumption of 2 core switch cards + power consumption of 15 service cards + power consumption of 2 power cards + power consumption of the fan unit + power consumption of the common interface card. For power consumption of each card, refer to AN6000 Series Optical Line Terminal Equipment Hardware Description. |
||||||||||||||||||||||||||||||||||||||
| The overall power consumption is measured under the following conditions: Working voltage: -53.5 V DC.
Room temperature: 25℃ (static power consumption and typical power consumption) or 55℃ (maximum power consumption) Static power consumption: All the broadband ports are deactivated. Typical power consumption: 50% of the broadband ports are concurrently activated. Maximum power consumption: 100% of the broadband ports are concurrently activated. |
|||||||||||||||||||||||||||||||||||||||
| Note 1: The AN6000- 15 subrack is equipped with the mounting ears for 19-inch cabinets by default. | |||||||||||||||||||||||||||||||||||||||
Additional information
| Dimensions | 49 × 48 × 29 cm |
|---|
