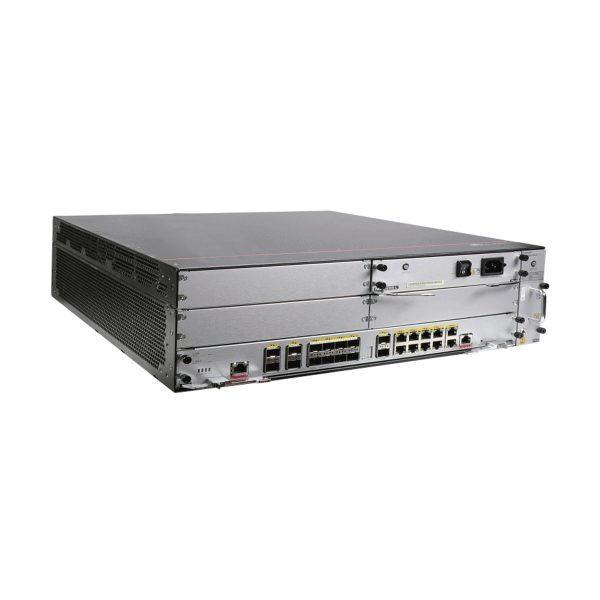

Huawei AR6300-S

0 Reviews Write a review
SKU2014314
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Huawei AR6300-S, Service and Router Unit 400H,4*SIC,2*WSIC,4*XSIC,350W AC Power

Description

Overview

Huawei AR6300-S(02352VEL), Service and Router Unit 400H,4*SIC,2*WSIC,4*XSIC,350W AC Power



An alternative version is (02352VEL-001).



Item Details
Description Assembling Components,AR6300-S,AR6300-S,AR6300-S,Service and Router Unit 400H,4*SIC,2*WSIC,4*XSIC,350W AC Power
Part Number 02352VEL
Model AR6300-S
First supported version V300R019C00
Remarks

An AR6300-S is equipped with the 350 W AC power module, ensure that the total power of cards configured on the AR6300 does not exceed 102 W or contact technical support personnel for more suggestions.

All the indicators seen on the AR6300-S front panel are module indicators. For details about these indicators, see indicator description of the specific module.

The AR6300-S system parameters depends on the SRU that is used.

Item AR6300-S
Installation type Rack
Dimensions without packaging (H x W x D) [mm(in.)]
  • Basic dimensions (excluding the parts protruding from the body): 130.5 mm x 442.0 mm x 470.0 mm (5.14 in. x 17.40 in. x 18.50 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 130.5 mm x 442.0 mm x 494.7 mm (5.14 in. x 17.40 in. x 19.48 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 230 mm x 655 mm x 590 mm (9.06 in. x 25.79 in. x 23.23 in.)
Chassis height [U] 3 U
Weight with packaging [kg(lb)] 15.77 kg (34.69 lb)
Weight without packaging [kg(lb)] 12.5 kg (27.5 lb)
Power supply mode AC external
Number of power modules 2
Rated input voltage [V] AC rated input voltage range: 100 V to 240 V, 50 Hz/60 Hz
Input voltage range [V] AC maximum input voltage range: 90 V to 264 V, 47 Hz to 63 Hz
Maximum input current [A] 5 A
Maximum output power [W] 350 W
Type of fans Pluggable
Number of fan modules 1
Heat dissipation mode Air cooling
Airflow direction Left to right
Extended slots (standard configuration)
  • 4 x SIC
  • 2 x WSIC
  • 4 x XSIC
Number of service board slots 10
Redundant power supply
  • Support double AC power supply (1 + 1 backup)
  • Support double DC power supply (1 + 1 backup)
RPS input Not supported
Noise at normal temperature (acoustic power) [dB(A)] 66.1 dB(A)
Long-term operating temperature [°C(°F)]

0°C to 45°C (32°F to 113°F)

NOTE:

When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH] 5% to 95%, noncondensing
Long-term operating altitude [m(ft.)] < 5000 m (16404.2 ft.)
MTBF [year] 42.61 year
MTTR [hour] 2 hour
Availability 0.9999962934

Additional information

Brand

Huawei

Lead Time

3-5 days

Ship From

Shenzhen Warehouse

Item AR6300-S
Installation type Rack
Dimensions without packaging (H x W x D) [mm(in.)]
  • Basic dimensions (excluding the parts protruding from the body): 130.5 mm x 442.0 mm x 470.0 mm (5.14 in. x 17.40 in. x 18.50 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 130.5 mm x 442.0 mm x 494.7 mm (5.14 in. x 17.40 in. x 19.48 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 230 mm x 655 mm x 590 mm (9.06 in. x 25.79 in. x 23.23 in.)
Chassis height [U] 3 U
Weight with packaging [kg(lb)] 15.77 kg (34.69 lb)
Weight without packaging [kg(lb)] 12.5 kg (27.5 lb)
Power supply mode AC external
Number of power modules 2
Rated input voltage [V] AC rated input voltage range: 100 V to 240 V, 50 Hz/60 Hz
Input voltage range [V] AC maximum input voltage range: 90 V to 264 V, 47 Hz to 63 Hz
Maximum input current [A] 5 A
Maximum output power [W] 350 W
Type of fans Pluggable
Number of fan modules 1
Heat dissipation mode Air cooling
Airflow direction Left to right
Extended slots (standard configuration)
  • 4 x SIC
  • 2 x WSIC
  • 4 x XSIC
Number of service board slots 10
Redundant power supply
  • Support double AC power supply (1 + 1 backup)
  • Support double DC power supply (1 + 1 backup)
RPS input Not supported
Noise at normal temperature (acoustic power) [dB(A)] 66.1 dB(A)
Long-term operating temperature [°C(°F)]

0°C to 45°C (32°F to 113°F)

NOTE:

When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH] 5% to 95%, noncondensing
Long-term operating altitude [m(ft.)] < 5000 m (16404.2 ft.)
MTBF [year] 42.61 year
MTTR [hour] 2 hour
Availability 0.9999962934
