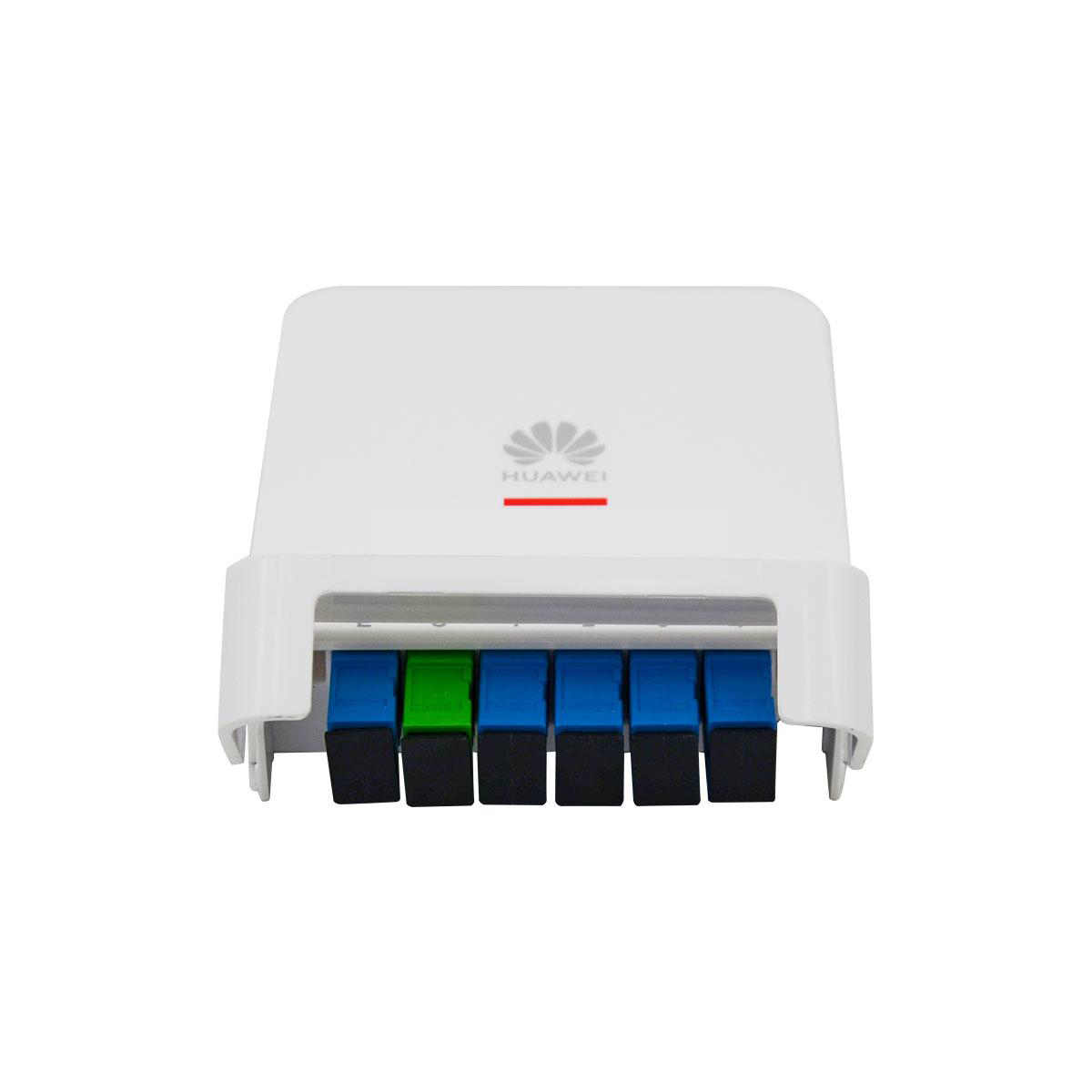

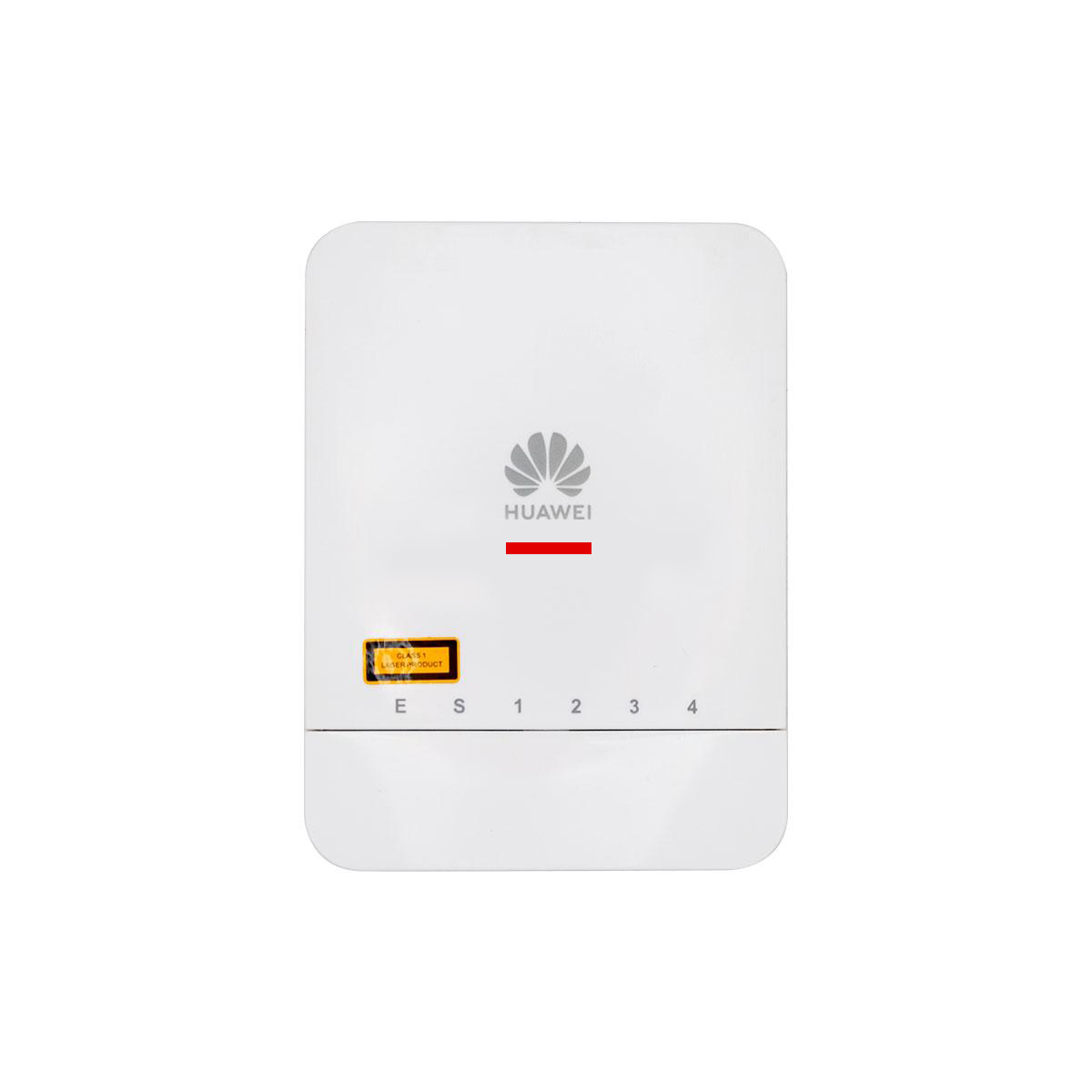

ATB2115-SI-5U overview
ATB2115-SI-5U (optical distribution box) is a passive optical device used to connect ONT and home information panel. ATB is installed indoors, provides optical fiber sockets, and supports wall mounting.
High Light
| Item | ATB2115-SI-5U |
| Dimensions (H×W×D, mm) | 115 x 86 x 23 |
| Installation method | indoor wall hanging, 86 bottom box installation |
| Adapter | 6*SC/UPC |
| Material | Plastic |
| Flame retardant requirements | UL94-V0 |
| IK impact | IK07 |
| IP rating | IP20 |
| Storage temperature | -40ºC～+70ºC |
| Operating temperature | -25ºC～+60ºC |
| Operating humidity | 0%～93% (+40ºC) |
| Air pressure | 70kPa～106kPa |
| Typical insertion loss (dB) | 0.1 |
| Maximum insertion loss (dB) | 0.2 |
| Plug-in and unplug times | 200 times |
| Working wavelength (nm) | 1260/1310/1550 |
| Split ratio Unequal ratio | 1：5 |
| Insertion loss (dB) | From input to optical port 1/2/3/4≤ 15.7 |
| From input to cascade output≤ 1.8 |
| Brand | Huawei |
|---|
| Item | ATB2115-SI-5U |
| Dimensions (H×W×D, mm) | 115 x 86 x 23 |
| Installation method | indoor wall hanging, 86 bottom box installation |
| Adapter | 6*SC/UPC |
| Material | Plastic |
| Flame retardant requirements | UL94-V0 |
| IK impact | IK07 |
| IP rating | IP20 |
| Storage temperature | -40ºC～+70ºC |
| Operating temperature | -25ºC～+60ºC |
| Operating humidity | 0%～93% (+40ºC) |
| Air pressure | 70kPa～106kPa |
| Typical insertion loss (dB) | 0.1 |
| Maximum insertion loss (dB) | 0.2 |
| Plug-in and unplug times | 200 times |
| Working wavelength (nm) | 1260/1310/1550 |
| Split ratio Unequal ratio | 1：5 |
| Insertion loss (dB) | From input to optical port 1/2/3/4≤ 15.7 |
| From input to cascade output≤ 1.8 |
