C1000FE-48P-4G-L

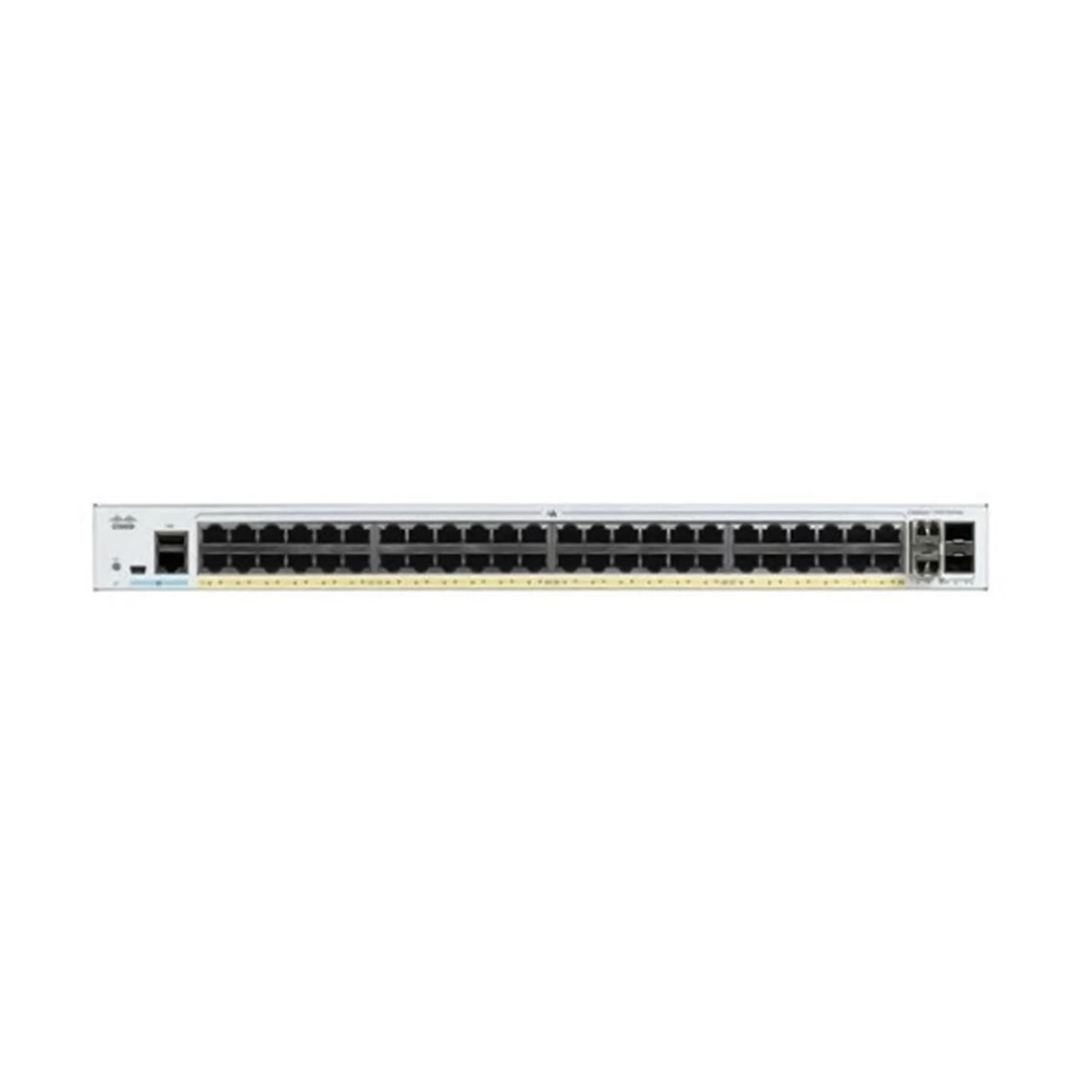

Cisco C1000FE-48P-4G-L switch supports 48x 10/100 Ethernet PoE+ and 370W PoE budget ports, 2x 1GSFP and RJ-45 combo uplinks and 2x 1G SFP uplinks
Cisco
3-5 days
Shenzhen Warehouse
- Description
- DATASHEET
- Reviews (0)
Description
C1000FE-48P-4G-L overview
Cisco C1000FE-48P-4G-L switch supports 48x 10/100 Ethernet PoE+ and 370W PoE budget ports, 2x 1GSFP and RJ-45 combo uplinks and 2x 1G SFP uplinks.
Cisco Catalyst 1000 Series SwC1000-8T-2G-Litches are fixed managed Gigabit Ethernet and Fast Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices. These are simple, flexible and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments.
Cisco Catalyst 1000 operate on Cisco IOS Software and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for small organizations.
C1000FE-48P-4G-L highlights
Cisco Catalyst 1000 Series Switches feature:
- 8, 16, 24, or 48 Gigabit Ethernet and 24, 48 port Fast Ethernet data or PoE+ ports with line-rate forwarding
- 2 or 4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP)/RJ 45 Combo uplinks (8 Port models only) or 4 fixed 10 Gigabit Ethernet Enhanced SFP (SFP+) uplinks on the Gigabit Ethernet models and 4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP) and 2 RJ 45 Combo uplinks on the Fast Ethernet models
- Perpetual PoE+ support with a power budget of up to 740W
- CLI and/or intuitive web UI manageability options
- Network monitoring through sampled flow (sFlow)
- Security with 802.1X support for connected devices, Switched Port Analyzer (SPAN), and Bridge Protocol Data Unit (BPDU) Guard
- Compact fanless models available with a depth of less than 13 inches (33 cm)
- Device management support with over-the-air access via Bluetooth, Simple Network Management Protocol (SNMP), RJ-45, or USB console acces
Product |
Gigabit Ethernet / FE ports |
Uplink interfaces |
PoE+power budget |
Fanless |
Dimensions |
Weight (kg) |
C1000-8T-2G-L |
8 10/100/1000 RJ45 Data |
2 SFP/ RJ-45 combo |
– |
Y |
10.56 x 7.28 x 1.73 |
1.80 |
C1000-8T-E-2G-L |
8 10/100/1000 RJ45 Data |
2 SFP/ RJ-45 combo |
– |
Y |
10.56 x 7.28 x 1.73 |
1.55 |
C1000-8P-2G-L |
8 10/100/1000 RJ45 PoE+ |
2 SFP/ RJ-45 combo |
67W |
Y |
10.56 x 12.73 x 1.73 |
1.55 |
C1000-8P-E-2G-L |
8 10/100/1000 RJ45 PoE+ |
2 SFP/ RJ-45 combo |
67W |
Y |
10.56 x 7.28 x 1.73 |
1.55 |
C1000-8FP-2G-L |
8 10/100/1000 RJ45 PoE+ |
2 SFP/ RJ-45 combo |
120W |
Y |
10.56 x 12.73 x 1.73 |
2.70 |
C1000-8FP-E-2G-L |
8 10/100/1000 RJ45 PoE+ |
2 SFP/ RJ-45 combo |
120W |
Y |
10.56 x 7.28 x 1.73 |
2.70 |
C1000-16T-2G-L |
16 10/100/1000 RJ45 Data |
2 SFP |
– |
Y |
10.56 x 10.69 x 1.73 |
1.78 |
C1000-16T-E-2G-L |
16 10/100/1000 RJ45 Data |
2 SFP |
– |
Y |
10.56 x 8.26x 1.73 |
1.42 |
C1000-16P-2G-L |
16 10/100/1000 RJ45 PoE+ |
2 SFP |
120W |
Y |
10.56 x 11.69 x 1.73 |
2.38 |
C1000-16P-E-2G-L |
16 10/100/1000 RJ45 PoE+ |
2 SFP |
120W |
Y |
10.56 x 8.26x 1.73 |
1.42 |
C1000-16FP-2G-L |
16 10/100/1000 RJ45 PoE+ |
2 SFP |
240W |
Y |
10.56 x 12.14 x 1.73 |
2.49 |
C1000-24T-4G-L |
24 10/100/1000 RJ45 Data |
4 SFP |
– |
Y |
17.48 x 9.45 x 1.73 |
2.63 |
C1000-24P-4G-L |
24 10/100/1000 RJ45 PoE+ |
4 SFP |
195W |
Y |
17.48 x 11.76 x 1.73 |
3.53 |
C1000-24FP-4G-L |
24 10/100/1000 RJ45 PoE+ |
4 SFP |
370W |
N |
17.48 x 13.59 x 1.73 |
4.6 |
C1000-48T-4G-L |
48 10/100/1000 RJ45 Data |
4 SFP |
– |
N |
17.48 x 11.34 x 1.73 |
3.95 |
C1000-48P-4G-L |
48 10/100/1000 RJ45 PoE+ |
4 SFP |
370W |
N |
17.48 x 13.78 x 1.73 |
5.43 |
C1000-48FP-4G-L |
48 10/100/1000 RJ45 PoE+ |
4 SFP |
740W |
N |
17.48 x 13.78 x 1.73 |
5.82 |
C1000-24T-4X-L |
24 10/100/1000 RJ45 Data |
4 SFP+ |
– |
Y |
17.48 x 9.45 x 1.73 |
2.78 |
C1000-24P-4X-L |
24 10/100/1000 RJ45 PoE+ |
4 SFP+ |
195W |
Y |
17.48 x 11.76 x 1.73 |
3.68 |
C1000-24FP-4X-L |
24 10/100/1000 RJ45 PoE+ |
4 SFP+ |
370W |
N |
17.48 x 13.59 x 1.73 |
4.6 |
C1000-48T-4X-L |
48 10/100/1000 RJ45 Data |
4 SFP+ |
– |
N |
17.48 x 11.34 x 1.73 |
3.95 |
C1000-48P-4X-L |
48 10/100/1000 RJ45 PoE+ |
4 SFP+ |
370W |
N |
17.48 x 13.78 x 1.73 |
5.43 |
C1000-48FP-4X-L |
48 10/100/1000 RJ45 PoE+ |
4 SFP+ |
740W |
N |
17.48 x 13.78 x 1.73 |
5.82 |
C1000FE-24T-4G-L |
24 10/100 RJ45 Data |
2 SFP/ RJ-45 combo and 2 SFP |
– |
Y |
17.32 x 11.34 x 1.73 |
3.56 |
C1000FE-24P-4G-L |
24 10/100 RJ45 PoE+ |
2 SFP/ RJ-45 combo and 2 SFP |
195W |
Y |
17.48 x 13.78 x 1.73 |
4.52 |
C1000FE-48T-4G-L |
48 10/100 RJ45 Data |
2 SFP/ RJ-45 combo and 2 SFP |
– |
N |
17.32 x 11.34 x 1.73 |
3.97 |
C1000FE-48P-4G-L |
48 10/100 RJ45 PoE+ |
2 SFP/ RJ-45 combo and 2 SFP |
370W |
N |
17.48 x 13.78 x 1.73 |
5.46 |
