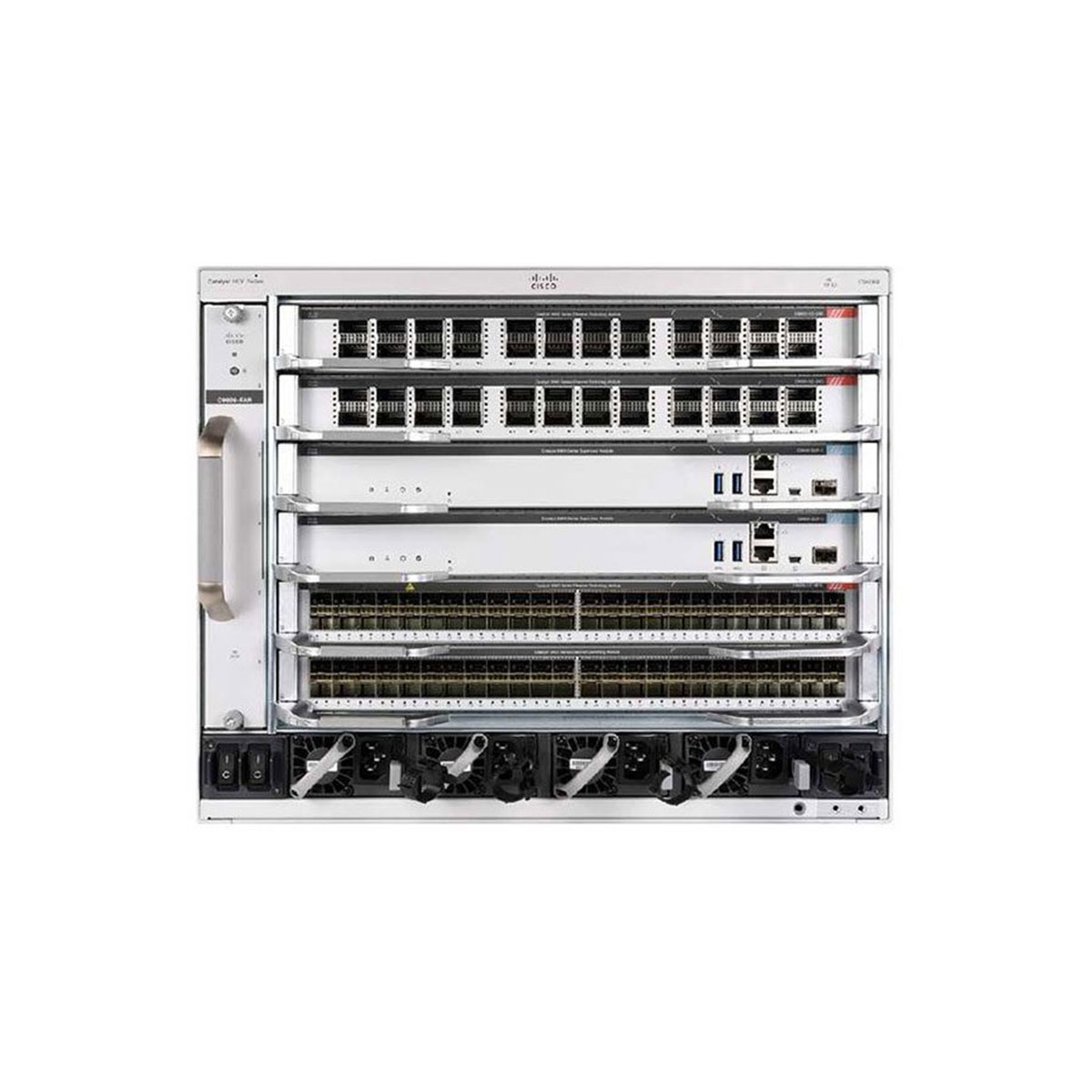

C9606R

Cisco catalyst 9600 series chassis C9606R with 6 slot

Cisco

3-5 days

Shenzhen Warehouse

Category:

Description

C9606R overview

Cisco Catalyst 9600 Series switches offers one chassis option, two supervisor options, and multiple line-card options. It provides a common architecture that can scale up to 192 10 Gigabit or 25 Gigabit Ethernet ports. The Cisco Catalyst 9600 Series redundant chassis offer High Availability (HA) by supporting 1 + 1 redundant supervisor engines with full-image In-Service Software Upgrades (ISSU). NSF/SSO and ISSU help ensure continuous packet forwarding during supervisor engine switchover to enable HA for business-critical applications.

The Cisco Catalyst 9600 Series chassis is enterprise optimized, with efficient side-to-side airflow and full front accessibility for all removable components, including supervisors, line cards, power supplies, and fan tray. The chassis also supports optional rear accessibility for the fan tray to enable efficient cable management. The Cisco Catalyst 9600 Series chassis, supervisor, line cards, power supply, and fan tray have embedded RFID tags that facilitate easy asset and inventory management using commercial RFID readers.

Cisco Catalyst 9600 Series switches offers an industry-leading supervisor engine built for secure networks, IoT applications, next-generation mobility, and cloud adoption. Supervisor Engine 1 is built with the latest UADP ASIC, with its programmable pipeline and template-based, configurable allocation of Layer 2, Layer 3, forwarding, ACLs and QoS entries, making it ready for next-generation technologies.

Items C9606R Chassis
Dimensions (H x W x D) 35.43 x 44.2 x 40.9 cm 13.95 x 17.4 x 16.1
Rack Units (RU) 8
Chassis Weight with 2 Power Supplies (AC) and Fan tray 31.31 kg (69.03 lbs)
Input Voltage AC: 90V to 264V, 47 to 63 Hz DC: -40V to -72V
Operating Temperature -5° to 45° C (23° to 113° F) up to 6000 feet -5° to 40° C (23° to 104° F) up to 10,000 feet
Storage Temperature -40° to 75° C (40° to 167° F)
Relative Humidity, Operating and Non-operating, Non-condensing 10% to 95%, Non-condensing
Altitude -60 to 3000 m (-197 to 9843 feet)
Mean Time Between Failures (MTBF) (hours) C9606R chassis: 4,113,900 C9606 fan tray: 452,570 C9600-PWR-3KWAC: 300,000 C9600-PWR-2KWAC: 300,000 C9600-PWR-2KWDC: 300,000
Chassis Weight (without Fan tray, without PSU) 25.36 kg (55.90 lbs)
Weight of Fan-tray 3.56 kg (7.85 lbs)
Weight of individual PSUs AC PSU (3000W): 1.4 kg (3.09 lbs) AC PSU (2000W): 1.2 kg (2.65 lbs) DC PSU (2000W): 1.28 kg (2.82 lbs)
