CE-L12CQ-FD

1 Review Write a review
PN03023XHP
AvailabilityIn Stock
CE Switch 100GE Card
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

CE-L12CQ-FD Huawei CE12800 series (12-Port 100GE Interface Card (FD, QSFP28)

Description

CE-L12CQ-FD card overview

CE-L12CQ-FD Huawei CE12800 series (12-Port 100GE Interface Card (FD, QSFP28)

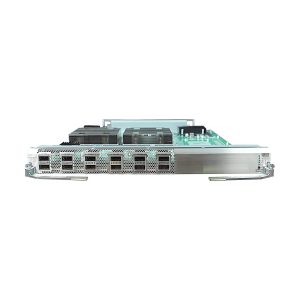

CE-L12CQ-FD card appearance

CE-L12CQ-FD



CE-L12CQ-FD card function and feature
Function and Feature Description
Basic function Provides data packet processing and traffic management on 12 100GE optical ports, which can be split into a maximum of 12 40GE optical ports, 48 25GE optical ports, or 48 10GE optical ports.
Maximum port density If all LPUs are CE-L12CQ-FD cards:

  • The CE12804/CE12804S chassis provides a maximum of 48 100GE ports.
  • The CE12808/CE12808S chassis provides a maximum of 96 100GE ports.
  • The CE12812 chassis provides a maximum of 144 100GE ports.
  • The CE12816 chassis provides a maximum of 192 100GE ports.
100GE port Supports QSFP28 optical modules. A 100GE port can be used as a 40GE port or split into four 25GE or 10GE ports. Therefore, a CE-L12CQ-FD card can provide a maximum port density of 12x40GE, 48x25GE, or 48x10GE.
Item CE-L12CQ-FD
CPU Eight-core, 1.5 GHz clock speed
DDR3 Standard 4 GB
Flash Standard 128 MB
Physical specifications
  • Dimensions (W x D x H): 433.0 mm x 530.8 mm x 45.7 mm (17.05 in. x 20.90 in. x 1.80 in.)
  • Weight: 5.8 kg (12.79 lb)
  • Typical power consumption: 234 W
  • Maximum power consumption: 323 W
  • Typical heat dissipation: 800 BTU/hour
  • Max. heat dissipation: 1104 BTU/hour
Environment parameters
  • Operating temperature: 0°C to 40°C (32°F to 104°F)
  • Storage temperature: -40°C to +70°C (-40°F to +158°F)
  • Operating relative humidity: 5% RH to 85% RH (noncondensing)
Certification
  • Safety standards compliance
  • EMC standards compliance
  • Environmental standards compliance

Additional information

Brand

Huawei

CE Switch

Lead Time

3-5 days

Ship From

Shenzhen Warehouse

Item CE-L12CQ-FD
CPU Eight-core, 1.5 GHz clock speed
DDR3 Standard 4 GB
Flash Standard 128 MB
Physical specifications
  • Dimensions (W x D x H): 433.0 mm x 530.8 mm x 45.7 mm (17.05 in. x 20.90 in. x 1.80 in.)
  • Weight: 5.8 kg (12.79 lb)
  • Typical power consumption: 234 W
  • Maximum power consumption: 323 W
  • Typical heat dissipation: 800 BTU/hour
  • Max. heat dissipation: 1104 BTU/hour
Environment parameters
  • Operating temperature: 0°C to 40°C (32°F to 104°F)
  • Storage temperature: -40°C to +70°C (-40°F to +158°F)
  • Operating relative humidity: 5% RH to 85% RH (noncondensing)
Certification
  • Safety standards compliance
  • EMC standards compliance
  • Environmental standards compliance
