CE-L18CQ-FD

2 Reviews Write a review
PN03033WWN
AvailabilityIn Stock
CE Switch 100GE Card
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

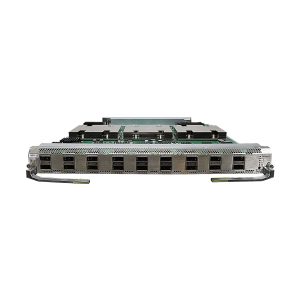

CE-L18CQ-FD Huawei CE12800 switch 18-Port-100GE Interface Card (FD, QSFP28)

Description

CE-L18CQ-FD overview

CE-L18CQ-FD Huawei S12800 switch 18-Port-100GE Interface Card (FD, QSFP28)

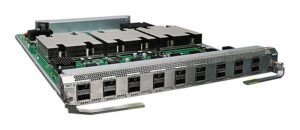

CE-L18CQ-FD appearance

CE-L18CQ-FD



CE-L18CQ-FD application
Product First Supported Version Last Supported Version Unsupported Version Unsupported Model Limitations IDs of available slots
CloudEngine 12812 V200R020C10 1–12
CloudEngine 12808S V200R020C10 1–8
CloudEngine 12804S V200R020C10 1–4
CloudEngine 12808 V200R020C10 1–8
CloudEngine 12816 V200R020C10 1–16
CloudEngine 12804 V200R020C10 1–4
CE-L18CQ-FD function and feature
Functions and Features Description
Basic function The card provides data packet processing and traffic management on 18 100GE optical ports, which can be used as 18 40GE optical ports or split into 72 25GE or 72 10GE optical ports.
Maximum port density If all LPUs are CE-L18CQ-FD cards: The CE12804/CE12804S chassis provides a maximum of 72 100GE ports. The CE12808/CE12808S chassis provides a maximum of 144 100GE ports. The CE12816 chassis provides a maximum of 288 100GE ports.
100GE port 100GE ports support QSFP28 and QSFP+ optical modules. A 100GE port can be used as a 40GE port or split into four 25GE or 10GE ports. That is, a card can provide a maximum port density of 18 x 40GE, 72 x 25GE, or 72 x 10GE. All the 18 100GE ports are independent, and each can be configured as one 40GE port, four 25GE ports, or four 10GE ports.



Item CE-L18CQ-FD
Dimensions without packaging (H x W x D) [mm (in.)] 45.7 mm x 433.0 mm x 530.8 mm (1.80 in. x 17.05 in. x 20.90 in.)
Weight without packaging [kg (lb)] 6.7 kg (14.77 lb)
Typical power consumption [W] 356 W
Typical heat dissipation [BTU/hour] 873 BTU/hour
Static power consumption [W] 292 W
Static heat dissipation [BTU/hour] 996 BTU/hour
Maximum power consumption [W] 564 W
Maximum heat dissipation [BTU/hour] 1924 BTU/hour
CPU 8-core 1.5 GHz clock speed
Memory Standard 4 GB
Flash memory Standard 128 MB

Additional information

Brand

Huawei

CE Switch

Lead Time

3-5 days

Ship From

Shenzhen Warehouse

Item CE-L18CQ-FD
Dimensions without packaging (H x W x D) [mm (in.)] 45.7 mm x 433.0 mm x 530.8 mm (1.80 in. x 17.05 in. x 20.90 in.)
Weight without packaging [kg (lb)] 6.7 kg (14.77 lb)
Typical power consumption [W] 356 W
Typical heat dissipation [BTU/hour] 873 BTU/hour
Static power consumption [W] 292 W
Static heat dissipation [BTU/hour] 996 BTU/hour
Maximum power consumption [W] 564 W
Maximum heat dissipation [BTU/hour] 1924 BTU/hour
CPU 8-core 1.5 GHz clock speed
Memory Standard 4 GB
Flash memory Standard 128 MB
