Huawei CE16800 Series CE-L24CQJ 24-port 100GE interface card (L-J, QSFP28)(CM)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

CE-L24CQJ overview

Item CE-L24CQJ
Description 24-port 100GE interface card (L-J, QSFP28)(CM)
Part Number 03050LEV
Model CE-L24CQJ
Silkscreen CE-L24CQJ
Card Type Interface Card

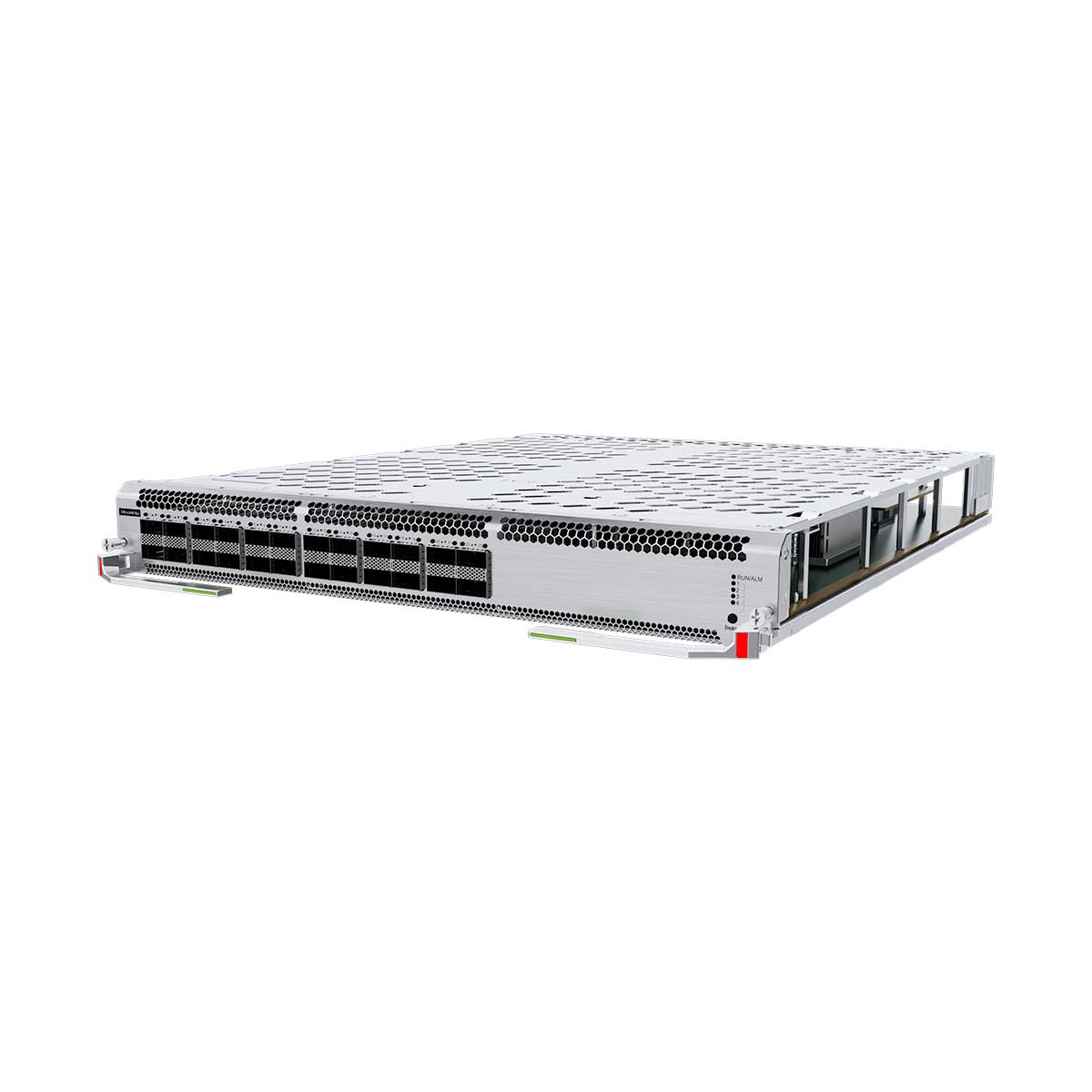

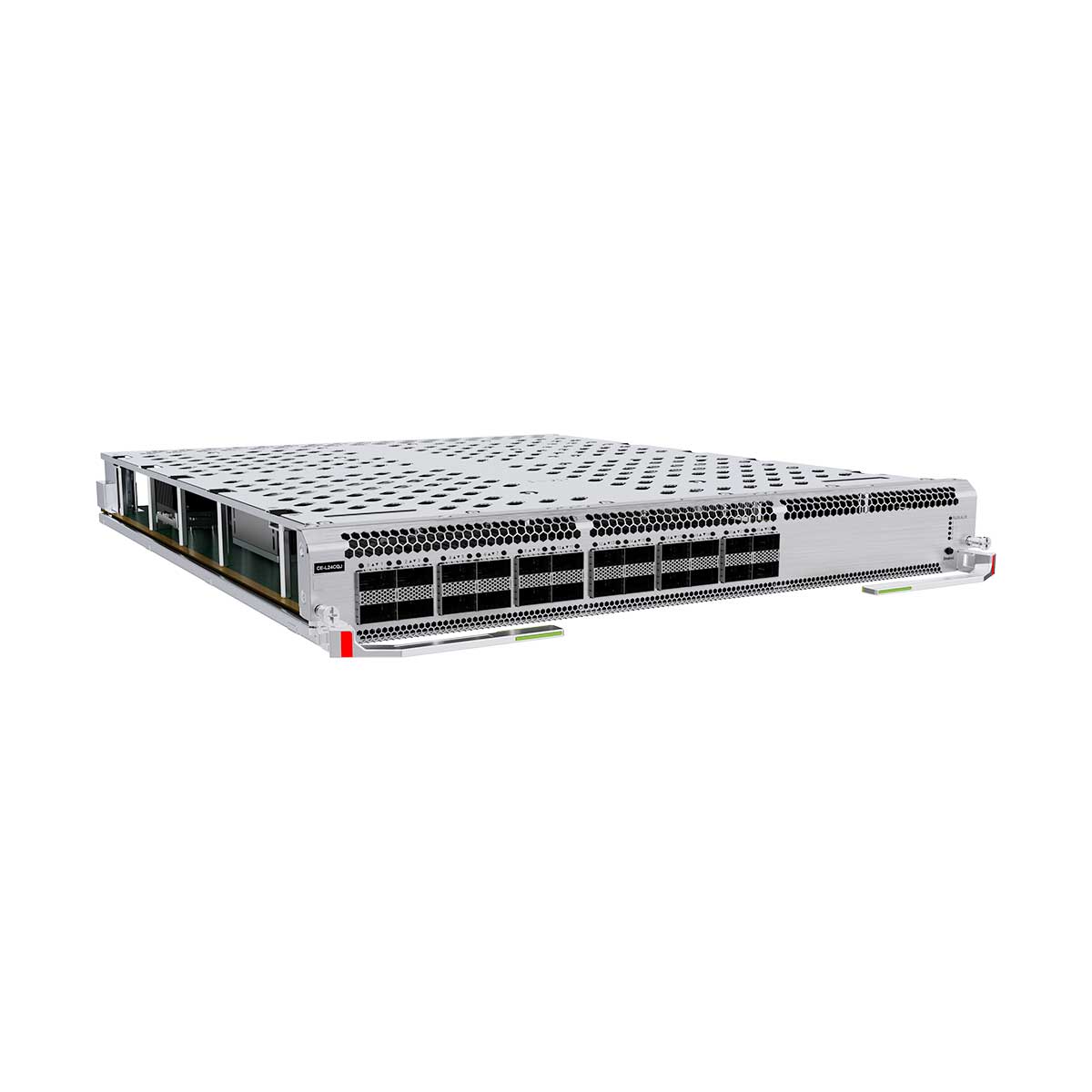

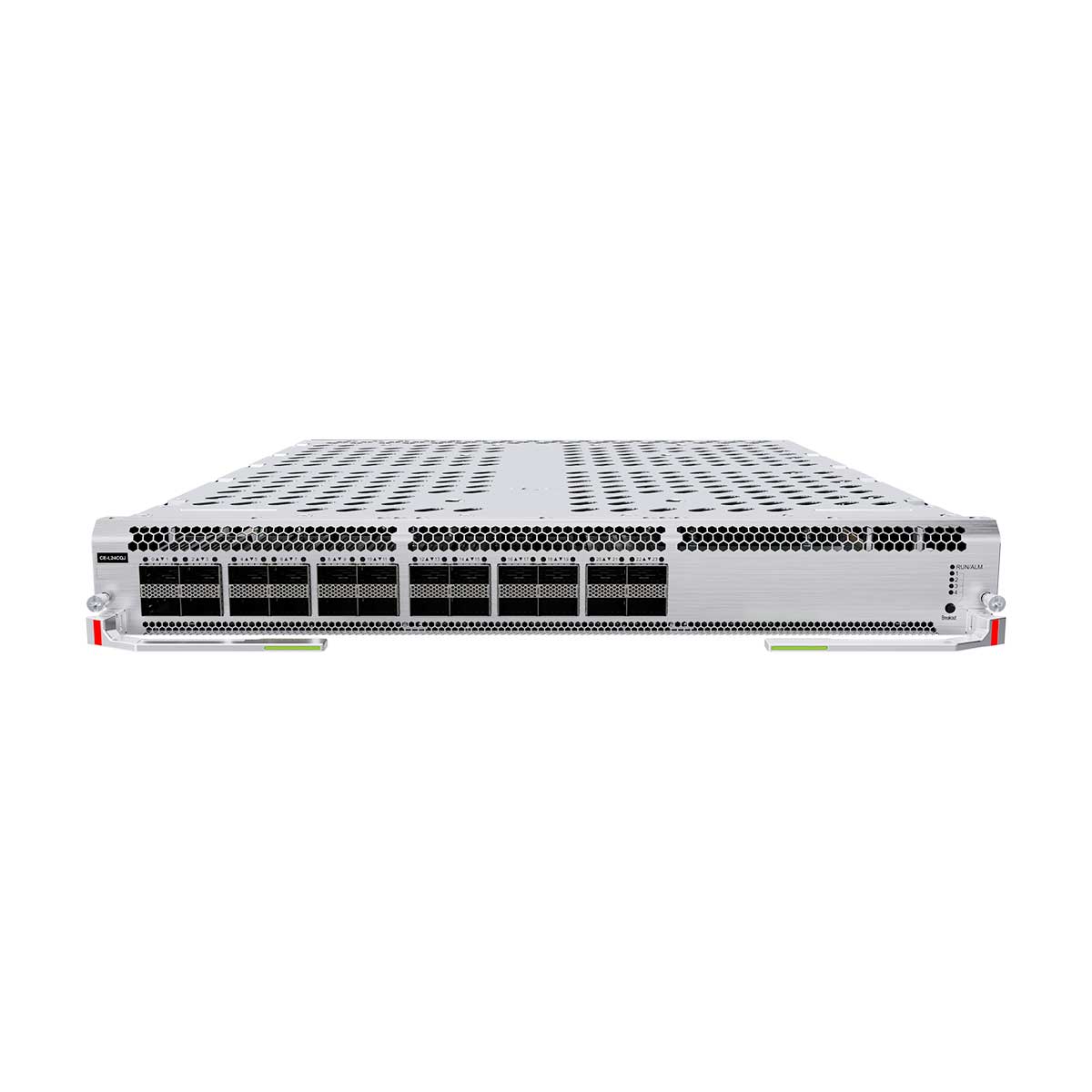

CE-L24CQJ Appearance

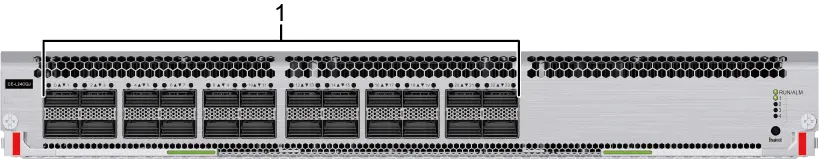

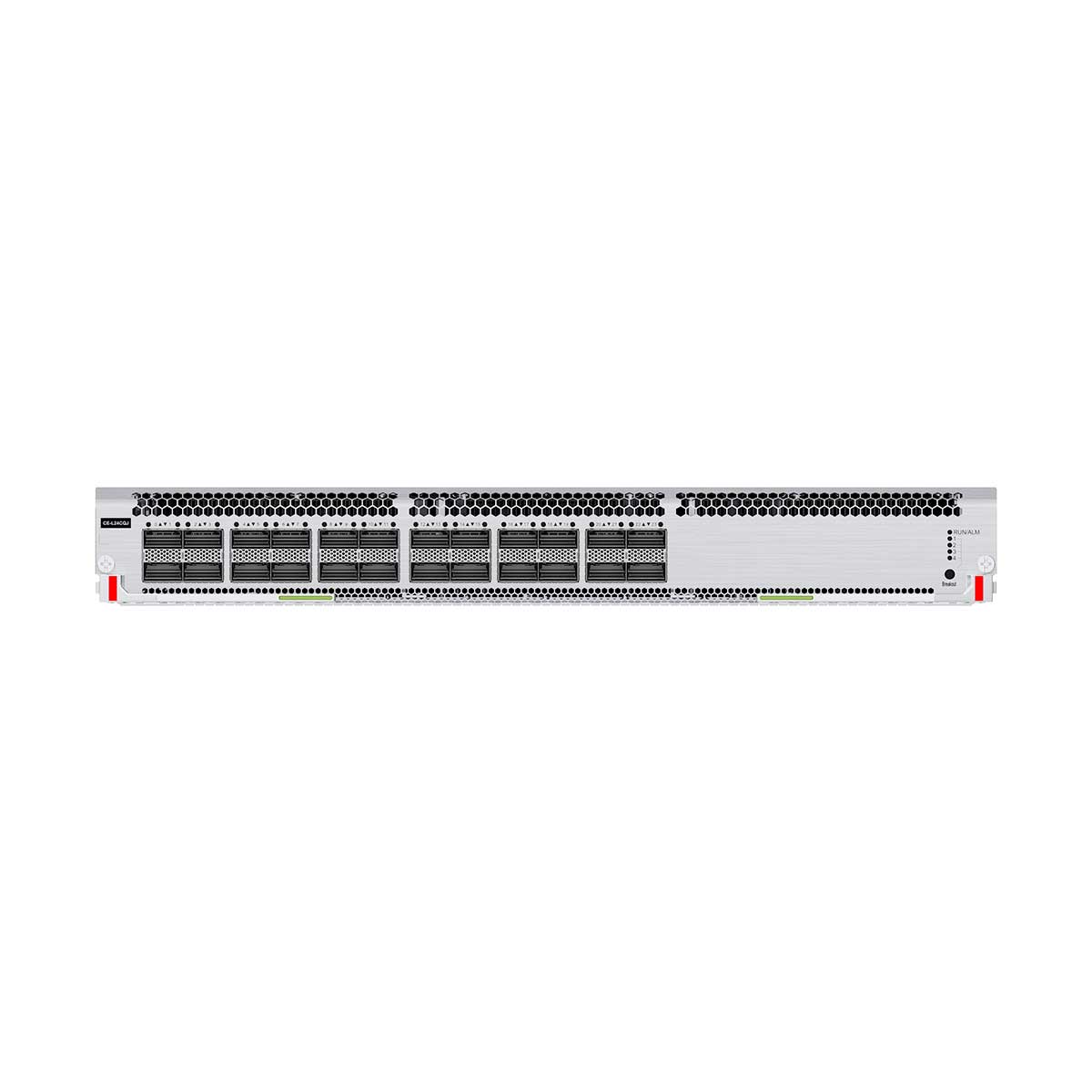

Panel on the CloudEngine CE-L24CQJ

CE L24CQJ

1. Twenty-four 100GE optical ports



Ports on the CE-L24CQJ

Port Connector Type Description Available Components
100GE optical port QSFP56 (16 ports)/QSFP28/QSFP+ Port for inputting and outputting 200GE (16 ports)/100GE/40GE optical signals
  • 100GE QSFP28 optical modules
  • 40GE QSFP+ optical modules
  • QSFP28 to QSFP28 AOC cable
  • QSFP+ to QSFP+ AOC cable
  • QSFP+ to 4*SFP+ AOC cable
  • QSFP28 to QSFP28 high-speed cable
  • QSFP28 to 2*QSFP28 high-speed cable
  • QSFP+ to QSFP+ high-speed cable
  • QSFP+ to 4*SFP+ high-speed cable

When the 16 100GE ports (0 and 1, 2 and 3, 4 and 5, 6 and 7, 12 and 13, 14 and 15, 16 and 17, and 18 and 19) work at the rate of 200 Gbit/s, the following optical module and cables can also be used:

  • 200GE QSFP56 optical modules
  • QSFP56 to QSFP56 AOC cable
  • QSFP56 to 2*QSFP56 AOC cable
Item CE-L24CQJ
Basic function The card provides data packet processing and traffic management on 24 x 100GE optical ports or 16 x 200GE optical ports, which can be used as 24 x 40GE optical ports or split into 96 x 25GE or 96 x 10GE optical ports.
Maximum port density If all LPUs are these cards:
  • The CloudEngine 16804 chassis provides a maximum of 96 100GE ports or 64 200GE ports.
  • The CloudEngine 16808 chassis provides a maximum of 192 100GE ports or 128 200GE ports.
  • The CloudEngine 16816 chassis provides a maximum of 384 100GE ports or 256 200GE ports.
100GE port 100GE ports on the card support QSFP28 and QSFP+ optical modules. A 100GE port can be used as a 40GE port through auto-sensing, or split into 4 x 25GE or 4 x 10GE ports. The card can provide a maximum port density of 24 x 40GE, 96 x 25GE, or 96 x 10GE. Each 100GE port can be used as a 40GE port through auto-sensing. Every two ports (0-1, 2-3, 4-5, 6-7, 8-9, 10-11, 12-13, 14-15, 16-17, 18-19, 20-21, and 22-23) form a group. The two ports in a group need to be split together, and each port can be split into 4 x 25GE or 4 x 10GE ports.
200GE port 16 ports can work at the rate of 200 Gbit/s and are divided into 8 groups (0 and 1, 2 and 3, 4 and 5, 6 and 7, 12 and 13, 14 and 15, 16 and 17, and 18 and 19). Such a port works at the rate of 100 Gbit/s by default. You can run the port mode 200GE command to change the port rate to 200 Gbit/s. After the port rate is changed, the port supports QSFP56 optical modules and can work as a 100GE or 40GE port through auto-sensing. The port can be split into two 100GE ports. When the rate is changed for either port in a port group, the other port in the group automatically switches to the same rate. For example, when port 0 is configured to work at the rate of 200 Gbit/s, port 1 is automatically configured to work at the rate of 200 Gbit/s.
Hot swapping Supported
Restrictions and remarks Every 12 ports form a group, and two groups (ports 0 to 11 and 12 to 23) are involved. Each group has a bandwidth limit.
  • Only the first eight ports in each group can be configured to work at the rate of 200 Gbit/s.
  • In 3+1 SFU mode, the maximum bandwidth of each group cannot exceed 1.2 Tbit/s (for example, 6 x 200 Gbit/s or 12 x 100 Gbit/s).
  • In 4+0 SFU mode, the maximum bandwidth of each group cannot exceed 1.6 Tbit/s (for example, 8 x 200 Gbit/s or 8 x 100 Gbit/s + 4 x 200 Gbit/s).
MACsec Ports 0 to 7 and 12 to 19 support MACsec. When these ports are configured to work at 40 Gbit/s or are split, MACsec is still supported. Other ports do not support MACsec.
Typical power consumption [W] 220 W
Typical heat dissipation [BTU/hour] 750 BTU/hour
Static power consumption [W] 188 W
Static heat dissipation [BTU/hour] 641 BTU/hour
Maximum power consumption [W] 378 W
Maximum heat dissipation [BTU/hour] 1289 BTU/hour
CPU 4-core, 1.4 GHz clock speed
Memory Standard 4 GB
RTU License Supported Yes. By default, 18 x 100GE ports are available, and other ports are unavailable. The RTU license with part number 88038RJJ can be used to add six 100GE ports, providing 24 100GE ports.
Dimensions without packaging (H x W x D) [mm (in.)] 55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm (in.)] 225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.)
Weight without packaging [kg (lb)] 6.55 kg (14.44 lb)
Weight with packaging [kg (lb)] 10.93 kg (24.1 lb)
