CE-L24LQ-FD Huawei CE12800 series 24-Port 40GE Interface Card (FD, QSFP+)

Description

CE-L24LQ-FD card overview

CE-L24LQ-FD Huawei CE12800 series 24-Port 40GE Interface Card (FD, QSFP+)

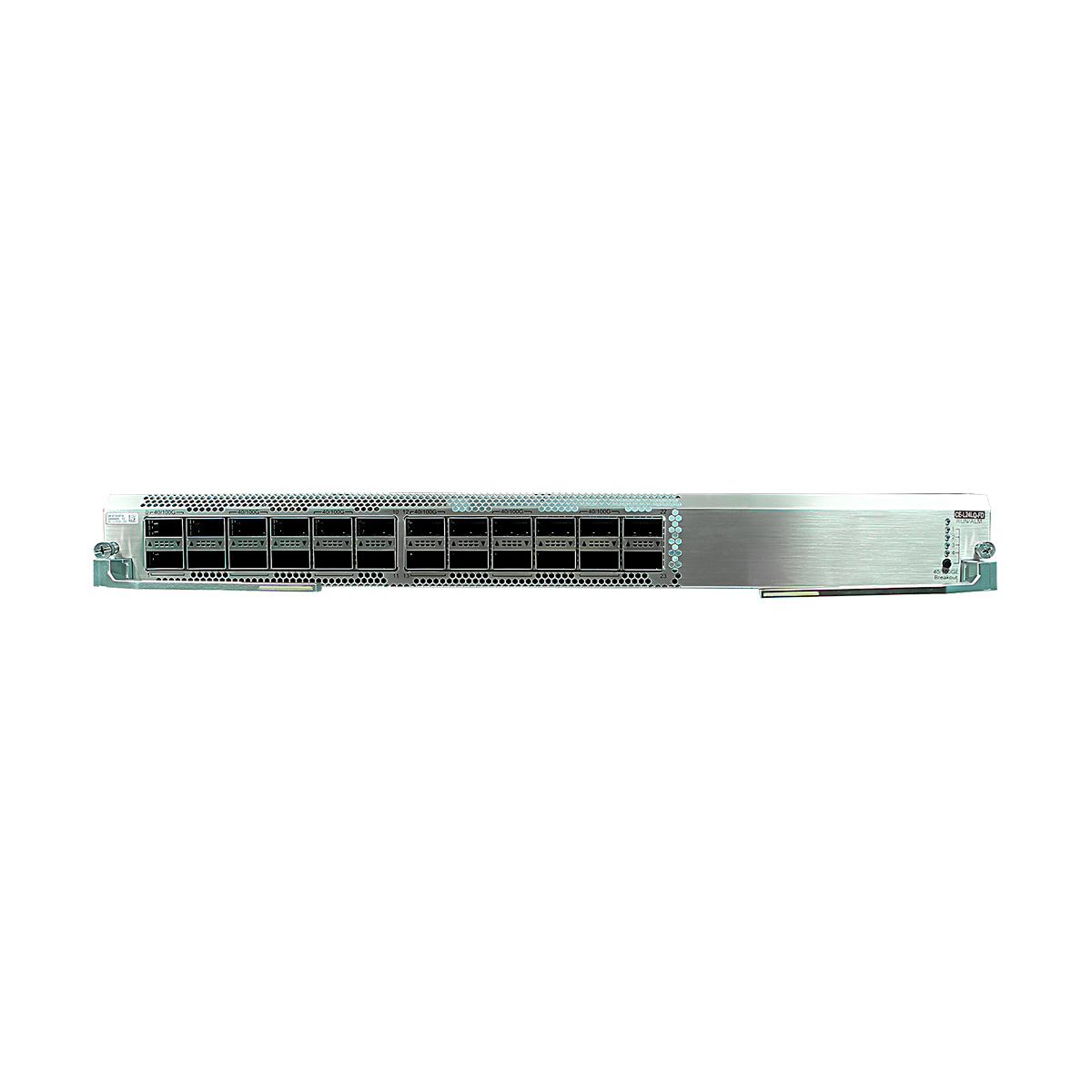

CE-L24LQ-FD card appearance

CE-L24LQ-FD



CE-L24LQ-FD function and feature
Function and Feature CE-L24LQ-FD
Basic function Provides data packet processing and traffic management on 24 40GE optical ports, which can be split into 96 10GE optical ports.
Maximum port density If all LPUs are CE-L24LQ-FD cards:

  • The CE12804/CE12804S chassis provides a maximum of 96 40GE ports. The chassis also provides a maximum of 48 100GE ports.
  • The CE12808/CE12808S chassis provides a maximum of 192 40GE ports. The chassis also provides a maximum of 96 100GE ports.
  • The CE12812 chassis provides a maximum of 288 40GE ports. The chassis also provides a maximum of 144 100GE ports.
  • The CE12816 chassis provides a maximum of 384 40GE ports. The chassis also provides a maximum of 192 100GE ports.
High 40GE port density (24x40GE)
  • A 40GE port can be split into four 10GE ports. Therefore, a CE-L24LQ-FD can provide a maximum port density of 96x10GE.
  • On a CE-L24LQ-FD card, 12 40GE ports can be used as 100GE ports, and each of them can be split into four 25GE ports. Their IDs are: 0, 1, 4, 5, 8, 9, 12, 13, 16, 17, 20, 21. These port IDs are represented by (0, 1, 4, 5…) in the following descriptions.
Item CE-L24LQ-FD
CPU Eight-core, 1.5 GHz clock speed
DDR3 Standard 4 GB
Flash Standard 128 MB
Physical specifications
  • Dimensions (W x D x H): 433.0 mm x 530.8 mm x 45.7 mm (17.05 in. x 20.90 in. x 1.80 in.)
  • Weight: 6.0 kg (13.22 lb)
  • Typical power consumption: 255 W
  • Maximum power consumption: 413 W
  • Typical heat dissipation: 871 BTU/hour
  • Maximum heat dissipation: 1411 BTU/hour
Environment parameters
  • Operating temperature: 0°C to 40°C (32°F to 104°F)
  • Storage temperature: -40°C to +70°C (-40°F to +158°F)
  • Operating relative humidity: 5% RH to 85% RH (noncondensing)
Certification
  • Safety standards compliance
  • EMC standards compliance
  • Environmental standards compliance

Additional information

Brand

Huawei

CE Switch

Lead Time

3-5 days

Ship From

Shenzhen Warehouse

Item CE-L24LQ-FD
CPU Eight-core, 1.5 GHz clock speed
DDR3 Standard 4 GB
Flash Standard 128 MB
Physical specifications
  • Dimensions (W x D x H): 433.0 mm x 530.8 mm x 45.7 mm (17.05 in. x 20.90 in. x 1.80 in.)
  • Weight: 6.0 kg (13.22 lb)
  • Typical power consumption: 255 W
  • Maximum power consumption: 413 W
  • Typical heat dissipation: 871 BTU/hour
  • Maximum heat dissipation: 1411 BTU/hour
Environment parameters
  • Operating temperature: 0°C to 40°C (32°F to 104°F)
  • Storage temperature: -40°C to +70°C (-40°F to +158°F)
  • Operating relative humidity: 5% RH to 85% RH (noncondensing)
Certification
  • Safety standards compliance
  • EMC standards compliance
  • Environmental standards compliance
