CE-L36CQ-FG Huawei CE12800 switch 36-Port 100GE Interface Card (FG, QSFP28)

Description

CE-L36CQ-FG overview

CE-L36CQ-FG Huawei CE12800 switch 36-Port 100GE Interface Card (FG, QSFP28)

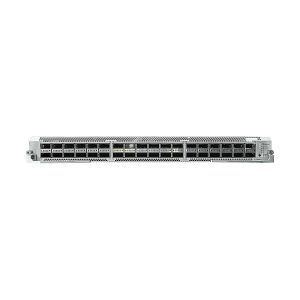

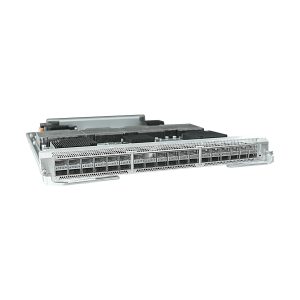

CE-L36CQ-FG appearance

CE-L36CQ-FG



CE-L36CQ-FG application
Card Name CE12804 Chassis CE12808 Chassis CE12812 Chassis CE12816 Chassis CE12804S Chassis CE12808S Chassis
CE-L36CQ-FG Supported in V200R003C00 and later versions Supported in V200R003C00 and later versions Supported in V200R003C00 and later versions Supported in V200R003C00 and later versions Supported in V200R003C00 and later versions Supported in V200R003C00 and later versions
CE-L36CQ-FG function and feature
Function and Feature CE-L36CQ-FG
Basic function Provides data packet processing and traffic management on 36 100GE optical ports, which can be split into a maximum of 36 40GE optical ports, 144 25GE optical ports or 144 10GE optical ports.
Maximum port density If all LPUs are CE-L36CQ-FG cards:
The CE12804/CE12804S chassis provides a maximum of 144 100GE ports.
The CE12808/CE12808S chassis provides a maximum of 288 100GE ports.
The CE12812 chassis provides a maximum of 432 100GE ports.
The CE12816 chassis provides a maximum of 576 100GE ports.
100GE port Supports QSFP28 optical modules. A 100GE port can be used as a 40GE port or split into four 25GE or 10GE ports. Therefore, a CE-L36CQ-FG card can provide a maximum port density of 36x40GE, 144x25GE, or 144x10GE.
Limitations and Descriptions Ports on the CE-L36CQ-FG card can be divided into two groups. Ports 0 to 8 and ports 18 to 26 form a group, and ports 9 to 17 and ports 27 to 35 form another group. When the CE-SFU16G is used, ports in the same group can forward data at the line rate, but data cannot be forwarded at the line rate across the two groups and up to 50% of packets can be lost.
When the CE-L36CQ-FG card works with the SFU matching the CE12800S and the backplane-side bandwidth is insufficient, data cannot be forwarded at the line rate.



Item CE-L36CQ-FG
CPU Eight-core, 1.5 GHz clock speed
DDR3/DDR4 DDR4, standard 8 GB
Flash Standard 128 MB
Physical specifications
  • Dimensions (W x D x H): 433.0 mm x 530.8 mm x 45.7 mm (17.05 in. x 20.90 in. x 1.80 in.)
  • Weight: 9.6 kg (21.16 lb)
  • Typical power consumption: 841 W
  • Maximum power consumption: 976 W
  • Typical heat dissipation: 2872 BTU/hour
  • Maximum heat dissipation: 3332 BTU/hour
Environment parameters
  • Operating temperature: 0°C to 40°C (32°F to 104°F)
  • Storage temperature: -40°C to +70°C (-40°F to +158°F)
  • Operating relative humidity: 5% RH to 85% RH (noncondensing)
Certification
  • Safety standards compliance
  • EMC standards compliance
  • Environmental standards compliance
