CE-MPUD-H2EK

0 Reviews Write a review
PN03050GVQ
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

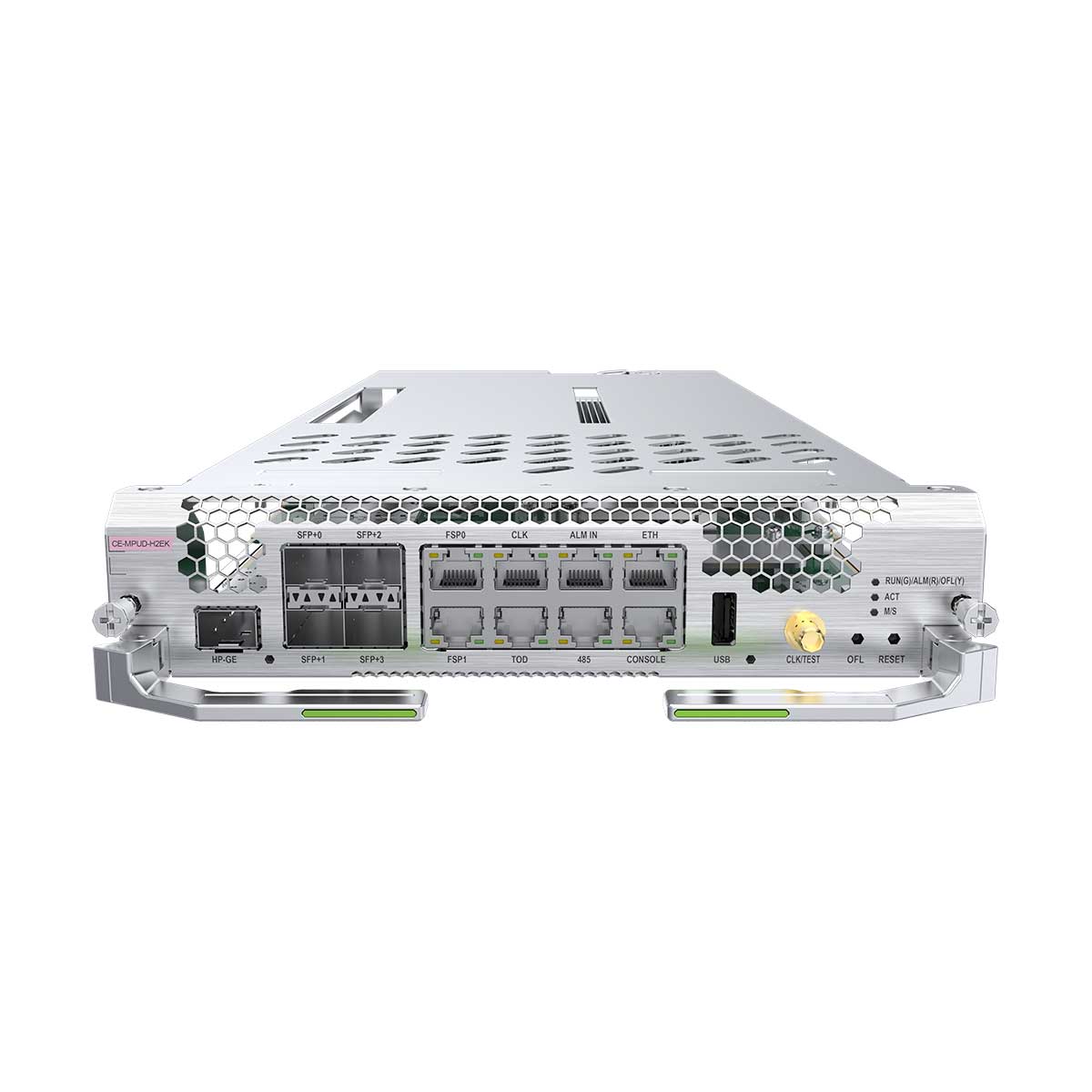

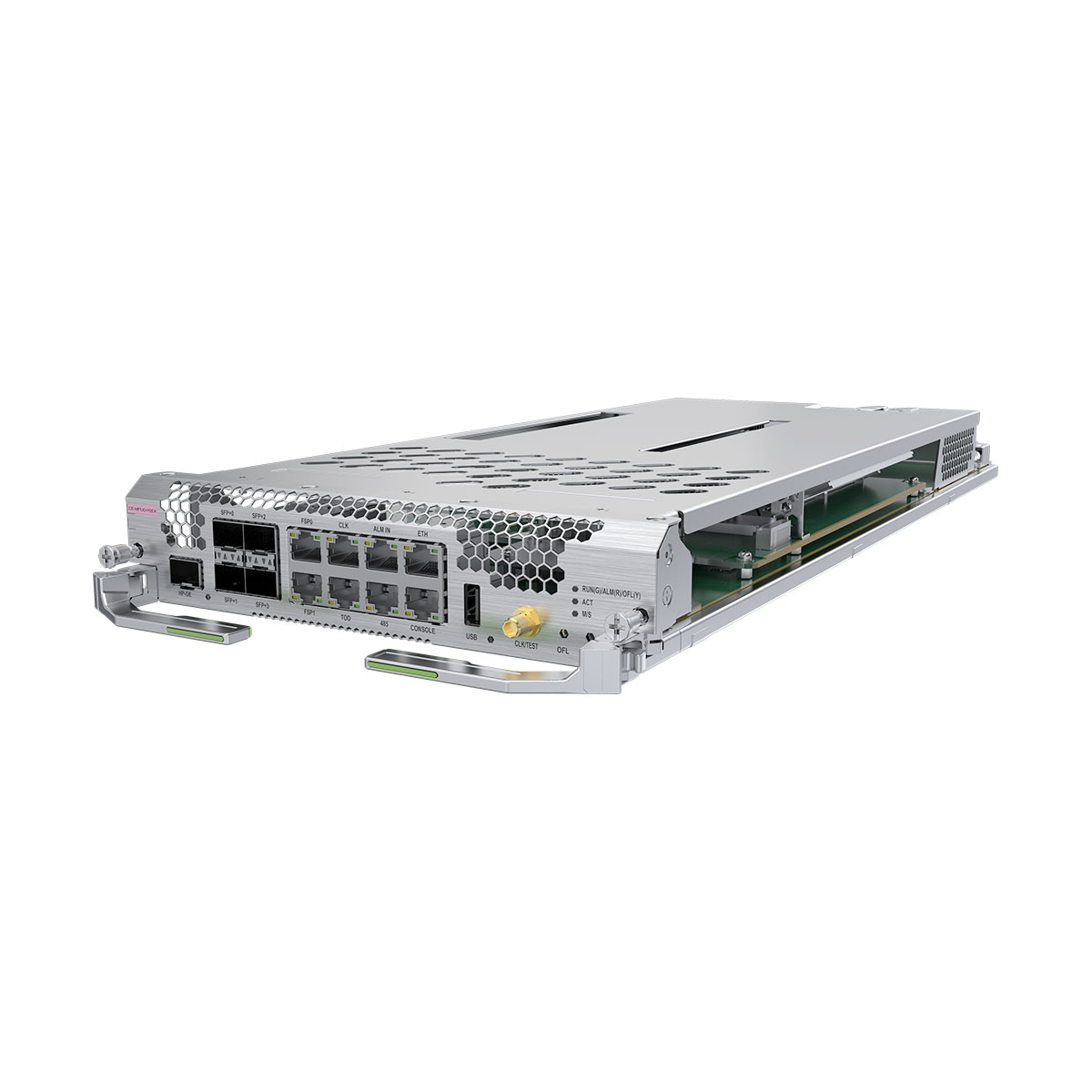

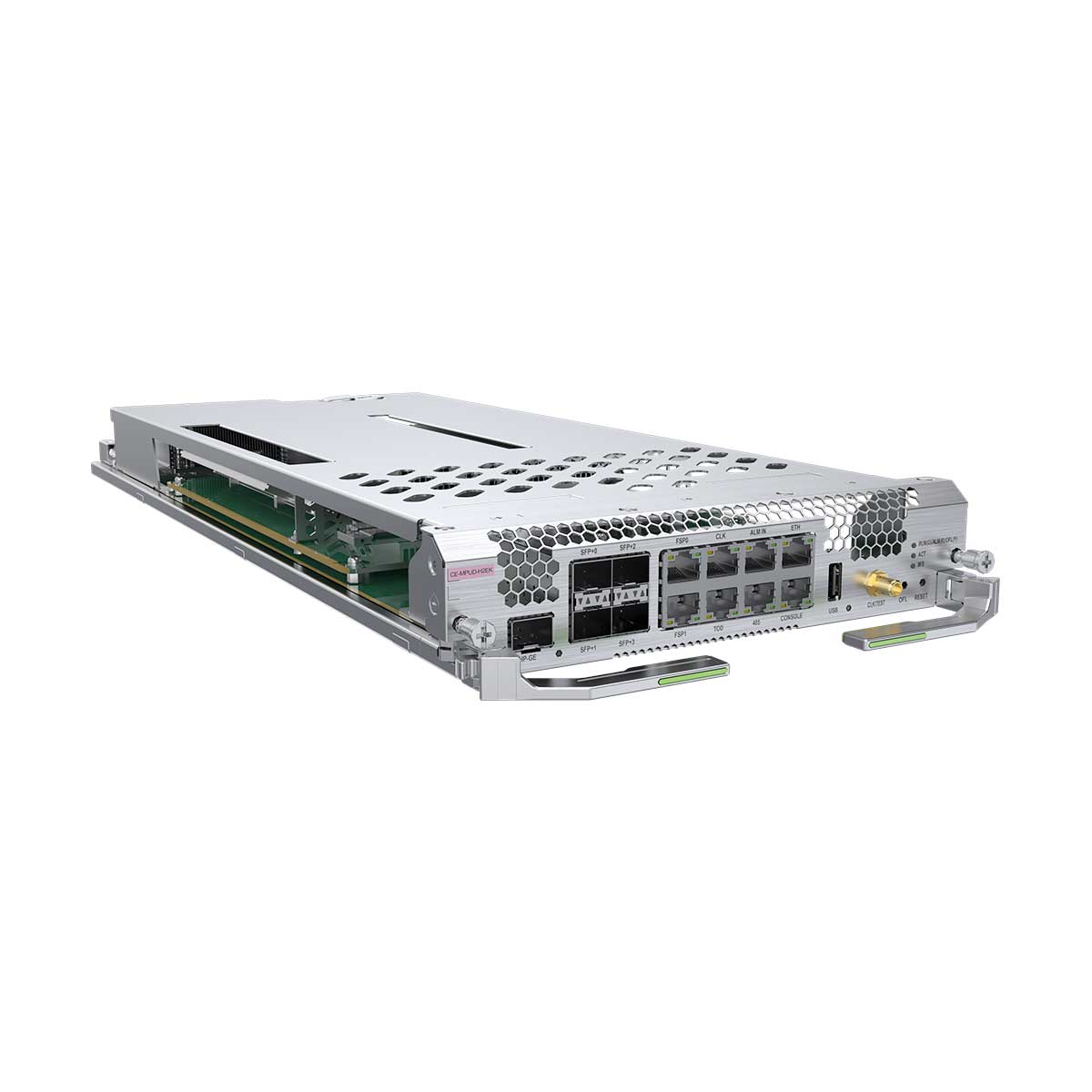

Huawei 16800series Switch Card CE-MPUD-H2EK CE16800 Main Processing Unit D-2EK (half-width)

Description

CE-MPUD-H2EK overview

Item Details
Description CE16800 Main Processing Unit D-2EK (half-width)
Part Number 03050GVQ
Model CE-MPUD-H2EK
Silkscreen CE-MPUD-H2EK
Card Type MPU

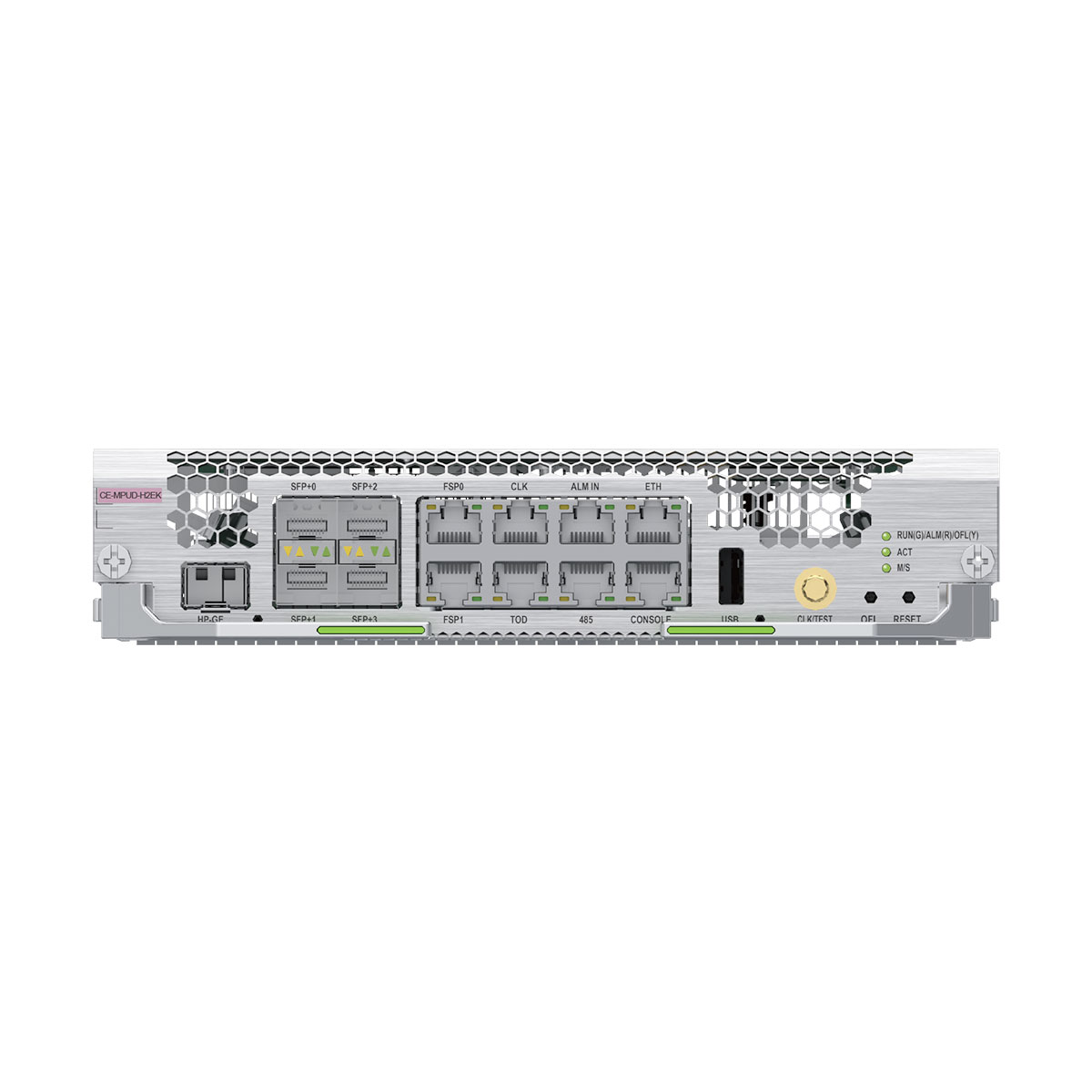

CE-MPUD-H2EK Appearance

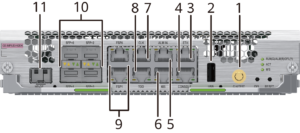

Panel on the CloudEngine CE-MPUD-H2EK

CE-MPUD-H2EK

1. Clock SMA port (CLK/TEST) 2. USB port (USB) 3. ETH management port (ETH) 4. Console port (CONSOLE) 5. Boolean alarm input port (ALMIN)
6. RS485 port (485) 7. External synchronization port CLK (CLK) 8. External synchronization port TOD (TOD) 9. FSP serial port (FSP0 and FSP1) 10. SFP+ optical port (SFP+0, SFP+1, SFP+2, and SFP+3)
11. Clock SFP port (HP-GE)



Item CE-MPUD-H2EK
Typical power consumption [W] 88 W
Typical heat dissipation [BTU/hour] 300 BTU/hour
Static power consumption [W] 67 W
Static heat dissipation [BTU/hour] 229 BTU/hour
Maximum power consumption [W] 99 W
Maximum heat dissipation [BTU/hour] 338 BTU/hour
CPU 8-core, 1.5 GHz clock speed
Memory Standard configuration: 16 GB
NOR Flash 64 MB
Storage 32 GB SSD
Dimensions without packaging (H x W x D) [mm (in.)] 45.7 mm x 215 mm x 522.5 mm (1.80 in. x 8.46 in. x 20.57 in.)
Dimensions with packaging (H x W x D) [mm (in.)] 185 mm x 385 mm x 780 mm (7.28 in. x 15.16 in. x 30.71 in.)
Weight without packaging [kg (lb)] 4.2 kg (9.26 lb)
Weight with packaging [kg (lb)] 6.2 kg (13.67 lb)

Additional information

Brand

Huawei

Item CE-MPUD-H2EK
Typical power consumption [W] 88 W
Typical heat dissipation [BTU/hour] 300 BTU/hour
Static power consumption [W] 67 W
Static heat dissipation [BTU/hour] 229 BTU/hour
Maximum power consumption [W] 99 W
Maximum heat dissipation [BTU/hour] 338 BTU/hour
CPU 8-core, 1.5 GHz clock speed
Memory Standard configuration: 16 GB
NOR Flash 64 MB
Storage 32 GB SSD
Dimensions without packaging (H x W x D) [mm (in.)] 45.7 mm x 215 mm x 522.5 mm (1.80 in. x 8.46 in. x 20.57 in.)
Dimensions with packaging (H x W x D) [mm (in.)] 185 mm x 385 mm x 780 mm (7.28 in. x 15.16 in. x 30.71 in.)
Weight without packaging [kg (lb)] 4.2 kg (9.26 lb)
Weight with packaging [kg (lb)] 6.2 kg (13.67 lb)
