Huawei 16800series Switch Card CE-MPUD-HALF CE16800 Main Processing Unit D (half-width)

Description

CE-MPUD-HALF overview

Item Details
Description CE16800 Main Processing Unit D (half-width)
Part Number 03058876
Model CE-MPUD-HALF
Silkscreen CE-MPUD-HALF
Card Type MPU

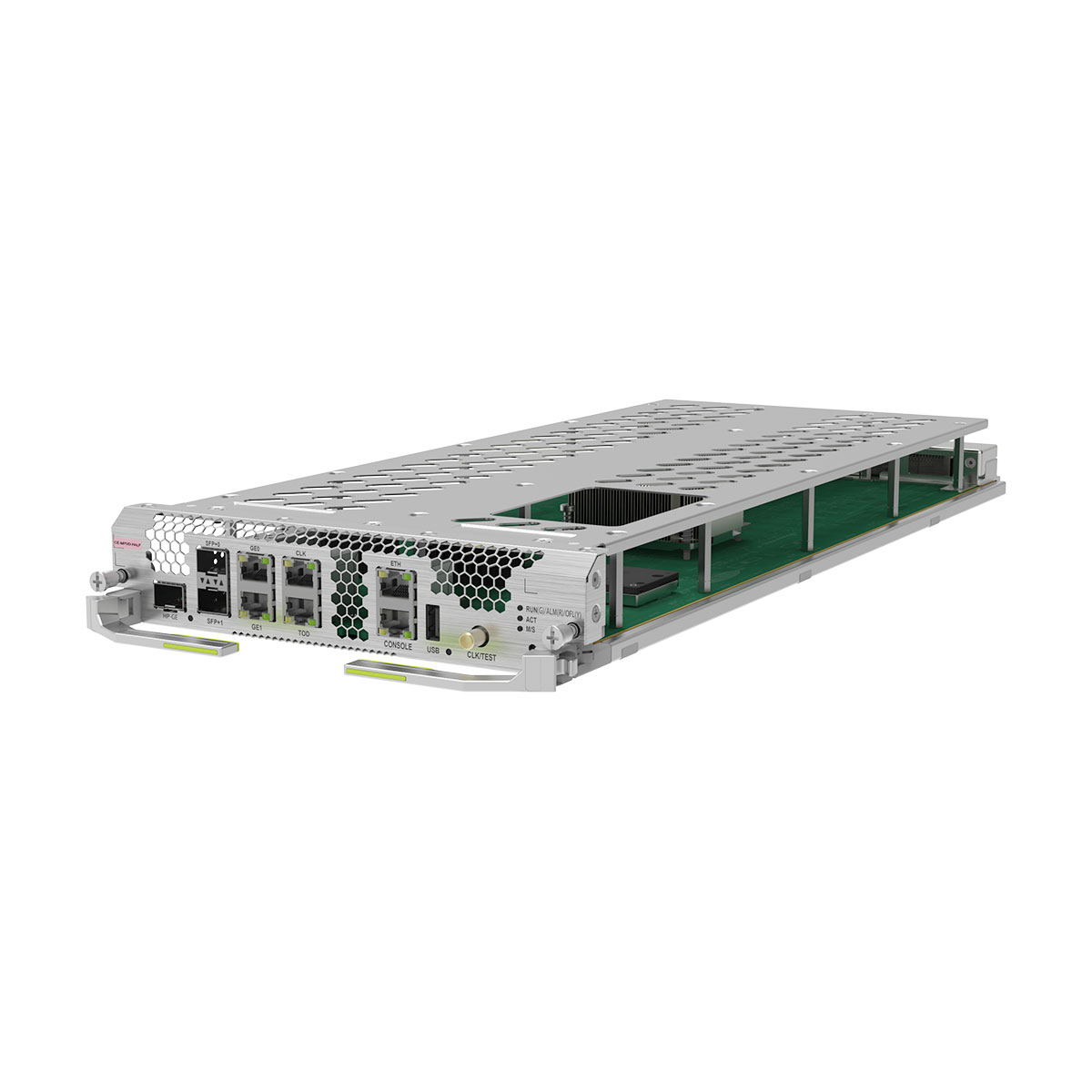

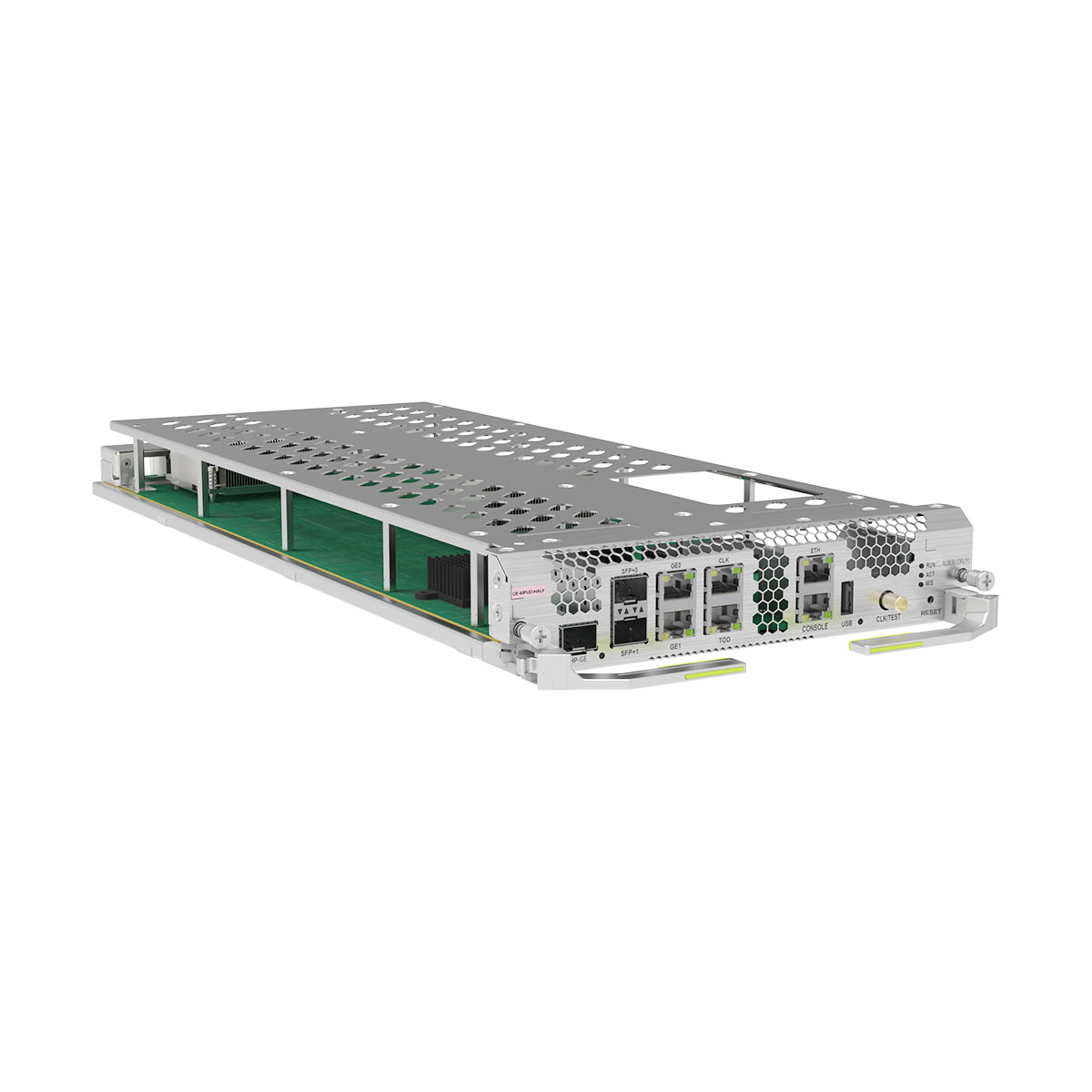

CE-MPUD-HALF Appearance

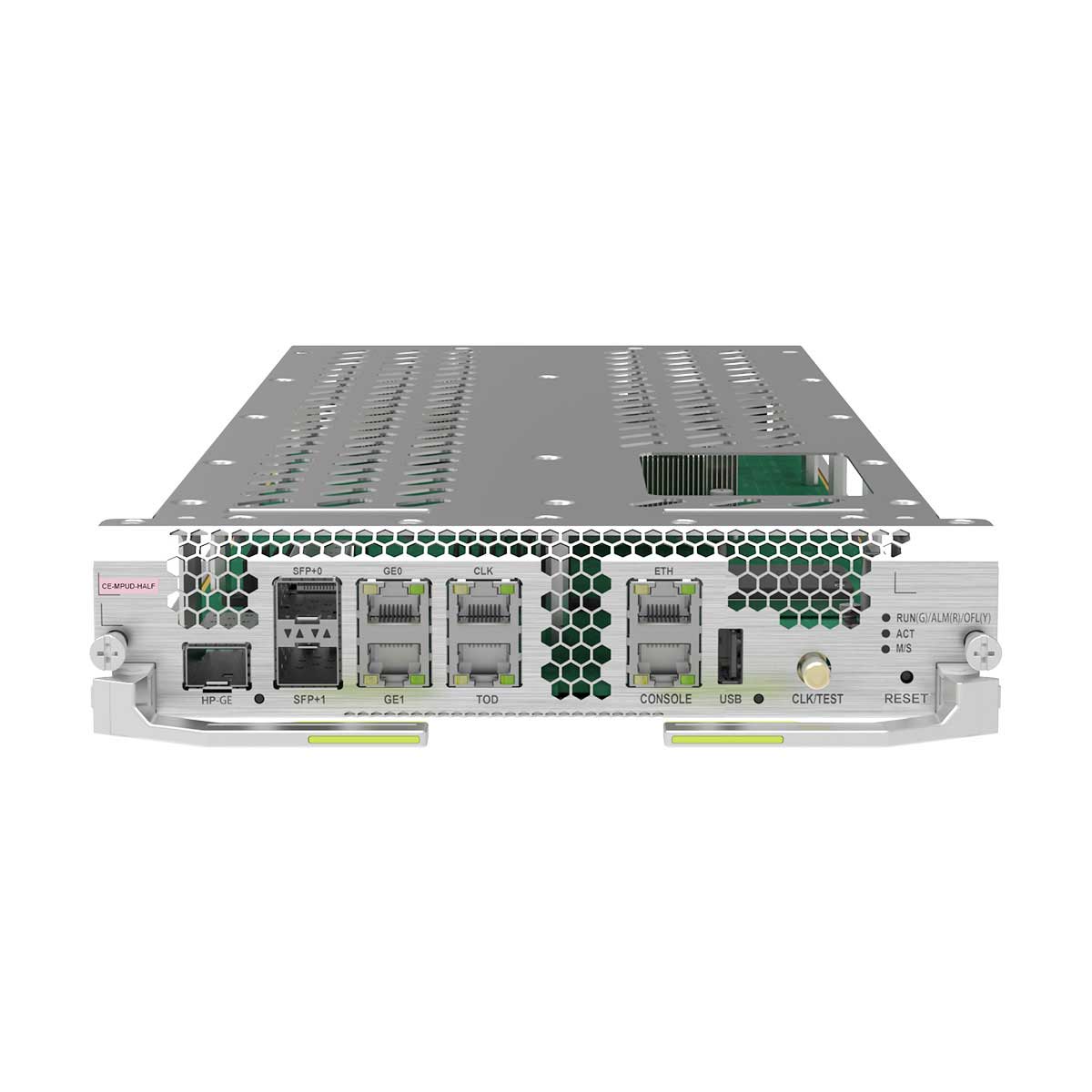

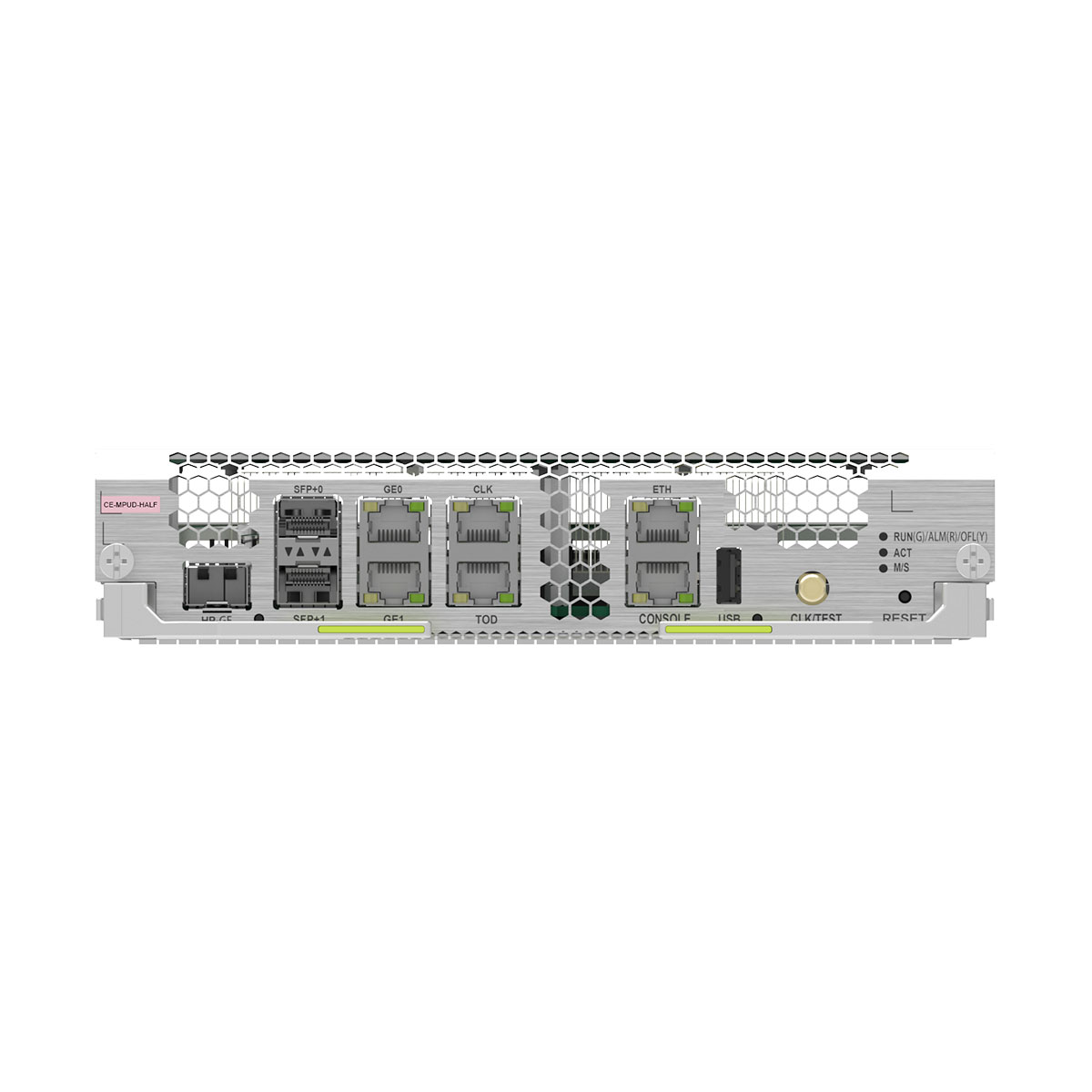

Panel on the CloudEngine CE-MPUD-HALF

CE-MPUD-HALF

1. Clock SMA port (CLK/TEST) 2. USB port (USB) 3. ETH management port (ETH) 4. Console port (CONSOLE) 5. External synchronization port CLK (CLK)
6. External synchronization port TOD (TOD) 7. GE electrical port (GE0 and GE1) 8. SFP+ optical port (SFP+0 and SFP+1) 9. Clock SFP port (HP-GE)



Item CE-MPUD-HALF
Typical power consumption [W] 58 W
Typical heat dissipation [BTU/hour] 198 BTU/hour
Static power consumption [W] 55 W
Static heat dissipation [BTU/hour] 188 BTU/hour
Maximum power consumption [W] 82 W
Maximum heat dissipation [BTU/hour] 280 BTU/hour
CPU 16-core, 1.85 GHz clock speed
Memory Standard 16 GB
Storage 4 GB
Dimensions without packaging (H x W x D) [mm (in.)] 45.7 mm x 215 mm x 522.5 mm (1.80 in. x 8.46 in. x 20.57 in.)
Dimensions with packaging (H x W x D) [mm (in.)] 185 mm x 385 mm x 780 mm (7.28 in. x 15.16 in. x 30.71 in.)
Weight without packaging [kg (lb)] 3.1 kg (6.83 lb)
Weight with packaging [kg (lb)] 5.1 kg (11.25 lb)

Additional information

Brand

Huawei

Item CE-MPUD-HALF
Typical power consumption [W] 58 W
Typical heat dissipation [BTU/hour] 198 BTU/hour
Static power consumption [W] 55 W
Static heat dissipation [BTU/hour] 188 BTU/hour
Maximum power consumption [W] 82 W
Maximum heat dissipation [BTU/hour] 280 BTU/hour
CPU 16-core, 1.85 GHz clock speed
Memory Standard 16 GB
Storage 4 GB
Dimensions without packaging (H x W x D) [mm (in.)] 45.7 mm x 215 mm x 522.5 mm (1.80 in. x 8.46 in. x 20.57 in.)
Dimensions with packaging (H x W x D) [mm (in.)] 185 mm x 385 mm x 780 mm (7.28 in. x 15.16 in. x 30.71 in.)
Weight without packaging [kg (lb)] 3.1 kg (6.83 lb)
Weight with packaging [kg (lb)] 5.1 kg (11.25 lb)
