Description
CE-MPUD-HALF3E overview
| Item | Details |
|---|---|
| Description | CE16800 Main Processing Unit D-3E (half-width) |
| Part Number | 03050GVB |
| Model | CE-MPUD-HALF3E |
| Silkscreen | CE-MPUD-HALF3E |
| Card Type | MPU |

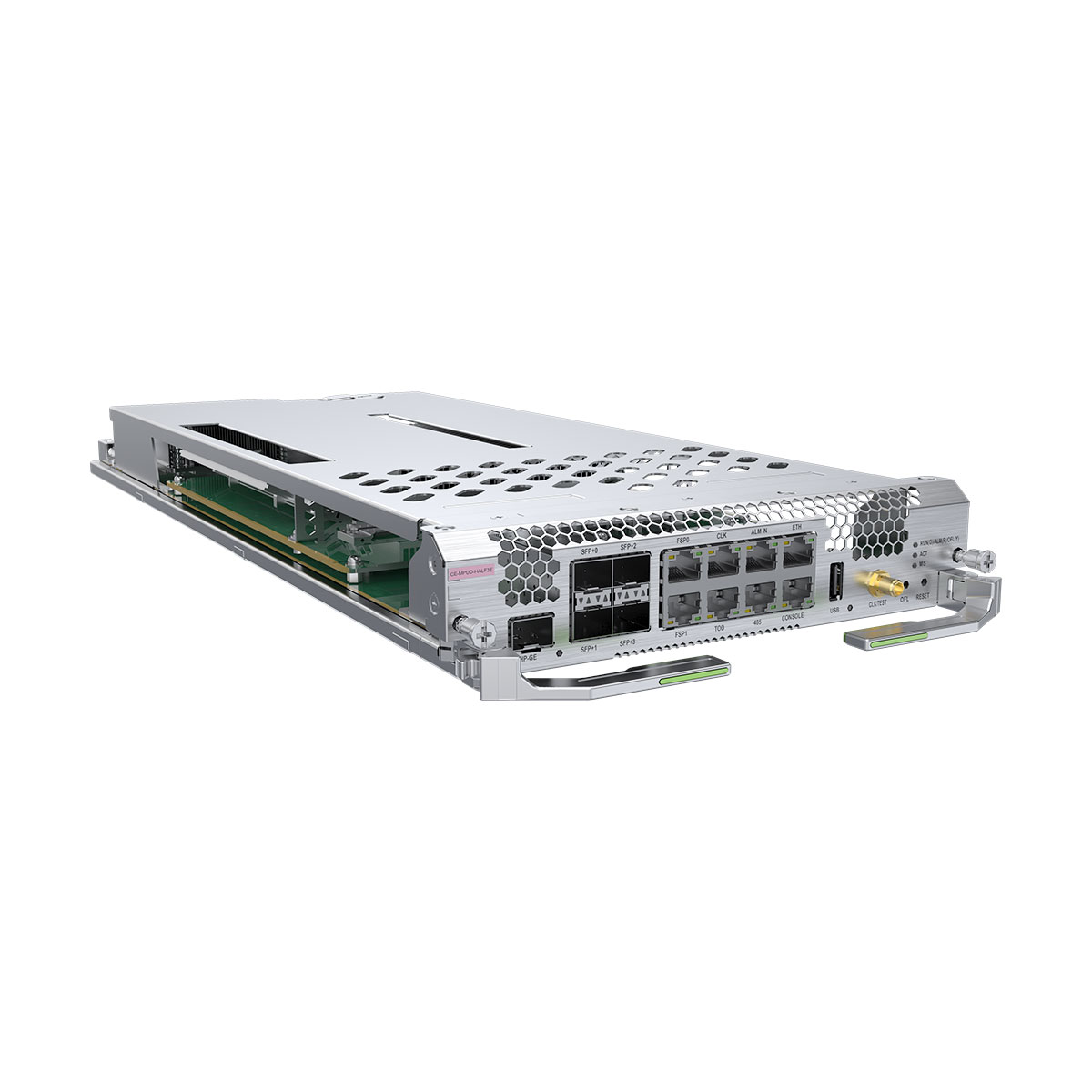

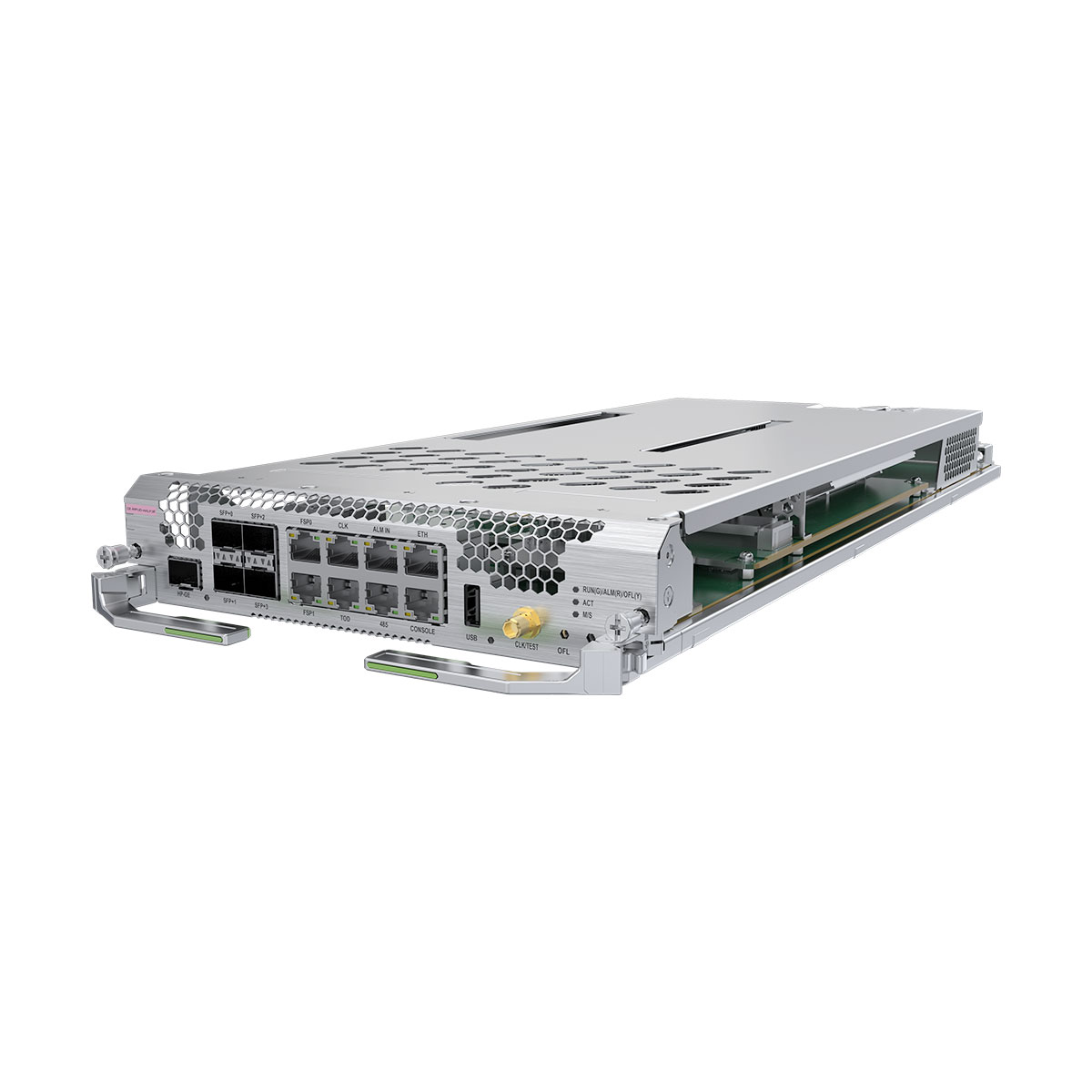

CE-MPUD-HALF3E Appearance

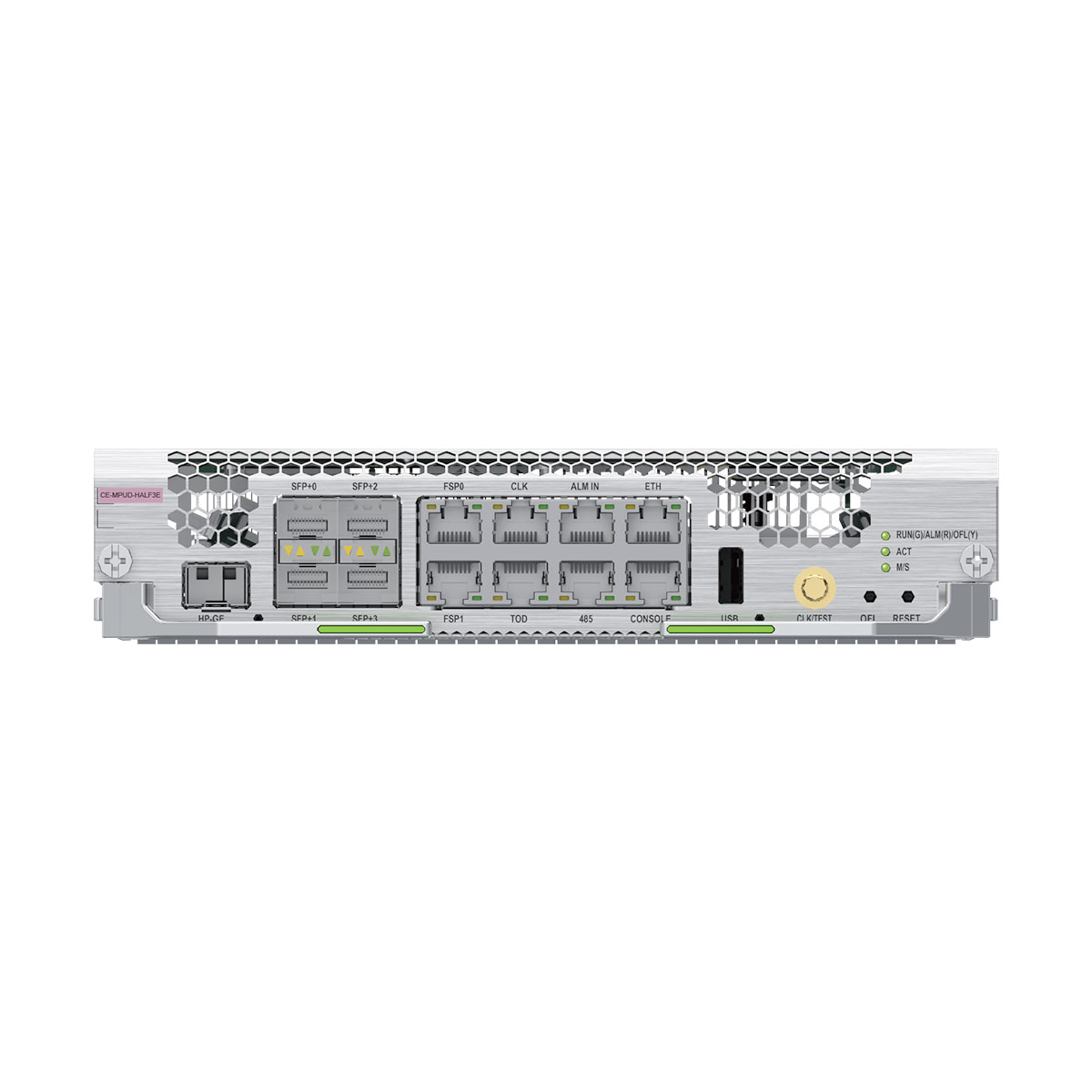

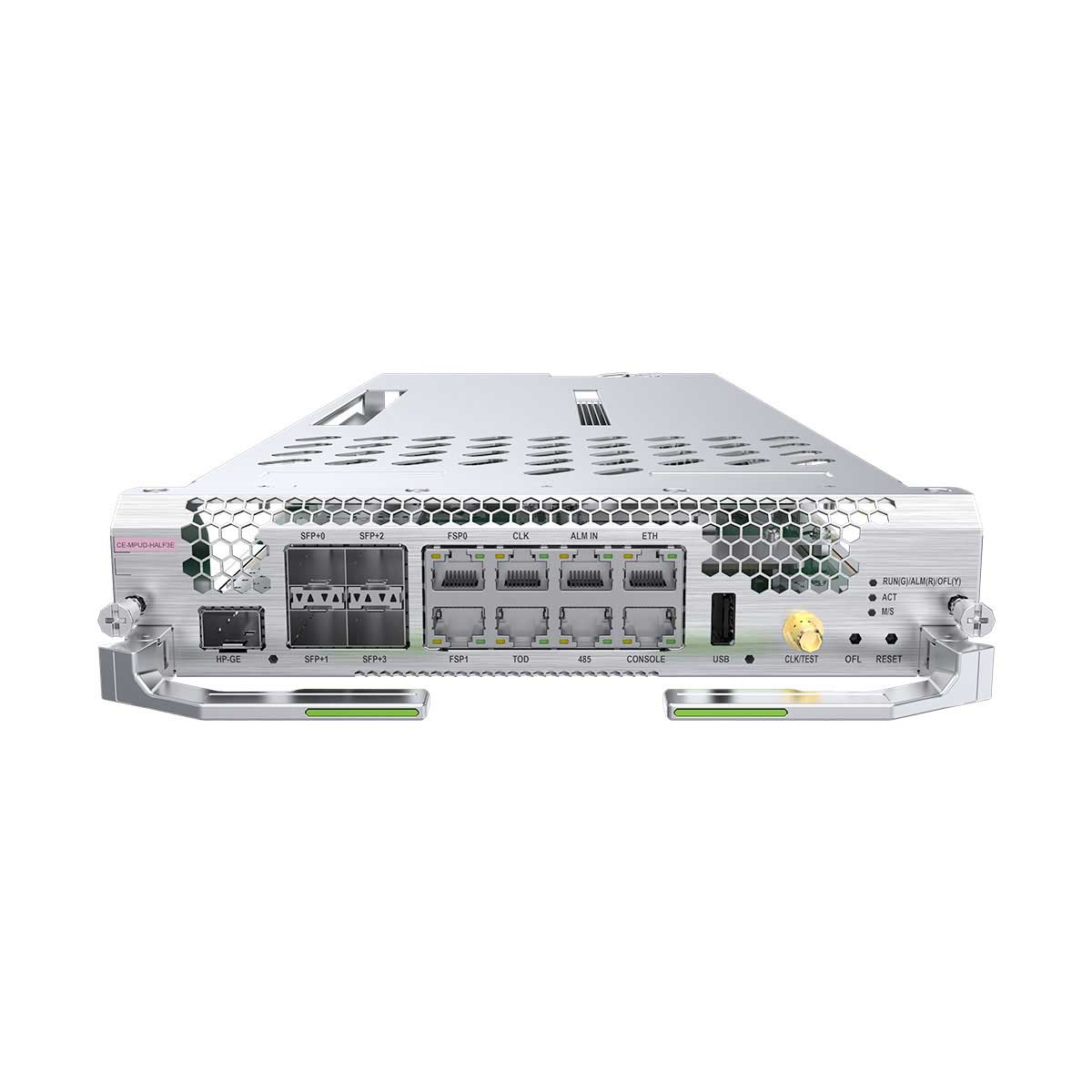

Panel on the CloudEngine CE-MPUD-HALF3E
| 1. Clock SMA port (CLK/TEST) | 2. USB port (USB) | 3. ETH management port (ETH) | 4. Console port (CONSOLE) | 5. Boolean alarm input port (ALMIN) |
| 6. RS485 port (485) | 7. External synchronization port CLK (CLK) | 8. External synchronization port TOD (TOD) | 9. FSP serial port (FSP0 and FSP1) | 10. SFP+ optical port (SFP+0, SFP+1, SFP+2, and SFP+3) |
| 11. Clock SFP port (HP-GE) | – | – | – | – |
