CE12804S 40G Port not coming UP

Issue Description

Port was not coming UP when connected 40G from CE12804S to CE6800.

SFP model used for connection : - Part : - 02311PUU Model : -  QSFP-40G-SDLC-PAM

port%E2%80%82was%E2%80%82not%E2%80%82coming%E2%80%82up%E2%80%82when%E2%80%82connected%E2%80%8240g%E2%80%82from%E2%80%82ce12804s%E2%80%82to%E2%80%82ce6800

Alarm Information

* port not showing UP in display interface brief

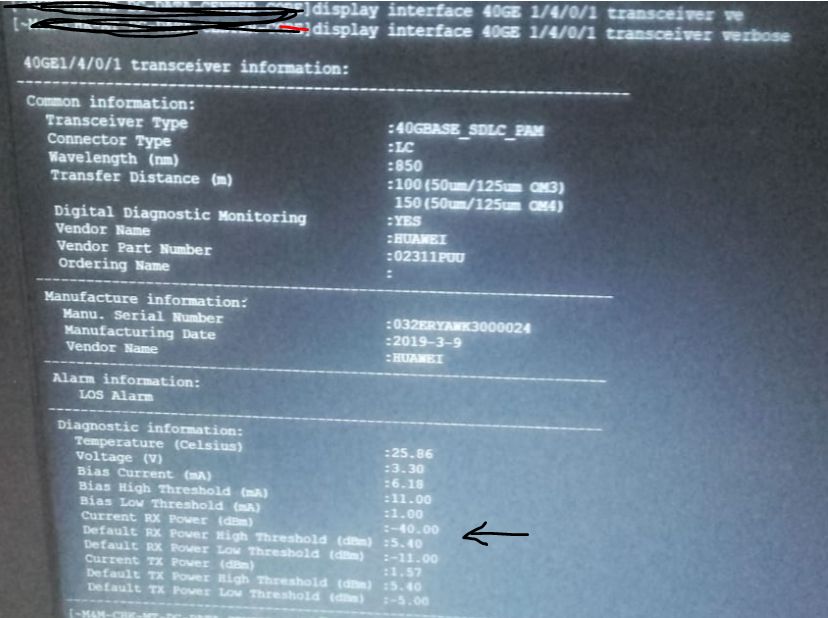

* also display transceiver verbose we see no RX Power.

display%E2%80%82transceiver%E2%80%82verbose%E2%80%82we%E2%80%82see%E2%80%82no%E2%80%82rx%E2%80%82power 1 display%E2%80%82transceiver%E2%80%82verbose%E2%80%82we%E2%80%82see%E2%80%82no%E2%80%82rx%E2%80%82power 2

Handling Process

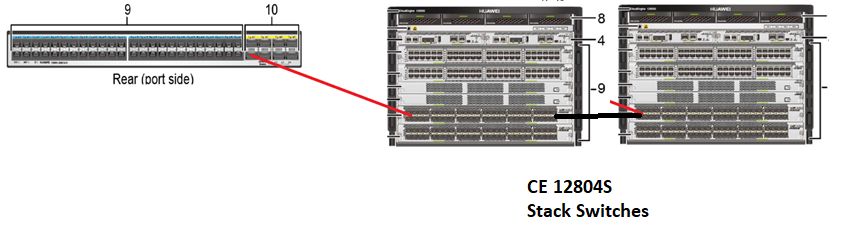

  • for troubleshooting we tested local Loop on CE6800 and CE12804S as below

1. CE6800 <—- 40G Fiber —– >  CE6800              || UP successful

|| NOT UP 

from above test cable and SFP is fine. seems issue on CE12804S

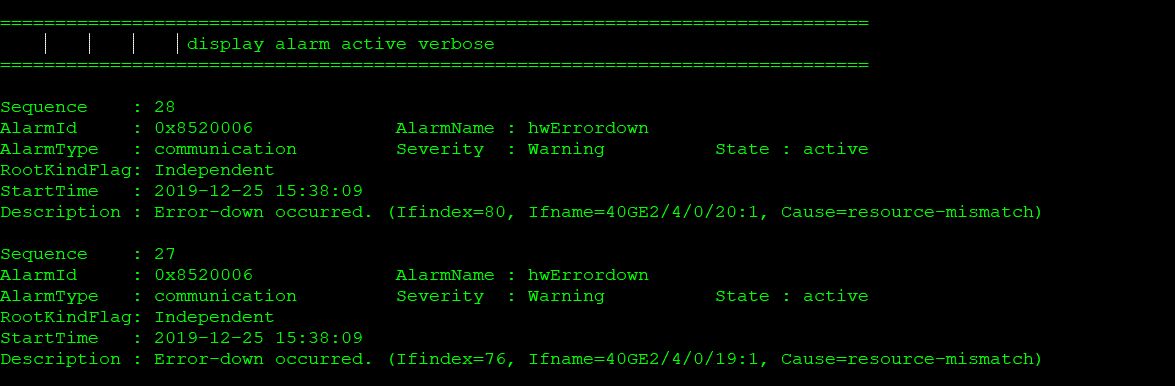

  • on CE12804S from display alarm and display logbuffer we can see resource-mismatch error for all interface.

on%E2%80%82ce12804s%E2%80%82from%E2%80%82display%E2%80%82alarm on%E2%80%82ce12804s%E2%80%82from%E2%80%82display%E2%80%82alarm 1

Solution

reset the Card where the error has occurred.

after reset port was up and working fine.

after%E2%80%82reset%E2%80%82port%E2%80%82was%E2%80%82up%E2%80%82and%E2%80%82working%E2%80%82fine
