Huawei CE12816E switch with 2*MPU slots, 16* LPU slots,  6* SFU slots, 10*power module slots, 4* four-fan assembly module slots, and 5* single-fan module slots

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

CE12816E overview

The CE12804E/CE12808E/CE12816E system uses an orthogonal connector architecture without a backplane. This architecture, together with the dynamic distributed large buffer on line cards, can better handle high traffic rates and traffic bursts resulting from cloud computing.

The CE12800E series switches are highly scalable. A chassis provides 6.48 Tbit/s per slot bandwidth and a maximum of 77.76 Tbit/s switching capacity. The CE12800E series switches support the cluster switch system (CSS) technology, which virtualizes multiple physical devices into one logical device to simplify network management and improve network reliability.

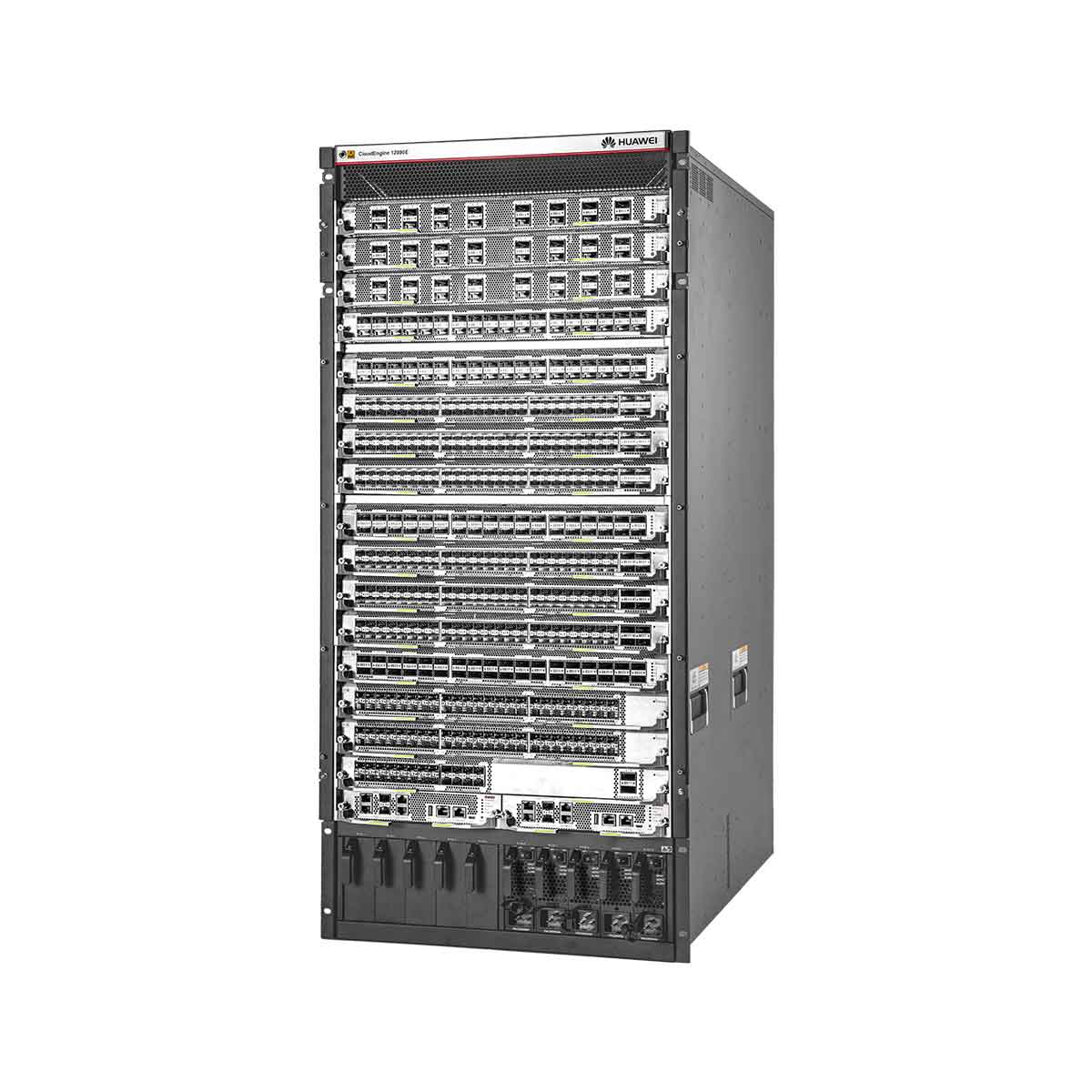

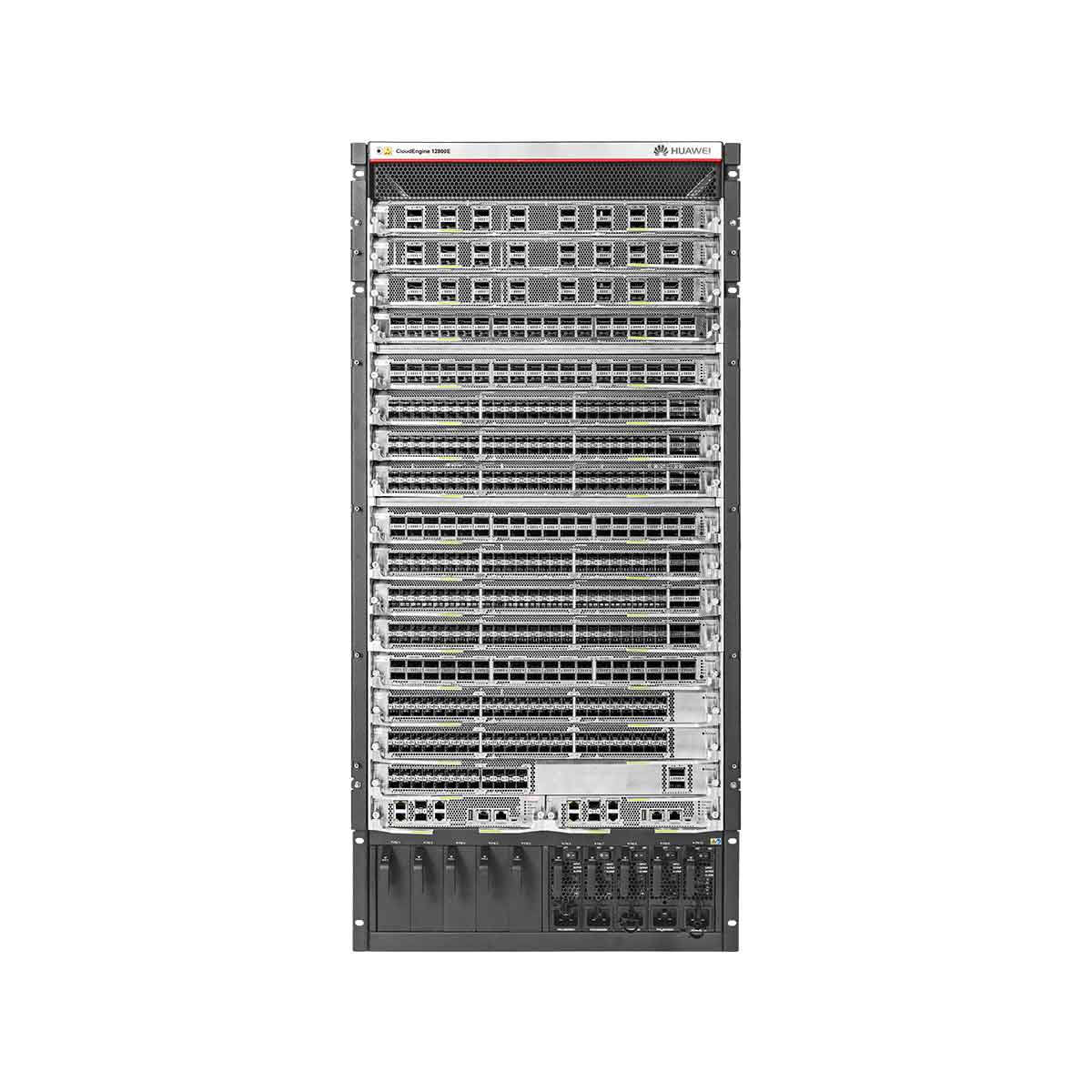

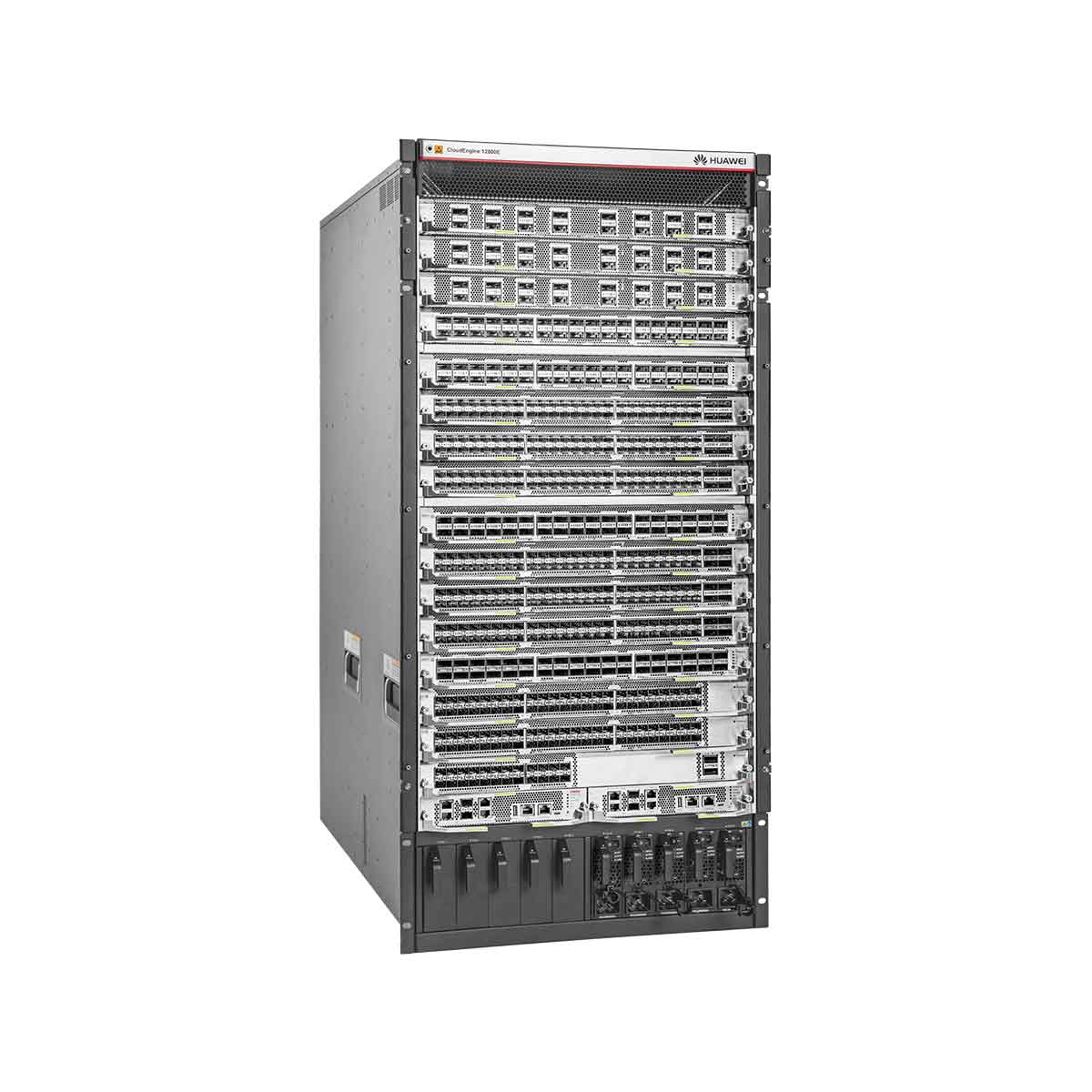

CE12816E appearance

12E



1. CE12800E series switches chassis header, showing the following:

  • Product series name:For the CE12816E chassis, the series name is CloudEngine 12800E.
  • Huawei Logo
 2. Front ESD jack

NOTE:

When maintaining components at the front of a chassis, wear an ESD wrist strap and insert the other end of the ESD wrist strap into this ESD jack.

 3. Air intake area for SFUs in the CE12816E chassis (See Airflow for heat dissipation of the SFUs (side view) for the heat dissipation mechanism.)
4. LPUs

The CE12816E chassis supports 16 LPUs.

 5. Two MPUs

The MPU model used in the CE12816E chassis is CE-MPUA-E.

 6. Power modules

The CE12816E chassis supports ten 3000 W AC power modules or ten 2200 W DC power modules.
7. Cable management frame

NOTE:

Cable management frames are installed on the left and right sides of a chassis to route cables in each slot.

 8. Fan modules

The CE12816E chassis supports five FAN-180B-B Fan Module and four FAN-720A-B Fan Module.

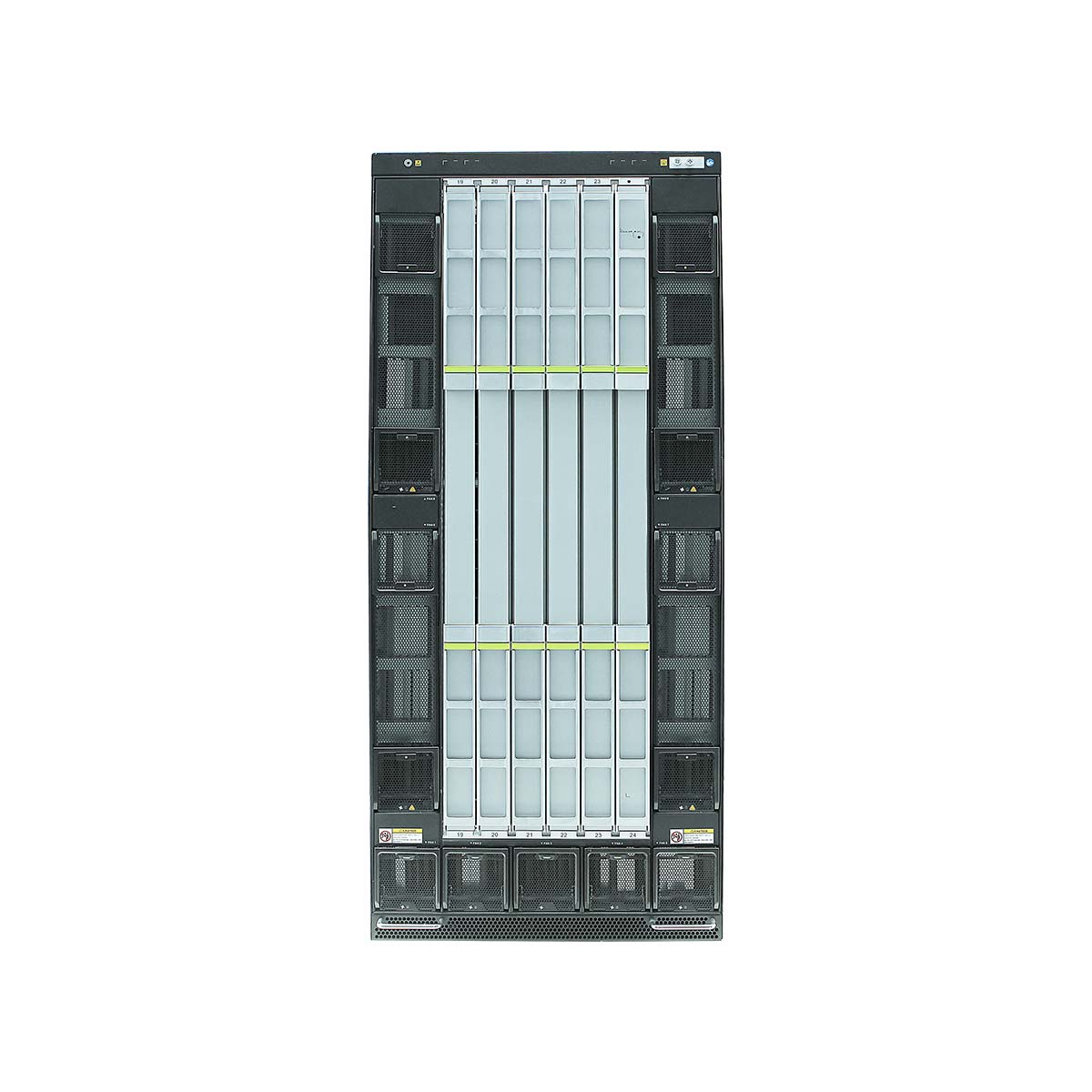

 9. SFU

The CE12816E chassis supports six CE-SFU16C-E or CE-SFU16G-X cards.
10. Rear ESD jack

NOTE:

When maintaining components at the rear of a chassis, wear an ESD wrist strap and insert the other end of the ESD wrist strap into this ESD jack.

 11. Two ground points for a dual-hole ground lug, with a yellow grounding label attached

NOTE:

To protect a chassis from lightning and electromagnetic interference, use Ground Cable to ground the chassis.

 12. Serial number label
13. MAC address label 14. Air exhaust area for power modules in the CE12816E chassis (See Airflow for heat dissipation of the power modules (side view) for the heat dissipation mechanism.) –
Item CE12816E
Environment parameters Temperature
  • Operating temperature: 0°C to 40°C (32°F to 104°F) at an altitude between 0 m and 1800 m (0 ft. and 5906 ft.)
    NOTE:
    When the altitude is between 1800 m and 4000 m (5906 ft. and 13123 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
  • Storage temperature: -40°C to +70°C (-40°F to +158°F)
Relative humidity 5% RH to 85% RH, noncondensing
Altitude < 4000 m (13123 ft.)
Noise (27°C/80.6°F) ≤ 78 dBA
Power specifications Power port The power modules are plug-and-play. Power cables are connected to the power sockets at the front of the chassis.
AC power input
  • Rated voltage: 110 V AC/220 V AC; 50 Hz/60 Hz
  • Rated voltage range: 100 V AC to 130 V AC/200 V AC to 240 V AC
  • Maximum voltage range: 90 V AC to 290 V AC; 47 Hz to 63 Hz
  • Maximum input current: 18.5 A
DC power input
  • Rated voltage: -48 V DC/-60 V DC
  • Maximum voltage range: -40 V DC to -72 V DC
  • Rated input current: 50 A @ -48 V DC
  • Maximum input current: 63 A @ -40 V DC
High-voltage DC power input
  • Rated voltage: 240 V DC
  • Rated voltage range: 188 V DC to 288 V DC
Maximum output power of AC power modules
  • 220 V single-phase AC input, or 110 V dual-live-wire AC input:
    • N+N backup (N ≤ 5): 3000 W x 5 = 15000 W
    • N+1 backup (N ≤ 9): 3000 W x 9 = 27000 W
    • N+0 backup (N ≤ 10): 3000 W x 10 = 30000 W
  • 110 V single-live-wire AC input:
    • N+1 backup (N ≤ 9): 1500 W x 9 = 13500 W
    • N+0 mode (N ≤ 10): 1500 W x 10 = 15000 W
Maximum output power of DC power modules
  • N+N backup (N ≤ 5): 2200 W x 5 = 11000 W
  • N+1 backup (N ≤ 9): 2200 W x 9 = 19800 W
  • N+0 mode (N ≤ 10): 2200 W x 10 = 22000 W
Maximum output power of high-voltage DC power modules
240 V DC input:
  • N+N backup (N ≤ 5): 3000 W x 5 = 15000 W
  • N+1 backup (N ≤ 9): 3000 W x 9 = 27000 W
  • N+0 backup (N ≤ 10): 3000 W x 10 = 30000 W
Heat dissipation The power modules have their own fans, which cool the power modules through front-to-back airflow.
Hot swap The power modules are hot swappable.
Reliability and availability Modules
Power module:
  • If double external power supply systems are used, the N+N backup mode is recommended.
  • If a single external power supply system is used, you can use more power modules or change the power module backup mode to increase the output power. To enhance system reliably, you are advised to use the N+1 backup mode.
Fan module: Fan modules work in hot backup mode. At normal temperature range, the system can operate normally for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
MPU: 1:1 hot backup
Hot swap: All the power modules, fan modules, and cards support hot swap.
Chassis
  • Mean Time Between Failures (MTBF): 30.90 years
  • Mean time to repair (MTTR): 1 hour
  • Availability: 0.9999961227
NOTE:
The preceding values are calculated based on the typical configuration of the product. The actual values will vary depending on the modules configured in the equipment.
Technical specifications Maximum port density
  • V200R002C50: 256x100GE, 576x40GE, 2304x10GEa, or 768xGE
  • V200R003C00: 256x100GE, 576x40GE, 2304x10GEa, or 768xGE
  • V200R005C00: 576x100GE, 576x40GE, 2304x10GEa, or 768xGE
Certification
  • Safety standards compliance
  • EMC standards compliance
  • Environmental standards compliance
Physical specifications
  • Dimensions (W x D x H): 442 mm x 760 mm x 1019.55 mm (17.40 in. x 29.92 in. x 40.14 in. (23U))
  • Weight
    • Empty: 92.0 kg (202.82 lb)
    • Fully loaded: 337.3 kg (743.61 lb)
