Huawei CE16800-X16-DC switch with DC assembly chassis

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

CE16800 overview

The CloudEngine 16800 is the industry’s data center switch built for diversified computing power. The CloudEngine 16800 delivers stable, reliable, and high-performance Layer 2 and Layer 3 switching services, and provides customers with an intelligent, simple, secure, and open data center cloud network platform.

CloudEngine 16800 series switches use an architecture that separates the control plane, data plane, and monitoring plane. The switches use an industry-leading Clos architecture and a strict front-to-back airflow design to provide industrial-grade reliability. They support extensive data center service features. Moreover, they adopt multiple innovative energy-saving technologies to greatly reduce power consumption.

CE16800-X16 Overview

Item Description Part Number First supported version
CE16800-X16-AH CE16800-X16 AC&high-voltage DC assembly chassis 02355MYE V300R023C00
CE16800-X16-DC CE16800-X16 DC assembly chassis 02355MYF V300R023C00



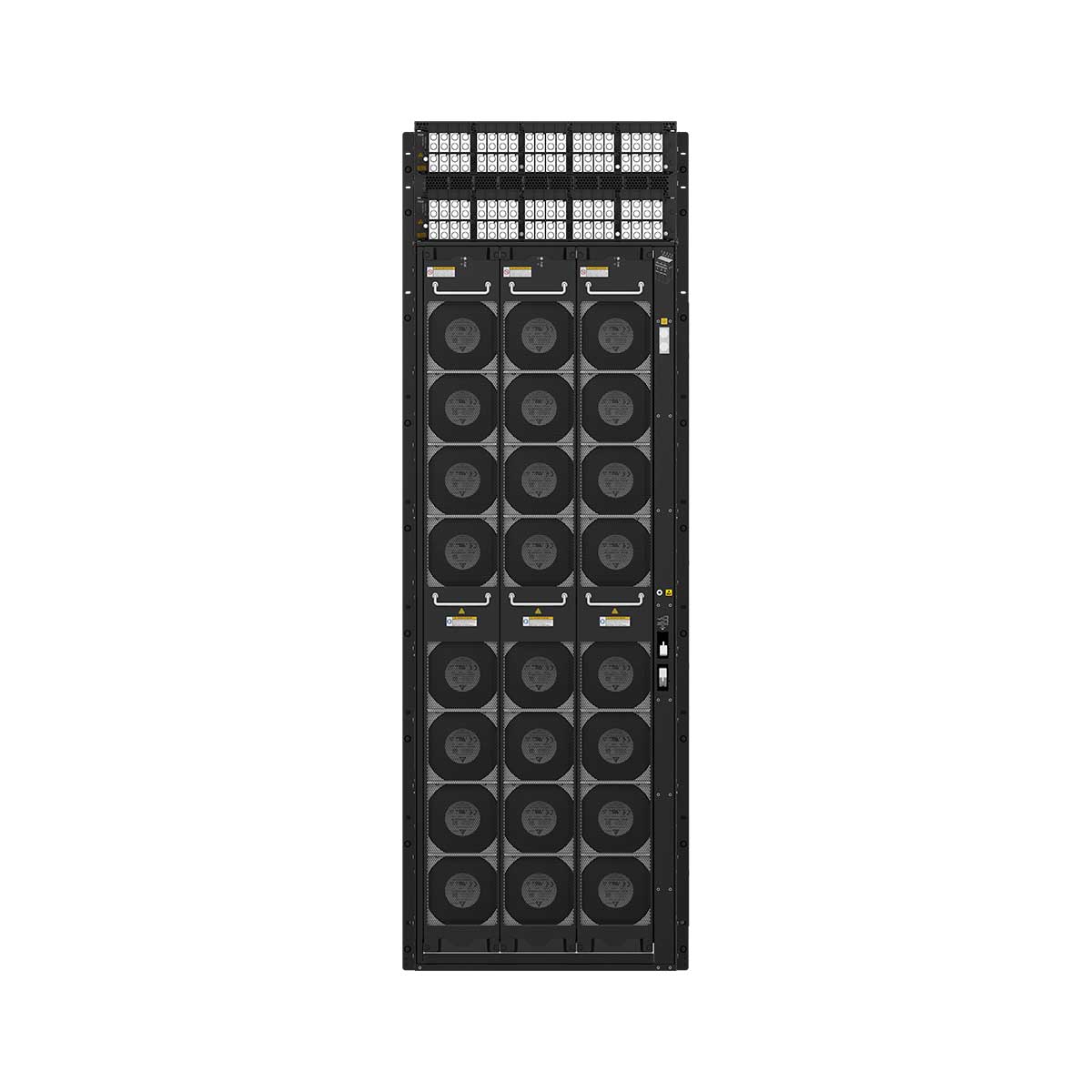

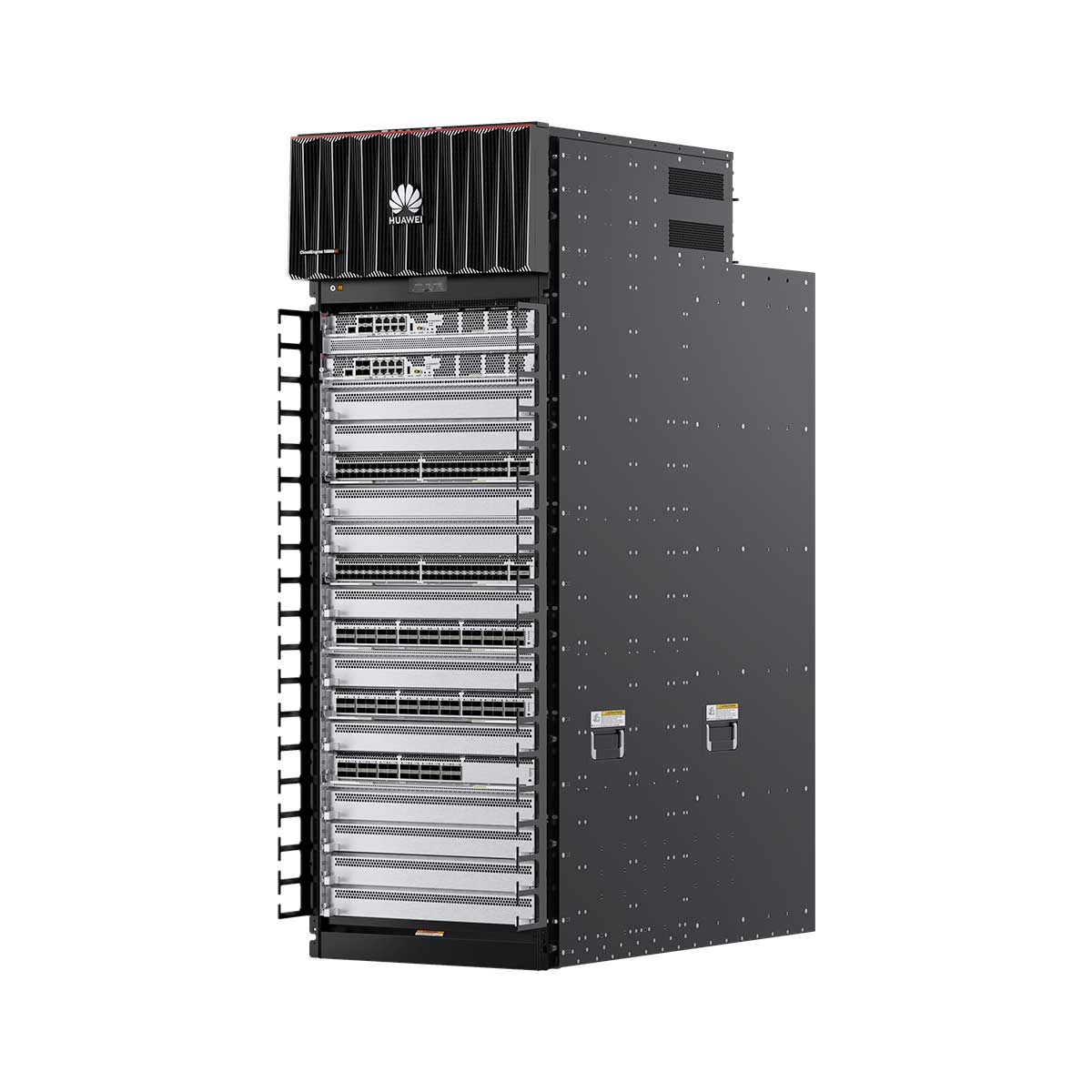

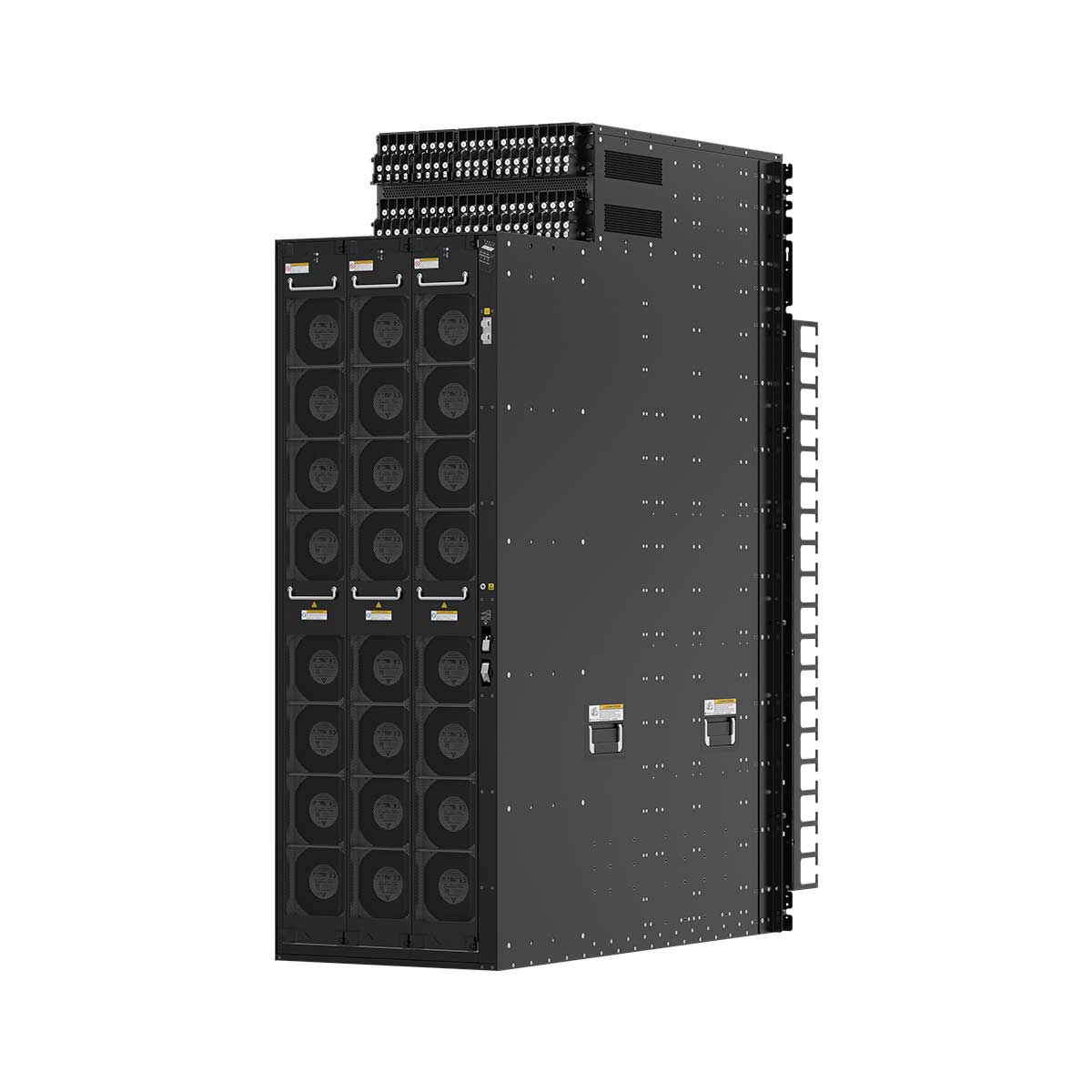

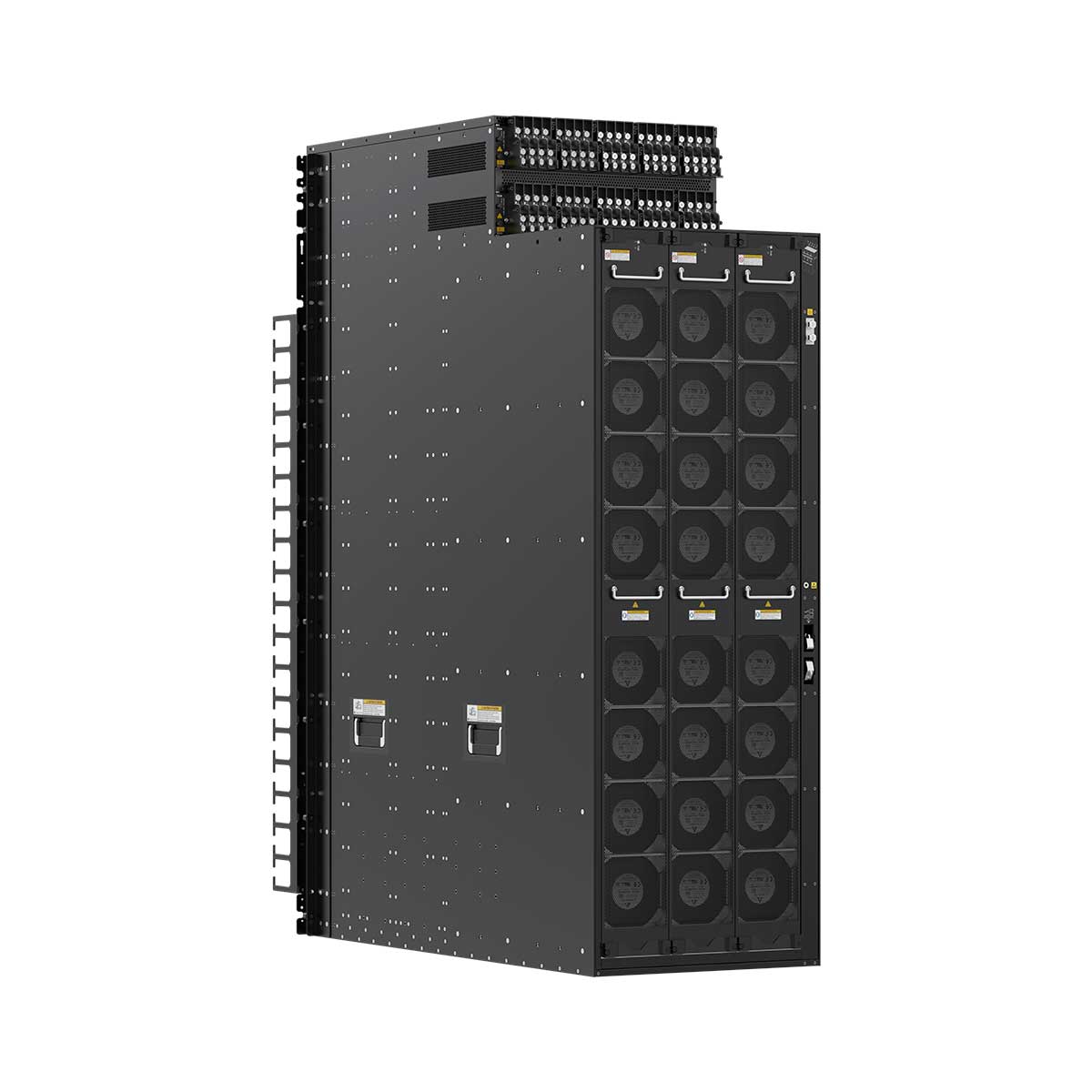

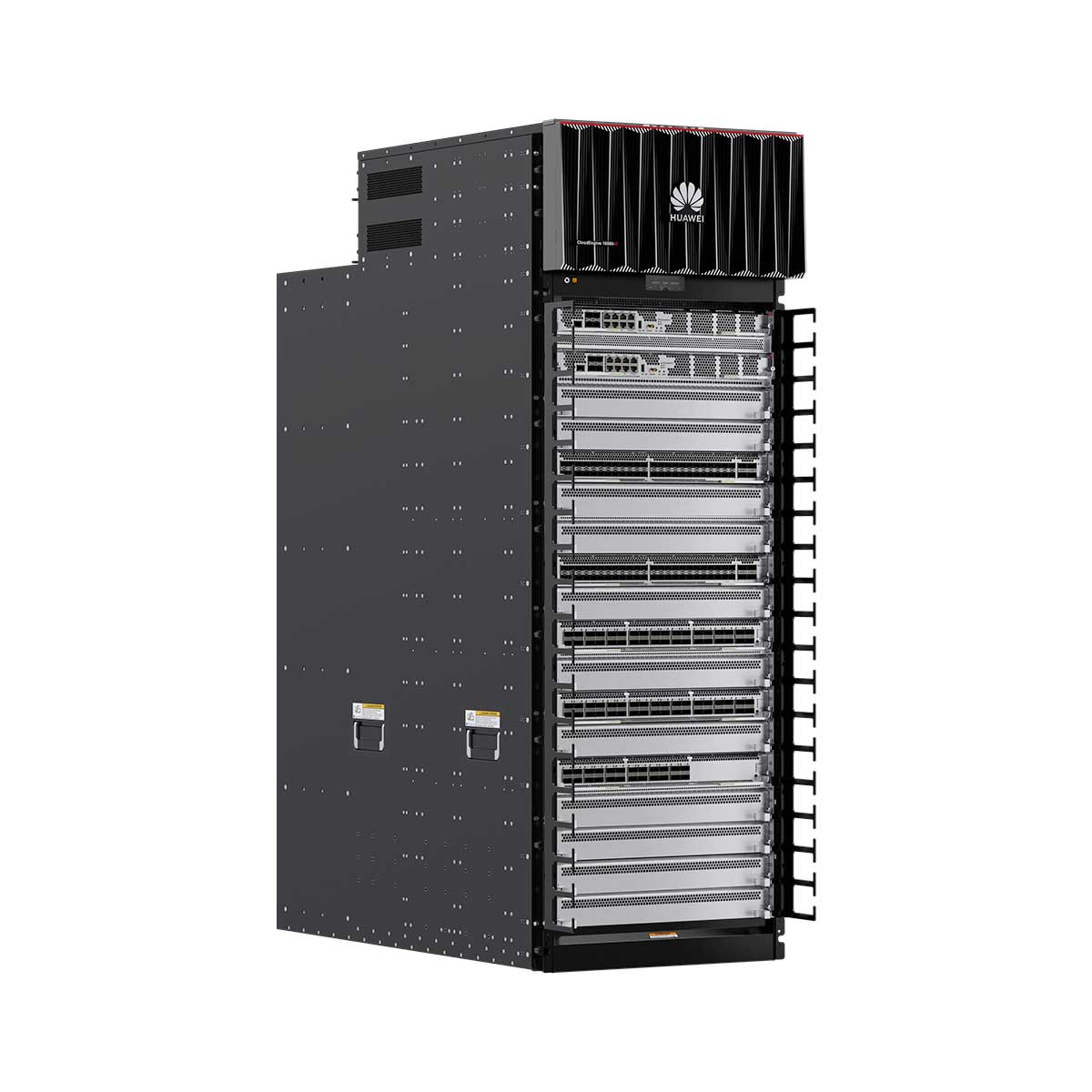

CE 16800-X16 Appearance

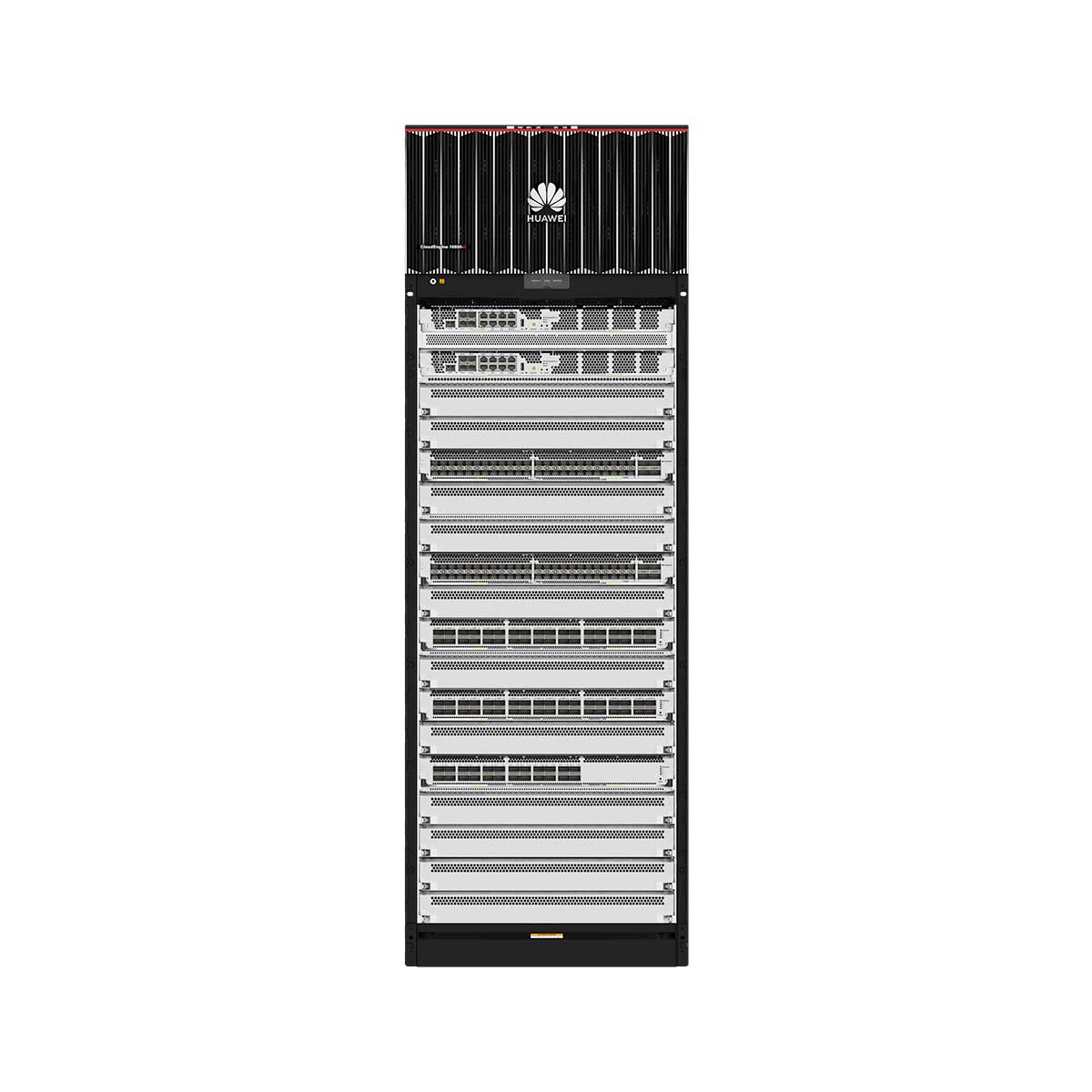

Panel on the CloudEngine 16800-X16

16800 X16

1. PM indicator 2. MPU indicator 3. LPU indicator 4. SFU indicator 5. Fan module indicator
6. Power switch – – – –



Item CE16800-X16-DC
Chassis height [U] 32.3 U
Redundant MPUs 1:1
Redundant Switch fabrics N+M
Power supply mode DC
Number of power modules 20
Redundant power supply
  • Dual-input power supply system: N+1 backup is recommended.
  • Single-input power supply system: N+1 backup
Dual-input power supply is recommended to ensure reliability.
Rated input voltage [V] -48 V/-60 V
Input voltage range [V] -40 V to -72 V
Maximum input current [A] 58.5 A for the voltage of -40 V
Maximum output power [W]
  • In 19+1 backup mode: 2200 W x 19 = 41800 W
  • In 20+0 backup mode: 2200 W x 20 = 44000 W
Certification
  • Compliance with safety standards
  • Compliance with EMC standards
  • Compliance with environment and environmental protection standards
Redundant fans Fan modules work in hot standby mode. At the normal temperature range, the system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode Heat dissipation using fans
Airflow direction Front-to-back airflow
Availability 0.9999970745
MTBF [year] 32.68 year
MTTR [hour] 1 hour
Long-term operating altitude [m (ft.)] ≤ 5000 m (16404 ft.) (When the altitude is between 1800 m and 5000 m (5906 ft. and 16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).)
Long-term operating relative humidity [RH] 5% RH to 85% RH, noncondensing
Long-term operating temperature [°C (°F)] 0°C to 40°C (32°F to 104°F)
Storage altitude [m (ft.)] ≤ 5000 m (16404 ft.)
Storage relative humidity [RH] 5% RH to 95% RH, noncondensing
Storage temperature [°C (°F)] -40ºC to +70ºC (-40°F to +158°F)
Dimensions with packaging (H x W x D) [mm (in.)] 1695 mm x 770 mm x 1350 mm (66.73 in. x 30.31 in. x 53.15 in.)
Dimensions without packaging (H x W x D) [mm (in.)]
  • 1436 mm x 442 mm x 1033 mm (56.54 in. x 17.40 in. x 40.67 in.), dimensions of the chassis body
  • 1436 mm x 483 mm x 1144 mm (56.54 in. x 19.02 in. x 45.04 in.), including mounting brackets and cable management frames
Weight without packaging [kg (lb)] 273.8 kg (603.73 lb) (including two MPUs and filler panels)
Weight without packaging (full configuration) [kg (lb)] 572.6 kg (1262.58 lb)
Weight with packaging [kg (lb)] 346 kg (762.93 lb)
Cabinet installation standards
  • A812
  • A612

Additional information

Brand

Huawei
Item CE16800-X16-DC
Chassis height [U] 32.3 U
Redundant MPUs 1:1
Redundant Switch fabrics N+M
Power supply mode DC
Number of power modules 20
Redundant power supply
  • Dual-input power supply system: N+1 backup is recommended.
  • Single-input power supply system: N+1 backup
Dual-input power supply is recommended to ensure reliability.
Rated input voltage [V] -48 V/-60 V
Input voltage range [V] -40 V to -72 V
Maximum input current [A] 58.5 A for the voltage of -40 V
Maximum output power [W]
  • In 19+1 backup mode: 2200 W x 19 = 41800 W
  • In 20+0 backup mode: 2200 W x 20 = 44000 W
Certification
  • Compliance with safety standards
  • Compliance with EMC standards
  • Compliance with environment and environmental protection standards
Redundant fans Fan modules work in hot standby mode. At the normal temperature range, the system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode Heat dissipation using fans
Airflow direction Front-to-back airflow
Availability 0.9999970745
MTBF [year] 32.68 year
MTTR [hour] 1 hour
Long-term operating altitude [m (ft.)] ≤ 5000 m (16404 ft.) (When the altitude is between 1800 m and 5000 m (5906 ft. and 16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).)
Long-term operating relative humidity [RH] 5% RH to 85% RH, noncondensing
Long-term operating temperature [°C (°F)] 0°C to 40°C (32°F to 104°F)
Storage altitude [m (ft.)] ≤ 5000 m (16404 ft.)
Storage relative humidity [RH] 5% RH to 95% RH, noncondensing
Storage temperature [°C (°F)] -40ºC to +70ºC (-40°F to +158°F)
Dimensions with packaging (H x W x D) [mm (in.)] 1695 mm x 770 mm x 1350 mm (66.73 in. x 30.31 in. x 53.15 in.)
Dimensions without packaging (H x W x D) [mm (in.)]
  • 1436 mm x 442 mm x 1033 mm (56.54 in. x 17.40 in. x 40.67 in.), dimensions of the chassis body
  • 1436 mm x 483 mm x 1144 mm (56.54 in. x 19.02 in. x 45.04 in.), including mounting brackets and cable management frames
Weight without packaging [kg (lb)] 273.8 kg (603.73 lb) (including two MPUs and filler panels)
Weight without packaging (full configuration) [kg (lb)] 572.6 kg (1262.58 lb)
Weight with packaging [kg (lb)] 346 kg (762.93 lb)
Cabinet installation standards
  • A812
  • A612
