Huawei CE5810-24T4S-EI switch supports 24-port GE RJ45,4-port 10GE SFP+

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

CE5810-24T4S-EI Overview

CE5810-24T4S-El switch comes with 24-Port GE RJ45, 4-port 10GE SFP+, without fan and power module. It is one of the Huawei Cloud Engine CE5800 series switches.

The Huawei Cloud Engine CE580O series switches are next-generation, high-density Gigabit Ethernet switches designed for data centers and high-end campus networks. The hardware has an advanced architectural design with the industry’s highest density of GE access ports. The CE5800 is also the first Gigabit Ethernet access switch to provide 40 GE uplink ports.



CE5810-24T4S-EI quick spec

24-Port GE RJ45

4-port 10GE SFP+

Switching capacity: 128 Gbit/s

Forwarding performance: 96 Mpps

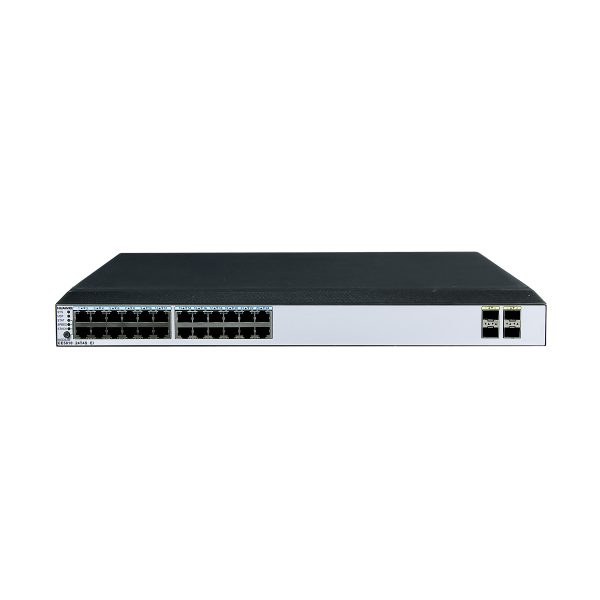

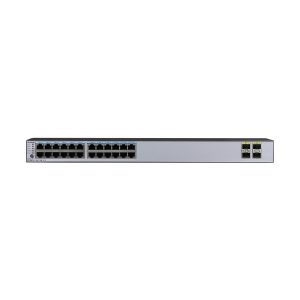

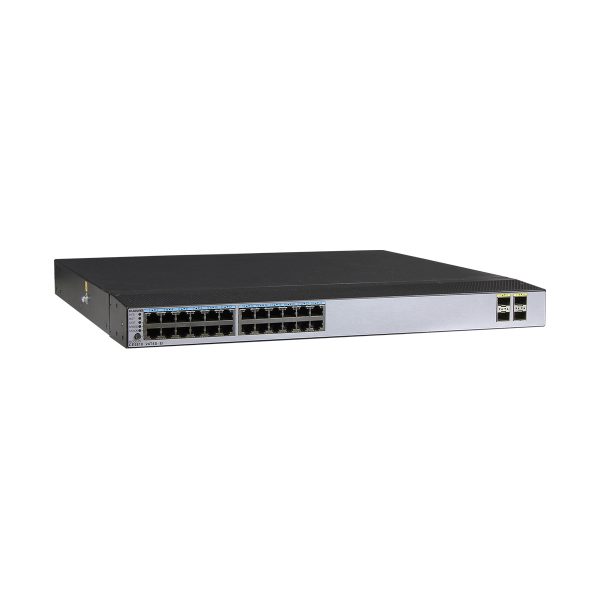

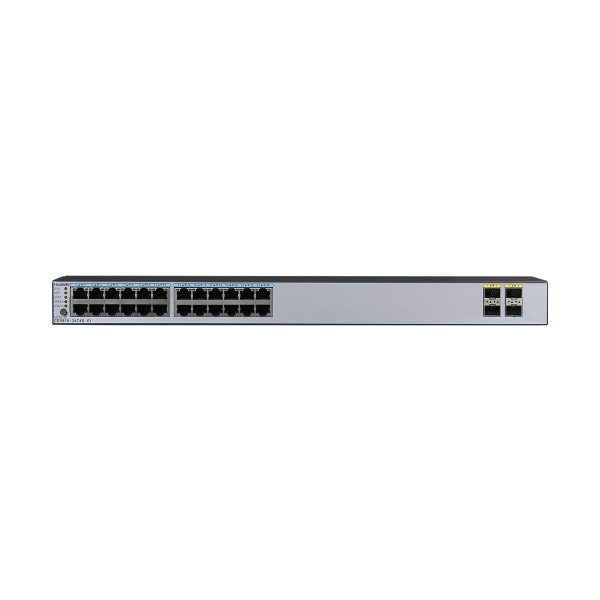

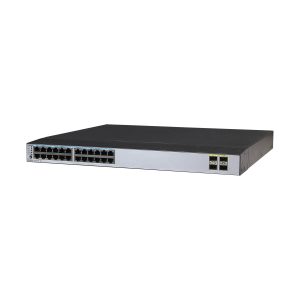

CE5810-24T4S-EI appearance and structure

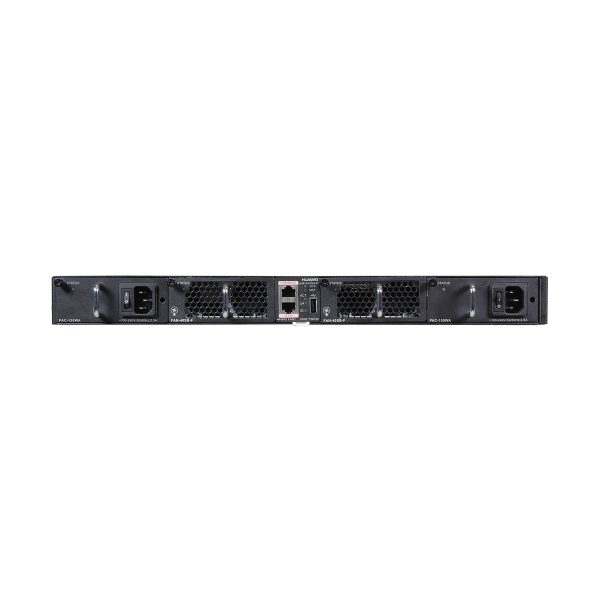

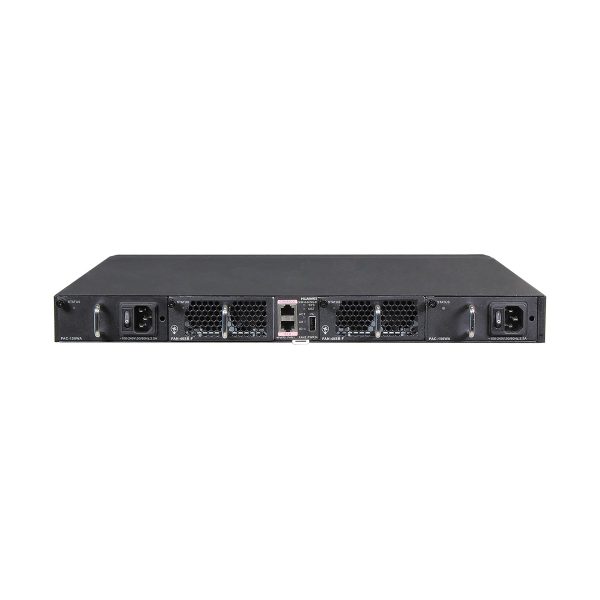

1 Power supply slot 1 Applicable power modules: 150 W AC power module (PAC-150WA) 350 W DC power module
2 Power supply slot 2 Applicable power modules: 150 W AC power module (PAC-150WA) 350 W DC power module
3 Fan slot 1 Applicable fan modules: FAN-40SB series fan modules
4 Fan slot 2 Applicable fan modules: FAN-40SB series fan modules
5 Console port
6 ETH management port (RJ45)
7 Barcode label
8 USB port
9 Twenty-four 10/100/1000BASE-T Ethernet electrical ports
10 Four 10GE SFP+ Ethernet optical ports Applicable modules and cables: 10GE optical module GE optical module GE copper module (only works at 1000 Mbit/s) SFP+ AOC cable SFP+ high-speed cable
11 Three port-side mounting holes for mounting brackets
12 Four power-supply-side mounting holes for mounting brackets
13 Ground screw
Show More Show Less
Item CE5810-24T4S-EI
Technical specifications Processor 1.2 GHz, dual-core
DRAM Memory 2 GB
NOR Flash 16 MB
NAND Flash 512 MB
Stack Service port supporting the stack function 10GE optical ports
Certification Safety standards compliance
EMC standards compliance
Environmental standards compliance
Physical specifications Dimensions (W x D x H): 442.0 mm x 420.0 mm x 43.6 mm (17.4 in. x 16.5 in. x 1.72 in.)
Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 8.0 kg (17.64 lb)
Environment parameters Temperature Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.). Storage temperature: -40°C to +70°C
Relative humidity 5% RH to 95% RH, noncondensing
Altitude < 5000 m (16404 ft.)
Noise (sound pressure, 27°C) Back-to-front airflow: < 43 dBA
Front-to-back airflow: < 47 dBA
Power specifications Power source type AC/DC
AC power input Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz
Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
DC power input Rated voltage range: -48 V DC to -60 V DC
Maximum voltage range: -38.4 V DC to -72 V DC
High-voltage DC power input Not supported
Rated input current 150 W AC power (PAC-150WA): 2.5 A (100 V AC to 240 V AC)
350 W DC power (PDC-350WA series): 11 A (-48 V DC to -60 V DC)
Chassis power consumption Maximum power consumption 68 W
Typical power consumption 58 W (100% throughput, 3 m Ethernet cables on 24 ports, SFP+ cables on 4 ports, double power modules)
Chassis heat dissipation Maximum heat dissipation 232 BTU/hr
Typical heat dissipation 198 BTU/hr (100% throughput, 3 m Ethernet cables on 24 ports, SFP+ cables on 4 ports, double power modules)
Surge protection Ethernet electrical ports: 2 kV in common mode
Power module:
AC: 6 kV in common mode and 6 kV in differential mode
DC: 4 kV in common mode and 2 kV in differential mode
Heat dissipation Heat dissipation mode Air cooling
Airflow Front-to-back or back-to-front, depending on the fan modules and power modules
Reliability and availability Power module backup 1+1 backup
Fan module backup 1+1 backup
Hot swap Supported by all power modules and fan modules
Mean time between failures (MTBF) 70.3 years
Mean time to repair (MTtr) 1.75 hours
Availability 0.999997153

Additional information

CE Switch

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item CE5810-24T4S-EI
Technical specifications Processor 1.2 GHz, dual-core
DRAM Memory 2 GB
NOR Flash 16 MB
NAND Flash 512 MB
Stack Service port supporting the stack function 10GE optical ports
Certification Safety standards compliance
EMC standards compliance
Environmental standards compliance
Physical specifications Dimensions (W x D x H): 442.0 mm x 420.0 mm x 43.6 mm (17.4 in. x 16.5 in. x 1.72 in.)
Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 8.0 kg (17.64 lb)
Environment parameters Temperature Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.). Storage temperature: -40°C to +70°C
Relative humidity 5% RH to 95% RH, noncondensing
Altitude < 5000 m (16404 ft.)
Noise (sound pressure, 27°C) Back-to-front airflow: < 43 dBA
Front-to-back airflow: < 47 dBA
Power specifications Power source type AC/DC
AC power input Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz
Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
DC power input Rated voltage range: -48 V DC to -60 V DC
Maximum voltage range: -38.4 V DC to -72 V DC
High-voltage DC power input Not supported
Rated input current 150 W AC power (PAC-150WA): 2.5 A (100 V AC to 240 V AC)
350 W DC power (PDC-350WA series): 11 A (-48 V DC to -60 V DC)
Chassis power consumption Maximum power consumption 68 W
Typical power consumption 58 W (100% throughput, 3 m Ethernet cables on 24 ports, SFP+ cables on 4 ports, double power modules)
Chassis heat dissipation Maximum heat dissipation 232 BTU/hr
Typical heat dissipation 198 BTU/hr (100% throughput, 3 m Ethernet cables on 24 ports, SFP+ cables on 4 ports, double power modules)
Surge protection Ethernet electrical ports: 2 kV in common mode
Power module:
AC: 6 kV in common mode and 6 kV in differential mode
DC: 4 kV in common mode and 2 kV in differential mode
Heat dissipation Heat dissipation mode Air cooling
Airflow Front-to-back or back-to-front, depending on the fan modules and power modules
Reliability and availability Power module backup 1+1 backup
Fan module backup 1+1 backup
Hot swap Supported by all power modules and fan modules
Mean time between failures (MTBF) 70.3 years
Mean time to repair (MTtr) 1.75 hours
Availability 0.999997153
