CE6810-48S-LI Huawei CE6800 switch supports 48-Port 10GE SFP+

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

CE6810-48S-LI Overview

CE6810-48S-LI Huawei CE6800 switch supports 48-Port 10GE SFP+

Part Number Part Model Part Description
02350AQA CE6810-48S-LI CE6810-48S-LI Switch (48-Port 10GE SFP+, Without Fan Box and Power Module)

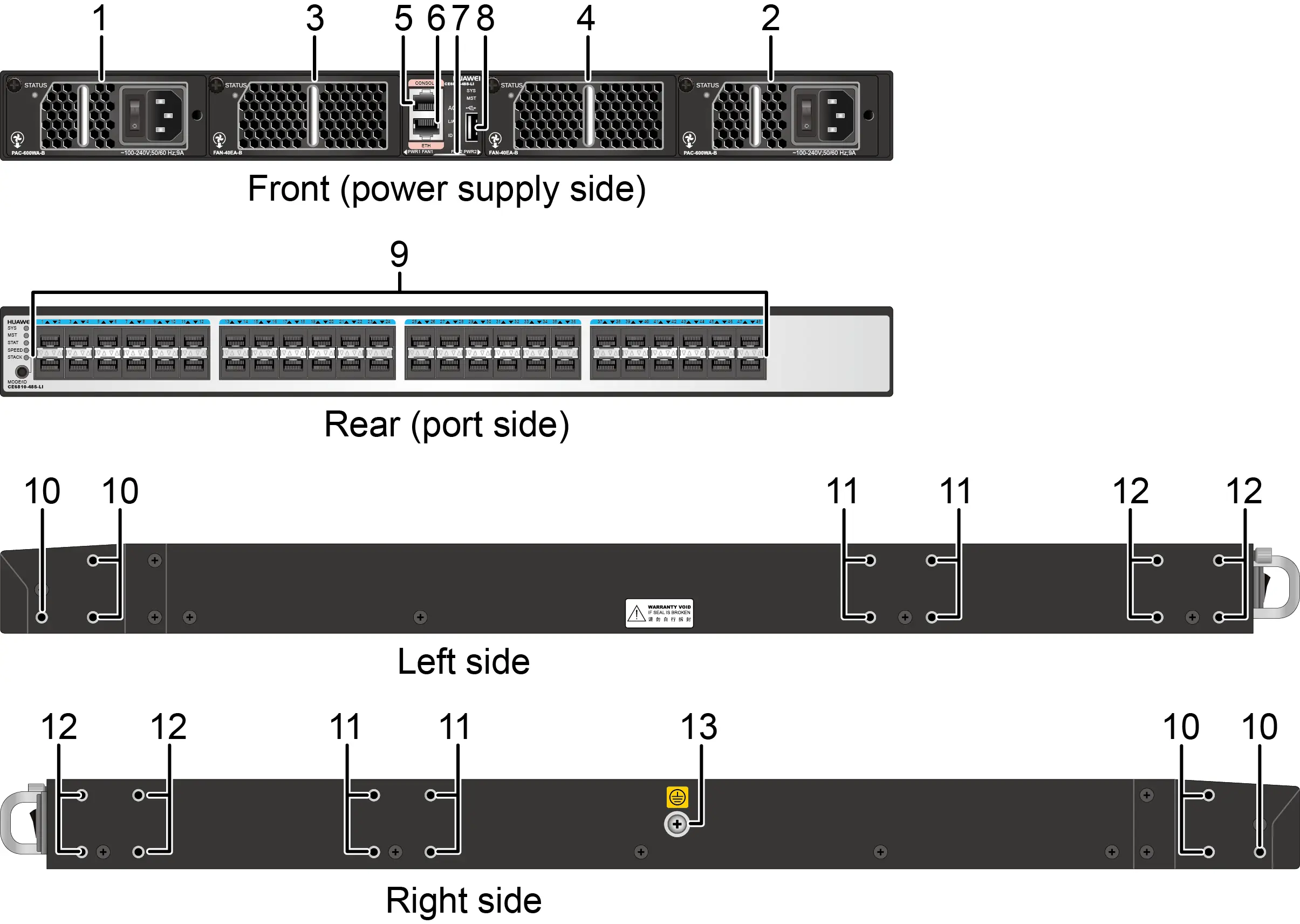

CE6810-48S-LI Appearance

CE6810 48S LI



1 Power supply slot 1

Applicable power modules:

  • 350 W DC power module
  • 600 W AC power module
 2 Power supply slot 2

Applicable power modules:

  • 350 W DC power module
  • 600 W AC power module
3 Fan slot 1

Applicable fan modules:

  • FAN-40EA series fan modules
 4 Fan slot 2

Applicable fan modules:

  • FAN-40EA series fan modules
5 Console port 6 ETH management port (RJ45)
7

Barcode label

NOTE:

This label is drawable, and you can pull it outward to view the ESN barcode and MAC address of the switch.

 8 USB port
9 Forty-eight 10GE SFP+ Ethernet optical ports

Applicable modules and cables:

  • 10GE optical module (OSXD22N00, LE2MXSC80FF0 and SFP-10G-ZDWT-L not supported)
  • GE optical module
  • GE copper module (works at 10 Mbit/s, 100 Mbit/s, or 1000 Mbit/s)
  • SFP+ AOC cable
  • SFP+ high-speed cable
 10 Three port-side mounting holes for mounting brackets
11 Four middle mounting holes for mounting brackets 12 Four power-supply-side mounting holes for mounting brackets
13 Ground screw – –
Item CE6810-48S-LI
Power specifications Power source type AC/DC
AC power input
  • Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz
  • Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
DC power input
  • Rated voltage range: -48 V DC to -60 V DC
  • Maximum voltage range: -38.4 V DC to -72 V DC
High-voltage DC power input Not supported
Rated input current
  • 350 W DC power (PDC-350WA series): 11 A (-48 V DC to -60 V DC)
  • 600 W AC power (PAC-600WA series): 9 A (100 V AC to 240 V AC)
Chassis power consumption Maximum power consumption 178 W
Typical power consumption 89 W (100% throughput, SFP+ cables on 48 ports, double power modules)
Chassis heat dissipation Maximum heat dissipation 607 BTU/hr
Typical heat dissipation 302 BTU/hr (100% throughput, SFP+ cables on 48 ports, double power modules)
Surge protection
Power module:
  • AC: 6 kV in common mode and 6 kV in differential mode
  • DC: 4 kV in common mode and 2 kV in differential mode
Heat dissipation Heat dissipation mode Air cooling
Airflow Front-to-back or back-to-front, depending on the fan modules and power modules
Reliability and availability Power module backup 1+1 backup
Fan module backup Not supported
Hot swap Supported by all power modules and fan modules
Mean time between failures (MTBF) 56.88 years
Mean time to repair (MTTR) 1.8 hours
Availability 0.9999963861
Technical specifications Processor 1.2 GHz, quad-core
DRAM Memory 2 GB
NOR Flash 16 MB
NAND Flash 512 MB
Stack Service port supporting the stack function 10GE optical ports
Certification
  • Safety standards compliance
  • EMC standards compliance
  • Environmental standards compliance
Physical specifications
  • Dimensions (W x D x H): 442.0 mm x 600.0 mm x 43.6 mm (17.4 in. x 23.6 in. x 1.72 in.)
  • Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 10.2 kg (22.49 lb)
Environment parameters Temperature
  • Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.)
    NOTE:
    When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
  • Storage temperature: -40°C to +70°C (-40°F to +158°F)
Relative humidity 5% RH to 95% RH, noncondensing
Altitude < 5000 m (16404 ft.)
Noise (sound pressure, 27°C)
  • Back-to-front airflow: < 51 dBA
  • Front-to-back airflow: < 48 dBA
