CE6820-48S6CQ Huawei CE6800 switch supports 48 ports 10G SFP+, 6 ports 100G QSFP28

Description

CE6820-48S6CQ overview

Huawei CE6820-48S6CQ with 48 ports 10G SFP+, 6 ports 100G QSFP28 without fan and power modules is one of the CE6800 series switch.

Offering high performance, high port density, and low latency, CloudEngine 6800 series switches enable enterprises and carriers alike to build cloud-oriented data center networks. Advanced data center features, high performance stacking technologies, and flexible airflow capabilities complete the series. CloudEngine 6800 is well suited to both the core and aggregation layers and is fully compatible with CloudEngine 16800 and 12800 series switches, enabling enterprises to build scalable, simplified, open, and secure networks.

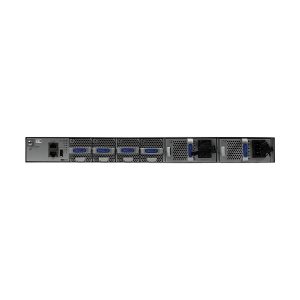

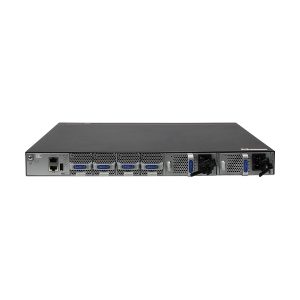

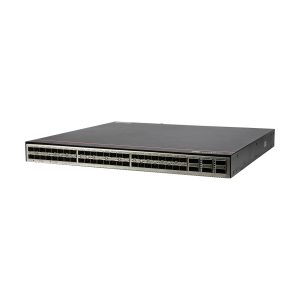

Appearance of the CE6820-48S6CQ
1 Ground screw
2 Equipment serial number (ESN)
3 Console port
4 ETH management port (RJ45)
5 USB port
6 Fan slot 1
7 Fan slot 2
8 Fan slot 3
9 Fan slot 4
10 Power supply slot 1
11 Power supply slot 2
12 Forty-eight 10GE SFP+ Ethernet optical ports
13 Six 40GE/100GE QSFP28 Ethernet optical ports
14 Three port-side mounting holes for mounting brackets
15 Two middle mounting holes for mounting brackets
16 Equipotential bonding Ground screws for a ground cable with a two-hole OT terminal
17 Four power-supply-side mounting holes for mounting brackets

Indicators on the CE6820-48S6CQ1



1 System status indicator
2 Stack master/slave indicator
3 ID indicator
4 Service port indicator (10GE optical port)
5 Service port indicator (40GE/100GE optical port)

Indicators on the CE6820-48S6CQ2



6 ETH management port indicator
7 USB-based deployment indicatorc



Ports on the CE6820-48S6CQ
Port Connector Type Description Available Components
10GE SFP+ Ethernet Optical Port LC A 10GE SFP+ Ethernet optical port supports auto-sensing to 1000 Mbit/s, and can receive and send services at a rate of 1000 Mbit/s or 10 Gbit/s.

  • Optical attributes: depending on the module or cable in use
  • Standards compliance: IEEE 802.3ae
  • Working mode: 1000 Mbit/s and 10 Gbit/s auto-sensing, full-duplex
GE eSFP optical modules

GE SFP copper modules

10GE SFP+ optical modules

40GE/100GE QSFP28 Optical Port Depending on the optical module A 40GE/100GE QSFP28 optical port sends and receives service traffic at 40 Gbit/s or 100 Gbit/s.

  • A 40GE/100GE QSFP28 optical port cannot be split.
  • Optical attributes: depending on the module or cable in use
  • Standards compliance: IEEE 802.3ba
  • Working mode: full-duplex
40GE QSFP+ optical modules

100GE QSFP28 optical modules

Console Port RJ45 The console port is connected to a console for onsite configuration.

  • Standards compliance: RS232
  • Working mode: duplex Universal Asynchronous Receiver/transmitter (UART)
  • Baud rate: 9600 bit/s to 115200 bit/s; default value: 9600 bit/s
Console cable
ETH Management Port RJ45 The ETH management port (RJ45) of a switch is connected to the network port of a configuration terminal or network management workstation to set up the onsite or remote configuration environment.

  • Standards compliance: IEEE 802.3ab
  • Working mode: 10/100/1000 Mbit/s auto-sensing, full-duplex
  • Maximum transmission distance: 100 m
The ETH management port (RJ45) uses a Category 5 or higher category cable.
USB Port USB A USB flash drive can be connected to the USB port for log backup, system software backup and uploading, or USB-based deployment. USB 2.0-compliant USB flash drive
Item CE6820-48S6CQ
CPU 4-core, 1.4GHZ
Memory DRAM: 4 GB
NOR Flash 64 MB
NAND Flash 2GB
Power supply mode
  • AC
  • DC
  • HVDC
Console port RJ45
Downlink Service interface 48*10GE SFP+ (Note: 1. 10GE interfaces are compatible with GE; 2. The interfaces do not support 10GE LRM/80KM linear optical modules)
Uplink Service interface 6*100GE QSFP28 (Note: 1. Each 100G QSFP28 port can be configured to work at 40 Gbit/s. 2. A 100G QSFP28 port cannot be split into four 25GE or 10GE ports. 3. 100GE and 40GE 1/3/5 m copper cables are supported, but auto-negotiation of copper cables is not supported. 100GE and 40GE copper cables can only be used on stack interfaces and M-LAG peer-link interfaces.)
Service port supporting the stack function 10GE optical ports, and 100GE optical ports
RTC Supported
Typical power consumption [W]
  • 162 W (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules)
  • 196 W (100% throughput, short-distance optical modules on all ports, dual power modules)
Typical heat dissipation [BTU/hour]
  • 553 BTU/hr (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules)
  • 669BTU/hr (100% throughput, short-distance optical modules on all ports, dual power modules)
Static power consumption [W] 102 W
Static heat dissipation [BTU/hour] 348 BTU/hour
Maximum power consumption [W] 282 W
Maximum heat dissipation 962
Number of power modules 2
Redundant power supply 1+1 backup
Rated input voltage [V]
  • 600 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC
  • 1000 W DC power module: –48 V DC to –60 V DC
  • 1200 W high-voltage DC power module: 240 V DC to 380 V DC
Input voltage range [V]
  • 600 W AC&240 V DC power module: 90 V AC to 290 V AC, 45 Hz to 65 Hz; 190 V DC to 290 V DC
  • 1000 W DC power module: –38.4 V DC to –72 V DC
  • 1200 W high-voltage DC power module: 190 V DC to 400 V DC
Maximum input current [A]
  • 600 W AC&240 V DC power module: 8 A (100 V AC to 240 V AC); 4 A (240 V DC)
  • 1000 W DC power module: 30 A (–48 V DC to –60 V DC)
  • 1200 W high-voltage DC power module: 8 A
Rated output power [W]
  • 600 W AC&240 V DC power module: 600 W
  • 1000 W DC power module: 1000 W
  • 1200 W high-voltage DC power module: 1200 W
Maximum output power [W]
  • 600 W (AC&240 V HVDC)
  • 1000 W (–48 V DC)
  • 1200 W (380 V HVDC)
Certification
  • Complies with safety standards.
  • Complies with EMC standards.
  • Complies with environmental protection standards.
Power supply surge protection [kV]
  • AC: 6 kV in common mode and 6 kV in differential mode
  • DC: 4 kV in common mode and 2 kV in differential mode
  • HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans Pluggable
Number of fans 4
Redundant fans The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode Air cooling
Airflow direction Front-to-back or back-to-front, depending on the fan modules and power modules.
Availability 0.99999618
MTBF [year] 45.48 year
MTtr [hour] 1.52 hour
Noise at normal temperature (27°C, sound pressure) [dB(A)]
  • Front-to-back airflow: < 55 dB(A)
  • Back-to-front airflow: < 56 dB(A)
Noise at high temperature (40°C, sound pressure) [dB(A)]
  • Front-to-back airflow: < 71 dB(A)
  • Back-to-front airflow: < 72 dB(A)
Long-term operating altitude [m (ft.)] ≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH] 5% RH to 95% RH, noncondensing
Long-term operating temperature [°C (°F)] 0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.)
Storage temperature [°C (°F)] -40°C to +70°C (-40°F to +158°F)
Dimensions with packaging (H x W x D) [mm (in.)] 175 mm x 650 mm x 550 mm (6.9 in. x 25.6 in. x 21.7 in.)
Dimensions without packaging (H x W x D) [mm (in.)]
  • Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.40 in. x 17.56 in.)
Weight without packaging (base configuration) [kg (lb)] 5.6 kg (excluding optical modules, power modules, and fan modules)
Weight without packaging (full configuration) [kg (lb)] 7.7 kg (17.0 lb) (including AC power modules and fan modules, excluding optical modules, calculated based on the heaviest model if multiple models are supported)
Weight with packaging (base configuration) [kg (lb)] 9kg (excluding optical modules, power modules, and fan modules)

Additional information

Brand

Huawei

Lead Time

3-5 days

Ship From

Shenzhen Warehouse

CE Switch

Item CE6820-48S6CQ
CPU 4-core, 1.4GHZ
Memory DRAM: 4 GB
NOR Flash 64 MB
NAND Flash 2GB
Power supply mode
  • AC
  • DC
  • HVDC
Console port RJ45
Downlink Service interface 48*10GE SFP+ (Note: 1. 10GE interfaces are compatible with GE; 2. The interfaces do not support 10GE LRM/80KM linear optical modules)
Uplink Service interface 6*100GE QSFP28 (Note: 1. Each 100G QSFP28 port can be configured to work at 40 Gbit/s. 2. A 100G QSFP28 port cannot be split into four 25GE or 10GE ports. 3. 100GE and 40GE 1/3/5 m copper cables are supported, but auto-negotiation of copper cables is not supported. 100GE and 40GE copper cables can only be used on stack interfaces and M-LAG peer-link interfaces.)
Service port supporting the stack function 10GE optical ports, and 100GE optical ports
RTC Supported
Typical power consumption [W]
  • 162 W (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules)
  • 196 W (100% throughput, short-distance optical modules on all ports, dual power modules)
Typical heat dissipation [BTU/hour]
  • 553 BTU/hr (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules)
  • 669BTU/hr (100% throughput, short-distance optical modules on all ports, dual power modules)
Static power consumption [W] 102 W
Static heat dissipation [BTU/hour] 348 BTU/hour
Maximum power consumption [W] 282 W
Maximum heat dissipation 962
Number of power modules 2
Redundant power supply 1+1 backup
Rated input voltage [V]
  • 600 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC
  • 1000 W DC power module: –48 V DC to –60 V DC
  • 1200 W high-voltage DC power module: 240 V DC to 380 V DC
Input voltage range [V]
  • 600 W AC&240 V DC power module: 90 V AC to 290 V AC, 45 Hz to 65 Hz; 190 V DC to 290 V DC
  • 1000 W DC power module: –38.4 V DC to –72 V DC
  • 1200 W high-voltage DC power module: 190 V DC to 400 V DC
Maximum input current [A]
  • 600 W AC&240 V DC power module: 8 A (100 V AC to 240 V AC); 4 A (240 V DC)
  • 1000 W DC power module: 30 A (–48 V DC to –60 V DC)
  • 1200 W high-voltage DC power module: 8 A
Rated output power [W]
  • 600 W AC&240 V DC power module: 600 W
  • 1000 W DC power module: 1000 W
  • 1200 W high-voltage DC power module: 1200 W
Maximum output power [W]
  • 600 W (AC&240 V HVDC)
  • 1000 W (–48 V DC)
  • 1200 W (380 V HVDC)
Certification
  • Complies with safety standards.
  • Complies with EMC standards.
  • Complies with environmental protection standards.
Power supply surge protection [kV]
  • AC: 6 kV in common mode and 6 kV in differential mode
  • DC: 4 kV in common mode and 2 kV in differential mode
  • HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans Pluggable
Number of fans 4
Redundant fans The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode Air cooling
Airflow direction Front-to-back or back-to-front, depending on the fan modules and power modules.
Availability 0.99999618
MTBF [year] 45.48 year
MTtr [hour] 1.52 hour
Noise at normal temperature (27°C, sound pressure) [dB(A)]
  • Front-to-back airflow: < 55 dB(A)
  • Back-to-front airflow: < 56 dB(A)
Noise at high temperature (40°C, sound pressure) [dB(A)]
  • Front-to-back airflow: < 71 dB(A)
  • Back-to-front airflow: < 72 dB(A)
Long-term operating altitude [m (ft.)] ≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH] 5% RH to 95% RH, noncondensing
Long-term operating temperature [°C (°F)] 0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.)
Storage temperature [°C (°F)] -40°C to +70°C (-40°F to +158°F)
Dimensions with packaging (H x W x D) [mm (in.)] 175 mm x 650 mm x 550 mm (6.9 in. x 25.6 in. x 21.7 in.)
Dimensions without packaging (H x W x D) [mm (in.)]
  • Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.40 in. x 17.56 in.)
Weight without packaging (base configuration) [kg (lb)] 5.6 kg (excluding optical modules, power modules, and fan modules)
Weight without packaging (full configuration) [kg (lb)] 7.7 kg (17.0 lb) (including AC power modules and fan modules, excluding optical modules, calculated based on the heaviest model if multiple models are supported)
Weight with packaging (base configuration) [kg (lb)] 9kg (excluding optical modules, power modules, and fan modules)
