CE6820H-48S6CQ-K Overview

Item Details
Description CE6820H-48S6CQ-K switch(48*10G SFP+,6*100G QSFP28,without fan and power modules)
Part Number 02354VTE
Model CE6820H-48S6CQ-K
First supported version V300R022C00
Other part numbers 02354VTG (CE6820H-48S6CQ-K switch(48*10G SFP+,6*100G QSFP28, 2*AC power modules,4*fan modules,port-side intake))

02354VTF (CE6820H-48S6CQ-K switch(48*10G SFP+,6*100GE QSFP28,2*AC power modules,4*fan modules,port-side exhaust))
Short Name CE6820H-K

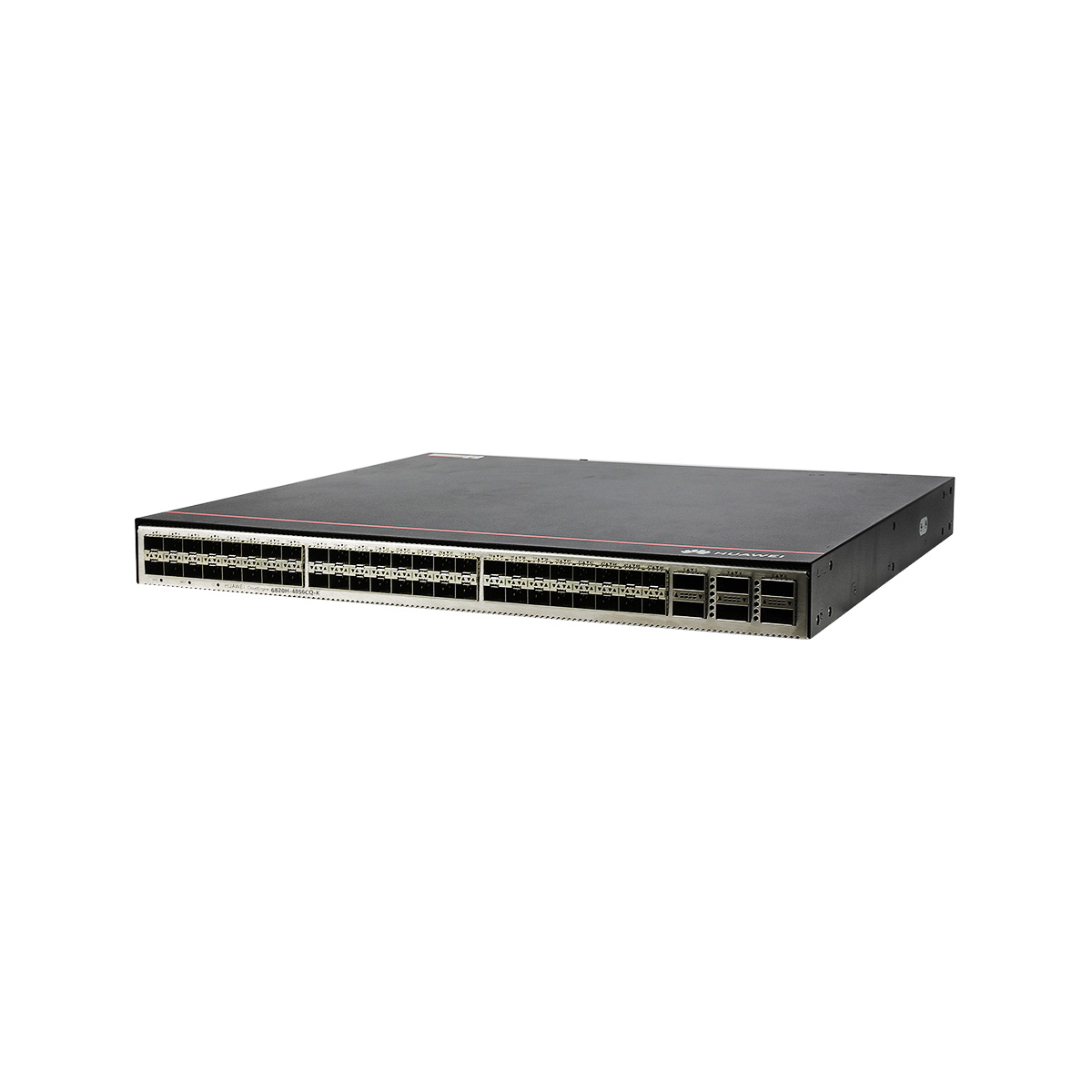

CE6820H-48S6CQ-K Appearance

CE6820H 48S6CQ K scaled

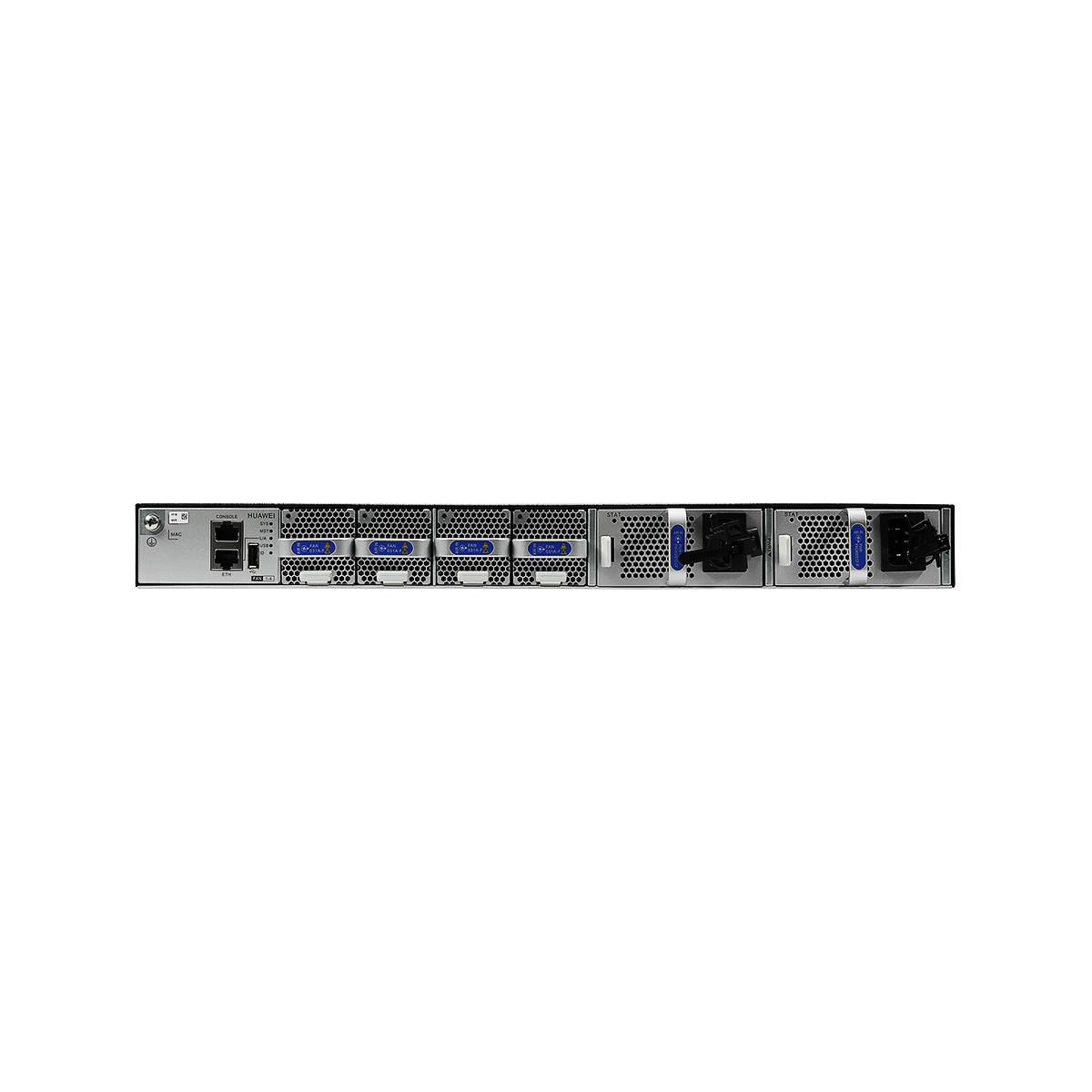

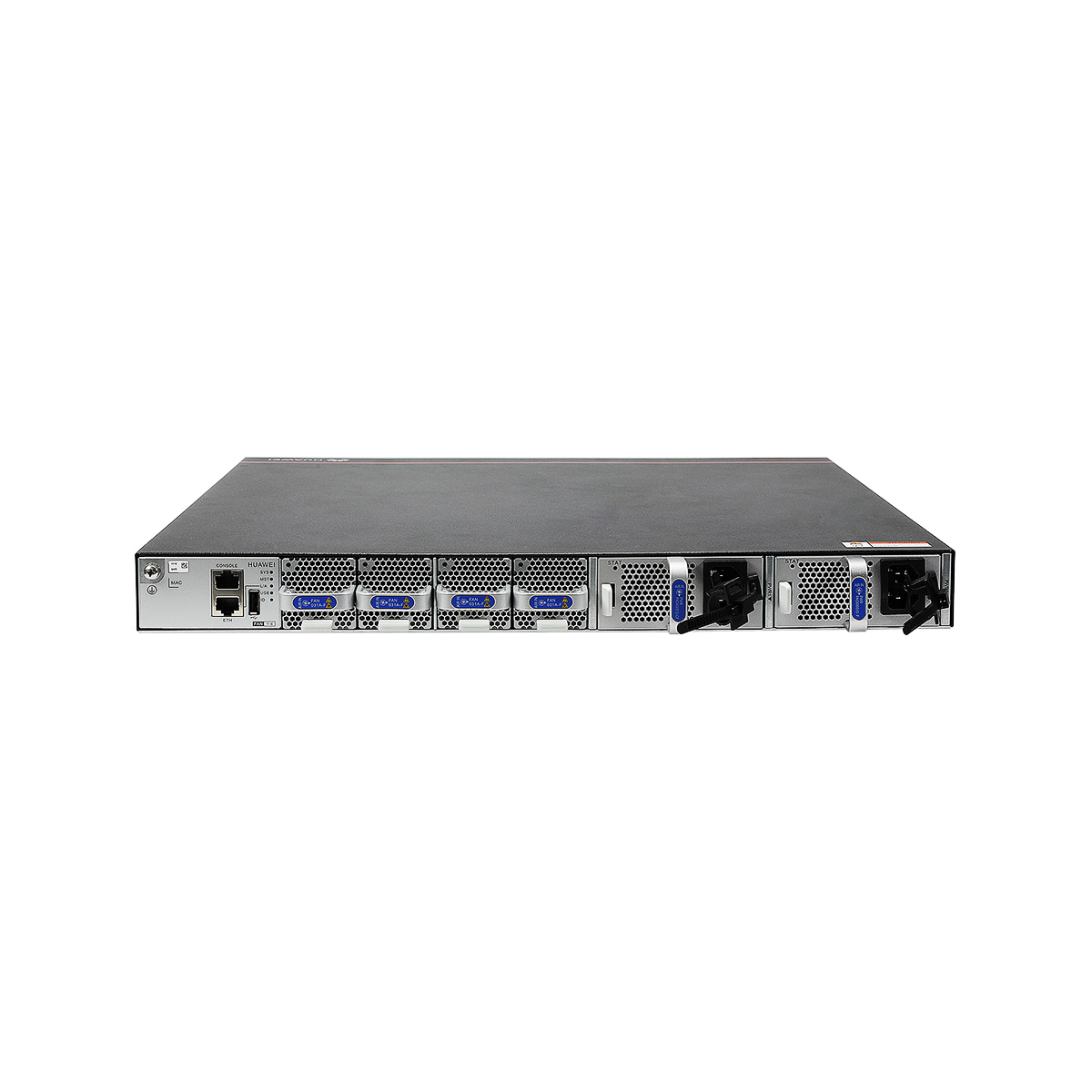

1. Ground screw 2. Equipment serial number (ESN) and MAC address

NOTE:

You can scan the code to view the ESN and MAC address of the switch.

 3. Console port 4. ETH management port (RJ45) 5. USB port
6-9. Four Fan slots 10-11. Two Power supply slots 12. Forty-eight 10GE SFP+ Ethernet optical ports 13. Six 40GE/100GE QSFP28 Ethernet optical ports 14. Three port-side mounting holes for mounting brackets
15. Two middle mounting holes for mounting brackets 16. Equipotential bonding

Ground screws for a ground cable with a two-hole OT terminal

 17. Four power-supply-side mounting holes for mounting brackets – –
Item CE6820H-48S6CQ-K
Switching capacity To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
CPU 4-core, 1.4 GHz
Memory DRAM: 4 GB
NOR Flash 64 MB
NAND Flash 2 GB
USB It can be used for log backup and USB-based deployment. This function is reserved.
Power supply mode
  • AC pluggable
  • DC pluggable
  • HVDC pluggable
Console port RJ45
Downlink Service interface 48*10GE SFP+
Uplink Service interface 6 x 100GE QSFP28
Service port supporting the stack function Reserved function. This function is not enabled.
RTC Supported
Typical power consumption [W]
  • 162 W (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules)
  • 196 W (100% throughput, short-distance optical modules on all ports, dual power modules)
Typical heat dissipation [BTU/hour]
  • 553 BTU/hour (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules)
  • 669 BTU/hour (100% throughput, short-distance optical modules on all ports, dual power modules)
Static power consumption [W] 102 W
Static heat dissipation [BTU/hour] 348 BTU/hour
Maximum power consumption [W] 282 W
Maximum heat dissipation [BTU/hour] 962 BTU/hour
Number of power modules 2
Redundant power supply 1+1 backup
Rated input voltage [V]
  • 600 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC
  • 1000 W DC power module: –48 V DC to –60 V DC
  • 1200 W high-voltage DC power module: 240 V DC to 380 V DC
Input voltage range [V]
  • 600 W AC&240 V DC power module: 90 V AC to 290 V AC, 45 Hz to 65 Hz; 190 V DC to 290 V DC
  • 1000 W DC power module: –38.4 V DC to –72 V DC
  • 1200 W high-voltage DC power module: 190 V DC to 400 V DC
Maximum input current [A]
  • 600 W AC&240 V DC power module: 8 A (100 V AC to 240 V AC); 4 A (240 V DC)
  • 1000 W DC power module: 30 A (–48 V DC to –60 V DC)
  • 1200 W high-voltage DC power module: 8 A
Rated output power [W]
  • 600 W AC&240 V DC power module: 600 W
  • 1000 W DC power module: 1000 W
  • 1200 W high-voltage DC power module: 1200 W
Certification
  • Compliance with safety standards
  • Compliance with EMC standards
  • Compliance with environment and environmental protection standards
Power supply surge protection [kV]
  • AC: 6 kV in common mode and 6 kV in differential mode
  • DC: 4 kV in common mode and 2 kV in differential mode
  • HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans Pluggable
Number of fan modules 4
Redundant fans The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short period of time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode Air cooling
Airflow direction Front-to-back or back-to-front airflow, depending on the selected fan modules and power modules
Availability 0.99999618
MTBF [year] 45.48 years
Noise at normal temperature (27°C, sound pressure) [dB(A)]
  • Front-to-back airflow: < 55 dB(A)
  • Back-to-front airflow: < 56 dB(A)
Noise at high temperature (40°C, sound pressure) [dB(A)]
  • Front-to-back airflow: < 71 dB(A)
  • Back-to-front airflow: < 72 dB(A)
Long-term operating altitude [m (ft.)] ≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating temperature [°C (°F)] 0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.)
NOTE:
When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage altitude [m (ft.)] ≤ 5000 m (16404 ft.)
Storage temperature [°C (°F)] -40ºC to +70ºC (-40°F to +158°F)
Dimensions with packaging (H x W x D) [mm (in.)] 175 mm x 650 mm x 550 mm (6.89 in. x 25.59 in. x 21.65 in.)
Dimensions without packaging (H x W x D) [mm (in.)]
  • Basic dimensions (the depth excludes the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.40 in. x 17.56 in.)
Weight without packaging [kg (lb)] 5.6 kg (12.3 lb) (excluding optical modules, power modules, and fan modules)
Weight without packaging (full configuration) [kg (lb)] 7.7 kg (17.0 lb) (including AC power modules and fan modules, excluding optical modules, calculated based on the heaviest model if multiple models are supported)
Weight with packaging [kg (lb)] 9 kg (19.84 lb) (excluding optical modules, power modules, and fan modules)
Weight with packaging (full configuration) [kg (lb)] 11.1 kg (24.47 lb) (including AC power modules and fan modules, excluding optical modules, calculated based on the heaviest model if multiple models are supported)
Chassis height [U] 1 U
Installation Type Cabinet installation

Additional information

Brand

Huawei
CE Switch

Lead Time

3-5 days
Ship From

Shenzhen Warehouse
