CE6855-48XS8CQ Huawei CE6800 switch supports 48*10GE SFP+, 8*100GE QSFP28

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

CE6855-48XS8CQ Overview

Item Details
Description CE6855-48XS8CQ switch (48*10GE SFP+, 8*100GE QSFP28, Without Fan and Power Modules)
Part Number 02355KTJ
Model CE6855-48XS8CQ
First supported version V300R023C00
Other part numbers 02355KTK (CE6855-48XS8CQ switch (48*10GE SFP+, 8*100GE QSFP28, 2*AC Power Modules, 3*Fans, Port-side Intake))

02355KTL (CE6855-48XS8CQ switch (48*10GE SFP+, 8*100GE QSFP28, 2*AC Power Modules, 3*Fans, Port-side Exhaust))
Short Name CE6855-48XS8CQ

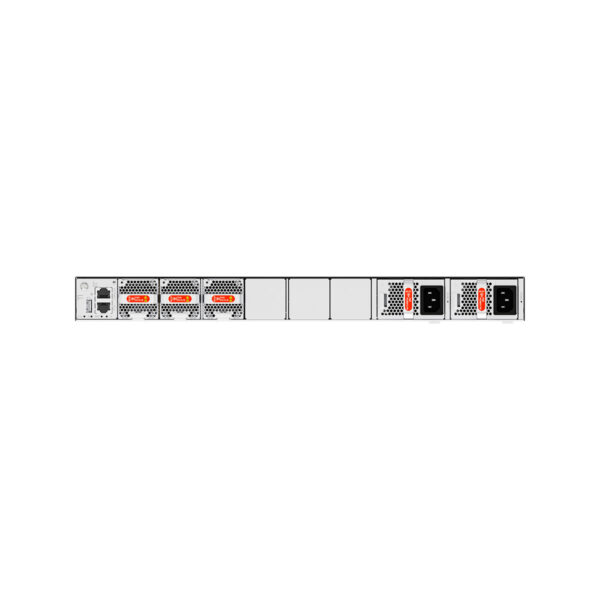

CE6855-48XS8CQ Appearance

CE6855 48XS8CQ scaled



1. Ground screw 2. Equipment serial number (ESN) and MAC address

NOTE:

You can scan the code to view the ESN and MAC address of the switch.

 3. Console port 4. ETH management port (RJ45) 5. USB port
6. Three Fan slots

Applicable fan modules:

 7. Two Power supply slots

Applicable power modules:

 8. Forty-eight 10GE SFP+ Ethernet optical ports 9. Eight 40GE/100GE QSFP28 Ethernet optical ports 10. Three port-side mounting holes for mounting brackets
11. Two middle mounting holes for mounting brackets 12. Equipotential bonding

Ground screws for a ground cable with a two-hole OT terminal

 13. Four power-supply-side mounting holes for mounting brackets – –
Item CE6855-48XS8CQ
Switching capacity To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
CPU 4-core, 1.4 GHz
Memory DRAM: 8 GB
NOR Flash 64 MB
SSD Flash 4GB SSD
USB It can be used for log backup and USB-based deployment. This function is reserved.
Power supply mode
  • AC pluggable
  • DC pluggable
  • HVDC pluggable
Console port RJ45
Downlink Service interface 48*10GE SFP+
Uplink Service interface 8 x 100GE QSFP28
Service port supporting the stack function Reserved function. This function is not enabled.
RTC Supported
Typical power consumption [W] 138 W (100% traffic load, copper cables on 24 x 10GE + 4 x 100GE ports, normal temperature, dual AC power modules) 156 W (100% traffic load, short-distance optical modules on 24 x 10GE + 4 x 100GE ports, normal temperature, dual AC power modules)
Typical heat dissipation [BTU/hour]
  • 471 BTU/hour (100% traffic load, copper cables on 24 x 10GE + 4 x 100GE ports, normal temperature, dual AC power modules)
  • 532 BTU/hour (100% traffic load, short-distance optical modules on 24 x 10GE + 4 x 100GE ports, normal temperature, dual AC power modules)
Static power consumption [W] 124 W
Static heat dissipation [BTU/hour] 423 BTU/hour
Maximum power consumption [W] 187 W (100% traffic load, short-distance optical modules on all ports, normal temperature, dual AC power modules) 298 W (100% traffic load, long-distance optical modules on all ports, high temperature, dual AC power modules)
Maximum heat dissipation [BTU/hour]
  • 638 BTU/hour (100% traffic load, short-distance optical modules on all ports, normal temperature, dual AC power modules)
  • 1017 BTU/hour (100% traffic load, long-distance optical modules on all ports, high temperature, dual AC power modules)
Number of power modules 2
Redundant power supply 1+1 backup
Rated input voltage [V]
  • 600 W AC&240 V DC power module: AC: 100 V AC to 240 V AC, 50/60 Hz; DC: 240 V DC
  • 1200 W DC power module: –48 V DC to –60 V DC; +48 V DC
  • 400 W DC power module: –48 V DC to –60 V DC; +48 V DC
  • 2000 W high-voltage DC power module: 336 V DC
Input voltage range [V]
  • 600 W AC&240 V DC power module: AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz; DC: 190 V DC to 290 V DC
  • 1200 W DC power module: –38.4 V DC to –72 V DC; +40 V DC to +57 V DC
  • 400 W DC power module: –38.4 V DC to –72 V DC; +38.4 V DC to +57 V DC
  • 2000 W high-voltage DC power module: 260 V DC to 400 V DC
Maximum input current [A]
  • 600 W AC&240 V DC power module: 8 A (100 V AC to 240 V AC); 4 A (240 V DC)
  • 1200 W DC power module: 38 A (–48 V DC to –60 V DC); 38 A (+48 V DC)
  • 400 W DC power module: 12 A (–48 V DC to –60 V DC); 12 A (+48 V DC)
  • 2000 W high-voltage DC power module: 10 A (336 V DC)
Rated output power [W]
  • 600 W AC&240 V DC power module: 600 W
  • 1200 W DC power module: 1200 W
  • 400 W DC power module: 400 W
  • 2000 W high-voltage DC power module: 2000 W
Certification
  • Compliance with safety standards
  • Compliance with EMC standards
  • Compliance with environment and environmental protection standards
Power supply surge protection [kV] AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans Pluggable
Number of fan modules 3
Redundant fans The device supports 2+1 backup of fan modules that work in hot standby mode. The system can operate normally for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode Air cooling
Airflow direction Port-side air intake or port-side air exhaust, depending on the fan modules and power modules that are used. The fan modules and power modules must have the same airflow direction.
Availability 0.9999948505
MTBF [year] 44.34 years
Noise at normal temperature (27°C, sound pressure) [dB(A)] Front-to-back airflow: 50.1 dB(A) on average; maximum: 55.9 dB(A) Back-to-front airflow: 48.4 dB(A) on average; maximum: 56.1 dB(A)
Noise at high temperature (40°C, sound pressure) [dB(A)] Front-to-back airflow: 66.4 dB(A) on average; maximum: 73.2 dB(A) Back-to-front airflow: 67.3 dB(A) on average; maximum: 72.5 dB(A)
Long-term operating altitude [m (ft.)] ≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating temperature [°C (°F)] 0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.)
NOTE:
When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage altitude [m (ft.)] ≤ 5000 m (16404 ft.)
Storage relative humidity [RH] 5% RH to 95% RH, non-condensing
Storage temperature [°C (°F)] -40ºC to +70ºC (-40°F to +158°F)
Dimensions with packaging (H x W x D) [mm (in.)] 185 mm x 650 mm x 550 mm (7.28 in. x 25.59 in. x 21.65 in.)
Dimensions without packaging (H x W x D) [mm (in.)]
  • Basic dimensions (the depth excludes the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.5 mm (1.72 in. x 17.40 in. x 17.58 in.)
Weight without packaging [kg (lb)] 6.36 kg (14.02 lb) (excluding optical modules, power modules, and fan modules)
Weight without packaging (full configuration) [kg (lb)] 8.35 kg (18.41 lb) (including AC power modules and fan modules, excluding optical modules, calculated based on the heaviest model if multiple models are supported)
Weight with packaging [kg (lb)] 10.63 kg (23.43 lb)
Weight with packaging (full configuration) [kg (lb)] 12.62 kg (27.82 lb)
Chassis height [U] 1 U
Installation Type Cabinet installation
