CE6857-48S6CQ-EI

1 Review Write a review
PN02352CHQ
AvailabilityIn Stock
CE Switch CE6800
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

CE6857-48S6CQ-EI Huawei CE6800 switch supports 48 ports 10GE SFP+, 6 ports 100GE QSFP28

Description

CE6857-48S6CQ-EI overview

Huawei CE6857-48S6CQ-EI with 48 ports 10GE SFP+, 6 ports 100GE QSFP28 without fan and power modules is one of the Huawei CE6800 series switch

Offering high performance, high port density, and low latency, CloudEngine 6800 series switches enable enterprises and carriers alike to build cloud-oriented data center networks. Advanced data center features, high performance stacking technologies, and flexible airflow capabilities complete the series. CloudEngine 6800 is well suited to both the core and aggregation layers and is fully compatible with CloudEngine 16800 and 12800 series switches, enabling enterprises to build scalable, simplified, open, and secure networks.

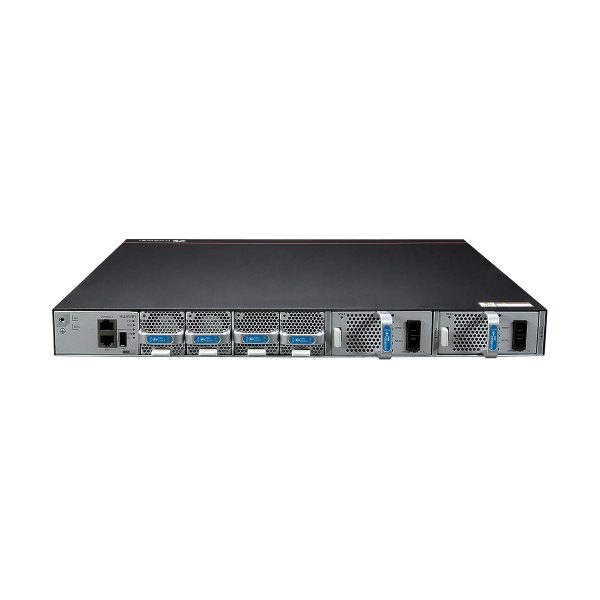

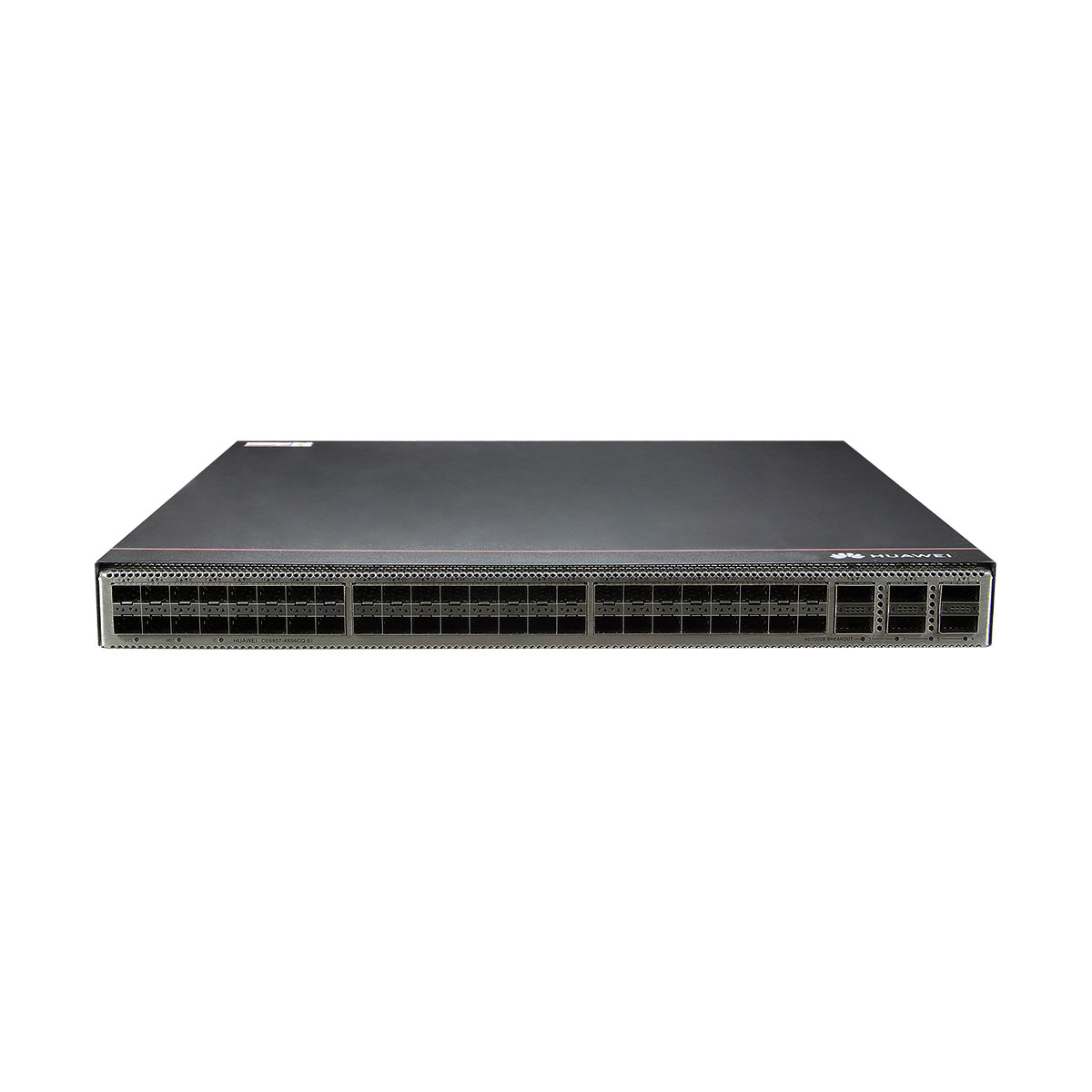

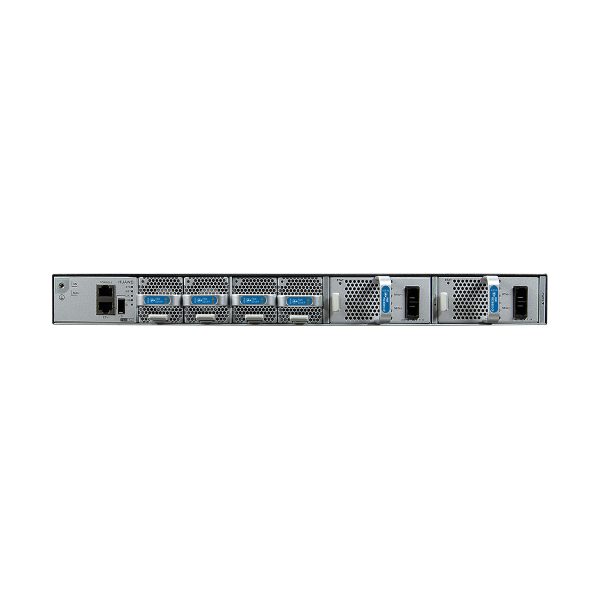

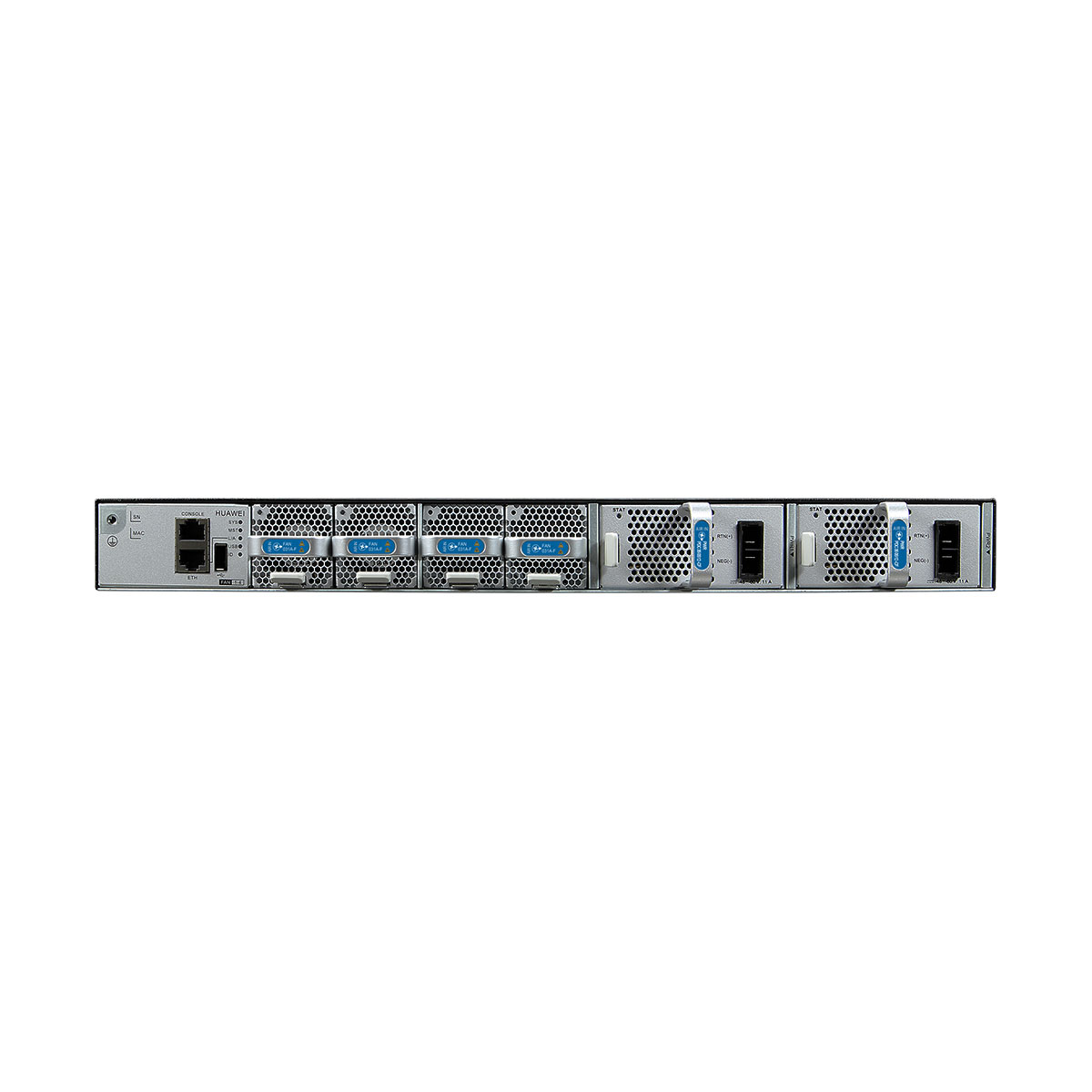

Appearance of the CE6857-48S6CQ-EI



1 Ground screw
2 Equipment serial number (ESN)
3 Console port
4 ETH management port (RJ45)
5 USB port
6 Fan slot 1 Applicable fan modules:

  • FAN-031A series fan modules
7 Fan slot 2 Applicable fan modules:

  • FAN-031A series fan modules
8 Fan slot 3 Applicable fan modules:

  • FAN-031A series fan modules
9 Fan slot 4 Applicable fan modules:

  • FAN-031A series fan modules
10 Fan slot 4 Applicable fan modules:

  • FAN-031A series fan modules
11 Power supply slot 2 Applicable power modules:

  • 350 W DC Power Module (PDC350S12)
  • 600 W AC Power Module (PAC600S12)
12 Forty-eight 10GE SFP+ Ethernet optical ports Applicable modules and cables:

  • 10GE SFP+ Optical Modules (OSXD22N00, LE2MXSC80FF0 and SFP-10G-ZDWT-L not supported)
  • GE eSFP Optical Modules(Auto-negotiation is not supported)
  • GE SFP Copper Modules (works at 1000 Mbit/s)
  • SFP+ to SFP+ AOC Cable
  • SFP+ to SFP+ High-Speed Cable
13 Six 40GE/100GE QSFP28 Ethernet optical ports Applicable modules and cables:

  • 40GE QSFP+ Optical Modules
  • 100GE QSFP28 Optical Modules (QSFP28-100G-4WDM-40 not supported)
  • QSFP+ to QSFP+ AOC cable
  • QSFP+ to QSFP+ High-Speed Cable
  • QSFP28 to QSFP28 AOC Cable
  • QSFP28 to QSFP28 High-Speed Cable
14 Three port-side mounting holes for mounting brackets
15 Two middle mounting holes for mounting brackets
16 Equipotential junction Grounding screw used in dual OT scenarios.
17 Four power-supply-side mounting holes for mounting brackets



Ports on the CE6857-48S6CQ-EI

10GE SFP+ Ethernet Optical Port

Attribute Description
Connector type LC
Optical attributes Depending on the module or cable in use
Standards compliance IEEE802.3ae
Working mode Supported rate: 1000 Mbit/s and 10 Gbit/s auto-sensing Full-duplex

40GE/100GE QSFP28 Optical Port

Attribute Description
Connector type Depending on the optical module
Optical attributes Depending on the module or cable in use
Standards compliance IEEE802.3ba
Working mode Full-duplex

Console Port

Attribute Description
Connector type RJ45
Standards compliance RS232
Working mode Duplex Universal Asynchronous Receiver/transmitter (UART)
Baud rate 9600 bit/s to 115200 bit/s Default value: 9600 bit/s



Item CE6857-48S6CQ-EI
Environment parameters Temperature
  • Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.)
  • Storage temperature: -40°C to +70°C (-40°F to +158°F)
Relative humidity 5% RH to 95% RH, noncondensing
Altitude < 5000 m (16404 ft.)
Noise (sound pressure, 27°C)
  • Back-to-front airflow: < 53 dBA
  • Front-to-back airflow: < 52 dBA
Power specifications Power source type AC
AC power input
  • Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz
  • Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
DC power input
  • Rated voltage range: -48 V DC to -60 V DC
  • Maximum voltage range: -38.4 V DC to -72 V DC
High-voltage DC power input Not supported
Rated input current
  • 350 W DC power (PDC350S12 series): 11 A (-48 V DC to -60 V DC)
  • 600 W AC power (PAC600S12 series): 9 A (100 V AC to 240 V AC)
Chassis power consumption Maximum power consumption 287 W
Typical power consumption 152 W (100% throughput, SFP28 cables on 48 ports and QSFP28 cables on 6 ports, double power modules) 195 W (100% throughput, all optical interfaces on the switch are equipped with the short-distance optical modules, double power modules)
Chassis heat dissipation Maximum heat dissipation 979 BTU/Hr
Typical heat dissipation 519 BTU/Hr (100% throughput, SFP28 cables on 48 ports and QSFP28 cables on 6 ports, double power modules) 665 BTU/Hr (100% throughput, all optical interfaces on the switch are equipped with the short-distance optical modules, double power modules)
Surge protection Power module:
  • AC: 6 kV in common mode and 6 kV in differential mode
  • DC: 4 kV in common mode and 2 kV in differential mode
Heat dissipation Heat dissipation mode Air cooling
Airflow Front-to-back or back-to-front, depending on the fan modules and power modules
Reliability Power module backup 1+1 backup
Fan module backup The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Hot swap Supported by all power modules and fan modules
Mean time between failures (MTBF) 45.3 years
Mean time to repair (MTtr) 1.68 hours
Availability 0.99999576002
Technical specifications Processor 1.4 GHz, four-core
DRAM Memory 4 GB
NOR Flash 64 MB
NAND Flash 2 GB
Stack Service port supporting the stack function 10GE optical ports, 40GE optical ports, and 100GE optical ports
Certification
  • Safety standards compliance
  • EMC standards compliance
  • Environmental standards compliance
Physical specifications
  • Dimensions (W x D x H): 442.0 mm x 420.0 mm x 43.6 mm (17.4 in. x 16.5 in. x 1.72 in.)
  • Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 7.6 Kg (16.76 lb)

Additional information

Brand

Huawei

Lead Time

3-5 days

Ship From

Shenzhen Warehouse

CE Switch

Item CE6857-48S6CQ-EI
Environment parameters Temperature
  • Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.)
  • Storage temperature: -40°C to +70°C (-40°F to +158°F)
Relative humidity 5% RH to 95% RH, noncondensing
Altitude < 5000 m (16404 ft.)
Noise (sound pressure, 27°C)
  • Back-to-front airflow: < 53 dBA
  • Front-to-back airflow: < 52 dBA
Power specifications Power source type AC
AC power input
  • Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz
  • Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
DC power input
  • Rated voltage range: -48 V DC to -60 V DC
  • Maximum voltage range: -38.4 V DC to -72 V DC
High-voltage DC power input Not supported
Rated input current
  • 350 W DC power (PDC350S12 series): 11 A (-48 V DC to -60 V DC)
  • 600 W AC power (PAC600S12 series): 9 A (100 V AC to 240 V AC)
Chassis power consumption Maximum power consumption 287 W
Typical power consumption 152 W (100% throughput, SFP28 cables on 48 ports and QSFP28 cables on 6 ports, double power modules) 195 W (100% throughput, all optical interfaces on the switch are equipped with the short-distance optical modules, double power modules)
Chassis heat dissipation Maximum heat dissipation 979 BTU/Hr
Typical heat dissipation 519 BTU/Hr (100% throughput, SFP28 cables on 48 ports and QSFP28 cables on 6 ports, double power modules) 665 BTU/Hr (100% throughput, all optical interfaces on the switch are equipped with the short-distance optical modules, double power modules)
Surge protection Power module:
  • AC: 6 kV in common mode and 6 kV in differential mode
  • DC: 4 kV in common mode and 2 kV in differential mode
Heat dissipation Heat dissipation mode Air cooling
Airflow Front-to-back or back-to-front, depending on the fan modules and power modules
Reliability Power module backup 1+1 backup
Fan module backup The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Hot swap Supported by all power modules and fan modules
Mean time between failures (MTBF) 45.3 years
Mean time to repair (MTtr) 1.68 hours
Availability 0.99999576002
Technical specifications Processor 1.4 GHz, four-core
DRAM Memory 4 GB
NOR Flash 64 MB
NAND Flash 2 GB
Stack Service port supporting the stack function 10GE optical ports, 40GE optical ports, and 100GE optical ports
Certification
  • Safety standards compliance
  • EMC standards compliance
  • Environmental standards compliance
Physical specifications
  • Dimensions (W x D x H): 442.0 mm x 420.0 mm x 43.6 mm (17.4 in. x 16.5 in. x 1.72 in.)
  • Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 7.6 Kg (16.76 lb)

Reviews

  1. Gerold

    This model cannot be ordered in overseas markets, I finally found it here and purchased ten units
