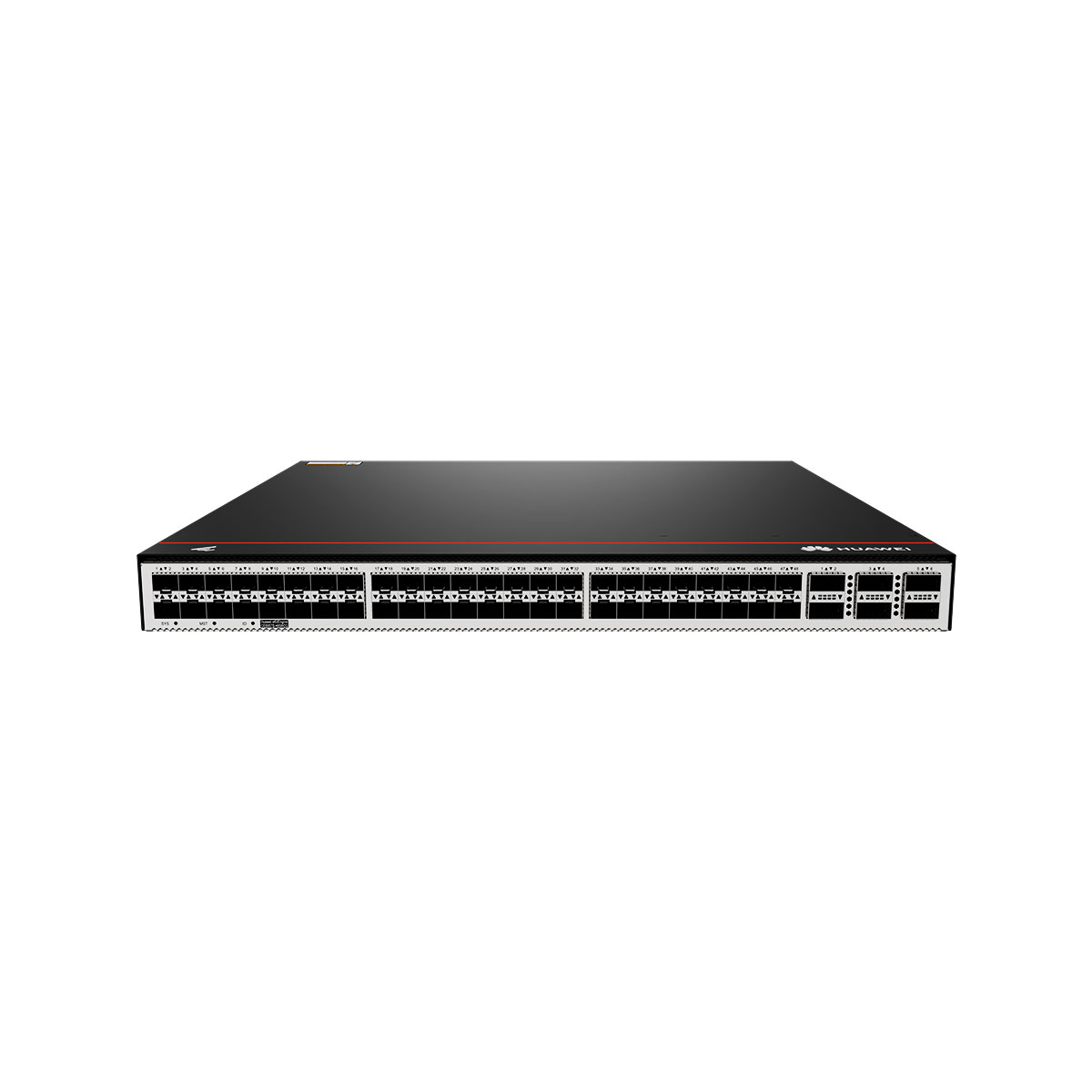

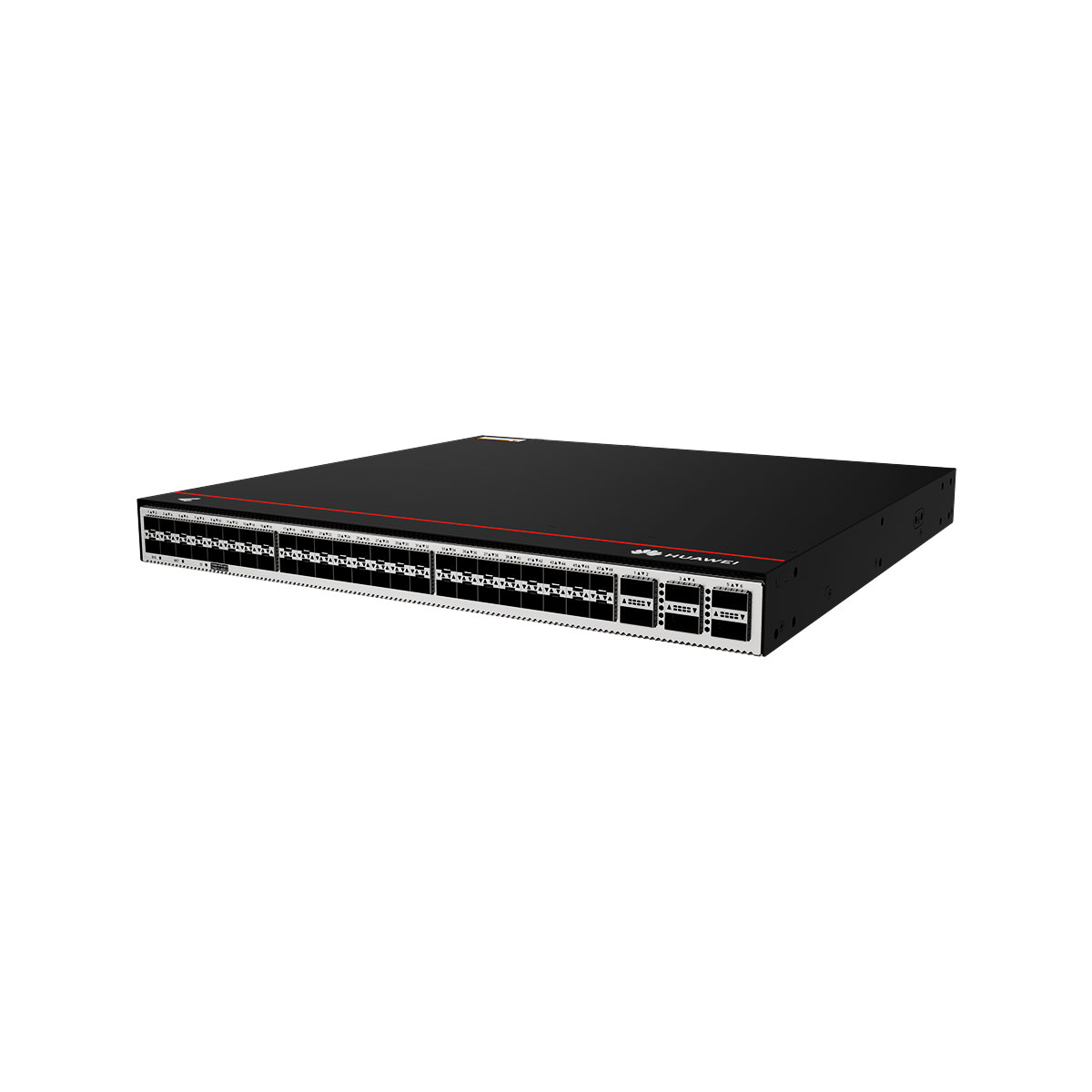

Huawei CE6800 switch CE6857S-48S6CQ with 48*10GE SFP+, 6*100GE QSFP28

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

CE6857S-48S6CQ Overview

Item Details
Description CE6857E-48S6CQ switch (48*10GE SFP+, 6*100GE QSFP28, without fan and power modules)
Part Number 02353VWU
Model CE6857E-48S6CQ
First supported version V200R020C10
Other part numbers 02353VWW (CE6857E-48S6CQ switch (48*10GE SFP+, 6*100GE QSFP28, 2*AC power modules, 4*fan modules, port-side intake))

02353VWX (CE6857E-48S6CQ switch (48*10GE SFP+, 6*100GE QSFP28, 2*AC power modules, 4*fan modules, port-side exhaust))
Short Name CE6857E

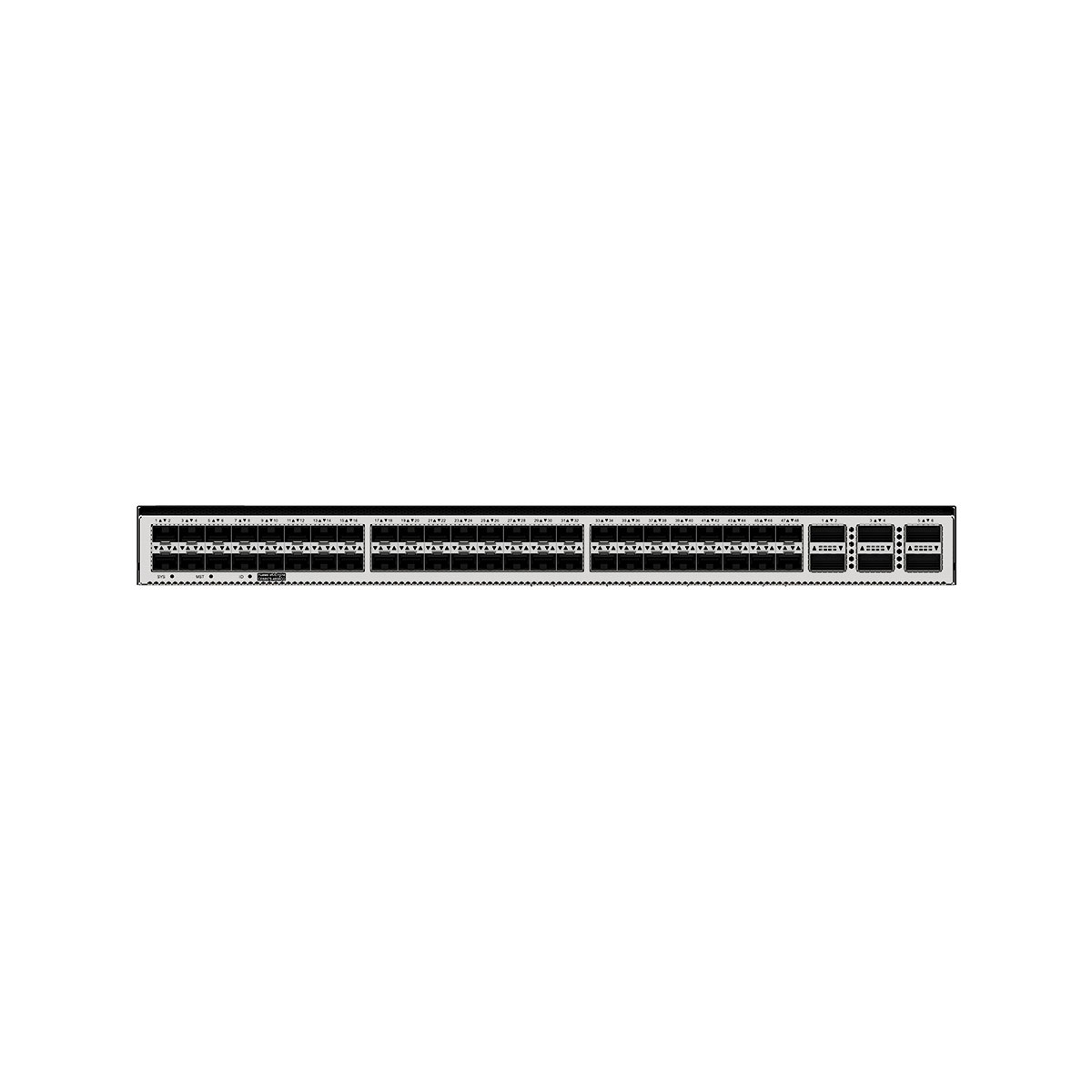

CE6857S-48S6CQ Appearance

CE6857S 48S6CQ



1 Ground screw 2

Equipment serial number (ESN)

NOTE:

You can scan the code to view the ESN and MAC address of the switch.
3 Console port 4 ETH management port (RJ45)
5 USB port 6 Fan slot 1
7 Fan slot 2 8 Fan slot 3
9 Fan slot 4 10 Power supply slot 1
11 Power supply slot 2 12 Forty-eight 10GE SFP+ Ethernet optical ports
13 Six 40GE/100GE QSFP28 Ethernet optical ports 14 Three port-side mounting holes for mounting brackets
15 Two middle mounting holes for mounting brackets 16 Equipotential bonding

Ground screws for a ground cable with a two-hole OT terminal
17 Four power-supply-side mounting holes for mounting brackets – –
Item CE6857S-48S6CQ
Switching capacity To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
CPU 4-core, 1.6 GHz
Memory DRAM: 4 GB
NOR Flash 128 MB
SSD Flash 8 GB
USB Supported
Power supply mode
  • DC pluggable
  • AC pluggable
  • HVDC pluggable
Console port RJ45
Downlink Service interface 48 x 10GE SFP+ (10GE LRM/80 km linear optical modules are not supported. In addition, the 1000BASE-X auto-negotiation function is not supported. To connect the two interfaces at both ends of a link, disable the auto-negotiation function of the peer interface. After the connection, in some port failure scenarios, the interface on one end may be Up and the interface on the other end may be Down.)
Uplink Service interface 6*100GE QSFP28 (Note: 1. Each 100GE QSFP28 port can be used as a 40GE port. 2. A 100GE QSFP28 port cannot be split into 4x25GE and 4x10GE ports.)
Service port supporting the stack function 10GE optical ports and 100GE optical ports
RTC Supported
Typical power consumption [W]
  • 148 W (50% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules)
  • 185 W (50% throughput, short-distance optical modules on all optical ports, dual power modules)
Typical heat dissipation [BTU/hour]
  • 505 BTU/hour (50% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules)
  • 631 BTU/hour (50% throughput, short-distance optical modules on all optical ports, dual power modules)
Static power consumption [W] 106 W
Static heat dissipation [BTU/hour] 362 BTU/hour
Maximum power consumption [W] 318 W
Maximum heat dissipation [BTU/hour] 1085 BTU/hour
Number of power modules 2
Redundant power supply 1+1 backup
Rated input voltage [V]
  • 600 W AC&240 V DC power module : AC: 100 V AC to 240 V AC, 50/60 Hz; DC: 240 V DC
  • 1000 W DC power module: –48 V DC to –60 V DC
  • 1200 W high-voltage DC power module: 240 V DC to 380 V DC
Input voltage range [V]
  • 600 W AC&240 V DC power module : AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz; DC: 190 V DC to 290 V DC
  • 1000 W DC power module : -38.4 V DC to -72 V DC
  • 1200 W high-voltage DC power module: 190 V DC to 400 V DC
Maximum input current [A]
  • 600 W AC&240 V DC power module : 8 A (100 V AC to 240 V AC); 4 A (240 V DC)
  • 1000 W DC power module : 30 A (-48 V DC to -60 V DC)
  • 1200 W high-voltage DC power module: 8 A
Rated output power [W]
  • 600 W AC&240 V DC power module : 600 W
  • 1000 W DC power module : 1000 W
  • 1200 W high-voltage DC power module: 1200 W
Certification
  • Safety standards compliance
  • EMC standards compliance
  • Environmental standards compliance
Power supply surge protection [kV]
  • AC: 6 kV in common mode and 6 kV in differential mode
  • DC: 4 kV in common mode and 2 kV in differential mode
  • HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans Pluggable
Number of fan modules 4
Redundant fans The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short period of time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode Air cooling
Airflow direction Port-side air intake or port-side air exhaust, depending on the fan modules and power modules that are used. The fan modules and power modules must have the same airflow direction.
Availability 0.9999961836
MTBF [year] 49.35 years
Noise at normal temperature (27°C, sound pressure) [dB(A)]
  • Front-to-back airflow: average 50 dBA (maximum: 54 dBA)
  • Back-to-front airflow: average 53 dBA (maximum: 57 dBA)
Noise at high temperature (40°C, sound pressure) [dB(A)]
  • Front-to-back airflow: average 69 dBA (maximum: 73 dBA)
  • Back-to-front airflow: average 72 dBA (maximum: 77 dBA)
Long-term operating altitude [m (ft.)] ≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating temperature [°C (°F)] 0°C to 40°C (32°F to 104°F) at an altitude of 0 to 1800 m (0 to 5906 ft.)
NOTE:
When the altitude is between 1800 m and 5000 m (5906 ft. and 16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage altitude [m (ft.)] < 5000 m (16404 ft.)
Storage relative humidity [RH] 5% RH to 95% RH, non-condensing
Storage temperature [°C (°F)] -40°C to +70°C (-40°F to +158°F)
Dimensions with packaging (H x W x D) [mm (in.)] 175 mm x 650 mm x 550 mm (6.89 in. x 25.59 in. x 21.65 in.)
Dimensions without packaging (H x W x D) [mm (in.)]
  • Basic dimensions (the depth excludes the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.40 in. x 17.56 in.)
Weight without packaging [kg (lb)] 5.5 kg (12.1 lb) (excluding optical modules, power modules, and fan modules)
Weight without packaging (full configuration) [kg (lb)] 7.75 kg (17.1 lb) (including AC power modules and fan modules, excluding optical modules)
Weight with packaging [kg (lb)] 8.75 kg (19.3 lb)
Weight with packaging (full configuration) [kg (lb)] 11 kg (24.3 lb)
Chassis height [U] 1 U
Installation Type Cabinet Installation
