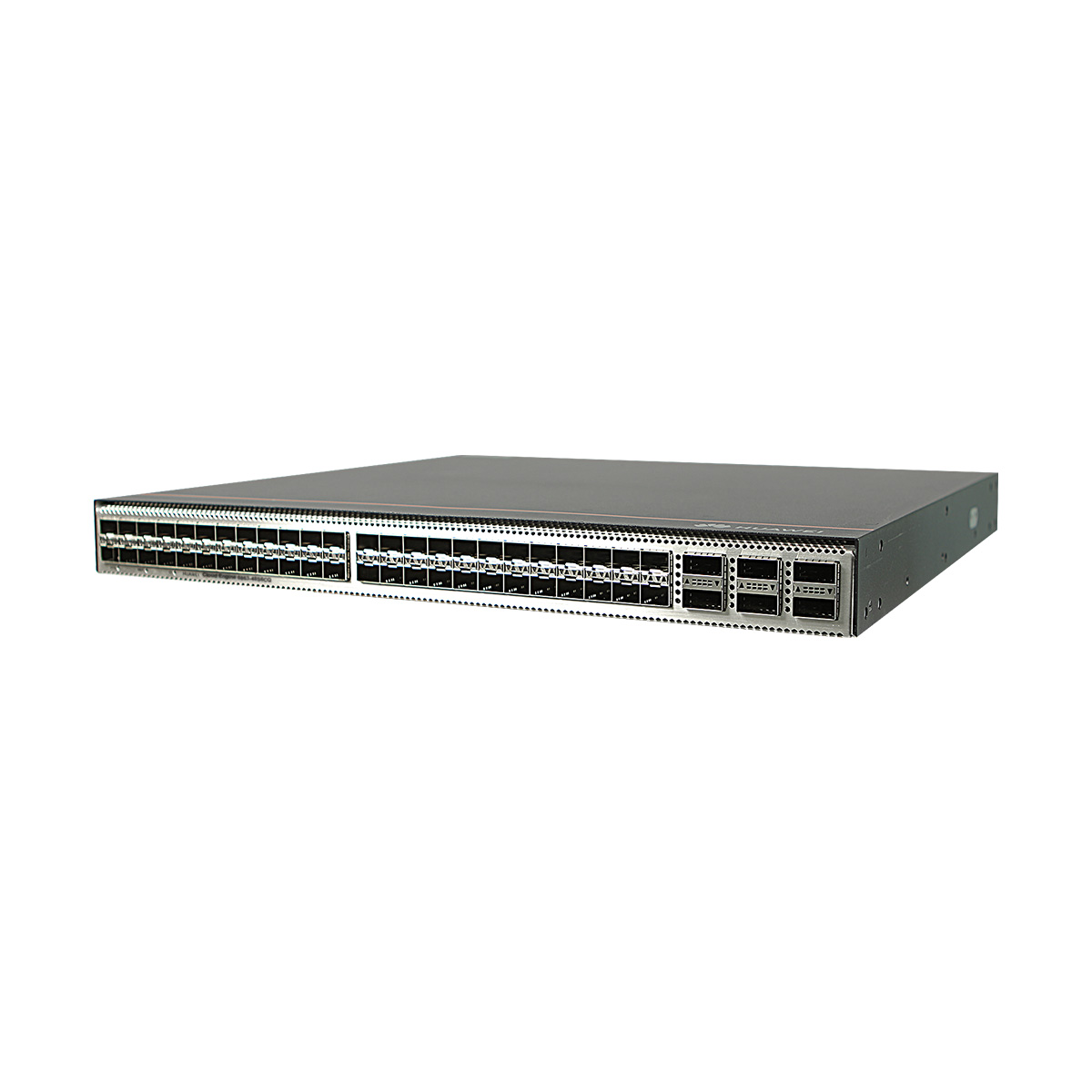

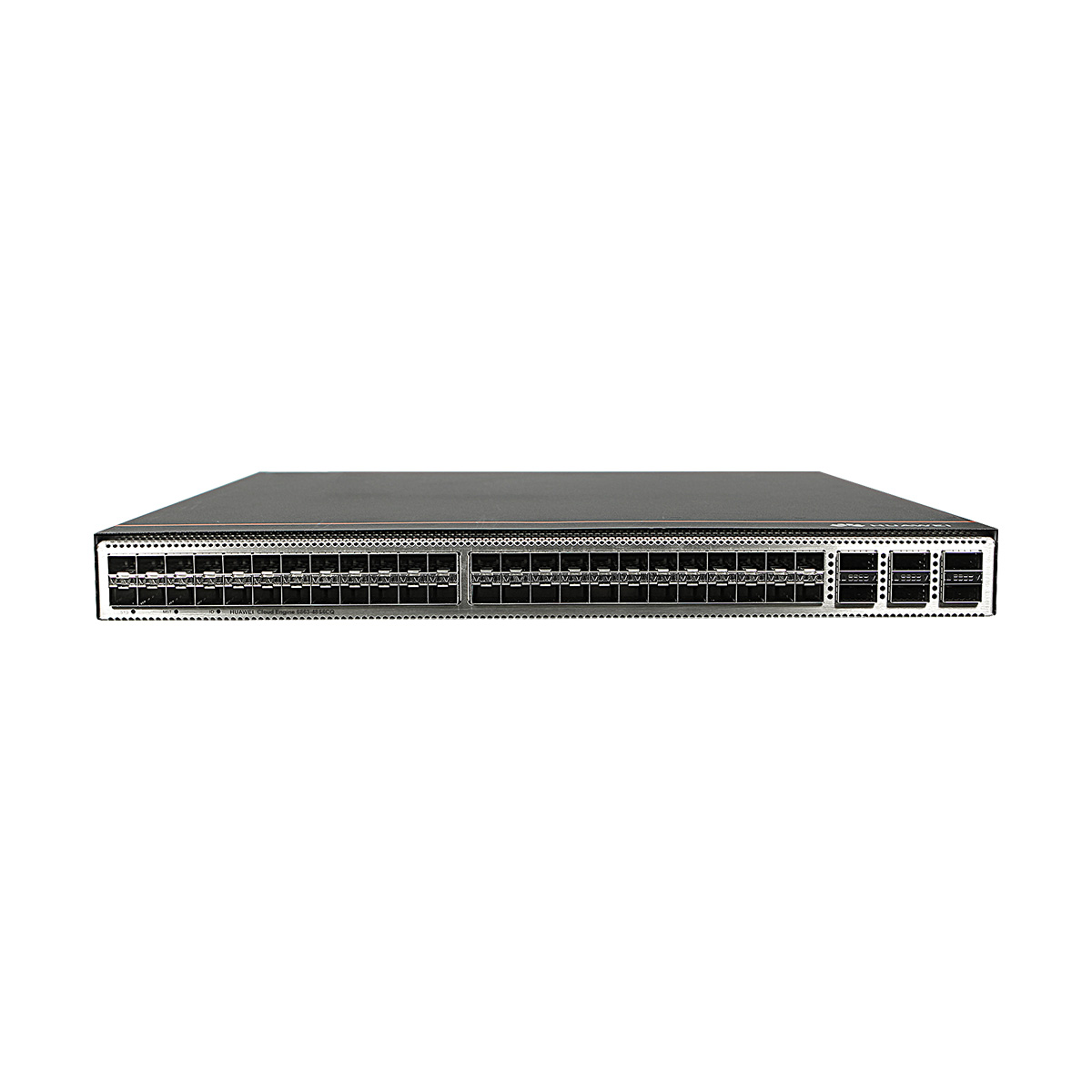

CE6863-48S6CQ Huawei CE6800 switch supports 48 ports 10GE/25GE SFP28, 6 ports 40GE/100GE QSFP28, 2 600W AC Power Module, 2 Fan Modules.

Description

CE6863-48S6CQ overview

Huawei CE6863-48S6CQ switch includes 48 ports 10GE/25GE SFP28, 6 ports 40GE/100GE QSFP28, 2 600W AC Power Module, 2 Fan Modules with 3.6 Tbit/s Switching capacity, 940 Mpps Forwarding capacity, 256K MAC address entries.

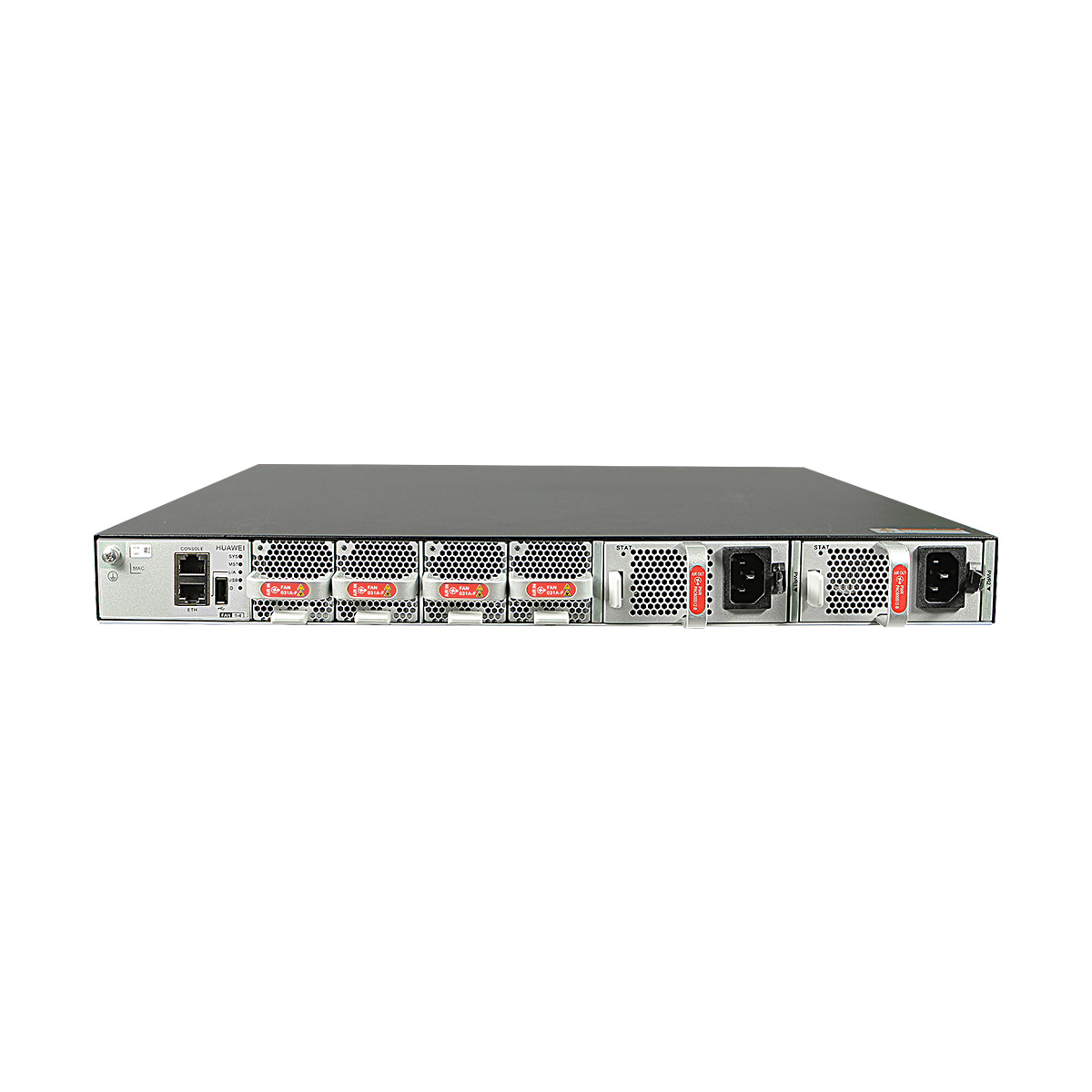

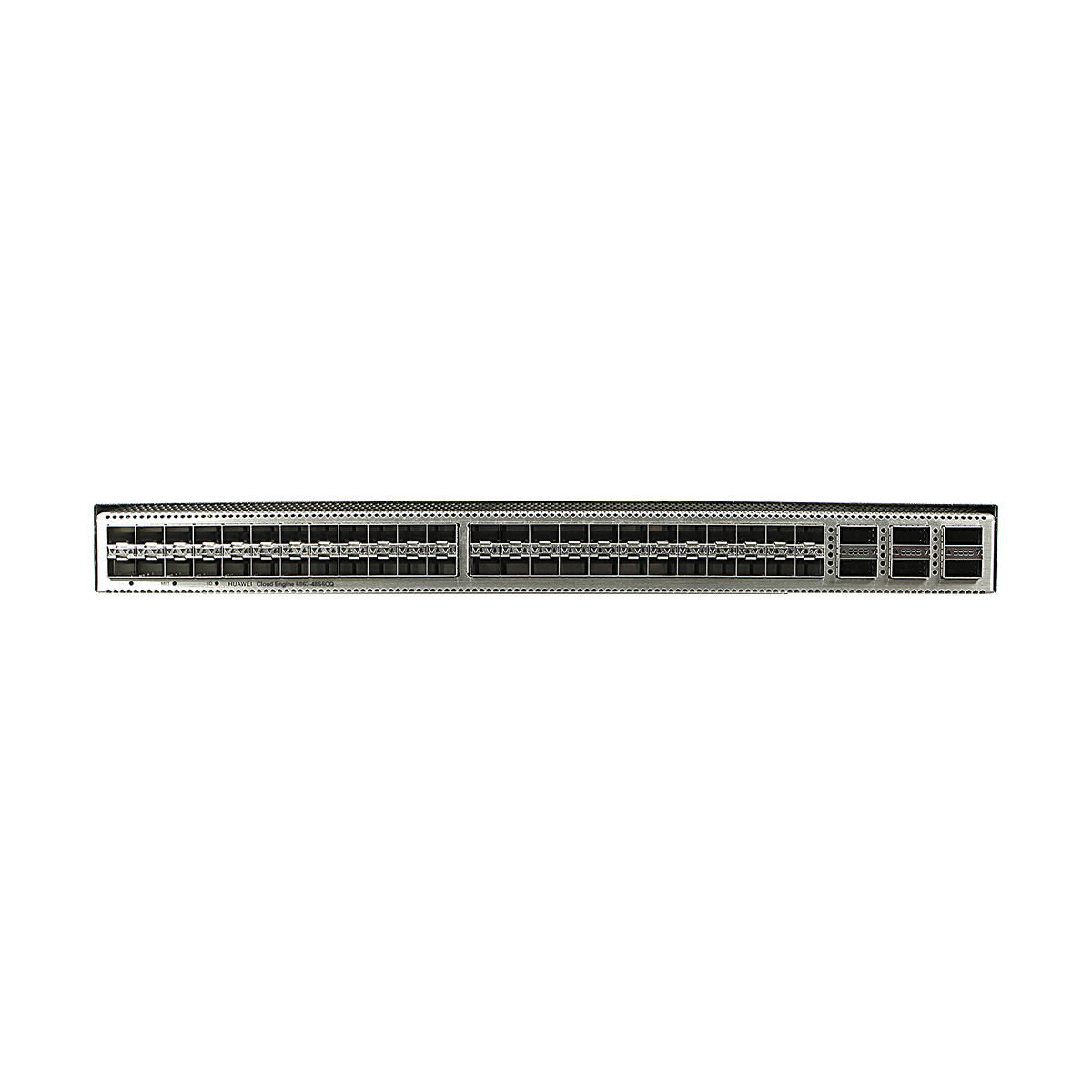

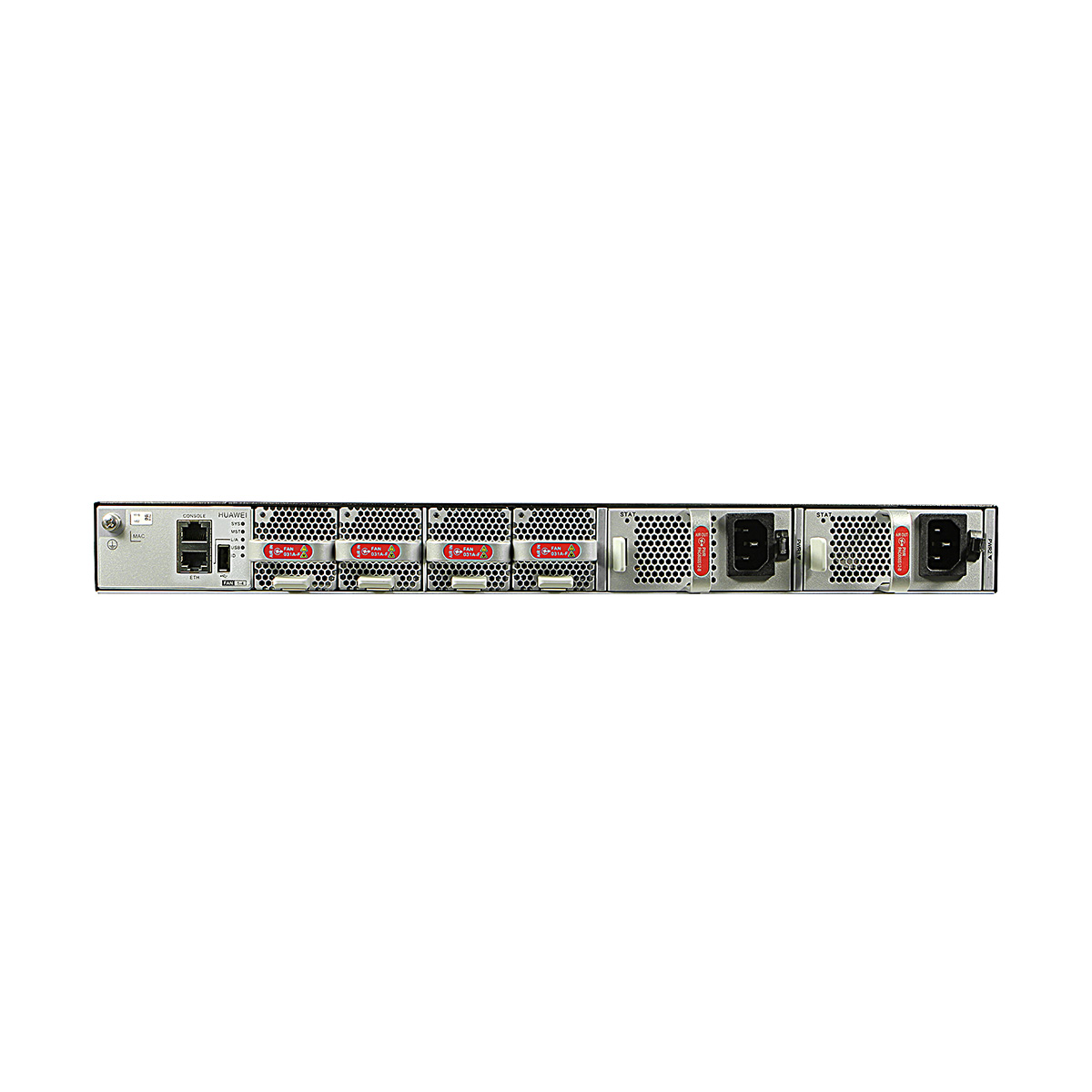

Appearance and structure
1 Ground screw 2 Equipment serial number (ESN)

NOTE:

You can scan the code to view the ESN and MAC address of the switch.

3 Console port 4 ETH management port (RJ45)
5 USB port 6 Fan slot 1

Applicable fan modules:

  • FAN-031A series fan modules
7 Fan slot 2

Applicable fan modules:

  • FAN-031A series fan modules
8 Fan slot 3

Applicable fan modules:

  • FAN-031A series fan modules
9 Fan slot 4

Applicable fan modules:

  • FAN-031A series fan modules
10 Power supply slot 1

Applicable power modules:

  • 600 W AC&240 V DC Power Module (PAC600S12)
  • 1000 W DC Power Module (PDC1000S12)
11 Power supply slot 2

Applicable power modules:

  • 600 W AC&240 V DC Power Module (PAC600S12)
  • 1000 W DC Power Module (PDC1000S12)
12 Forty-eight 10GE/25GE SFP28 Ethernet optical ports

Applicable modules and cables:

  • GE optical module
  • GE copper module (Only works at 1000 Mbit/s)
  • 10GE optical module (OSXD22N00 and LE2MXSC80FF0 not supported)
  • 25GE optical modules
  • SFP28 high-speed cable
  • SFP+ AOC cable
  • SFP28 AOC cable
  • SFP+ high-speed cable

NOTE:

When a port works at the rate of 25 Gbit/s, it supports only 1 m SFP28 high-speed cables, and these cables can only be used as stack cables or M-LAG peer-link interface cables.

When an SFP28 high-speed cable is installed on a 25GE port and the port mode 10g command is run to set the rate to 10 Gbit/s, the port supports 1 m, 3 m, and 5 m SFP28 high-speed cables.

13 Six 40GE/100GE QSFP28 Ethernet optical ports

Applicable modules and cables:

  • 40GE optical module
  • 100GE optical module
  • QSFP+ to QSFP+ AOC cable
  • QSFP+ to QSFP+ high-speed cable (The cable can only be used as a stack cable or be used to connect peer-link interfaces in an M-LAG.)
  • QSFP28 to QSFP28 AOC cable
  • QSFP28 to QSFP28 high-speed cable (The cable can only be used as a stack cable or be used to connect peer-link interfaces in an M-LAG.)

    NOTE:

    When a QSFP28 high-speed cable is installed on a 100GE port that works at the rate of 100 Gbit/s, the port supports only the 1 m QSFP28 high-speed cable.

    When a QSFP28 high-speed cable is installed on a 100GE port and the speed 40000 command is run to set the rate to 40 Gbit/s, the port supports 1 m, 3 m, and 5 m QSFP28 high-speed cables.

14 Three port-side mounting holes for mounting brackets
15 Two middle mounting holes for mounting brackets 16 Equipotential bonding

Ground screws for a ground cable with a two-hole OT terminal

17 Four power-supply-side mounting holes for mounting brackets
Slot description

Power Slots

Each of the CloudEngine 6800 series switches has two power module slots and supports pluggable power modules. A chassis can use one or two power modules. In particular, dual power modules provide higher reliability.

The CloudEngine 6800 series switches support 1+1 backup of power modules.

  • When both power modules are working properly, each of them provides half of the power required for the chassis.
  • When one power module fails, the other one provides all power required for the chassis.

All power modules of the devices are hot swappable.

Fan slots

Each of the CloudEngine 6800 series switches has four fan slots in which fan modules can be installed to cool the chassis, ensuring efficient heat dissipation and system stability.

It is recommended that four fan modules be properly installed on a switch to ensure normal switch operating. The device supports four pluggable fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.

All fan modules are hot swappable.

Item CE6863-48S6CQ
Fixed ports Forty-eight 10GE/25GE SFP28 optical ports Six 40GE/100GE QSFP28 optical ports
Physical specifications Dimensions (H x W x D): 43.6 mm x 442.0 mm x 420.0 mm Weight (with two AC power modules and four fan modules, calculated based on the heaviest model if multiple models are supported): 7.8 kg (17.20 lb)
Environment parameters Temperature Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.) Storage temperature: -40°C to +70°C (-40°F to +158°F)
Relative humidity 5% RH to 95% RH, noncondensing
Altitude < 5000 m (16404 ft.)
Noise (sound pressure, 27°C) Back-to-front airflow: < 58 dBA Front-to-back airflow: < 57 dBA
Power specifications Power source type AC/DC/HVDC
AC power input Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
DC power input Rated voltage range: -48 V DC to -60 V DC Maximum voltage range: -38.4 V DC to -72 V D
High-voltage DC power input 600 W AC&240 V DC power module (PAC600S12 series): Rated voltage range: 240 V DC Maximum voltage range: 190 V DC to 290 V DC 1200 W high-voltage DC power module (PHD1K2S12 series): Rated voltage range: 240 V DC to 380V DC Maximum voltage range: 190 V DC to 400 V DC
Rated input current 600 W AC&240 V DC power (PAC600S12 series):8 A (100 V AC to 240 V AC); 4 A (240V DC) 1000 W DC power (PDC1000S12 series): 30 A (-48 V DC to -60 V DC) 1200 W high-voltage DC power module (PHD1K2S12 series): 8 A
Chassis power consumption Maximum power consumption 384 W
Typical power consumption 226 W (100% throughput, SFP28 high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, double power modules) 261 W (100% throughput, short-distance optical modules on all optical ports, double power modules)
Chassis heat dissipation Maximum heat dissipation 1310 BTU/Hr
Typical heat dissipation 771 BTU/hr (100% throughput, SFP28 high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, double power modules) 891 BTU/hr (100% throughput, short-distance optical modules on all optical ports, double power modules)
Surge protection Power module: AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode HVDC: 4 kV in common mode and 2 kV in differential mode
Heat dissipation Heat dissipation mode Air cooling
Airflow Front-to-back or back-to-front, depending on the fan modules and power modules
Reliability and availability Power module backup 1+1 backup
Fan module backup 3+1 backup
Hot swap Supported by all power modules and fan modules
Mean time between failures (MTBF) 47.81 years
Mean time to repair (MTTR) 1.95 hours
Availability 0.9999962836
Technical specifications Processor 1.4 GHz, four-core
DRAM Memory 4 GB
NOR Flash 64 MB
NAND Flash 4 GB
Stack Service port supporting the stack function 25GE optical ports, and 100GE optical ports
Certification Safety standards compliance EMC standards compliance Environmental standards compliance

Additional information

Brand

Huawei

CE Switch

Lead Time

3-5 days

Ship From

Shenzhen Warehouse

Item CE6863-48S6CQ
Fixed ports Forty-eight 10GE/25GE SFP28 optical ports Six 40GE/100GE QSFP28 optical ports
Physical specifications Dimensions (H x W x D): 43.6 mm x 442.0 mm x 420.0 mm Weight (with two AC power modules and four fan modules, calculated based on the heaviest model if multiple models are supported): 7.8 kg (17.20 lb)
Environment parameters Temperature Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.) Storage temperature: -40°C to +70°C (-40°F to +158°F)
Relative humidity 5% RH to 95% RH, noncondensing
Altitude < 5000 m (16404 ft.)
Noise (sound pressure, 27°C) Back-to-front airflow: < 58 dBA Front-to-back airflow: < 57 dBA
Power specifications Power source type AC/DC/HVDC
AC power input Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
DC power input Rated voltage range: -48 V DC to -60 V DC Maximum voltage range: -38.4 V DC to -72 V D
High-voltage DC power input 600 W AC&240 V DC power module (PAC600S12 series): Rated voltage range: 240 V DC Maximum voltage range: 190 V DC to 290 V DC 1200 W high-voltage DC power module (PHD1K2S12 series): Rated voltage range: 240 V DC to 380V DC Maximum voltage range: 190 V DC to 400 V DC
Rated input current 600 W AC&240 V DC power (PAC600S12 series):8 A (100 V AC to 240 V AC); 4 A (240V DC) 1000 W DC power (PDC1000S12 series): 30 A (-48 V DC to -60 V DC) 1200 W high-voltage DC power module (PHD1K2S12 series): 8 A
Chassis power consumption Maximum power consumption 384 W
Typical power consumption 226 W (100% throughput, SFP28 high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, double power modules) 261 W (100% throughput, short-distance optical modules on all optical ports, double power modules)
Chassis heat dissipation Maximum heat dissipation 1310 BTU/Hr
Typical heat dissipation 771 BTU/hr (100% throughput, SFP28 high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, double power modules) 891 BTU/hr (100% throughput, short-distance optical modules on all optical ports, double power modules)
Surge protection Power module: AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode HVDC: 4 kV in common mode and 2 kV in differential mode
Heat dissipation Heat dissipation mode Air cooling
Airflow Front-to-back or back-to-front, depending on the fan modules and power modules
Reliability and availability Power module backup 1+1 backup
Fan module backup 3+1 backup
Hot swap Supported by all power modules and fan modules
Mean time between failures (MTBF) 47.81 years
Mean time to repair (MTTR) 1.95 hours
Availability 0.9999962836
Technical specifications Processor 1.4 GHz, four-core
DRAM Memory 4 GB
NOR Flash 64 MB
NAND Flash 4 GB
Stack Service port supporting the stack function 25GE optical ports, and 100GE optical ports
Certification Safety standards compliance EMC standards compliance Environmental standards compliance
