CE6865-48S8CQ-EI

1 Review Write a review
SKU2008375
AvailabilityIn Stock
CE Switch CE6800
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

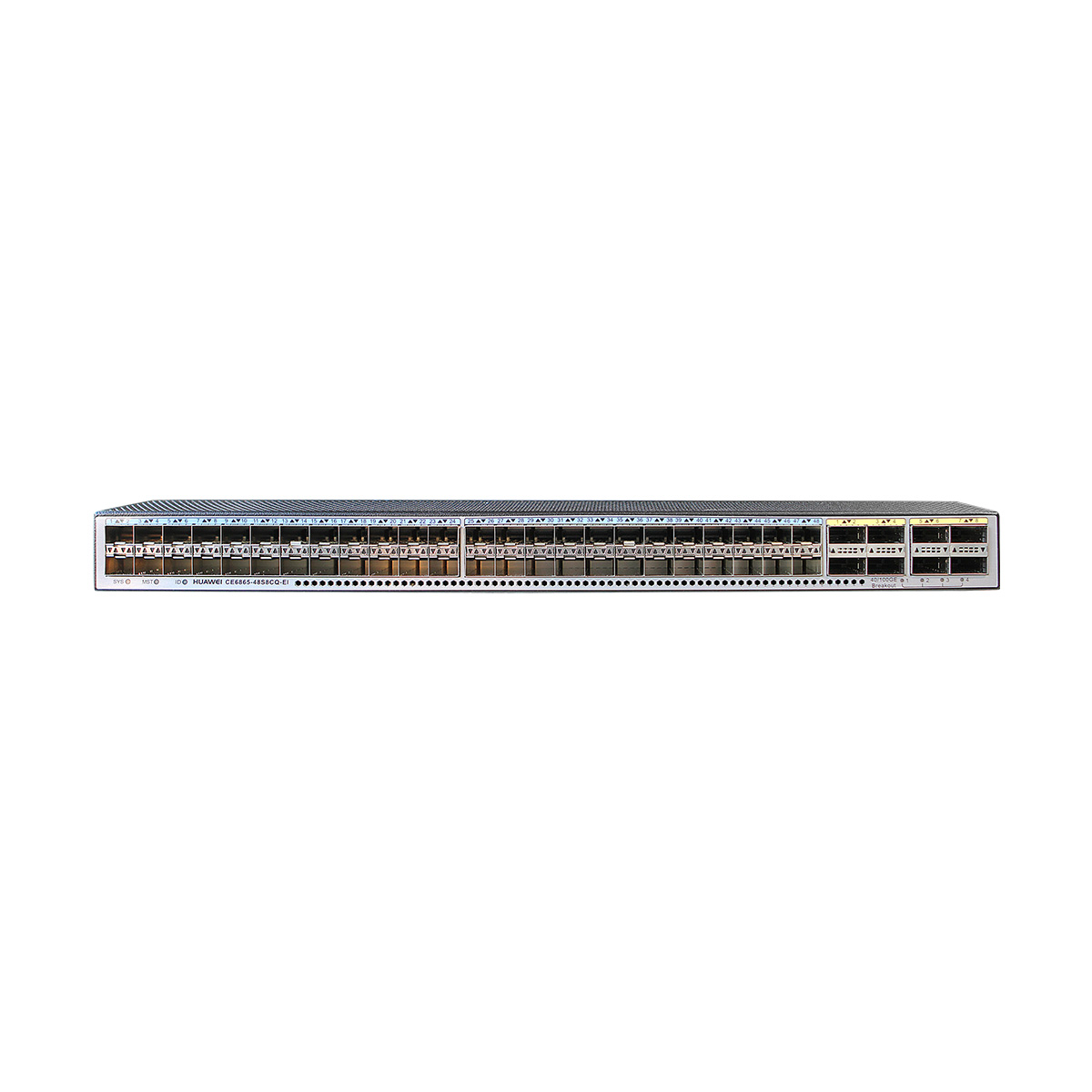

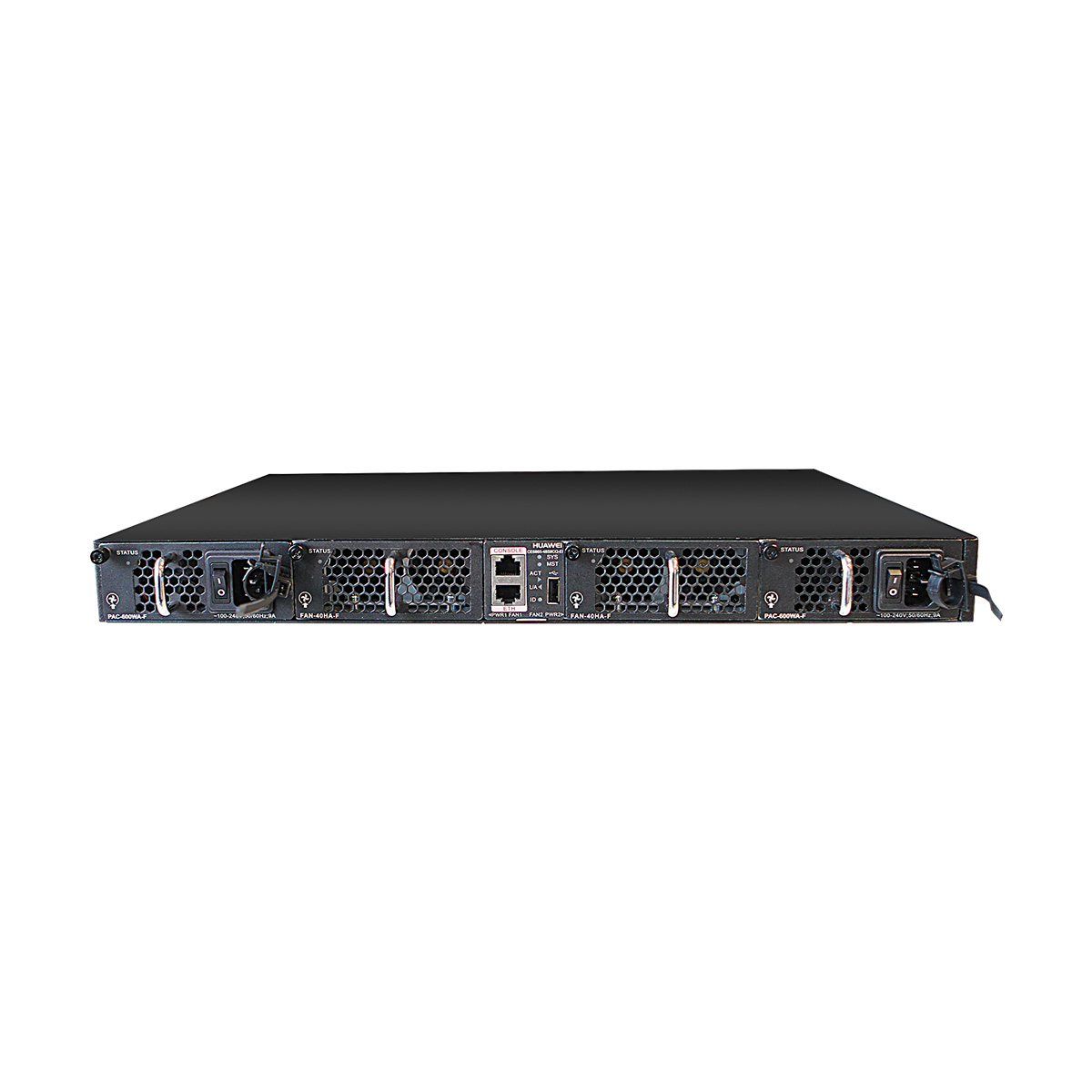

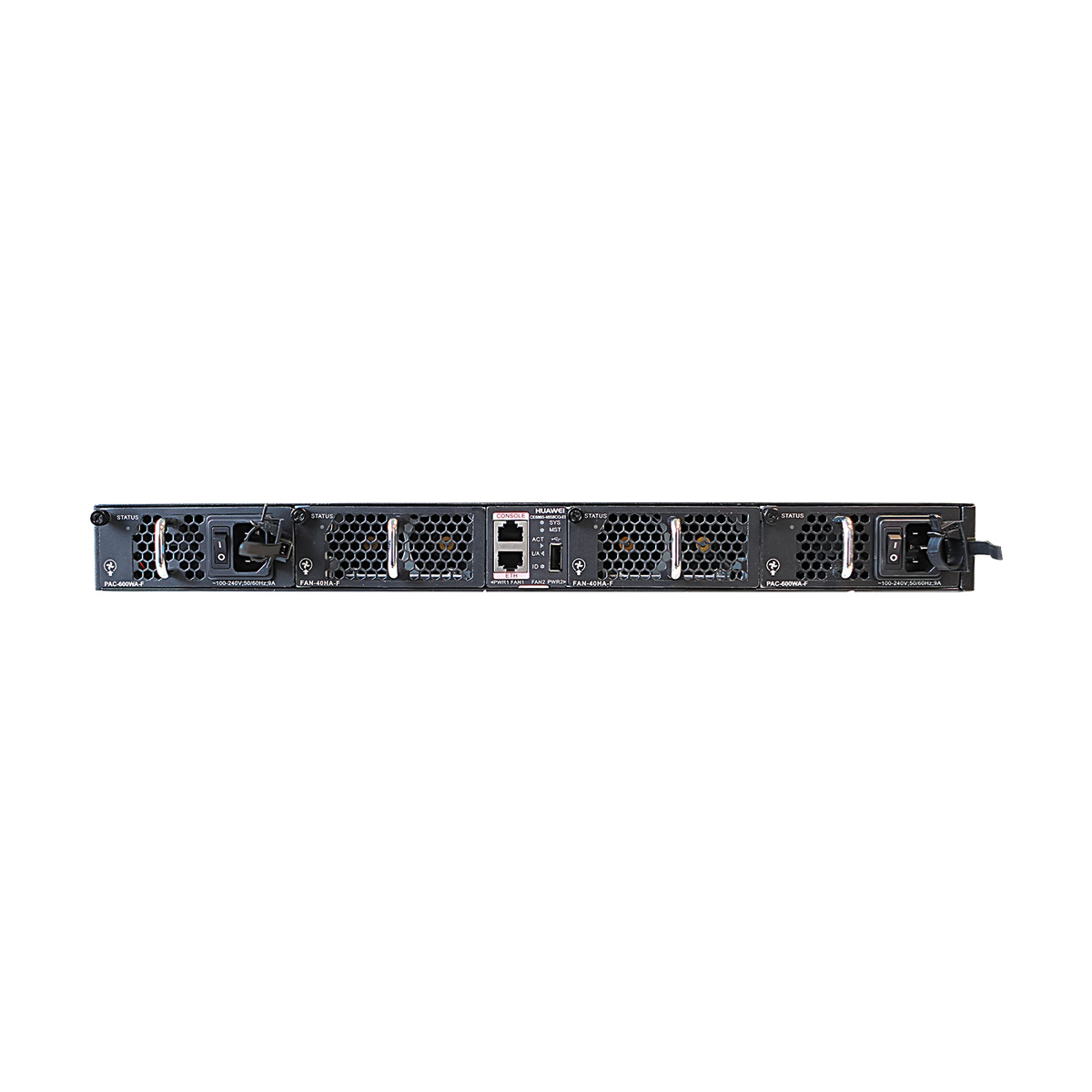

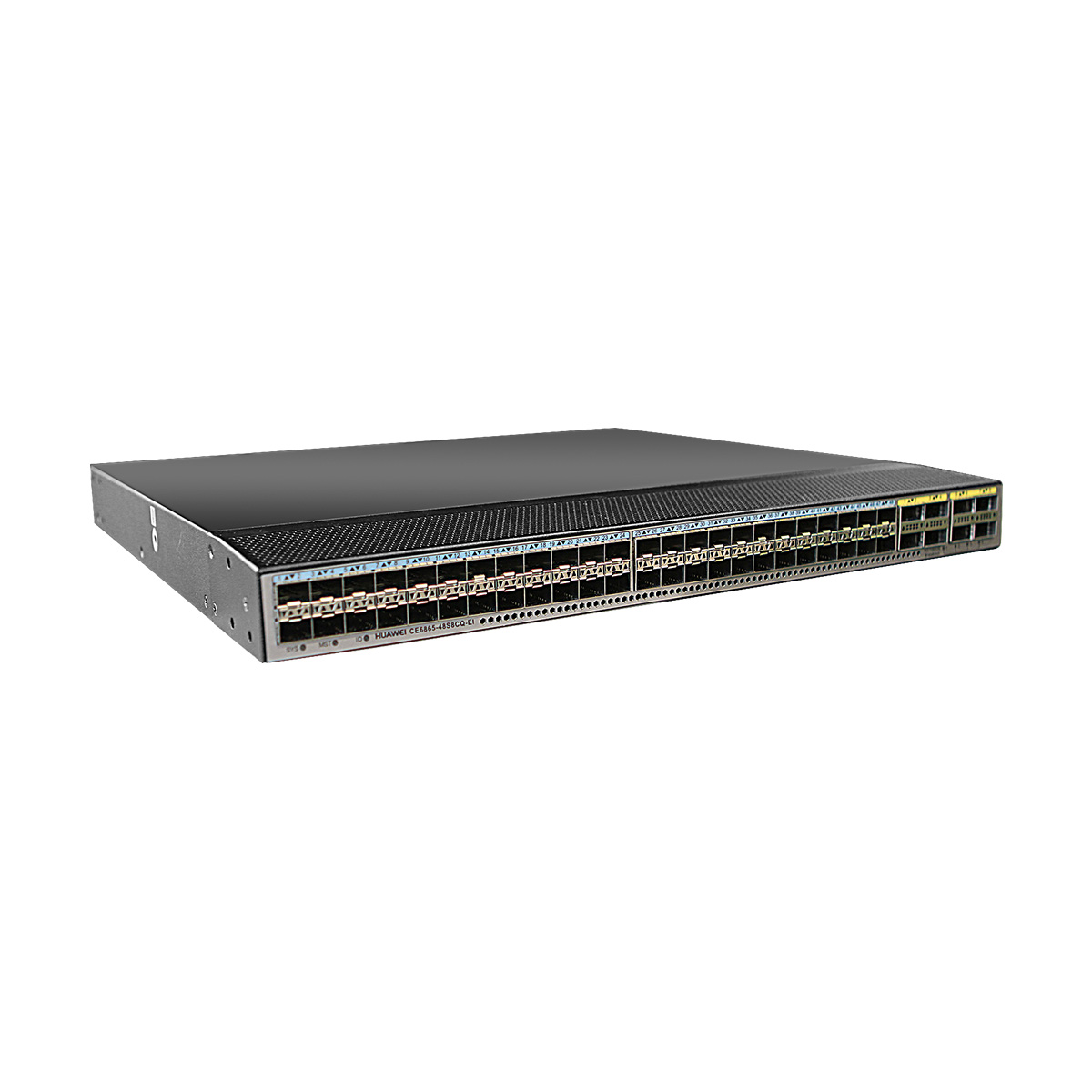

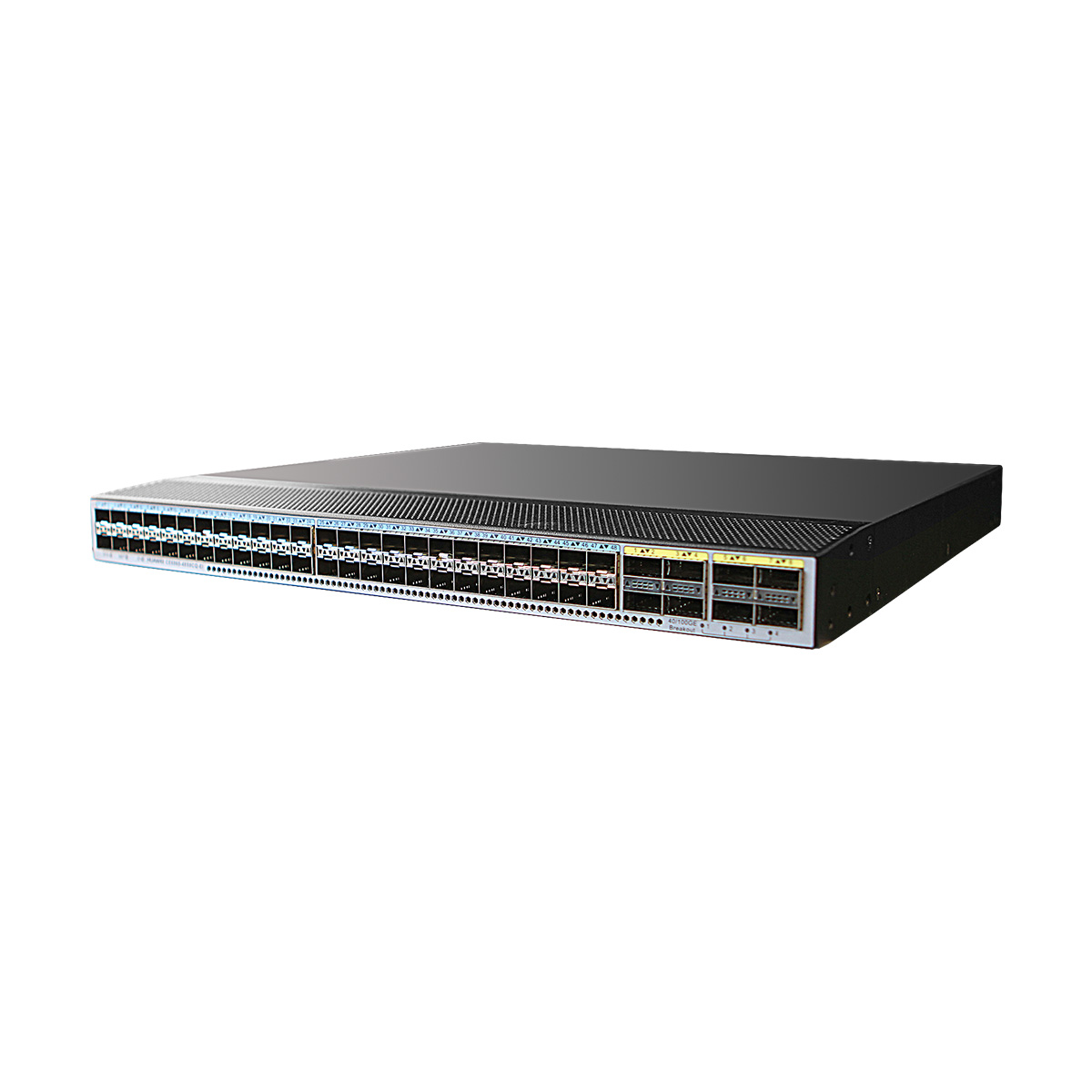

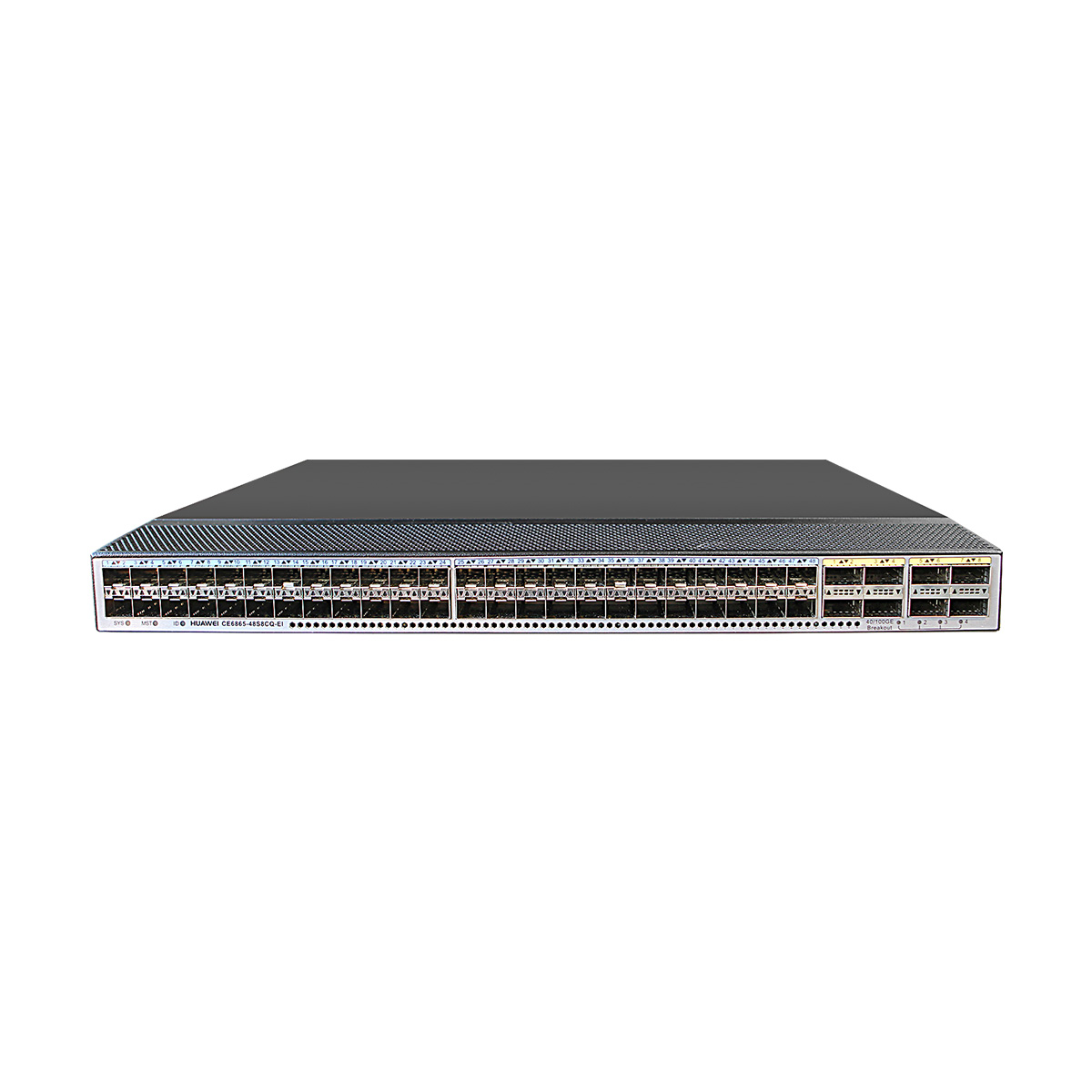

CE6865-48S8CQ-EI Huawei CE6800 switch supports 48*25GE SFP28, 8*100GE QSFP28

Description

CE6865-48S8CQ-EI overview

CE6865-48S8CQ-EI Huawei CE6800 switch supports 48*10GE/25GE SFP28, 8*40GE/100GE QSFP28

CE6865-48S8CQ-EI application
Device Series Sub-series Device Model Short Name Supported Version
CE6800 CE6865 CE6865-48S8CQ-EI CE6865EI V200R005C00 to V200R019C10

NOTE:

This model is not supported in V200R005C20.

Item CE6865-48S8CQ-EI
Temperature
  • Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.)
  • Storage temperature: -40°C to +70°C (-40°F to +158°F)
Relative humidity 5% RH to 95% RH, noncondensing
Altitude < 5000 m (16404 ft.)
Noise (sound pressure, 27°C)
  • Back-to-front airflow: < 65 dBA
  • Front-to-back airflow: < 65 dBA
Power source type AC/DC
AC power input
  • Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz
  • Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
DC power input
  • Rated voltage range: -48 V DC to -60 V DC
  • Maximum voltage range: -38.4 V DC to -72 V DC
High-voltage DC power input Not supported
Rated input current
  • 350 W DC power (PDC-350WA series): 11 A (-48 V DC to -60 V DC)
  • 600 W AC power (PAC-600WA series): 9 A (100 V AC to 240 V AC)
  • 600 W DC power (PDC600S12 series): 20 A (-48 V DC to -60 V DC)
Maximum power consumption 420W
Typical power consumption 259 W (100% throughput, SFP28 cables on 48 ports and QSFP28 cables on 8 ports, double power modules)
Maximum heat dissipation 1433 BTU/hr
Typical heat dissipation 884 BTU/hr (100% throughput, SFP28 cables on 48 ports and QSFP28 cables on 8 ports, double power modules)
Heat dissipation mode Air cooling
Airflow Front-to-back or back-to-front, depending on the fan modules and power modules
Power module backup 1+1 backup
Fan module backup 1+1 backup not supported
Hot swap Supported by all power modules and fan modules
Mean time between failures (MTBF) 38.85
Mean time to repair (MTTR) 1.48
Availability 0.999997178
Processor 1.5 GHz, 8-core
DRAM Memory 4 GB
NOR Flash 32 MB
NAND Flash 2 GB
Service port supporting the stack function 25GE optical ports and 100GE optical ports
Physical specifications
  • Dimensions (W x D x H): 442.0 mm x 420.0 mm x 43.6 mm (17.4 in. x 16.5 in. x 1.72 in.)
  • Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 8.8 kg (19.40 lb)
Certification
  • Safety standards compliance
  • EMC standards compliance
  • Environmental standards compliance

Additional information

Brand

Huawei

CE Switch

Lead Time

3-5 days

Ship From

Shenzhen Warehouse

Item CE6865-48S8CQ-EI
Temperature
  • Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.)
  • Storage temperature: -40°C to +70°C (-40°F to +158°F)
Relative humidity 5% RH to 95% RH, noncondensing
Altitude < 5000 m (16404 ft.)
Noise (sound pressure, 27°C)
  • Back-to-front airflow: < 65 dBA
  • Front-to-back airflow: < 65 dBA
Power source type AC/DC
AC power input
  • Rated input voltage range: 100 V AC to 240 V AC, 50/60 Hz
  • Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
DC power input
  • Rated voltage range: -48 V DC to -60 V DC
  • Maximum voltage range: -38.4 V DC to -72 V DC
High-voltage DC power input Not supported
Rated input current
  • 350 W DC power (PDC-350WA series): 11 A (-48 V DC to -60 V DC)
  • 600 W AC power (PAC-600WA series): 9 A (100 V AC to 240 V AC)
  • 600 W DC power (PDC600S12 series): 20 A (-48 V DC to -60 V DC)
Maximum power consumption 420W
Typical power consumption 259 W (100% throughput, SFP28 cables on 48 ports and QSFP28 cables on 8 ports, double power modules)
Maximum heat dissipation 1433 BTU/hr
Typical heat dissipation 884 BTU/hr (100% throughput, SFP28 cables on 48 ports and QSFP28 cables on 8 ports, double power modules)
Heat dissipation mode Air cooling
Airflow Front-to-back or back-to-front, depending on the fan modules and power modules
Power module backup 1+1 backup
Fan module backup 1+1 backup not supported
Hot swap Supported by all power modules and fan modules
Mean time between failures (MTBF) 38.85
Mean time to repair (MTTR) 1.48
Availability 0.999997178
Processor 1.5 GHz, 8-core
DRAM Memory 4 GB
NOR Flash 32 MB
NAND Flash 2 GB
Service port supporting the stack function 25GE optical ports and 100GE optical ports
Physical specifications
  • Dimensions (W x D x H): 442.0 mm x 420.0 mm x 43.6 mm (17.4 in. x 16.5 in. x 1.72 in.)
  • Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 8.8 kg (19.40 lb)
Certification
  • Safety standards compliance
  • EMC standards compliance
  • Environmental standards compliance
