CE6870-48S6CQ-EI-A

0 Reviews Write a review
PN02354VSJ
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Huawei CE6800 switch CE6870-48S6CQ-EI-A  supports 48-Port 10GE SFP+,6-Port 100GE QSFP28,2*AC Power Module,4*FAN Box,Port-side Intake

Description

CE6870-48S6CQ-EI-A overview

CE6870-48S6CQ-EI-A Huawei CE6800 switch supports 48-Port 10GE SFP+,6-Port 100GE QSFP28,2*AC Power Module,4*FAN Box,Port-side Intake

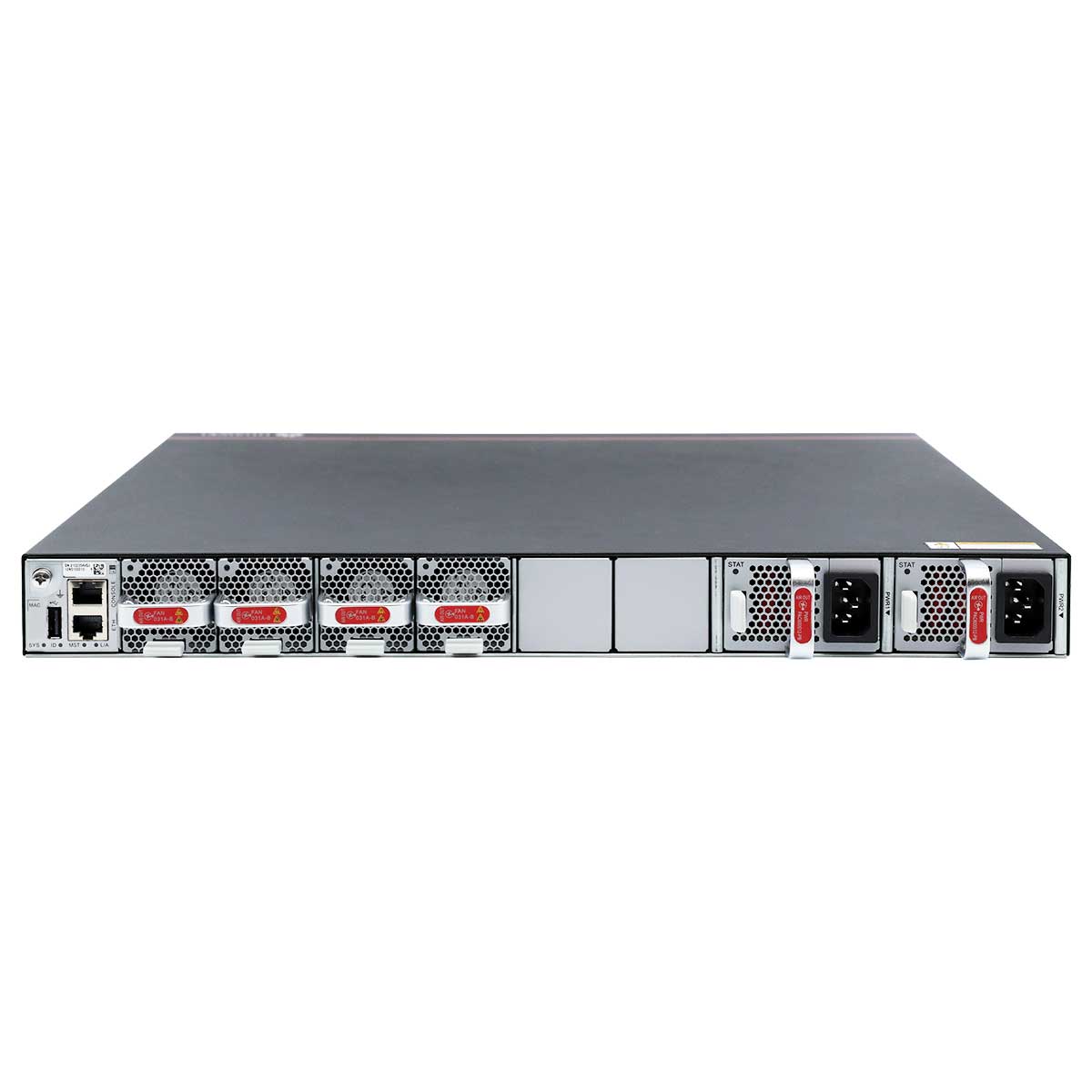

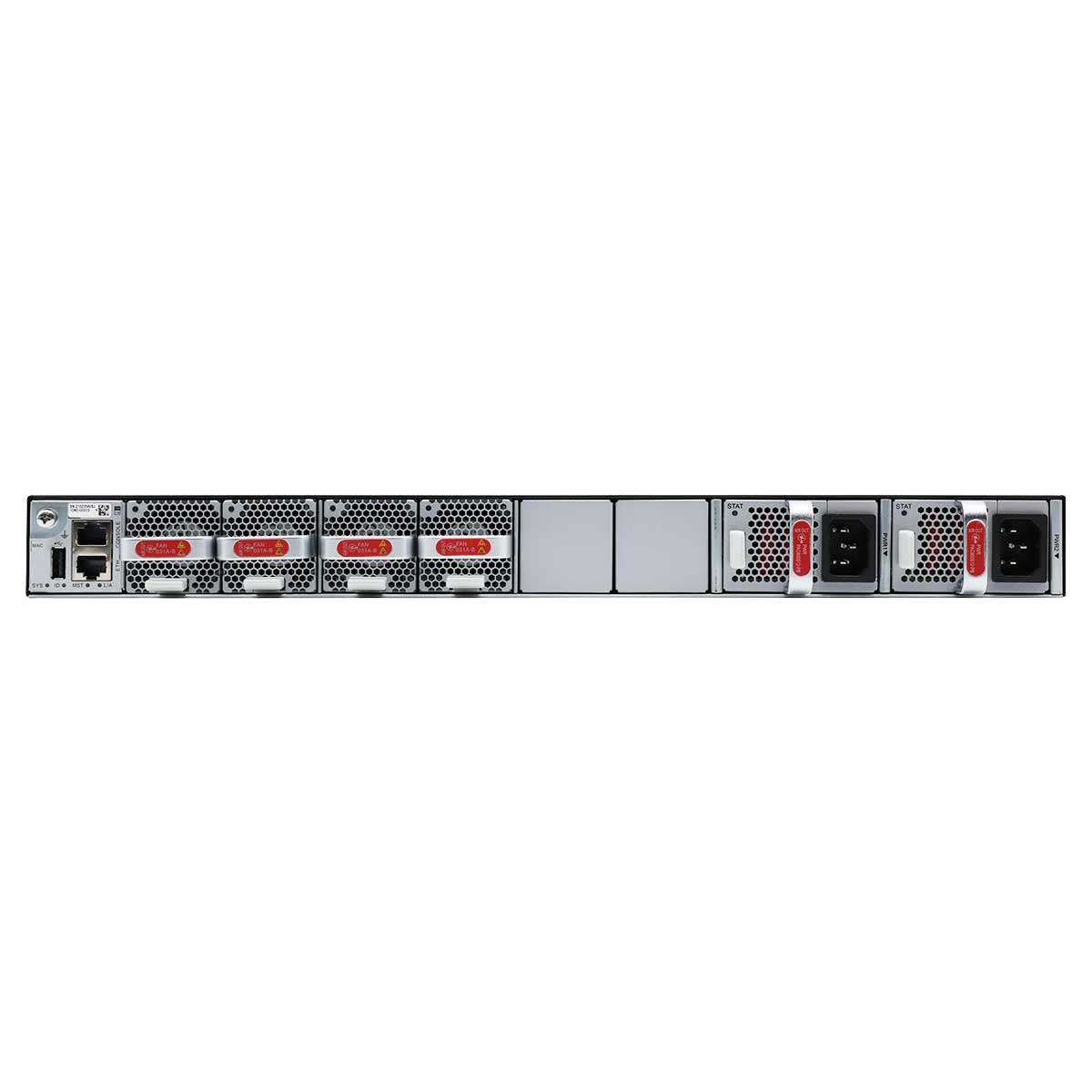

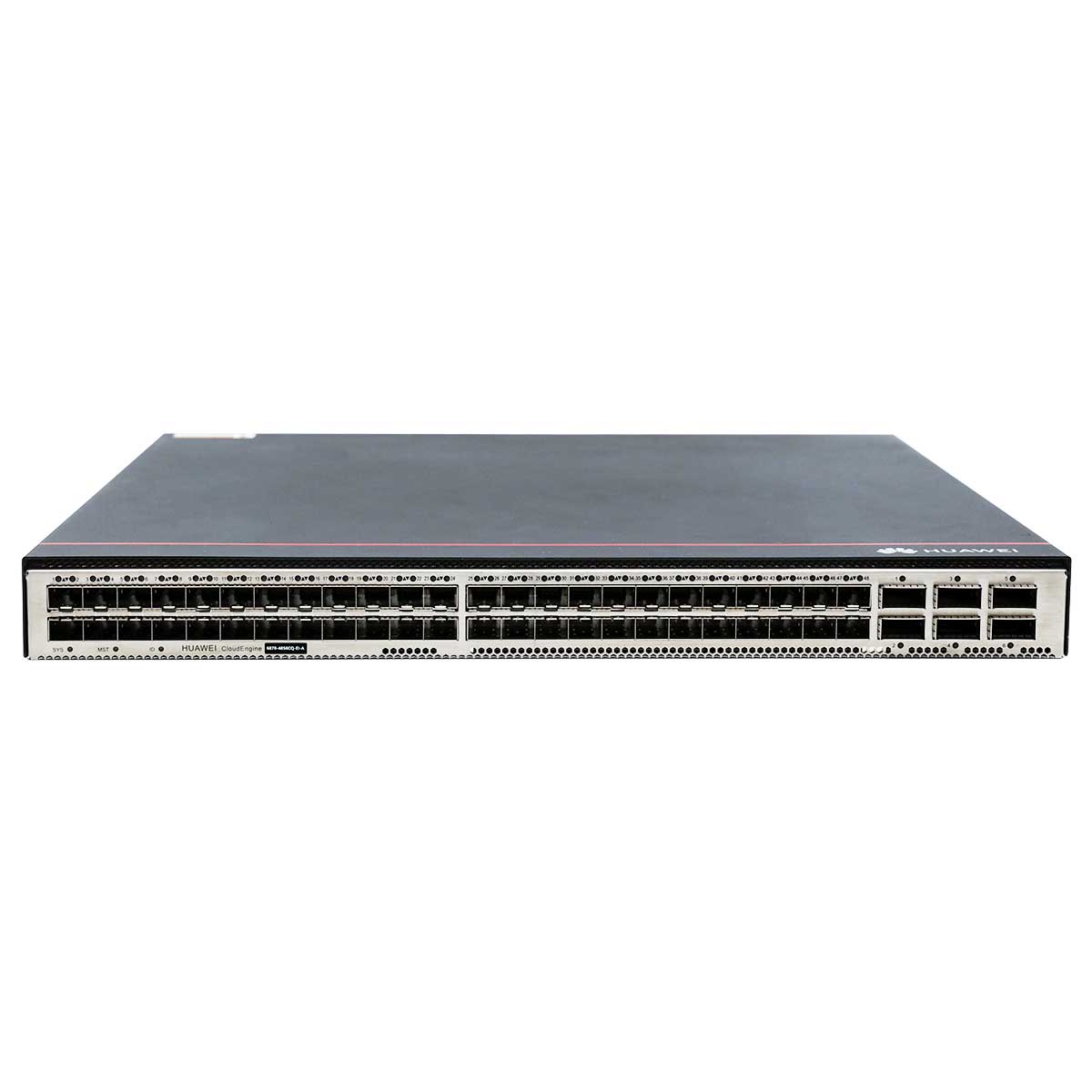

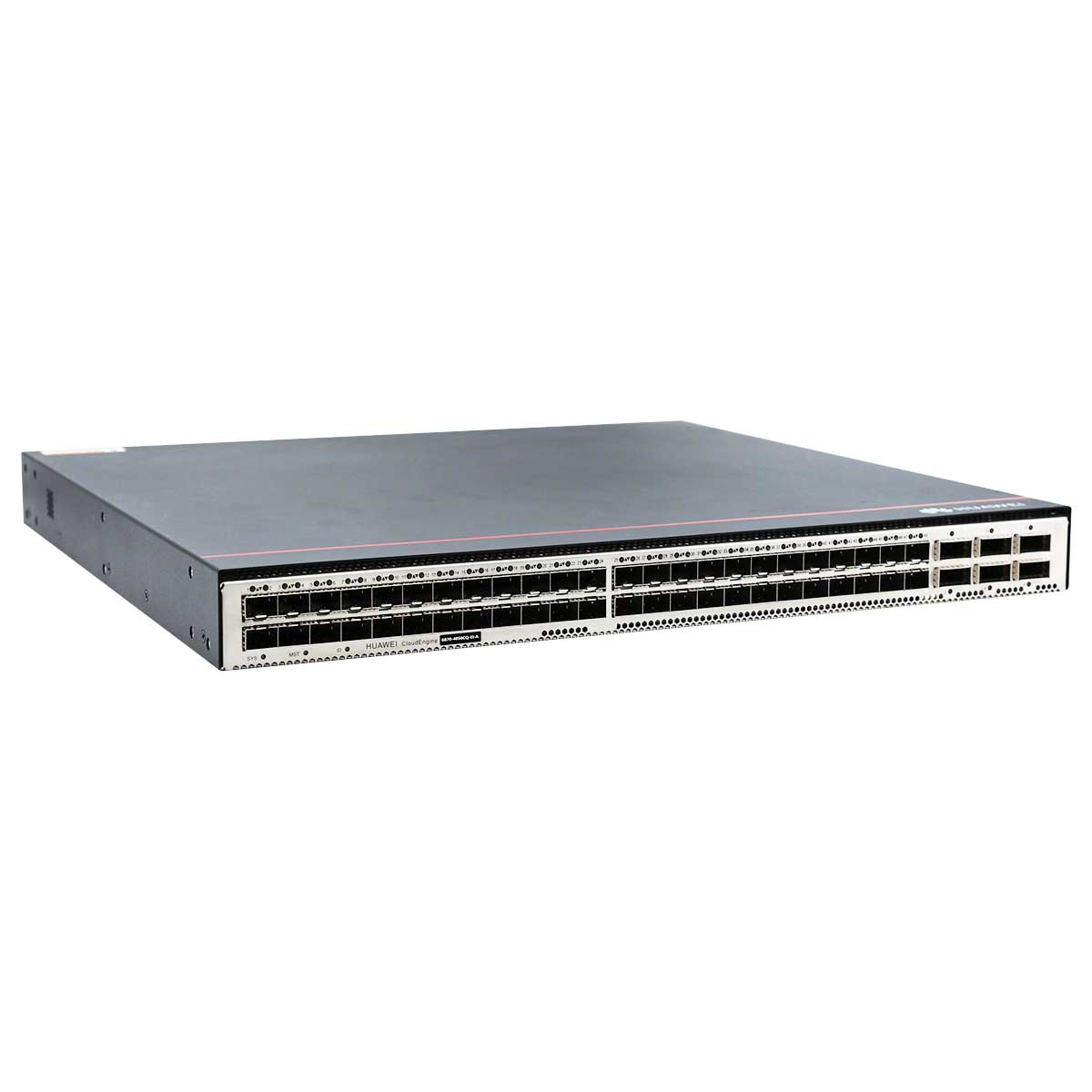

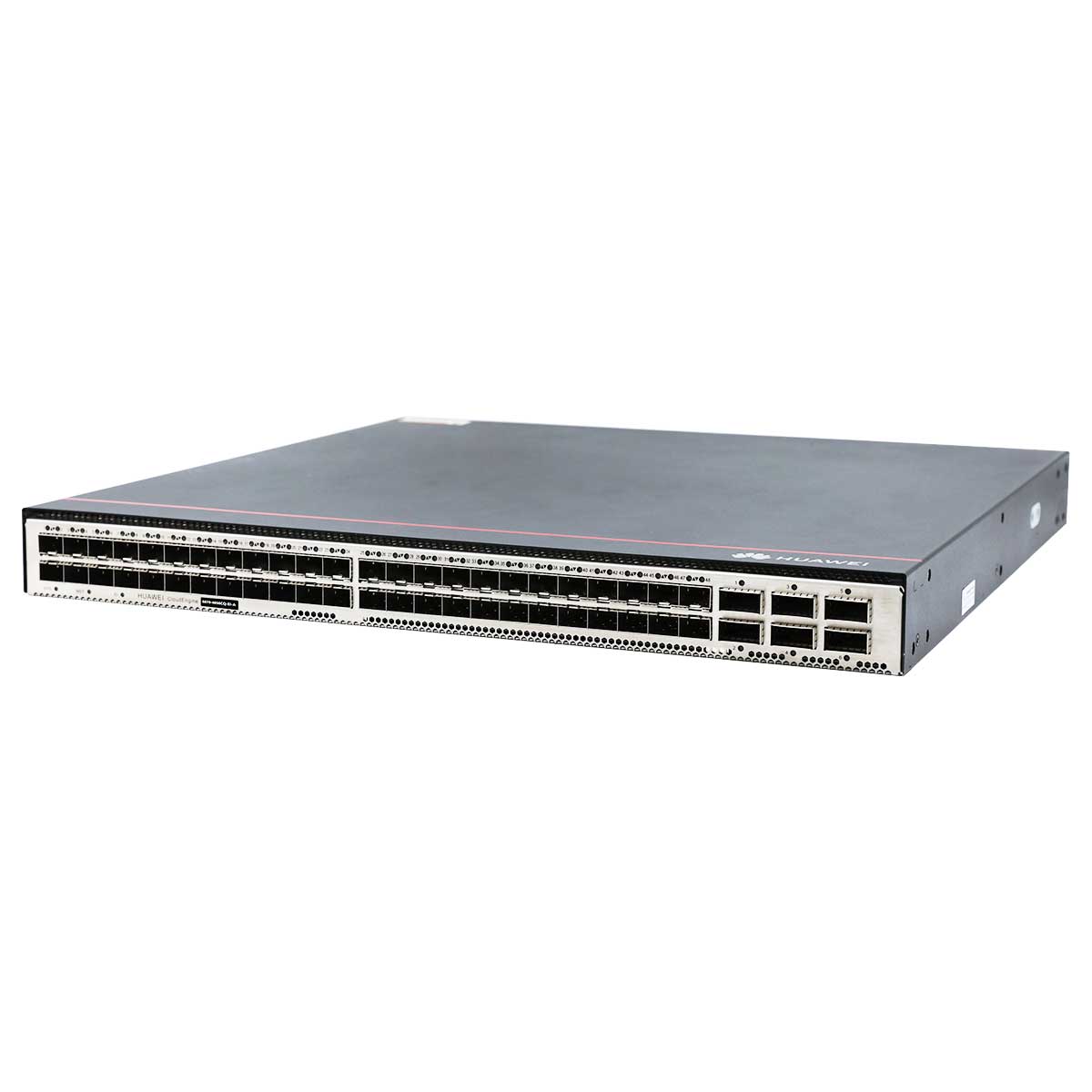

CE6870-48S6CQ-EI-A appearance

CE6870 48S6CQ EI A

1 Ground screw 2 USB port
3

Equipment serial number (ESN)

NOTE:

You can scan the code to view the ESN and MAC address of the switch.

4 Console port
5 ETH management port (RJ45) 6 Fan slot 1
7 Fan slot 2 8 Fan slot 3
9 Fan slot 4 10 Power supply slot 1
11 Power supply slot 2 12 Forty-eight 10GE SFP+ Ethernet optical ports
13 Six 40GE/100GE QSFP28 Ethernet optical ports 14 Three port-side mounting holes for mounting brackets
15 Two middle mounting holes for mounting brackets 16 Equipotential bonding

Ground screws for a ground cable with a two-hole OT terminal

17 Four power-supply-side mounting holes for mounting brackets



Item CE6870-48S6CQ-EI-A
Chassis height [U] 1 U
Installation Type Cabinet installation
Switching capacity To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel.
CPU Quad-core, 1.4 GHz
Memory DRAM: 4 GB
NOR Flash 64 MB
NAND Flash 4 GB
USB Supported
Power supply mode
  • AC
  • DC
  • HVDC
Console port RJ45
Downlink Service interface 48*10GE SFP+ (Such ports can be used as GE SFP optical/electrical ports, and do not support 10GE LRM/80 km linear optical modules. GE copper modules cannot be installed in ports directly above or below another GE copper module.)
Uplink Service interface 6*100GE QSFP28 (Each 100G QSFP28 port can be configured to work at 40 Gbit/s, and can be split into four 10GE or 25GE ports. After split, they cannot be used as GE ports. Auto-negotiation of 25GE copper cables is not supported.)
Service port supporting the stack function 10GE and 100GE optical ports
RTC Supported
Typical power consumption [W] 142 W (100% traffic load, copper cables on half of ports, normal temperature, dual AC power modules) 159 W (100% traffic load, short-distance optical modules on half of ports, normal temperature, dual AC power modules)
Typical heat dissipation [BTU/hour] 485 BTU/hour (100% traffic load, copper cables on half of ports, normal temperature, dual AC power modules) 543 BTU/hour (100% traffic load, short-distance optical modules on half of ports, normal temperature, dual AC power modules)
Static power consumption [W] 117 W
Static heat dissipation [BTU/hour] 399 BTU/hour
Maximum power consumption [W] 209 W (100% traffic load, short-distance optical modules on all ports, normal temperature, dual AC power modules) 323 W (100% traffic load, long-distance optical modules on all ports, 40°C or 104°F, dual AC power modules)
Maximum heat dissipation [BTU/hour] 713 BTU/hour (100% traffic load, short-distance optical modules on all ports, normal temperature, dual AC power modules) 1102 BTU/hour (100% traffic load, long-distance optical modules on all ports, 40°C or 104°F, dual AC power modules)
Number of power modules 2
Redundant power supply 1+1 backup
Rated input voltage [V]
  • 600 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC
  • 1200 W DC power module: –48 V DC to –60 V DC; +48 V DC
Input voltage range [V]
  • 600 W AC&240 V DC power module: 90 V AC to 290 V AC, 45 Hz to 65 Hz; 190 V DC to 290 V DC
  • 1200 W DC power module: -38.4 V DC to -72 V DC; +40 V DC to +57 V DC
Maximum input current [A]
  • 600 W AC&240 V DC power module: 8 A (100 V AC to 240 V AC); 4 A (240 V DC)
  • 1200 W DC power module: 38 A (-48 V DC to -60 V DC); 38 A (+48 V DC)
Rated output power [W]
  • 600 W AC&240 V DC power module: 600 W
  • 1200 W DC power module: 1200 W
Certification
  • Compliance with safety standards
  • Compliance with EMC standards
  • Compliance with environment and environmental protection standards
Power supply surge protection [kV]
  • AC: 6 kV in common mode and 6 kV in differential mode
  • DC: 4 kV in common mode and 2 kV in differential mode
  • HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans Pluggable
Number of fans 4
Redundant fans The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short period of time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode Air cooling
Airflow direction Front-to-back or back-to-front airflow, depending on the selected fan modules and power modules
Availability 0.9999936017
MTBF [year] 34.43 years
MTTR [hour] 1.93 hours
Noise at normal temperature (27°C, sound pressure) [dB(A)] Port-side air intake: < 50.8 dB(A) Port-side air exhaust: < 50.5 dB(A)
Noise at high temperature (40°C, sound pressure) [dB(A)] Port-side air intake: < 66.8 dB(A) Port-side air exhaust: < 66.7 dB(A)
Long-term operating altitude [m (ft.)] ≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Long-term operating temperature [°C (°F)] 0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.)
NOTE:
When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage altitude [m (ft.)] < 5000 m (16404 ft.)
Storage relative humidity [RH] 5% to 95% RH, non-condensing
Storage temperature [°C (°F)] -40ºC to +70ºC (-40°F to +158°F)
Dimensions with packaging (H x W x D) [mm (in.)] 175 mm x 650 mm x 550 mm (6.89 in. x 25.59 in. x 21.65 in.)
Dimensions without packaging (H x W x D) [mm (in.)]
  • Basic dimensions (the depth excludes the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.40 in. x 17.56 in.)
Weight without packaging [kg (lb)] 6.2 kg (13.67 lb), excluding optical modules, power modules, and fan modules
Weight without packaging (full configuration) [kg (lb)] 8.3 kg (18.30 lb) (including AC power modules and fan modules but excluding optical modules. If the device supports multiple models of modules, the heaviest modules are used for the measurement.)
Weight with packaging [kg (lb)] 9.1 kg (20.06 lb)
Weight with packaging (full configuration) [kg (lb)] 11.1 kg (24.5 lb)
