CE6881-48T6CQ

0 Reviews Write a review
PN02353GLB
Brands
AvailabilityIn Stock
CE Switch CE6800
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

CE6881-48T6CQ Huawei CE6800 switch supports 48*10GBASE-T, 6*100GE QSFP28

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

CE6881-48T6CQ overview

CE6881-48T6CQ Huawei CE6800 switch supports 48*10GBASE-T, 6*100GE QSFP28

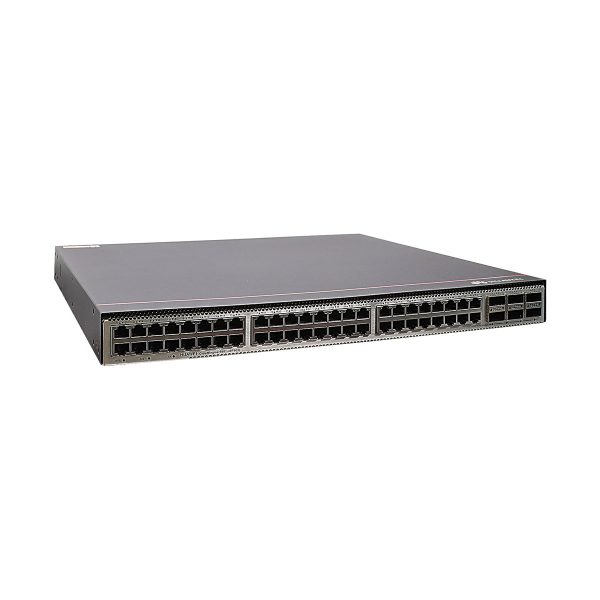

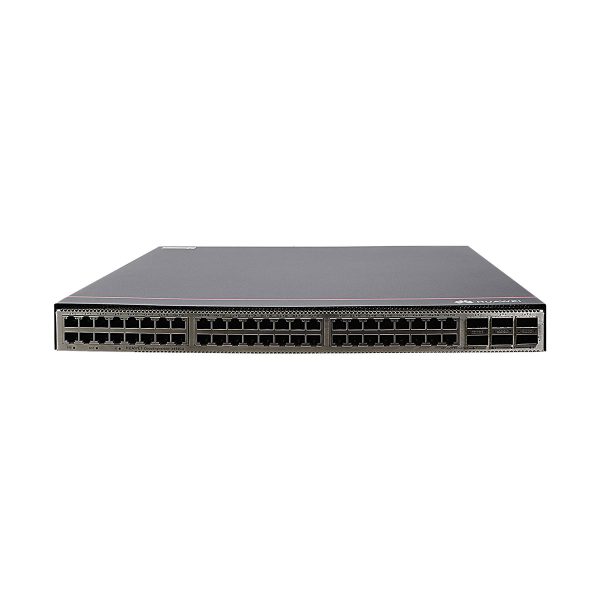

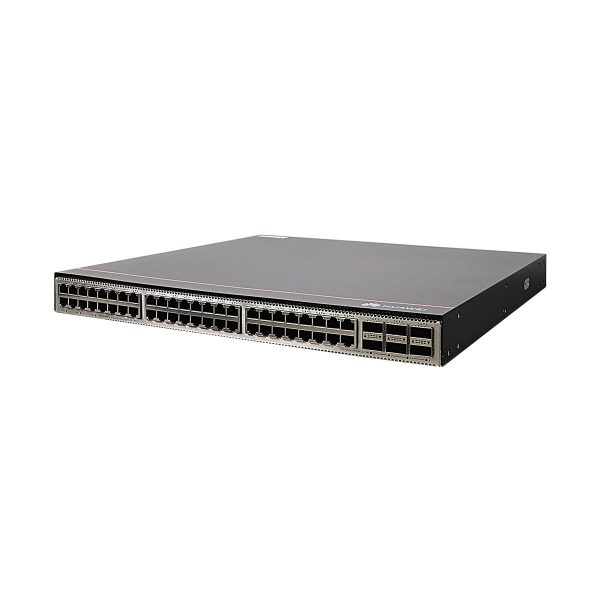

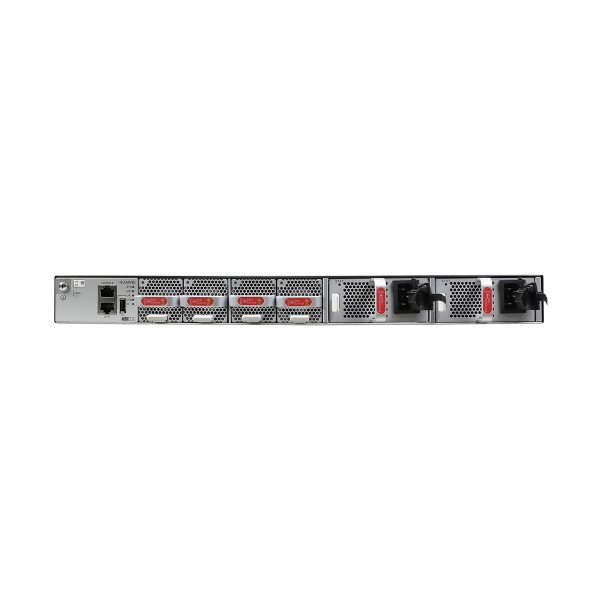

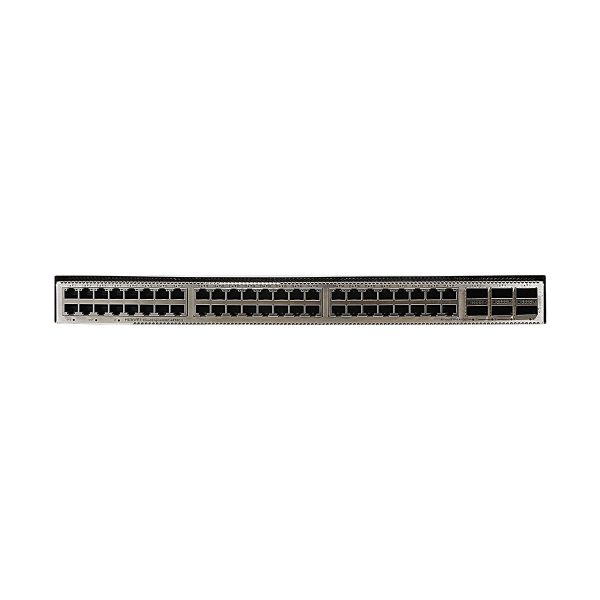

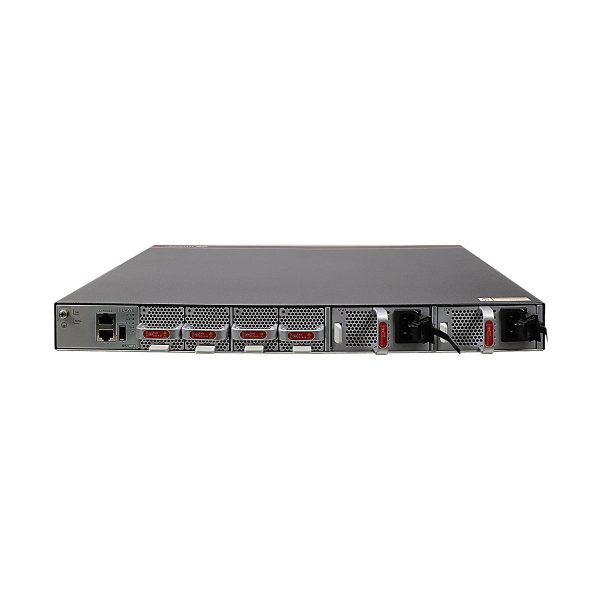

CE6881-48T6CQ appearance

CE6881-48T6CQ

CE6881-48T6CQ application
Item Details
Description CE6881-48T6CQ switch (48*10GE RJ45, 6*100GE QSFP28, without fan and power modules)
Part Number 02353GLB
Model CE6881-48T6CQ
First supported version V200R020C00
Other part numbers 02353GLC (CE6881-48T6CQ-B switch(48*10GE RJ45,6*100GE QSFP28,2*AC power modules,4*fan modules,port-side intake))

02353GLD (CE6881-48T6CQ-F switch (48*10GE RJ45, 6*100GE QSFP28, 2*AC power modules, 4*fan modules, port-side exhaust))
Short Name CE6881
Show More Show Less
Item CE6881-48T6CQ
Installation Type Cabinet Installation
CPU 4-core, 1.4 GHZ
Memory DRAM: 4 GB
NOR Flash 64 MB
NAND Flash 4 GB
USB Supported
Power supply mode
  • AC
  • DC
  • HVDC
Console port RJ45
Downlink Service interface 48*10GE RJ45 (Only full-duplex is supported)
Uplink Service interface 6*100GE QSFP28 (Note: 1. Each 100G QSFP28 port can be configured to work at 40 Gbit/s. 2. A 100G QSFP28 port cannot be split into four 25GE or 10GE ports. 3. 100GE and 40GE 1/3/5 m copper cables are supported, but auto-negotiation of copper cables is not supported. 100GE and 40GE copper cables can only be used on stack interfaces and M-LAG peer-link interfaces. 100G 3/5 m copper cables support only RS FEC. After the non-RS FEC mode is configured, the port enters the error-down state.)
Service port supporting the stack function 10GE electrical ports and 100GE optical ports
RTC Supported
Typical power consumption [W]
  • 347 W (50% throughput, 3 m Ethernet cables on 48 ports and QSFP28 high-speed cables on 6 ports, normal temperature, dual power modules)
  • 362 W (50% throughput, 3 m Ethernet cables on 48 ports and short-distance optical modules on 6 ports, normal temperature, dual power modules)
Typical heat dissipation [BTU/hour]
  • 1184 BTU/hr (50% throughput, 3 m Ethernet cables on 48 ports and QSFP28 high-speed cables on 6 ports, normal temperature, dual power modules)
  • 1235 BTU/hr (50% throughput, 3 m Ethernet cables on 48 ports and short-distance optical modules on 6 ports, normal temperature, dual power modules)
Static power consumption [W] 235 W
Static heat dissipation [BTU/hour] 801 BTU/hour
Maximum power consumption [W] 452 W
Maximum heat dissipation 1542
Number of power modules 2
Redundant power supply 1+1 backup
Rated input voltage [V]
  • 600 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC
  • 1000 W DC power module: –48 V DC to –60 V DC
  • 1200 W high-voltage DC power module: 240 V DC to 380 V DC
Input voltage range [V]
  • 600 W AC&240 V DC power module: 90 V AC to 290 V AC, 45 Hz to 65 Hz; 190 V DC to 290 V DC
  • 1000 W DC power module: –38.4 V DC to –72 V DC
  • 1200 W high-voltage DC power module: 190 V DC to 400 V DC
Maximum input current [A]
  • 600 W AC&240 V DC PSU: 8 A (100 V AC to 240 V DC); 4 A (240 V DC)
  • 1000 W DC PSU: 30 A (–48 V DC to –60 V DC)
  • 1200 W high-voltage DC power module: 8 A
Rated output power [W]
  • 600 W AC&240 V DC power module: 600 W
  • 1000 W DC power module: 1000 W
  • 1200 W high-voltage DC power module: 1200 W
Certification
  • Complies with safety standards.
  • Complies with EMC standards.
  • Complies with environmental protection standards.
Power supply surge protection [kV]
  • AC: 6 kV in common mode and 6 kV in differential mode
  • DC: 4 kV in common mode and 2 kV in differential mode
  • HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans Pluggable
Number of fans 4
Redundant fans The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode Air cooling
Airflow direction Front-to-back or back-to-front, depending on the fan modules and power modules.
Availability 0.9999953209
MTBF [year] 48.16 years
MTTR [hour] 1.78 hours
Noise at normal temperature (27°C, sound pressure) [dB(A)]
  • Front-to-back airflow: 49 dB(A) on average (maximum: 52 dB(A))
  • Back-to-front airflow: 50 dB(A) on average (maximum: 52 dB(A))
Noise at high temperature (40°C, sound pressure) [dB(A)]
  • Front-to-back airflow: 69 dB(A) on average (maximum: 74 dB(A))
  • Back-to-front airflow: 67 dB(A) on average (maximum: 73 dB(A))
Long-term operating altitude [m (ft.)] ≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH] 5% RH to 95% RH, noncondensing
Long-term operating temperature [°C (°F)] 0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.)
Storage altitude [m (ft.)] < 5000 m (16404 ft.)
Storage relative humidity [RH] 5% RH to 95% RH, noncondensing
Storage temperature [°C (°F)] -40°C to +70°C (-40°F to +158°F)
Dimensions with packaging (H x W x D) [mm (in.)] 175 mm x 650 mm x 550 mm (6.9 in. x 25.6 in. x 21.7 in.)
Dimensions without packaging (H x W x D) [mm (in.)]
  • Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.40 in. x 17.56 in.)
Weight without packaging (base configuration) [kg (lb)] 6.6 kg (14.6 lb) (excluding optical modules, power modules, and fan modules)
Weight without packaging (full configuration) [kg (lb)] 8.9 kg (19.6 lb) (including AC power modules and fan modules, excluding optical modules, calculated based on the heaviest model if multiple models are supported)
Weight with packaging (base configuration) [kg (lb)] 10.4 kg (22.93 lb)
Weight with packaging (full configuration) [kg (lb)] 12.3 kg (27.12 lb)

Additional information

Brand

Huawei
CE Switch

Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item CE6881-48T6CQ
Installation Type Cabinet Installation
CPU 4-core, 1.4 GHZ
Memory DRAM: 4 GB
NOR Flash 64 MB
NAND Flash 4 GB
USB Supported
Power supply mode
  • AC
  • DC
  • HVDC
Console port RJ45
Downlink Service interface 48*10GE RJ45 (Only full-duplex is supported)
Uplink Service interface 6*100GE QSFP28 (Note: 1. Each 100G QSFP28 port can be configured to work at 40 Gbit/s. 2. A 100G QSFP28 port cannot be split into four 25GE or 10GE ports. 3. 100GE and 40GE 1/3/5 m copper cables are supported, but auto-negotiation of copper cables is not supported. 100GE and 40GE copper cables can only be used on stack interfaces and M-LAG peer-link interfaces. 100G 3/5 m copper cables support only RS FEC. After the non-RS FEC mode is configured, the port enters the error-down state.)
Service port supporting the stack function 10GE electrical ports and 100GE optical ports
RTC Supported
Typical power consumption [W]
  • 347 W (50% throughput, 3 m Ethernet cables on 48 ports and QSFP28 high-speed cables on 6 ports, normal temperature, dual power modules)
  • 362 W (50% throughput, 3 m Ethernet cables on 48 ports and short-distance optical modules on 6 ports, normal temperature, dual power modules)
Typical heat dissipation [BTU/hour]
  • 1184 BTU/hr (50% throughput, 3 m Ethernet cables on 48 ports and QSFP28 high-speed cables on 6 ports, normal temperature, dual power modules)
  • 1235 BTU/hr (50% throughput, 3 m Ethernet cables on 48 ports and short-distance optical modules on 6 ports, normal temperature, dual power modules)
Static power consumption [W] 235 W
Static heat dissipation [BTU/hour] 801 BTU/hour
Maximum power consumption [W] 452 W
Maximum heat dissipation 1542
Number of power modules 2
Redundant power supply 1+1 backup
Rated input voltage [V]
  • 600 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC
  • 1000 W DC power module: –48 V DC to –60 V DC
  • 1200 W high-voltage DC power module: 240 V DC to 380 V DC
Input voltage range [V]
  • 600 W AC&240 V DC power module: 90 V AC to 290 V AC, 45 Hz to 65 Hz; 190 V DC to 290 V DC
  • 1000 W DC power module: –38.4 V DC to –72 V DC
  • 1200 W high-voltage DC power module: 190 V DC to 400 V DC
Maximum input current [A]
  • 600 W AC&240 V DC PSU: 8 A (100 V AC to 240 V DC); 4 A (240 V DC)
  • 1000 W DC PSU: 30 A (–48 V DC to –60 V DC)
  • 1200 W high-voltage DC power module: 8 A
Rated output power [W]
  • 600 W AC&240 V DC power module: 600 W
  • 1000 W DC power module: 1000 W
  • 1200 W high-voltage DC power module: 1200 W
Certification
  • Complies with safety standards.
  • Complies with EMC standards.
  • Complies with environmental protection standards.
Power supply surge protection [kV]
  • AC: 6 kV in common mode and 6 kV in differential mode
  • DC: 4 kV in common mode and 2 kV in differential mode
  • HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans Pluggable
Number of fans 4
Redundant fans The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode Air cooling
Airflow direction Front-to-back or back-to-front, depending on the fan modules and power modules.
Availability 0.9999953209
MTBF [year] 48.16 years
MTTR [hour] 1.78 hours
Noise at normal temperature (27°C, sound pressure) [dB(A)]
  • Front-to-back airflow: 49 dB(A) on average (maximum: 52 dB(A))
  • Back-to-front airflow: 50 dB(A) on average (maximum: 52 dB(A))
Noise at high temperature (40°C, sound pressure) [dB(A)]
  • Front-to-back airflow: 69 dB(A) on average (maximum: 74 dB(A))
  • Back-to-front airflow: 67 dB(A) on average (maximum: 73 dB(A))
Long-term operating altitude [m (ft.)] ≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH] 5% RH to 95% RH, noncondensing
Long-term operating temperature [°C (°F)] 0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.)
Storage altitude [m (ft.)] < 5000 m (16404 ft.)
Storage relative humidity [RH] 5% RH to 95% RH, noncondensing
Storage temperature [°C (°F)] -40°C to +70°C (-40°F to +158°F)
Dimensions with packaging (H x W x D) [mm (in.)] 175 mm x 650 mm x 550 mm (6.9 in. x 25.6 in. x 21.7 in.)
Dimensions without packaging (H x W x D) [mm (in.)]
  • Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.40 in. x 17.56 in.)
Weight without packaging (base configuration) [kg (lb)] 6.6 kg (14.6 lb) (excluding optical modules, power modules, and fan modules)
Weight without packaging (full configuration) [kg (lb)] 8.9 kg (19.6 lb) (including AC power modules and fan modules, excluding optical modules, calculated based on the heaviest model if multiple models are supported)
Weight with packaging (base configuration) [kg (lb)] 10.4 kg (22.93 lb)
Weight with packaging (full configuration) [kg (lb)] 12.3 kg (27.12 lb)
