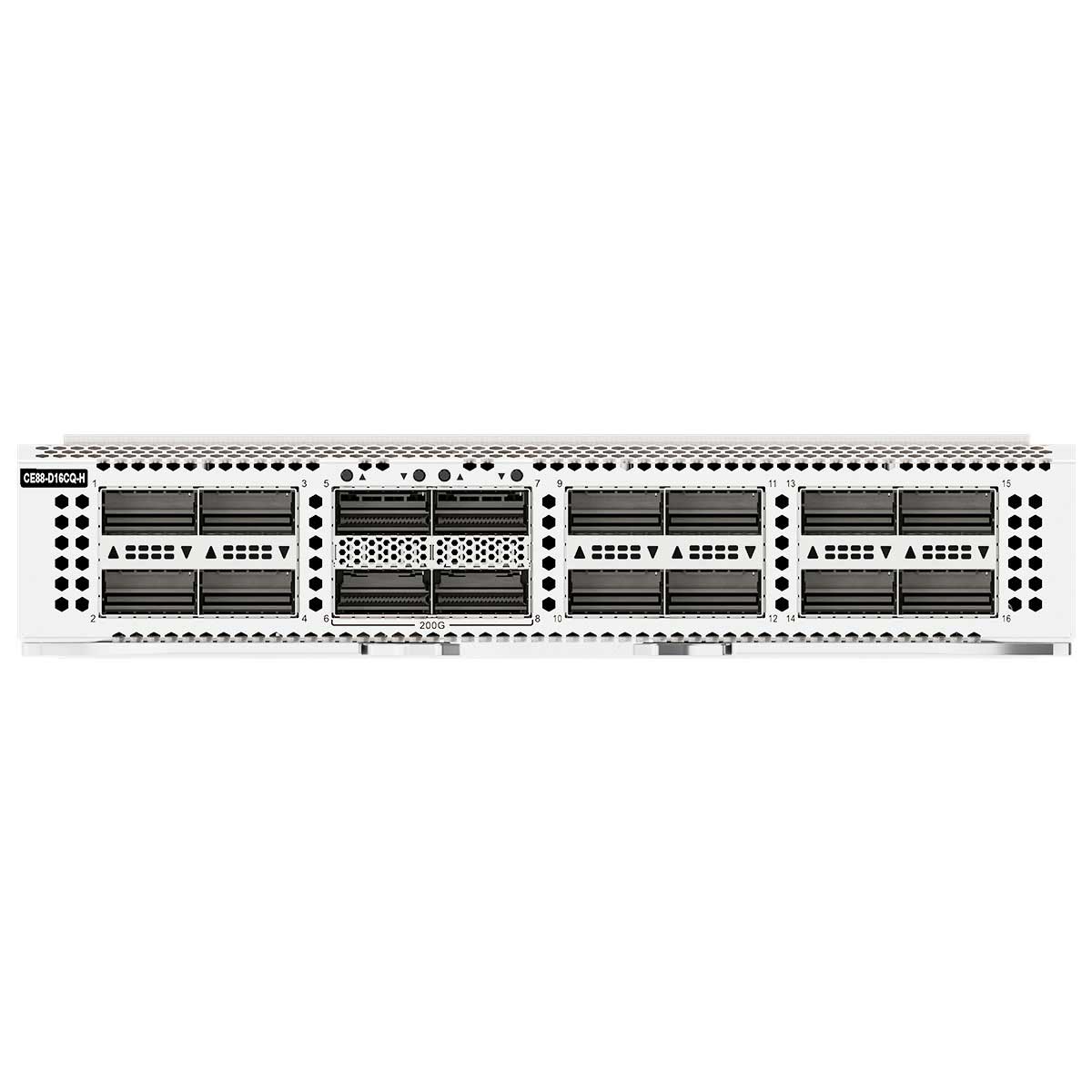

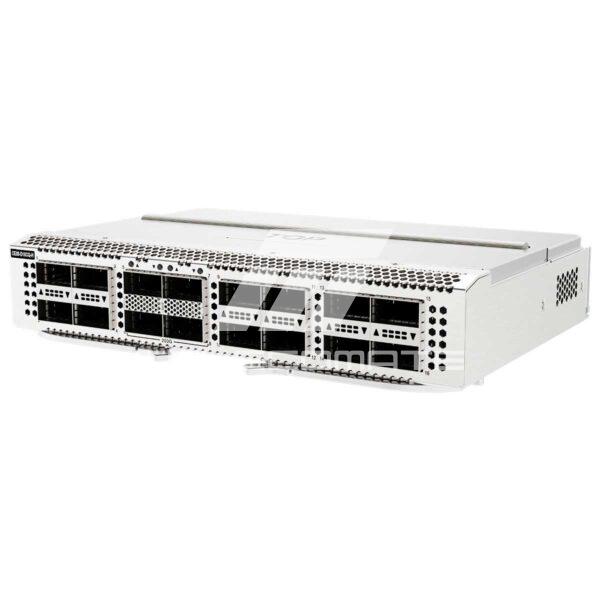

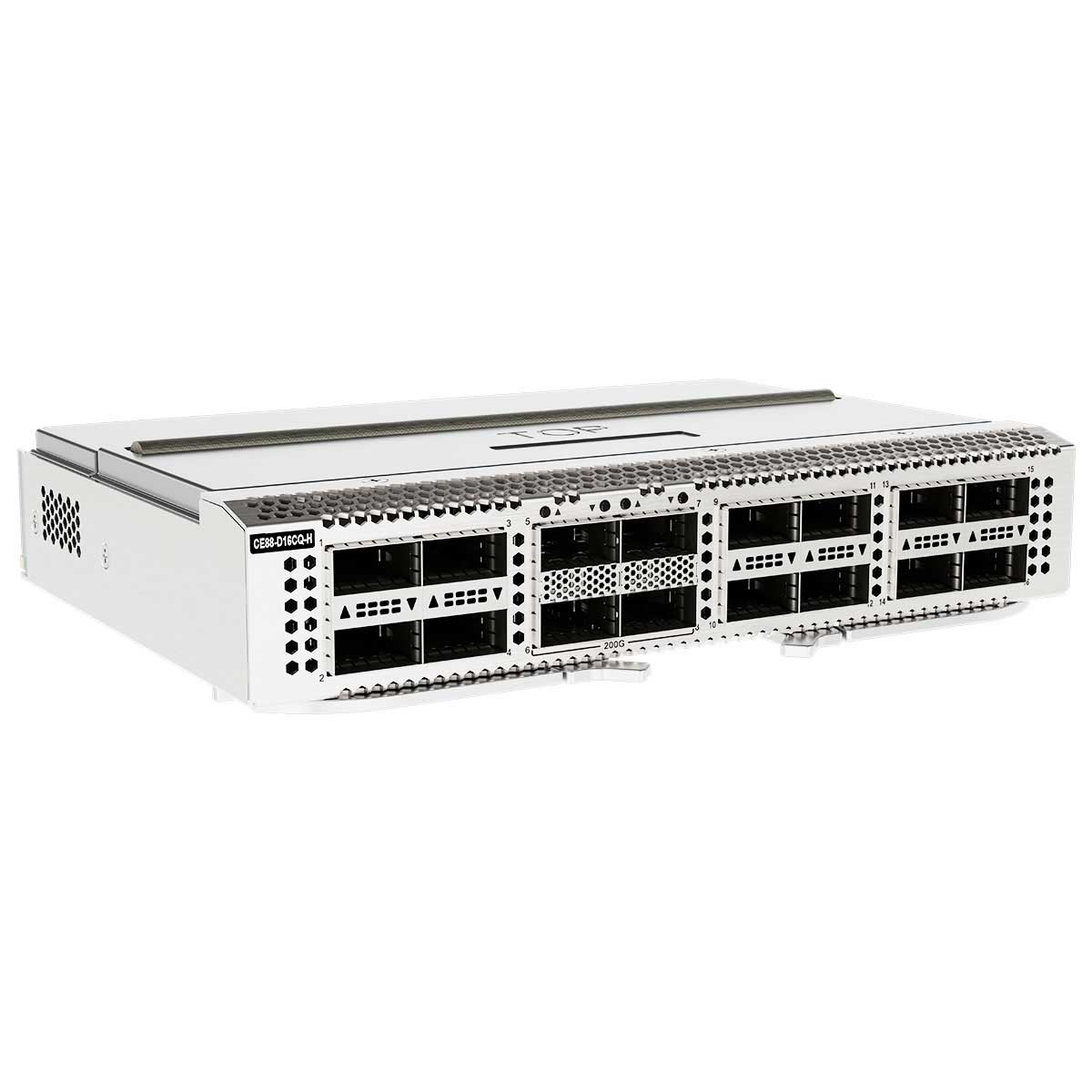

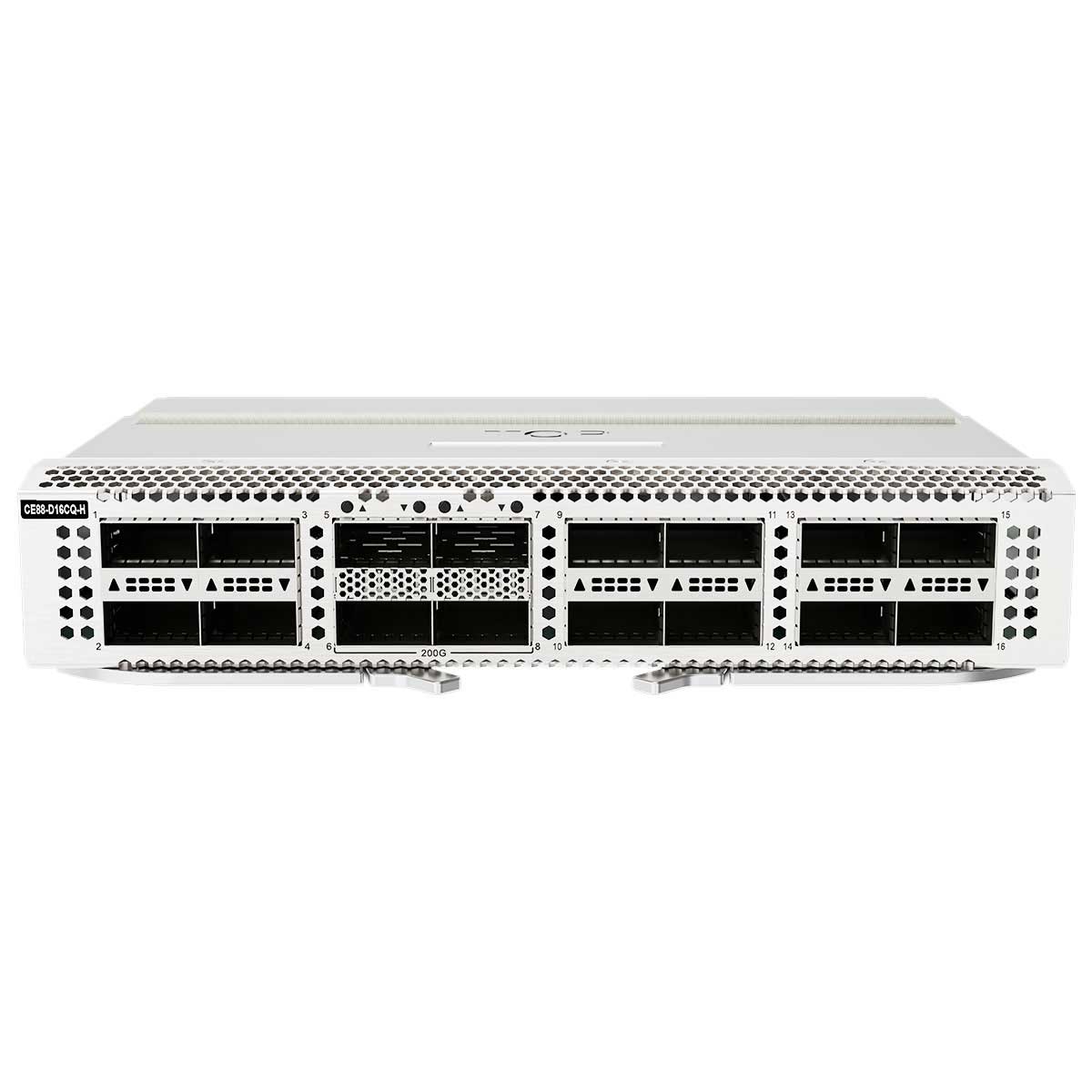

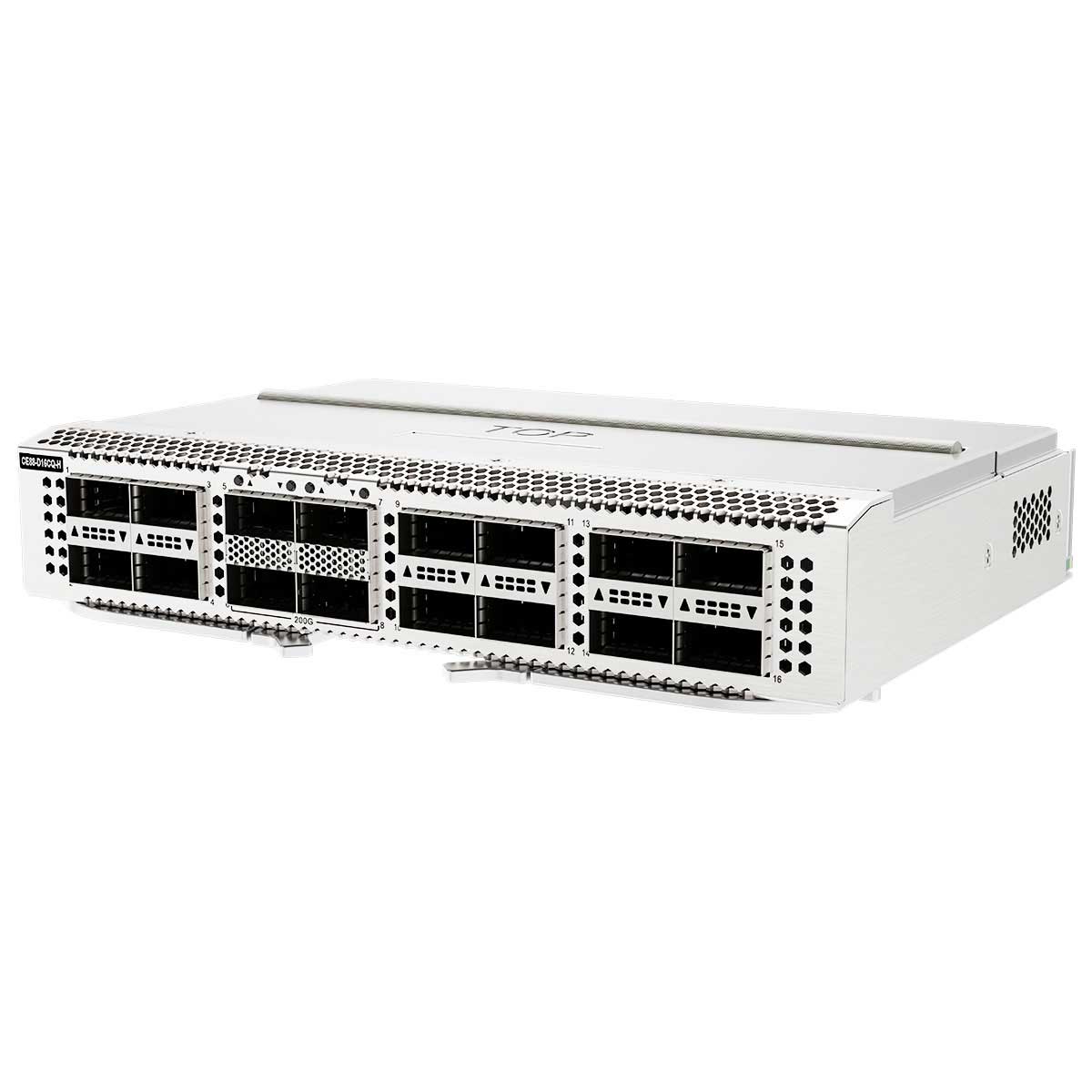

CE88-D16CQ-H
CE88-D16CQ-H-1
CE88-D16CQ-H-2
CE88-D16CQ-H-3
Categories:

CE88-D16CQ-H

0 Reviews Write a review
PN0302041929
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

CE88-D16CQ-H Huawei CE8800 switch supports 16 Port 100GE QSFP28 Interface Card(CM)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

CE88-D16CQ-H overview



CE88-D16CQ-H Huawei CE8800 switch supports 16 Port 100GE QSFP28 Interface Card(CM)



CE88-D16CQ-H Version mapping

Product Product Model First Supported Version Last Supported Version Unsupported Version
CloudEngine 8800 CE8865-4C (02355RTA) V300R023C10 – –
CloudEngine 8800 CE8865-4C (02355RTB) V300R023C10 – –
CloudEngine 8800 CE8865-4C (02355RTC) V300R023C10 – –



CE88-D16CQ-H function and feature

Functions and Features CE88-D16CQ-H
Basic function The card provides data packet processing and traffic management on 16 x 100GE QSFP28 optical ports.
Port split Supported
Hot swapping Supported
Service port stacking Not supported
Show More Show Less
Item CE88-D10CQ-H
Typical power consumption [W] 39 W
Typical heat dissipation [BTU/hour] 133.1 BTU/hour
Static power consumption [W] 6 W
Static heat dissipation [BTU/hour] 20.5 BTU/hour
Maximum power consumption [W] 45 W
Maximum heat dissipation [BTU/hour] 153.5 BTU/hour
RTU License Supported

Yes.

By default, 10 x 100GE ports can only work at the rate of 100 Gbit/s. You can use the RTU license (part number: 88039CSY) to increase the rate of 100GE ports to 200 Gbit/s.
Dimensions without packaging (H x W x D) [mm (in.)] 41.7 mm x 206 mm x 173 mm (1.64 in. x 8.11 in. x 6.81 in.)
Dimensions with packaging (H x W x D) [mm (in.)] 110 mm x 310 mm x 293 mm (4.33 in. x 12.2 in. x 11.54 in.)
Weight without packaging [kg (lb)] 1.1 kg (2.43 lb)
Weight with packaging [kg (lb)] 1.43 kg (3.15 lb)

Additional information

Brand
Lead Time
Ship From
Warranty
Item CE88-D10CQ-H
Typical power consumption [W] 39 W
Typical heat dissipation [BTU/hour] 133.1 BTU/hour
Static power consumption [W] 6 W
Static heat dissipation [BTU/hour] 20.5 BTU/hour
Maximum power consumption [W] 45 W
Maximum heat dissipation [BTU/hour] 153.5 BTU/hour
RTU License Supported

Yes.

By default, 10 x 100GE ports can only work at the rate of 100 Gbit/s. You can use the RTU license (part number: 88039CSY) to increase the rate of 100GE ports to 200 Gbit/s.
Dimensions without packaging (H x W x D) [mm (in.)] 41.7 mm x 206 mm x 173 mm (1.64 in. x 8.11 in. x 6.81 in.)
Dimensions with packaging (H x W x D) [mm (in.)] 110 mm x 310 mm x 293 mm (4.33 in. x 12.2 in. x 11.54 in.)
Weight without packaging [kg (lb)] 1.1 kg (2.43 lb)
Weight with packaging [kg (lb)] 1.43 kg (3.15 lb)
