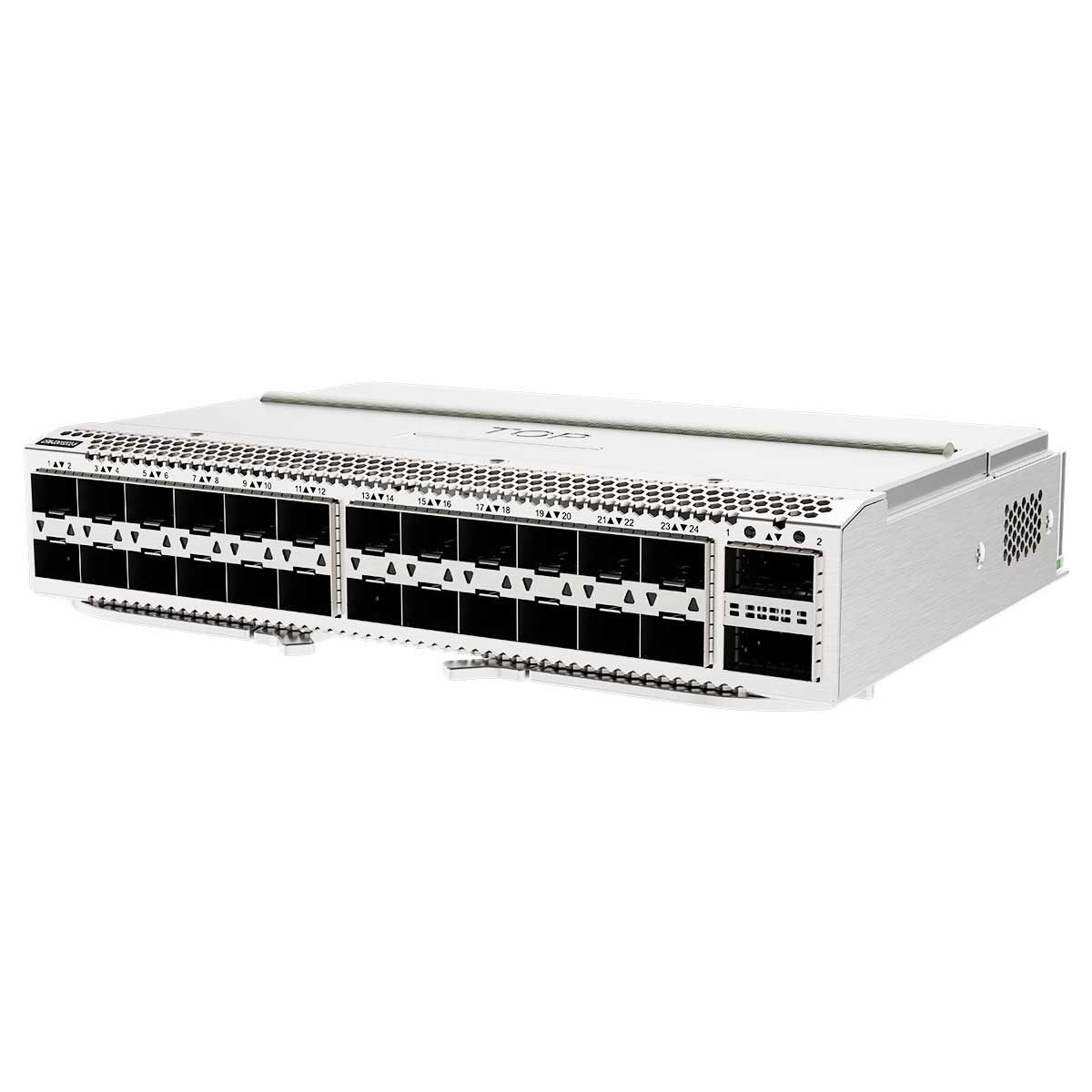

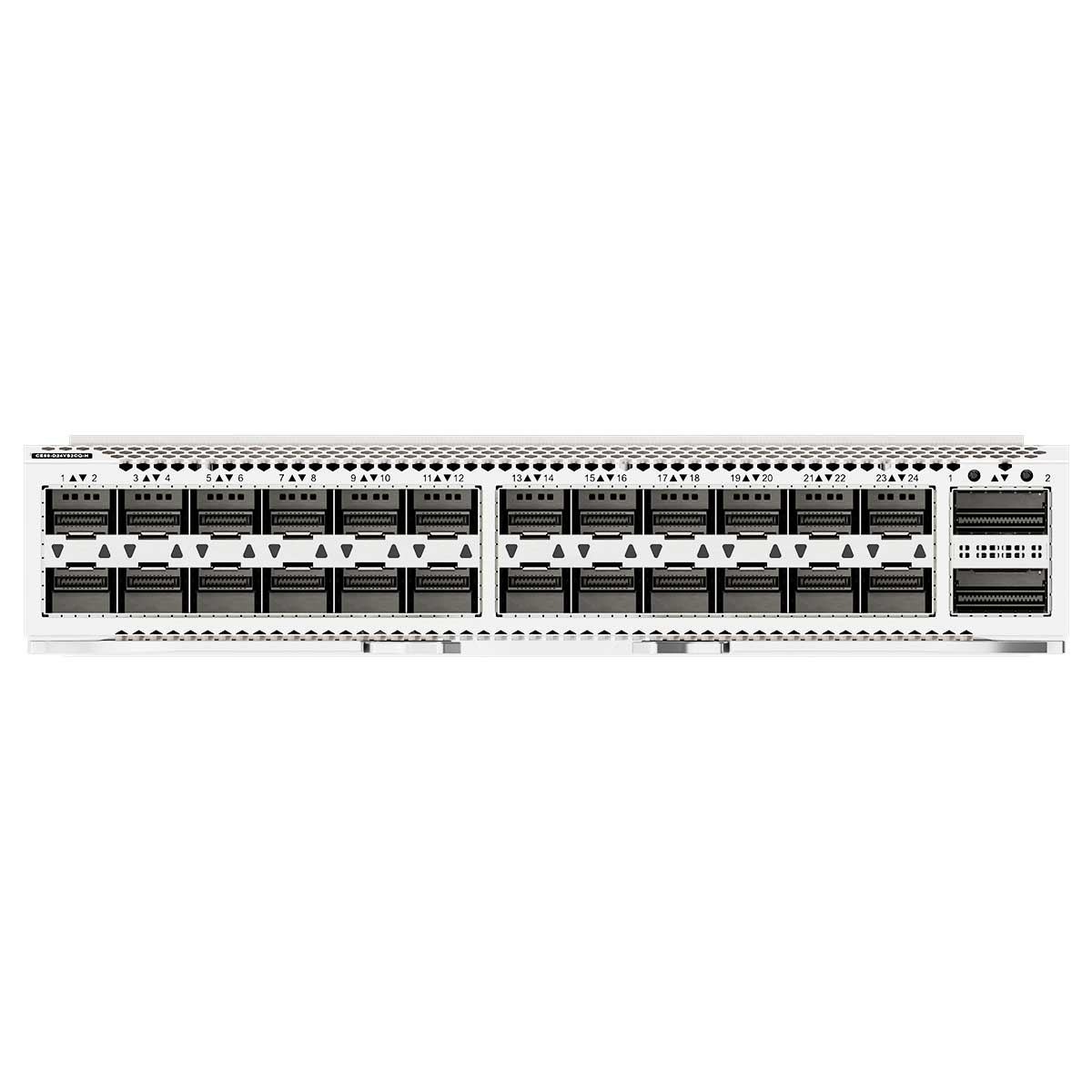

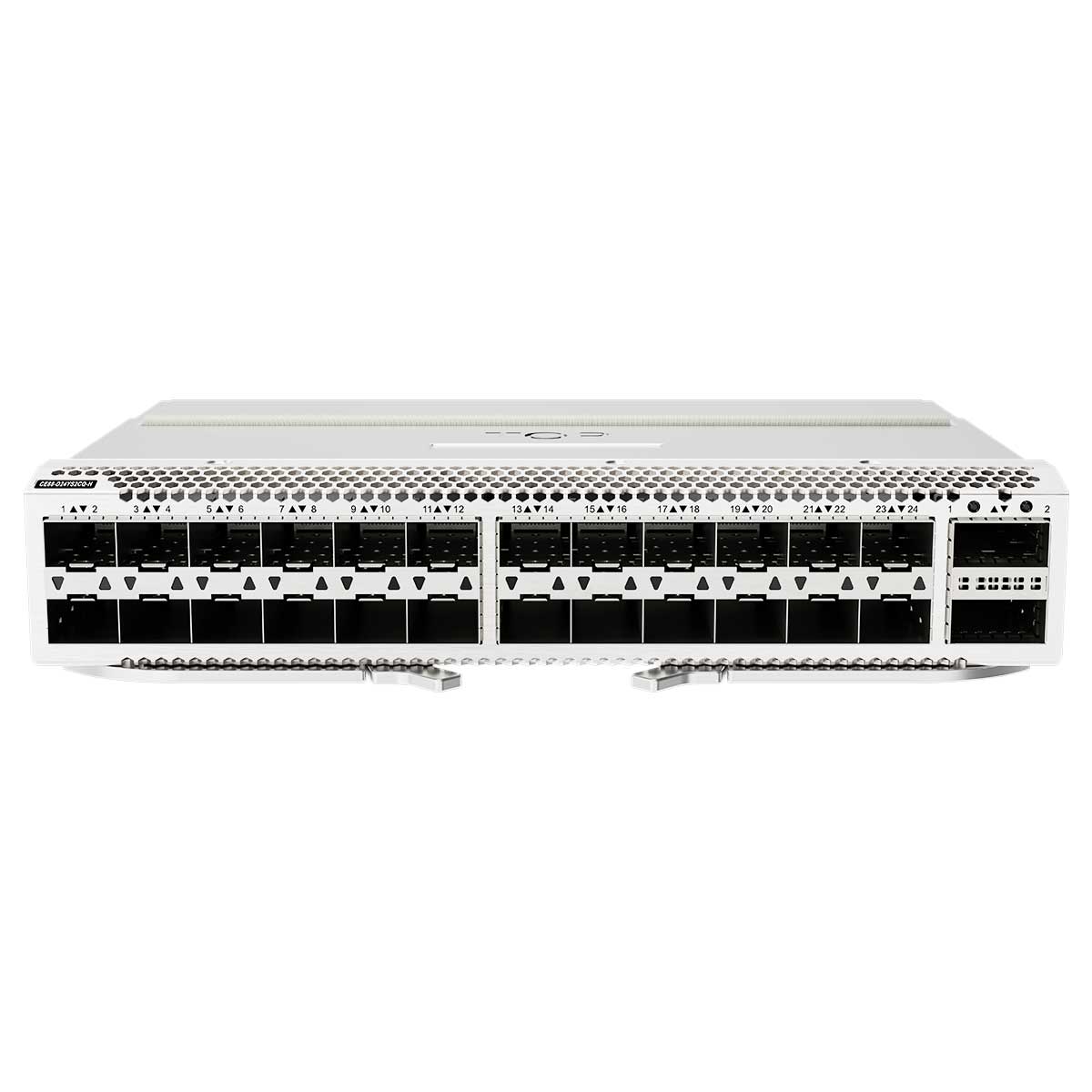

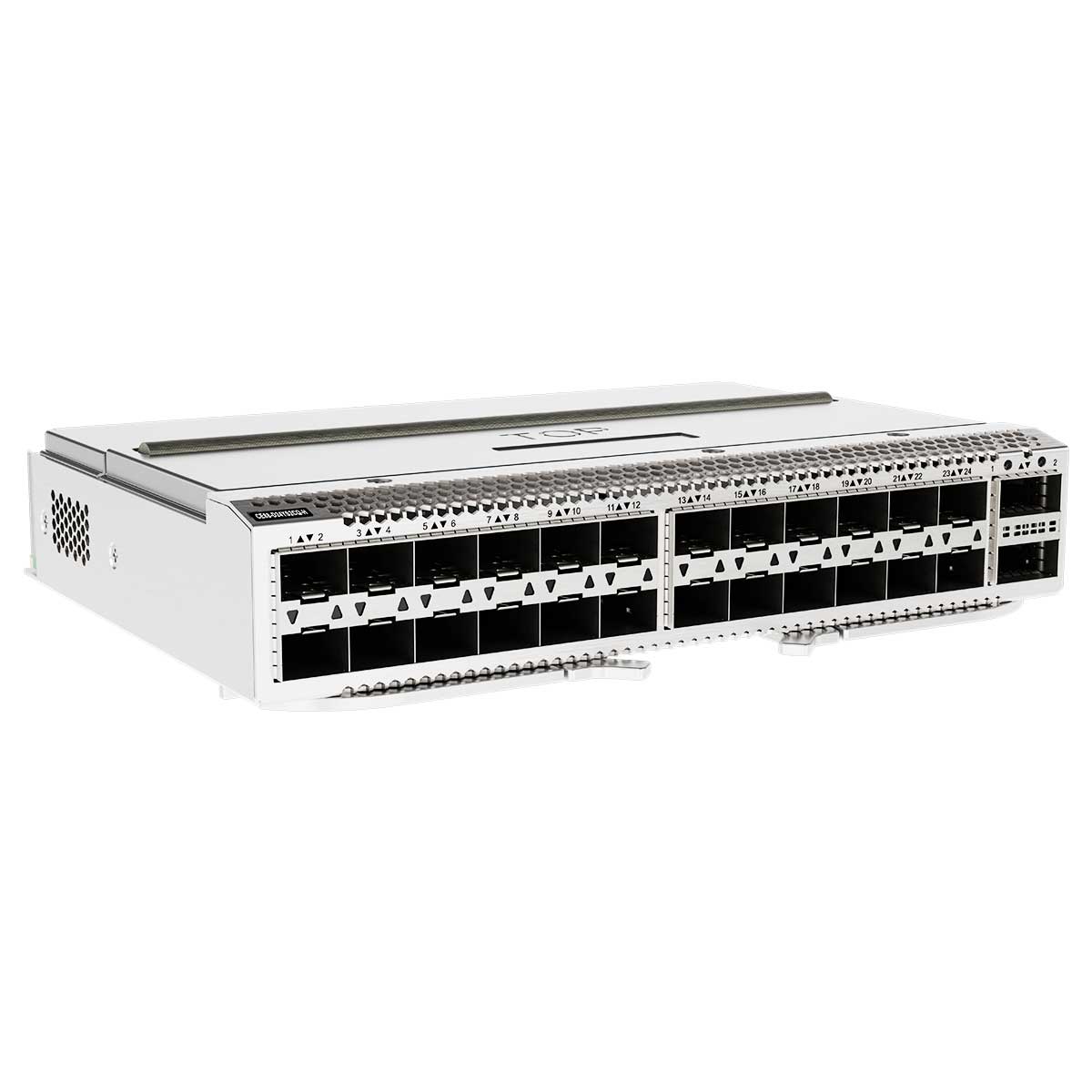

CE88-D24YS2CQ Huawei CE8800 switch supports 4-Port 10GE/25GE (SFP28) and 2-Port 40GE/100GE (QSFP28) Interface Card

Description

CE88-D24YS2CQ overview



CE88-D24YS2CQ-H Huawei CE8800 switch supports 4-Port 10GE/25GE (SFP28) and 2-Port 40GE/100GE (QSFP28) Interface Card



CE88-D24YS2CQ Version mapping

Switch Model CE88-D24S2CQ
CE7800, CE6800, and CE5800 series switches and the CE8850EI Not supported
CE8860-4C-EI Supported in V100R006C00 and later versions
CE8861-4C-EI

CE8868-4C-EI

Supported in V200R005C10 and later versions

NOTE:

  • By default, the 25GE interfaces on the CE88-D24S2CQ subcard of the CE8868EI work at the rate of 10 Gbit/s. After the license is loaded, you can run the undo port mode 10g command to set the interface to work at the rate of 25 Gbit/s. To use the 25GE interfaces on these subcards of the CE8868EI, apply for and purchase the license from the equipment supplier.
  • For the CE8868EI, after the above license is loaded, you need to run the active card-license command to enable the corresponding license in the specified subcard slot. The CE8868EI has four subcard slots. You can purchase licenses based on the number of required subcard slots.



CE88-D24S2CQ function and feature

Function and Feature CE88-D24YS2CQ
Basic function Provides data packet processing and traffic management on 24 10GE/25GE SFP28 optical ports and 2 40GE/100GE QSFP28 optical ports.
Port split Each QSFP28 optical port can be split into four 25GE ports or four 10GE ports. Such 25GE or 10GE ports cannot work at 1 Gbit/s.
Hot swap Supported
Service port stacking Ports on the card can be used as stack ports.

NOTE:

SFP28 ports that have GE copper modules, GE optical modules, 10GE optical modules, 10GE high-speed cables, or 10GE AOC cables installed cannot be used for stack connections.

Item CE88-D24YS2CQ
Physical specifications
  • Dimensions (W x D x H): 210.0 mm x 205.2 mm x 41.8 mm (8.3 in. x 8.1 in. x 1.6 in.)
  • Weight: 1.4 kg (3.09 lb)
  • Typical power consumption: 43 W
  • Maximum power consumption: 71 W
  • Typical heat dissipation: 147 BTU/hr
  • Maximum heat dissipation: 243 BTU/hr
Environment parameters
  • Operating temperature: 0°C to 40°C (32°F to 104°F)
  • Relative humidity: 5% RH to 95% RH
  • Storage temperature: -40°C to +70°C (-40°F to +158°F)

Additional information

Item CE88-D24YS2CQ
Physical specifications
  • Dimensions (W x D x H): 210.0 mm x 205.2 mm x 41.8 mm (8.3 in. x 8.1 in. x 1.6 in.)
  • Weight: 1.4 kg (3.09 lb)
  • Typical power consumption: 43 W
  • Maximum power consumption: 71 W
  • Typical heat dissipation: 147 BTU/hr
  • Maximum heat dissipation: 243 BTU/hr
Environment parameters
  • Operating temperature: 0°C to 40°C (32°F to 104°F)
  • Relative humidity: 5% RH to 95% RH
  • Storage temperature: -40°C to +70°C (-40°F to +158°F)
