CE88-SAN-D16CQ-H

0 Reviews Write a review
PN03035BWB
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Huawei CE88-SAN-D16CQ-H supports CE8865-SAN:16 Port 100GE QSFP28 Interface Card(CM)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

CE88-SAN-D16CQ-H overview



CE88-SAN-D16CQ-H CE8865-SAN:16 Port 100GE QSFP28 Interface Card(CM) applied to CloudEngine 8800 and 6800 Series Switches.

Huawei CloudEngine 6800 series switches are next-generation Ethernet switches designed for data centers and high-end campus networks, providing high-performance and high port density. CloudEngine 6800 series switches have an advanced hardware architecture design with high-density of 25GE/50GE access ports, provide 100GE/200GE uplink ports, and support extensive data center service features. Huawei CloudEngine 8800 series switches are next-generation Ethernet switches designed for data centers and high-end campus networks, providing high-performance. CloudEngine 8800 series switches have an advanced hardware architecture design with high-density of 100GE/200GE/400GE access ports, and support extensive data center service features.

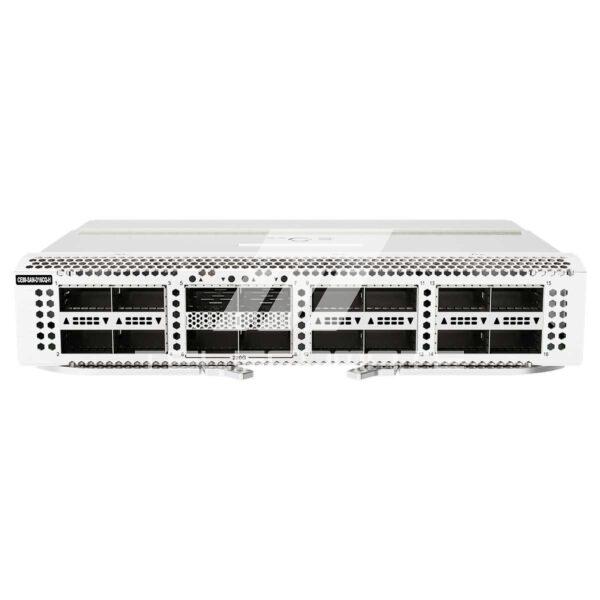

Front panel of the CE88-SAN-D16CQ-H board

CE88 SAN D16CQ H 2

1. Service port indicator (100GE optical port)



Mappings between CE88-SAN-D16CQ-H and product models

Product Product Model First Supported Version Last Supported Version Unsupported Version
CloudEngine 8800 CE8865-SAN-4C (02355SDP) V300R023C10 – –
CloudEngine 8800 CE8865-SAN-4C (02355SDQ) V300R023C10 – –
CloudEngine 8800 CE8865-SAN-4C (02355SDR) V300R023C10 – –
Show More Show Less
Item CE88-SAN-D16CQ-H
Basic function The card provides data packet processing and traffic management on 16 x 100GE QSFP28 optical ports.
Port split Supported
Hot swapping Supported
Service port stacking Not supported
Typical power consumption [W] 149 W
Typical heat dissipation [BTU/hour] 508.4 BTU/hour
Static power consumption [W] 79 W
Static heat dissipation [BTU/hour] 269.5 BTU/hour
Maximum power consumption [W] 209 W
Maximum heat dissipation [BTU/hour] 713.1 BTU/hour
RTU License Supported Yes. By default, 16 x 100GE ports can only work at the rate of 100 Gbit/s. You can use the RTU license (part number: 88039CSY) to increase the rate of 100GE ports 5 to 8 to 200 Gbit/s.
Dimensions without packaging (H x W x D) [mm (in.)] 41.7 mm x 206 mm x 173 mm (1.64 in. x 8.11 in. x 6.81 in.)
Dimensions with packaging (H x W x D) [mm (in.)] 110 mm x 310 mm x 293 mm (4.33 in. x 12.2 in. x 11.54 in.)
Weight without packaging [kg (lb)] 1.3 kg (2.87 lb)
Weight with packaging [kg (lb)] 1.63 kg (3.59 lb)

Additional information

Item CE88-SAN-D16CQ-H
Basic function The card provides data packet processing and traffic management on 16 x 100GE QSFP28 optical ports.
Port split Supported
Hot swapping Supported
Service port stacking Not supported
Typical power consumption [W] 149 W
Typical heat dissipation [BTU/hour] 508.4 BTU/hour
Static power consumption [W] 79 W
Static heat dissipation [BTU/hour] 269.5 BTU/hour
Maximum power consumption [W] 209 W
Maximum heat dissipation [BTU/hour] 713.1 BTU/hour
RTU License Supported Yes. By default, 16 x 100GE ports can only work at the rate of 100 Gbit/s. You can use the RTU license (part number: 88039CSY) to increase the rate of 100GE ports 5 to 8 to 200 Gbit/s.
Dimensions without packaging (H x W x D) [mm (in.)] 41.7 mm x 206 mm x 173 mm (1.64 in. x 8.11 in. x 6.81 in.)
Dimensions with packaging (H x W x D) [mm (in.)] 110 mm x 310 mm x 293 mm (4.33 in. x 12.2 in. x 11.54 in.)
Weight without packaging [kg (lb)] 1.3 kg (2.87 lb)
Weight with packaging [kg (lb)] 1.63 kg (3.59 lb)
