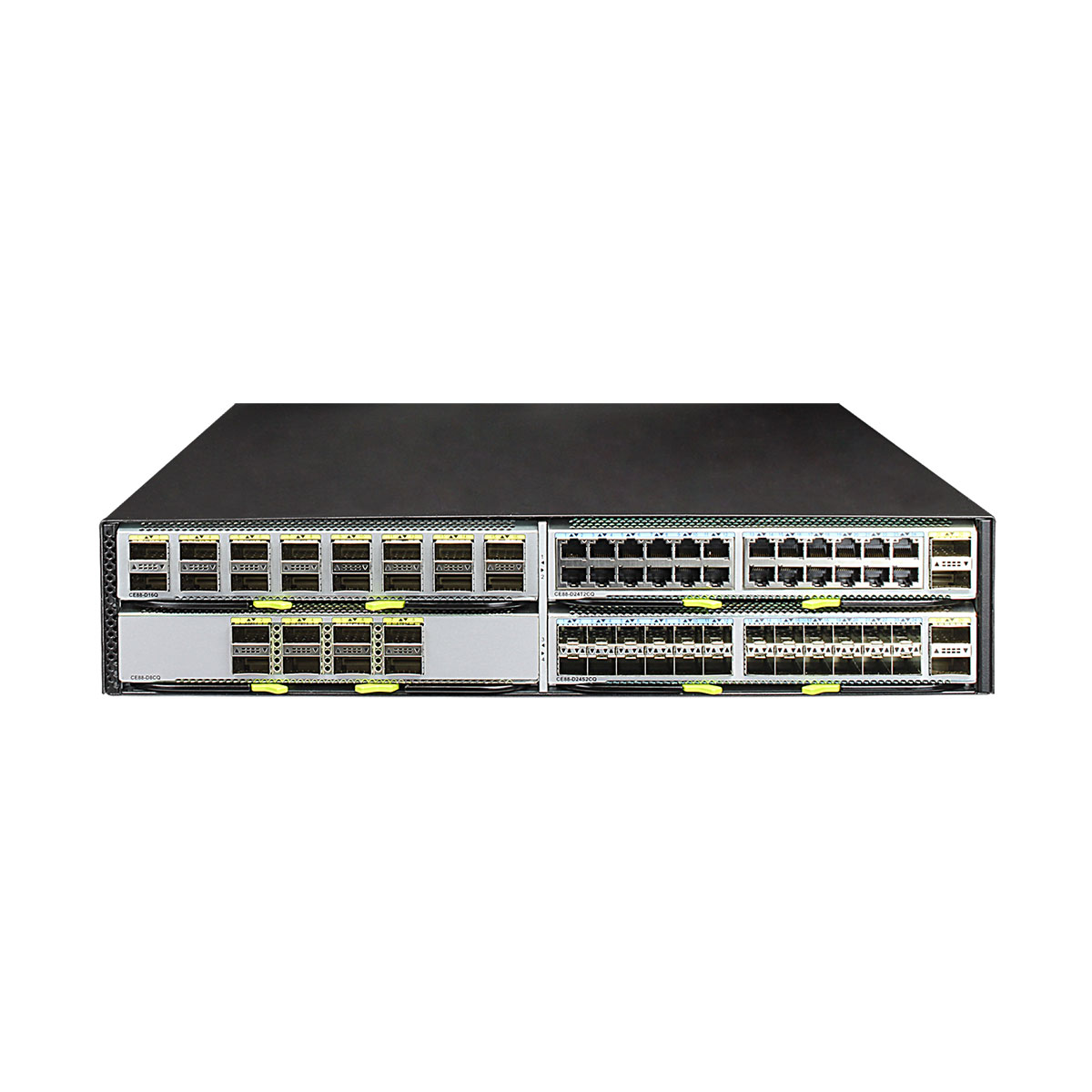

CE8868 4C EI 1

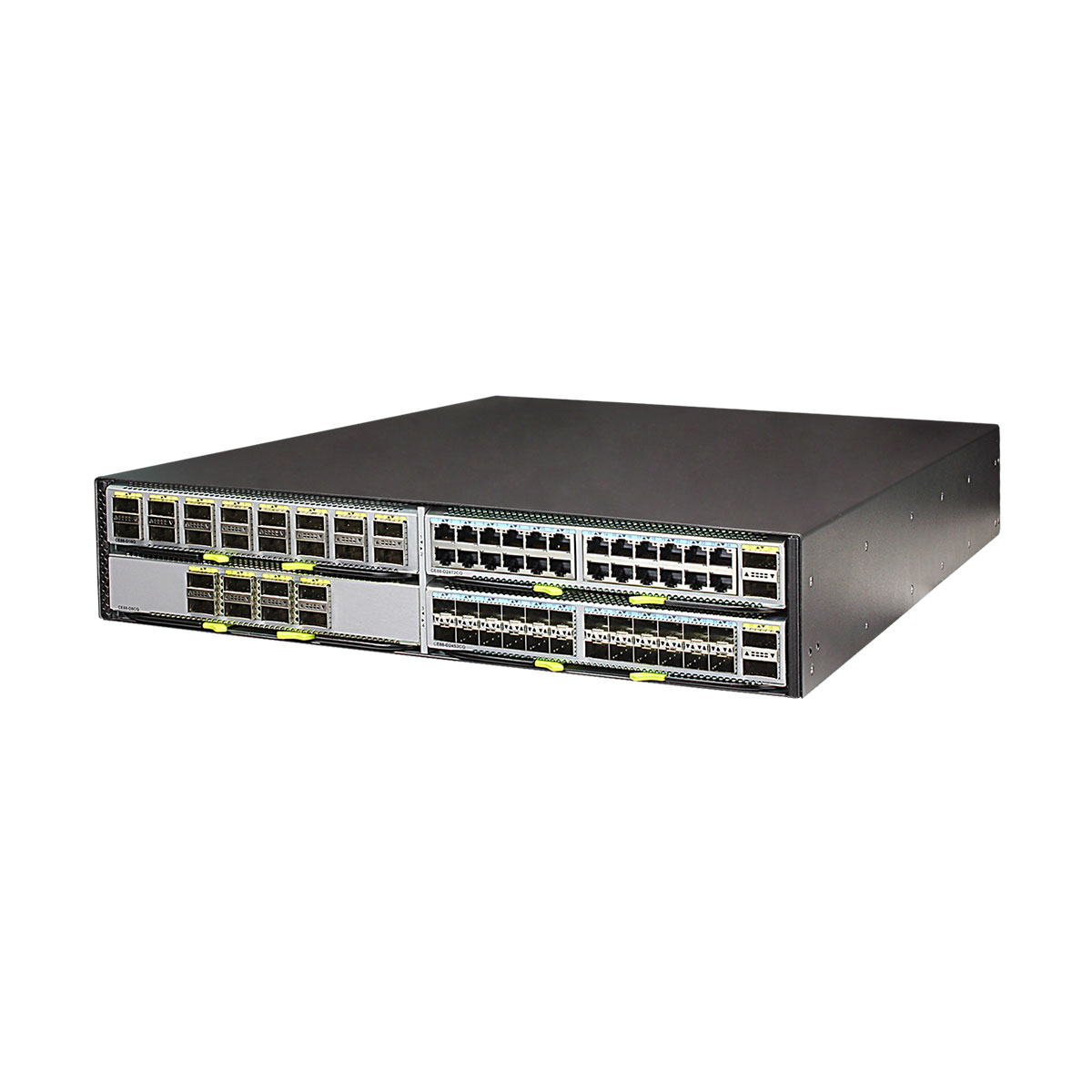

CE8868-4C-EI-2

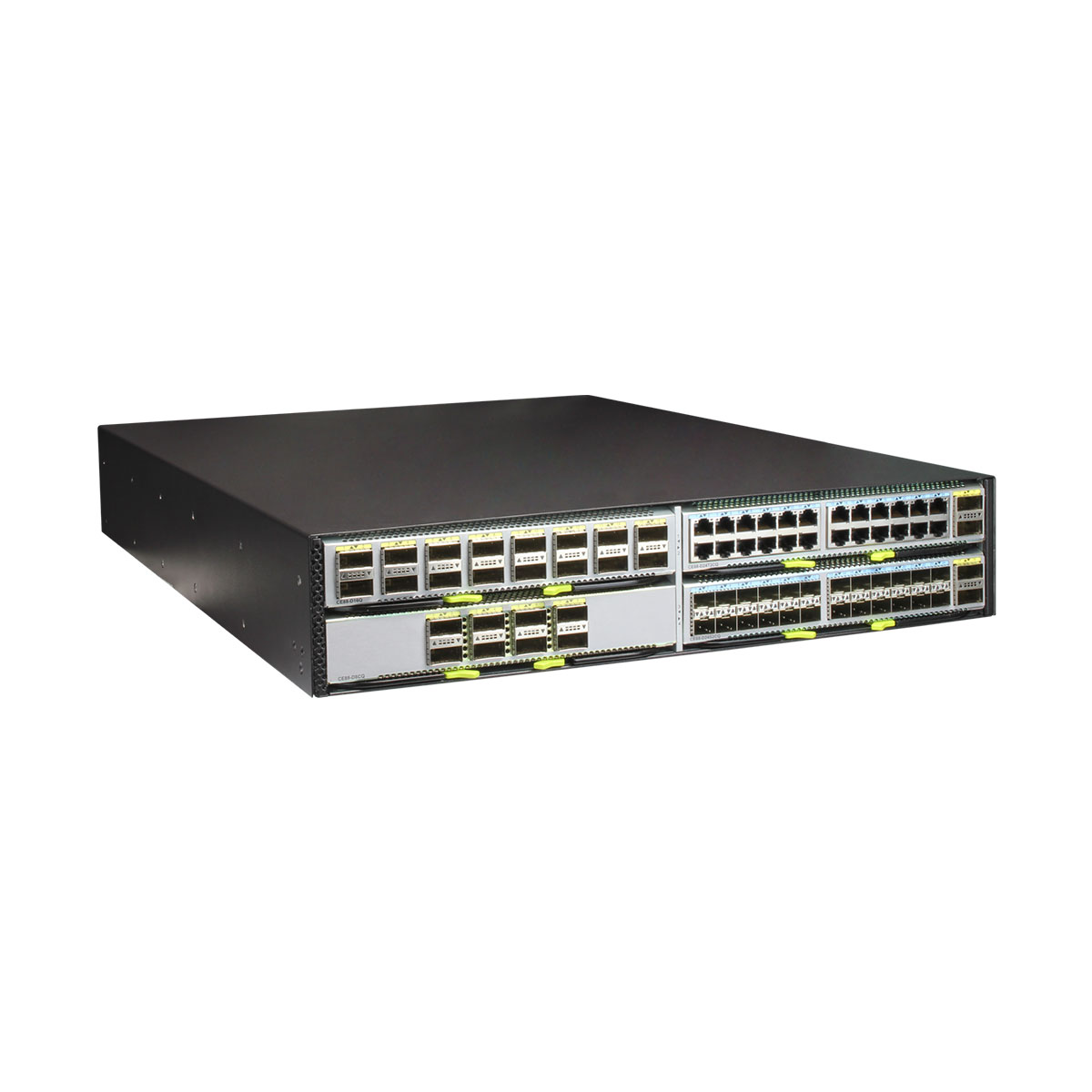

CE8868-4C-EI-3
CE8868-4C-EI-4
Categories:

CE8868-4C-EI

0 Reviews Write a review
PN02352CHJ
Brands
AvailabilityIn Stock
CE Switch CE8800
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

CE8868-4C-EI Huawei CE8800 switch supports 64*40GE QSFP+, 32*100GE QSFP28

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

CE8868-4C-EI overview

CE8861-4C-EI Huawei CE8800 switch supports 64*40GE QSFP+, 32*100GE QSFP28

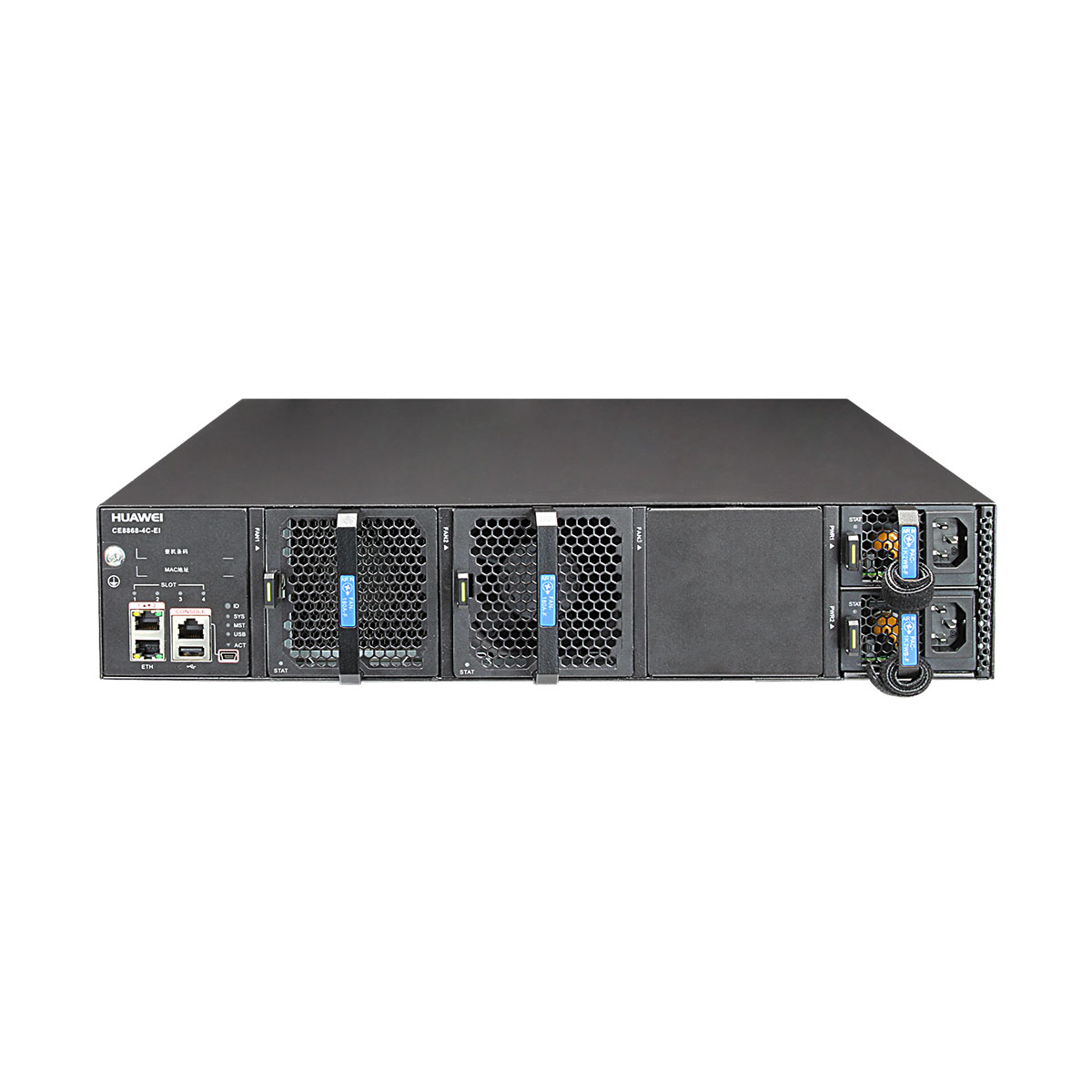

CE8868-4C-EI appearance

CE8868-4C-EI

1 Ground screw 2 Two ETH management ports (RJ45)
3 ESN and MAC address label 4 Console port
5 USB port 6 Mini USB port
7 Fan slot 1 8 Fan slot 2
9 Power supply slot 1 10 Power supply slot 2
11 Extended card slot 1 12 Extended card slot 2
13 Extended card slot 3 14 Extended card slot 4
15 Mounting holes for mounting brackets – –
CE8868-4C-EI application
Device Series Sub-series Device Model Short Name Supported Version
CE8800 CE8868 CE8868-4C-EI CE8868EI V200R005C10 to V200R021C00

NOTE:

This model is not supported in V200R005C20 and V200R020C00.



Show More Show Less
Item CE8868-4C-EI
Temperature
  • Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.)
  • Storage temperature: -40°C to +70°C (-40°F to +158°F)
Relative humidity 5% RH to 95% RH, noncondensing
Altitude < 5000 m (16404 ft.)
Noise (sound pressure, 27°C)
  • Back-to-front airflow: < 58 dBA
  • Front-to-back airflow: < 56 dBA
Power source type AC/DC/high-voltage DC
AC power input
  • Rated input voltage range: 100 V AC to 130 V AC/200 V AC to 240 V AC, 50/60 Hz
  • Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
DC power input
  • Rated voltage range: -48 V DC to -60 V DC
  • Maximum voltage range: -38.4 V DC to -72 V DC
High-voltage DC power input
  • Rated voltage of 240 V high-voltage DC power input: 240 V DC
  • Maximum voltage range of 240 V high-voltage DC power input: 188 V DC to 290 V DC
  • Rated voltage range of 380 V high-voltage DC power input: 240 V DC to 380 V DC
  • Maximum voltage range of 380 V high-voltage DC power input: 188 V DC to 400 V DC
Rated input current
  • 1200 W AC&240 V DC power module (PAC-1K2WA series): 10 A (100 V AC to 130 V AC)/8 A (200 V AC to 240 V AC)/8 A (240 V DC)
  • 1200 W high-voltage DC power module (PHD-1K2WA series): 8 A (240 V DC to 380 V DC)

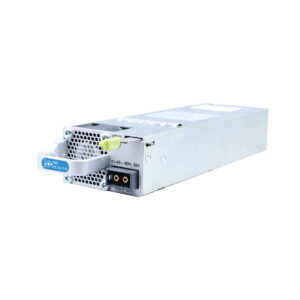

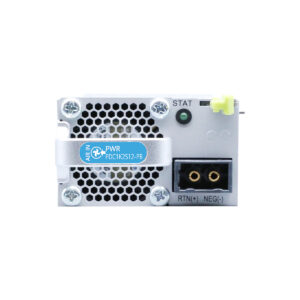

  • 1200 W DC power (PDC-1K2WA series): 38 A (-48 V DC to -60 V DC)
Surge protection Power module:
  • AC: 4 kV in common mode and 2.5 kV in differential mode
  • DC: 4 kV in common mode and 2 kV in differential mode
Power module backup 1+1 backup
Fan module backup Two fan modules, working in 1+1 backup mode when the temperature is below 35°C
Hot swap Supported by all power modules and fan modules
Mean time between failures (MTBF) 36.02 years
Mean time to repair (MTTR) 1.87 hours
Availability 0.9999940608
Processor 1.5 GHz, eight-core
DRAM Memory 4 GB
NOR Flash 32 MB
NAND Flash 2 GB
Physical specifications
  • Dimensions (W x D x H): 442.0 mm x 600.0 mm x 88.1 mm (17.4 in. x 23.6 in. x 3.47 in.)
  • Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 21.3 kg

Additional information

Brand

Huawei
CE Switch

Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item CE8868-4C-EI
Temperature
  • Operating temperature: 0°C to 40°C (32°F to 104°F) at altitude of 0-1800 m (0-5906 ft.)
  • Storage temperature: -40°C to +70°C (-40°F to +158°F)
Relative humidity 5% RH to 95% RH, noncondensing
Altitude < 5000 m (16404 ft.)
Noise (sound pressure, 27°C)
  • Back-to-front airflow: < 58 dBA
  • Front-to-back airflow: < 56 dBA
Power source type AC/DC/high-voltage DC
AC power input
  • Rated input voltage range: 100 V AC to 130 V AC/200 V AC to 240 V AC, 50/60 Hz
  • Maximum input voltage range: 90 V AC to 290 V AC, 47 Hz to 63 Hz
DC power input
  • Rated voltage range: -48 V DC to -60 V DC
  • Maximum voltage range: -38.4 V DC to -72 V DC
High-voltage DC power input
  • Rated voltage of 240 V high-voltage DC power input: 240 V DC
  • Maximum voltage range of 240 V high-voltage DC power input: 188 V DC to 290 V DC
  • Rated voltage range of 380 V high-voltage DC power input: 240 V DC to 380 V DC
  • Maximum voltage range of 380 V high-voltage DC power input: 188 V DC to 400 V DC
Rated input current
  • 1200 W AC&240 V DC power module (PAC-1K2WA series): 10 A (100 V AC to 130 V AC)/8 A (200 V AC to 240 V AC)/8 A (240 V DC)
  • 1200 W high-voltage DC power module (PHD-1K2WA series): 8 A (240 V DC to 380 V DC)
  • 1200 W DC power (PDC-1K2WA series): 38 A (-48 V DC to -60 V DC)
Surge protection Power module:
  • AC: 4 kV in common mode and 2.5 kV in differential mode
  • DC: 4 kV in common mode and 2 kV in differential mode
Power module backup 1+1 backup
Fan module backup Two fan modules, working in 1+1 backup mode when the temperature is below 35°C
Hot swap Supported by all power modules and fan modules
Mean time between failures (MTBF) 36.02 years
Mean time to repair (MTTR) 1.87 hours
Availability 0.9999940608
Processor 1.5 GHz, eight-core
DRAM Memory 4 GB
NOR Flash 32 MB
NAND Flash 2 GB
Physical specifications
  • Dimensions (W x D x H): 442.0 mm x 600.0 mm x 88.1 mm (17.4 in. x 23.6 in. x 3.47 in.)
  • Weight (with two power modules and two fan modules, calculated based on the heaviest model if multiple models are supported): 21.3 kg
