CE98-D8DQ Huawei CE5800 CE6800 CE8800 CE9800 Series 8 Port 400GE QSFP-DD Interface Card

Description

CE98-D8DQ card overview

CE98-D8DQ Huawei CE5800 CE6800 CE8800 CE9800 Series 8 Port 400GE QSFP-DD Interface Card

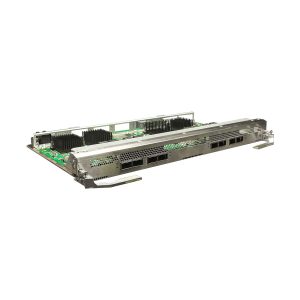

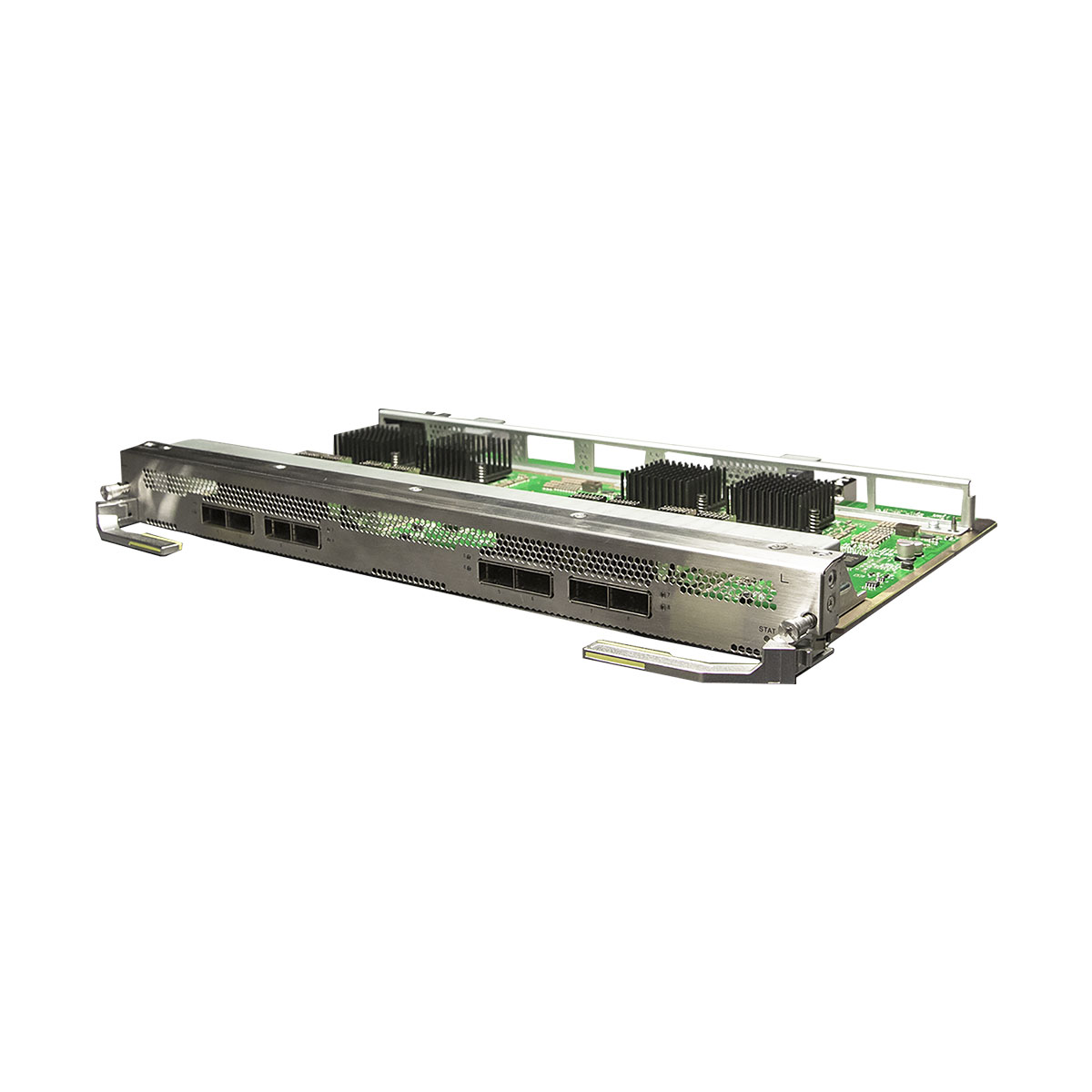

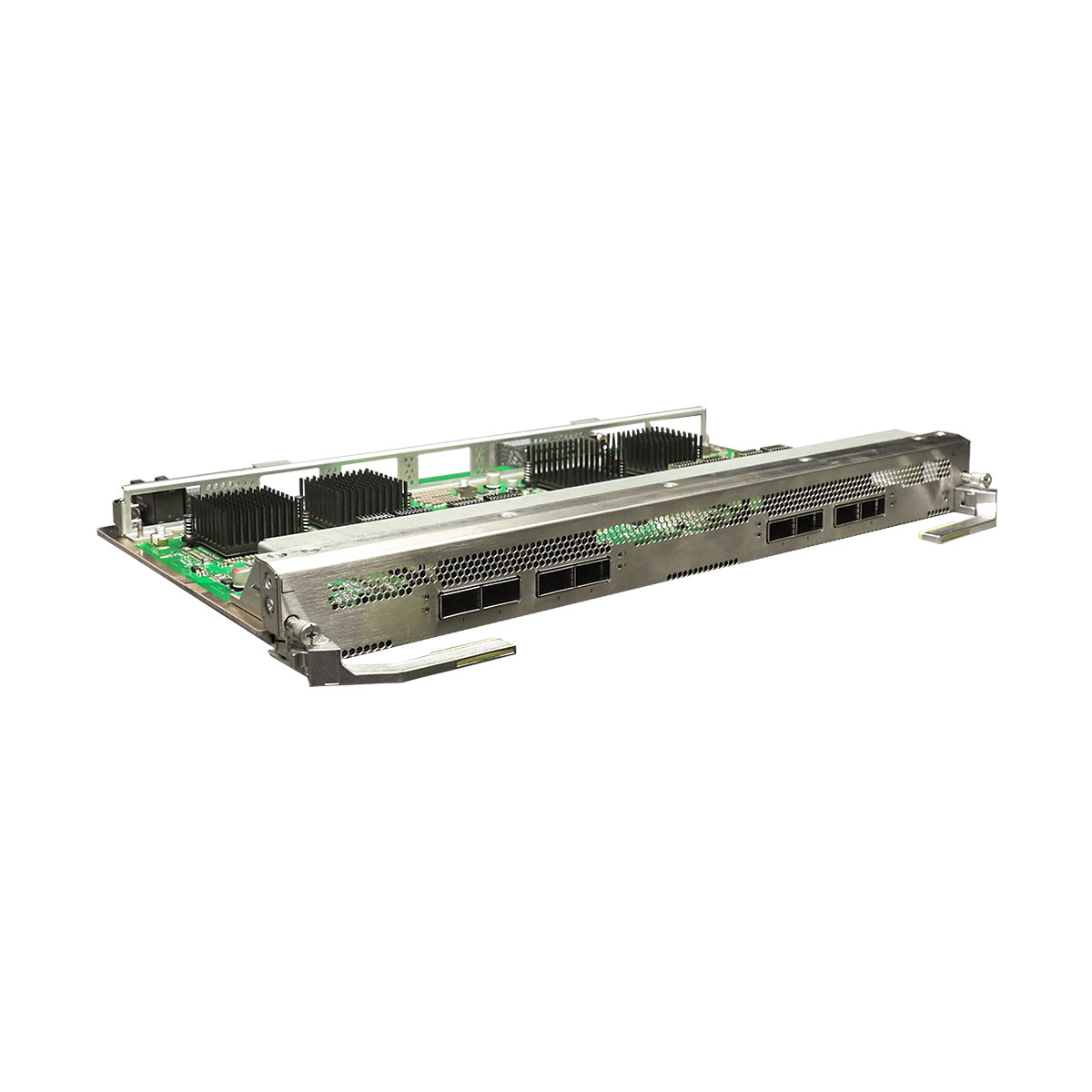

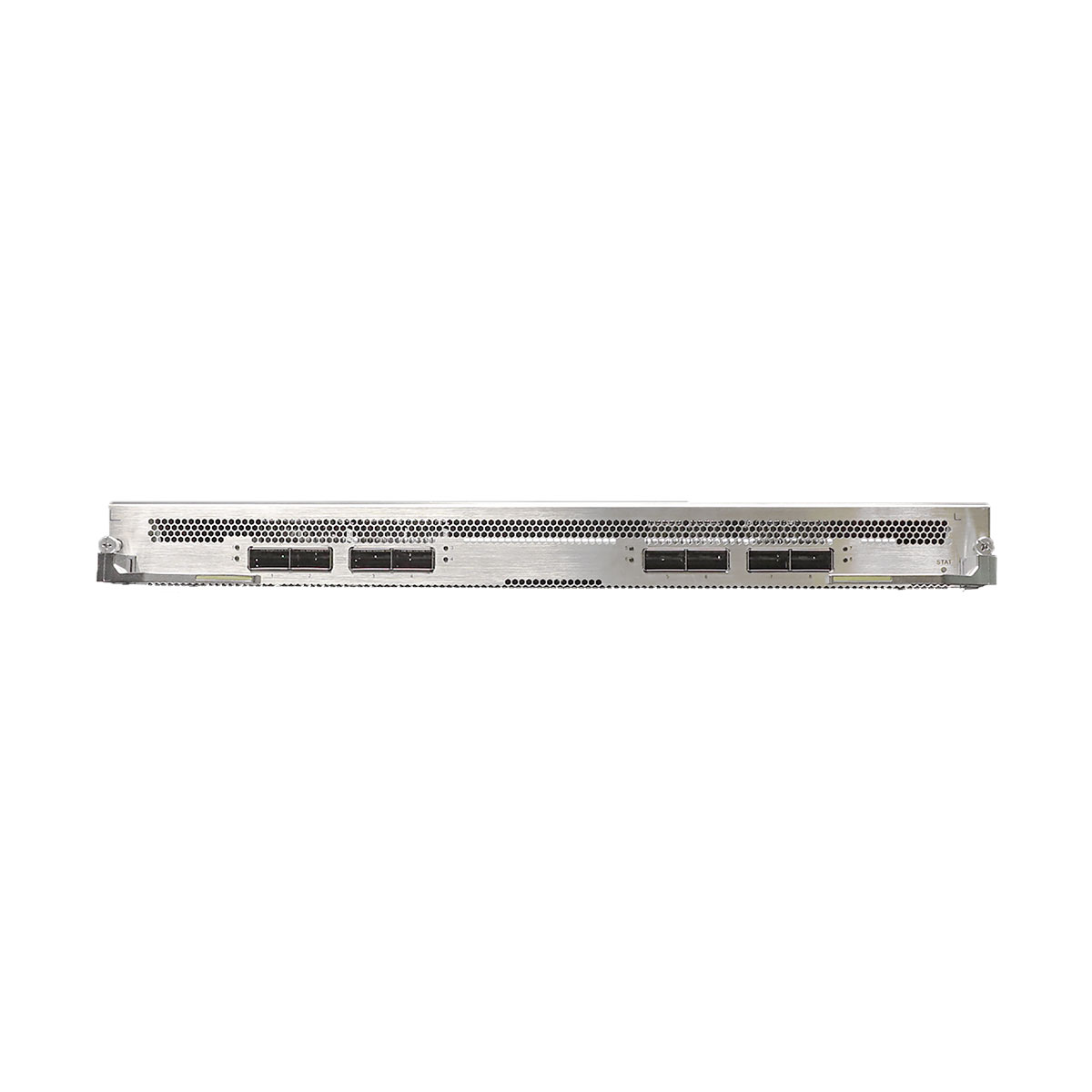

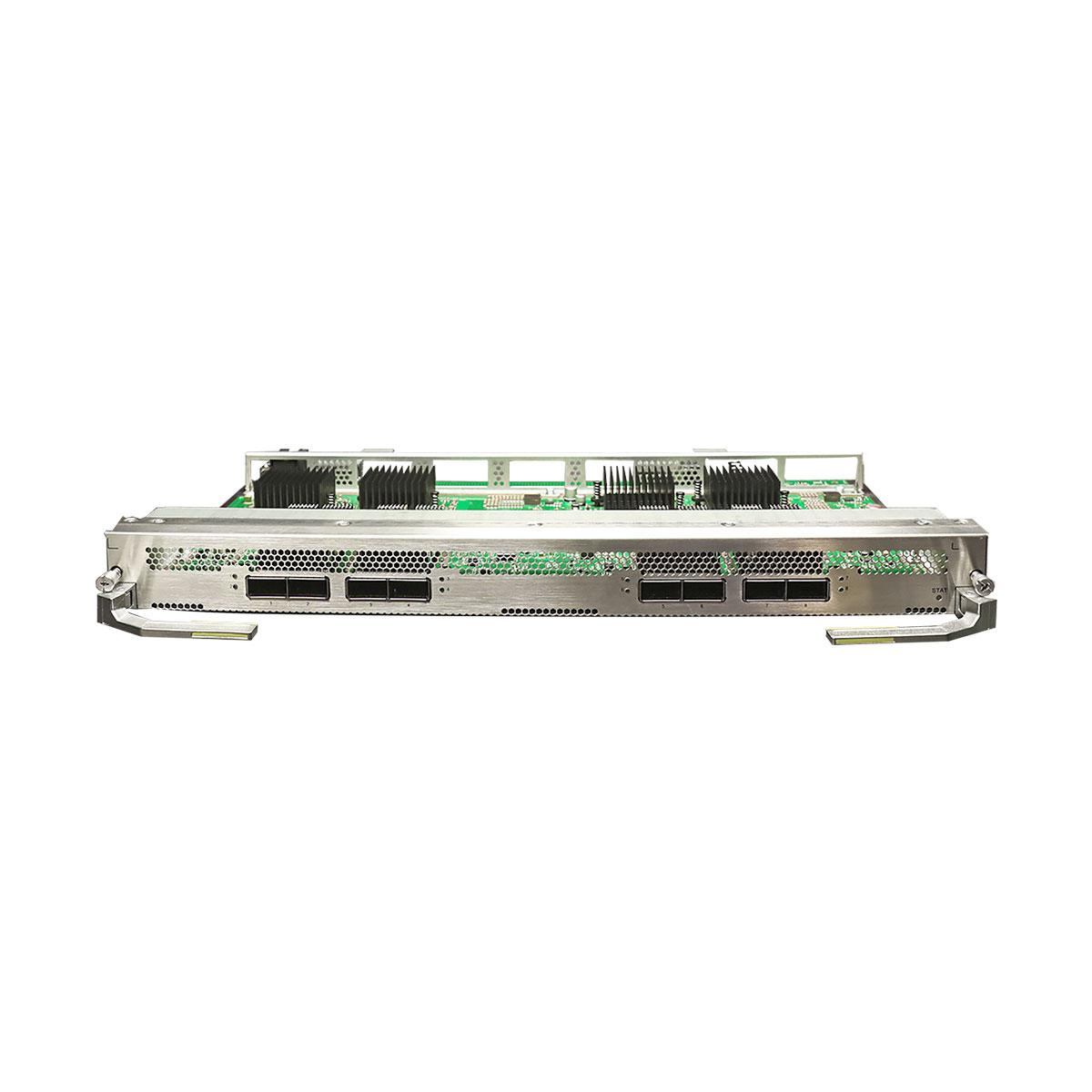

CE98-D8DQ appearance

CE98-D8DQ



CE98-D8DQ function and feature
Functions and Features CE98-D8DQ
Basic function Provides data packet processing and traffic management on 8 400GE QSFP-DD optical ports.
Port split Not supported
Hot swap Supported
Service port stacking Not supported
Item CE98-D8DQ
Dimensions without packaging (H x W x D) [mm (in.)] 40.1 mm x 410.8 mm x 265.6 mm (16.2 in. x 10.5 in. x 1.6 in.)
Weight without packaging [kg (lb)] 2.5 kg (5.51 lb)
Weight with packaging [kg (lb)] 3.8 kg (8.38 lb)
Typical power consumption [W] 198 W
Typical heat dissipation [BTU/hour] 676 BTU/hour
Static power consumption [W] 87 W
Static heat dissipation [BTU/hour] 297 BTU/hour
Maximum power consumption [W] 238 W
Maximum heat dissipation [BTU/hour] 812 BTU/hour

Additional information

Brand

Huawei

CE Switch

Lead Time

3-5 days

Ship From

Shenzhen Warehouse

Item CE98-D8DQ
Dimensions without packaging (H x W x D) [mm (in.)] 40.1 mm x 410.8 mm x 265.6 mm (16.2 in. x 10.5 in. x 1.6 in.)
Weight without packaging [kg (lb)] 2.5 kg (5.51 lb)
Weight with packaging [kg (lb)] 3.8 kg (8.38 lb)
Typical power consumption [W] 198 W
Typical heat dissipation [BTU/hour] 676 BTU/hour
Static power consumption [W] 87 W
Static heat dissipation [BTU/hour] 297 BTU/hour
Maximum power consumption [W] 238 W
Maximum heat dissipation [BTU/hour] 812 BTU/hour
