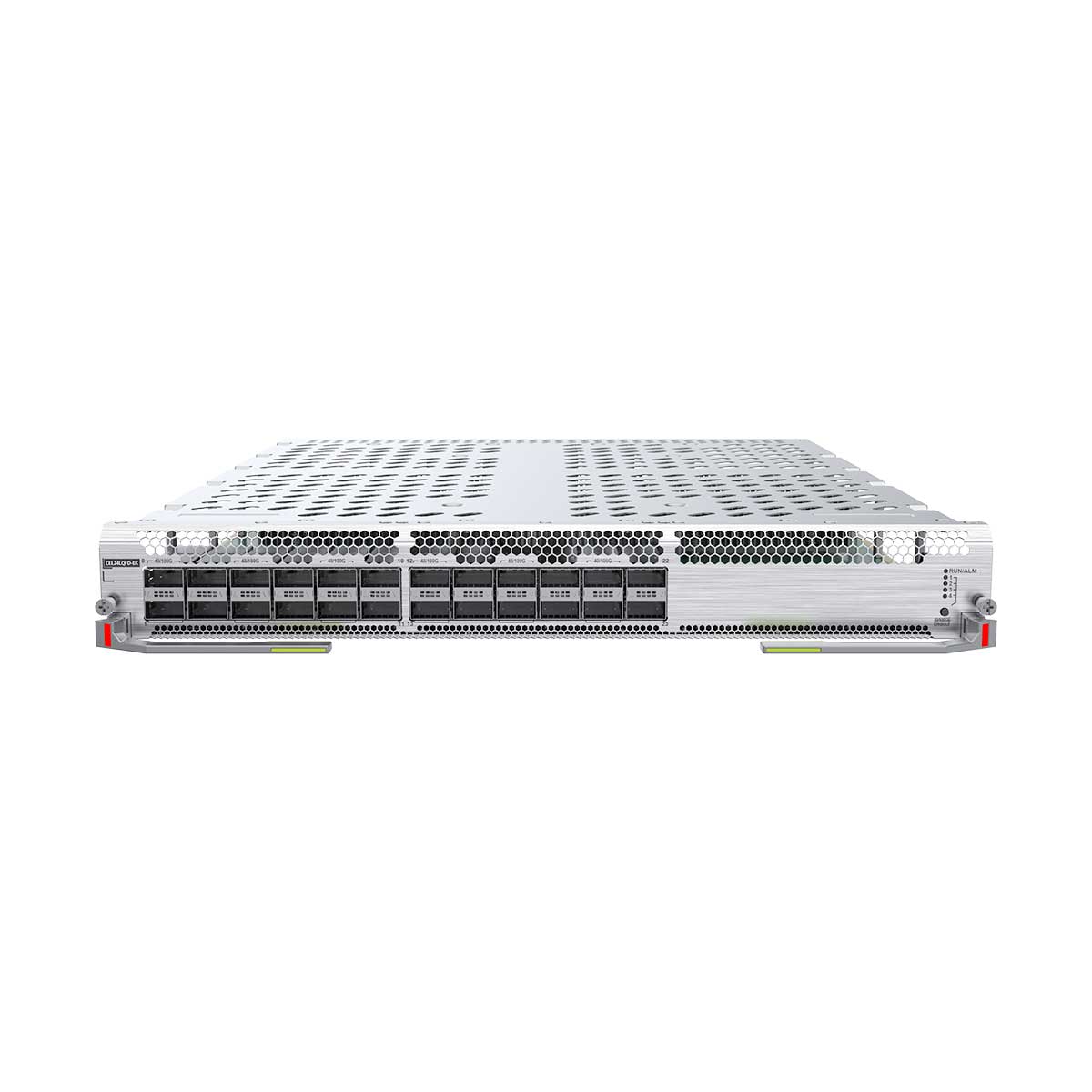

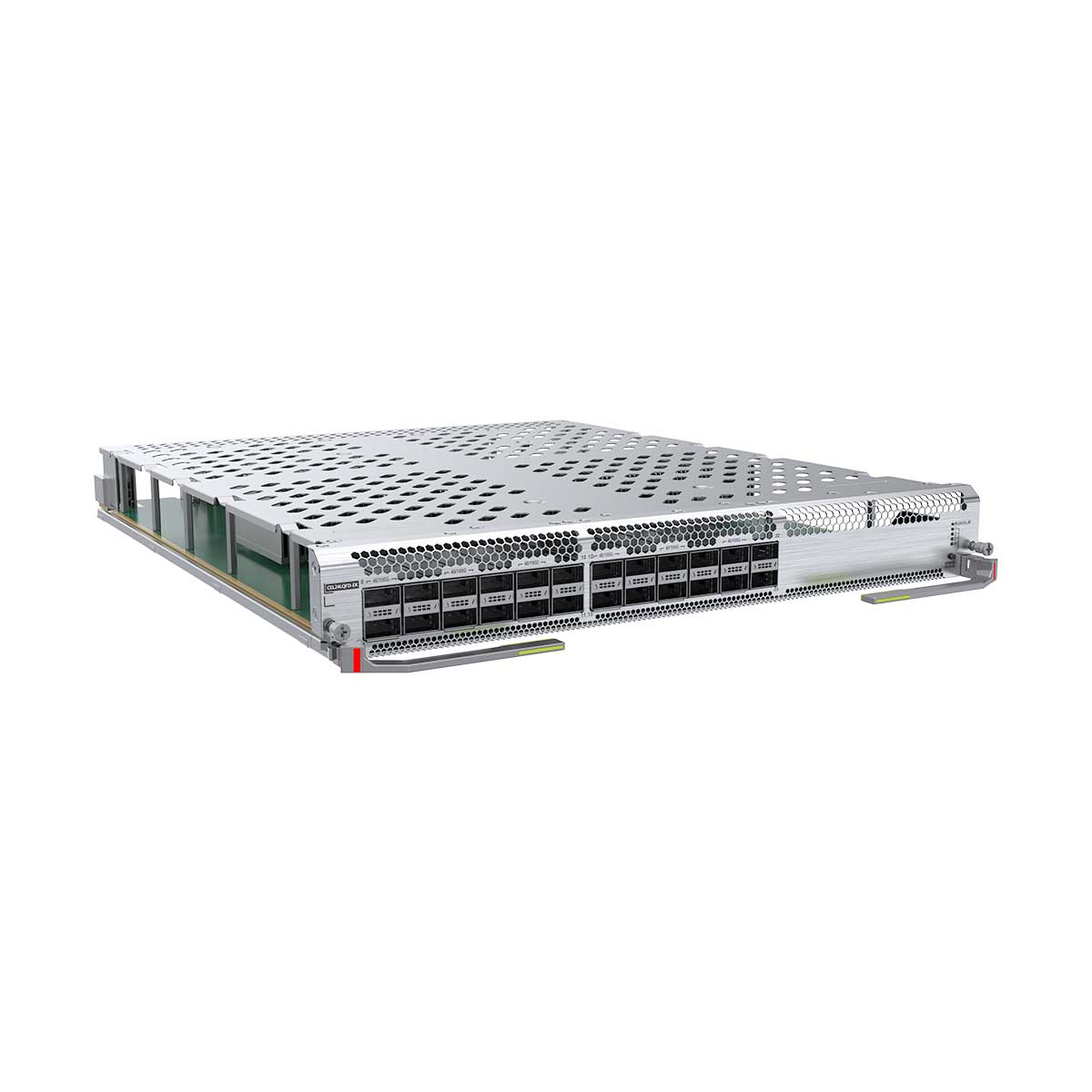

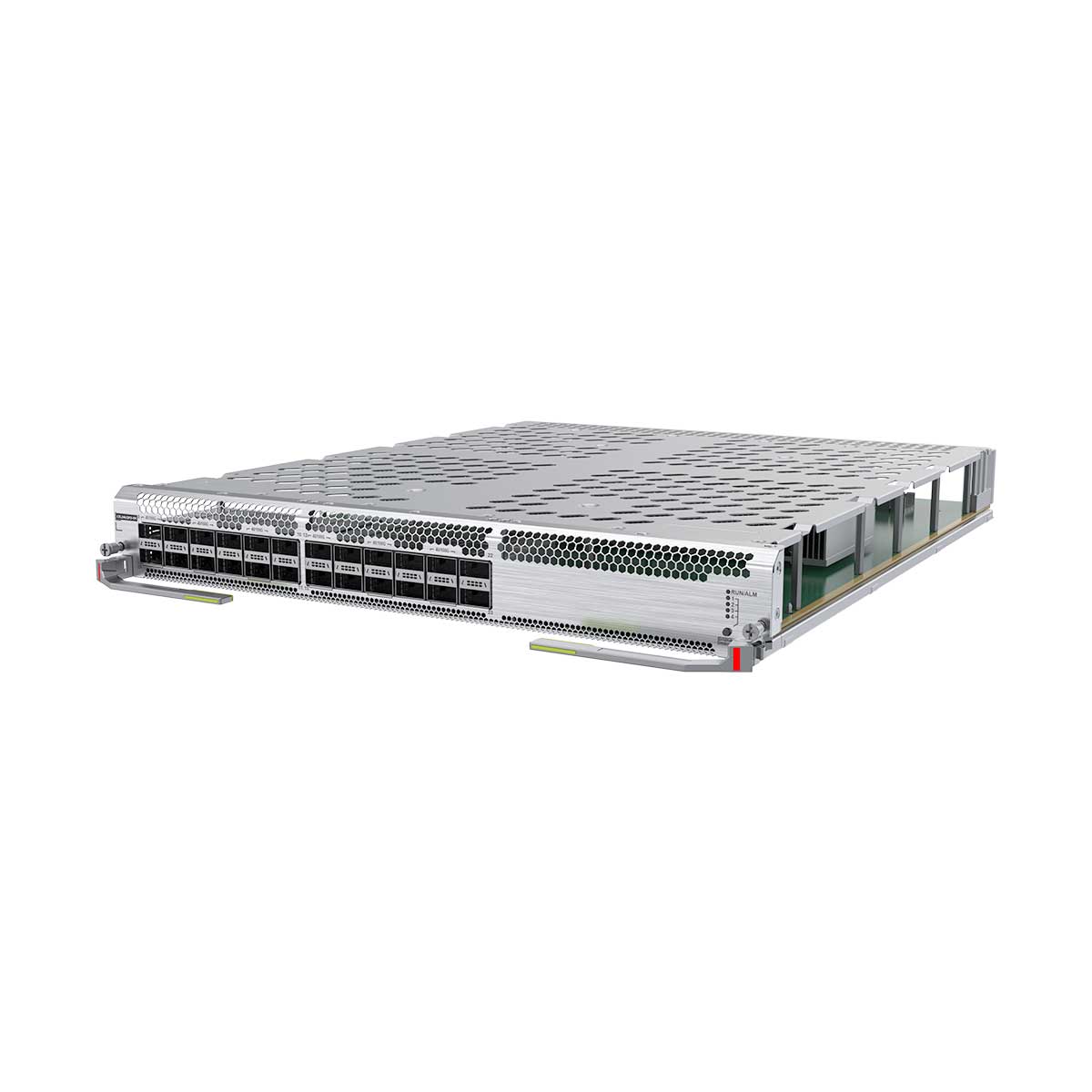

Huawei CE16800 Series CEL24LQFD-EK 24-port 40GE interface card (FD-EK, QSFP+)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

CEL24LQFD-EK overview

Item CEL24LQFD-EK
Description 24-port 40GE interface card (FD-EK, QSFP+)
Part Number 03050EST
Model CEL24LQFD-EK
Silkscreen CEL24LQFD-EK
Card Type Interface Card

CEL24LQFD-EK Appearance

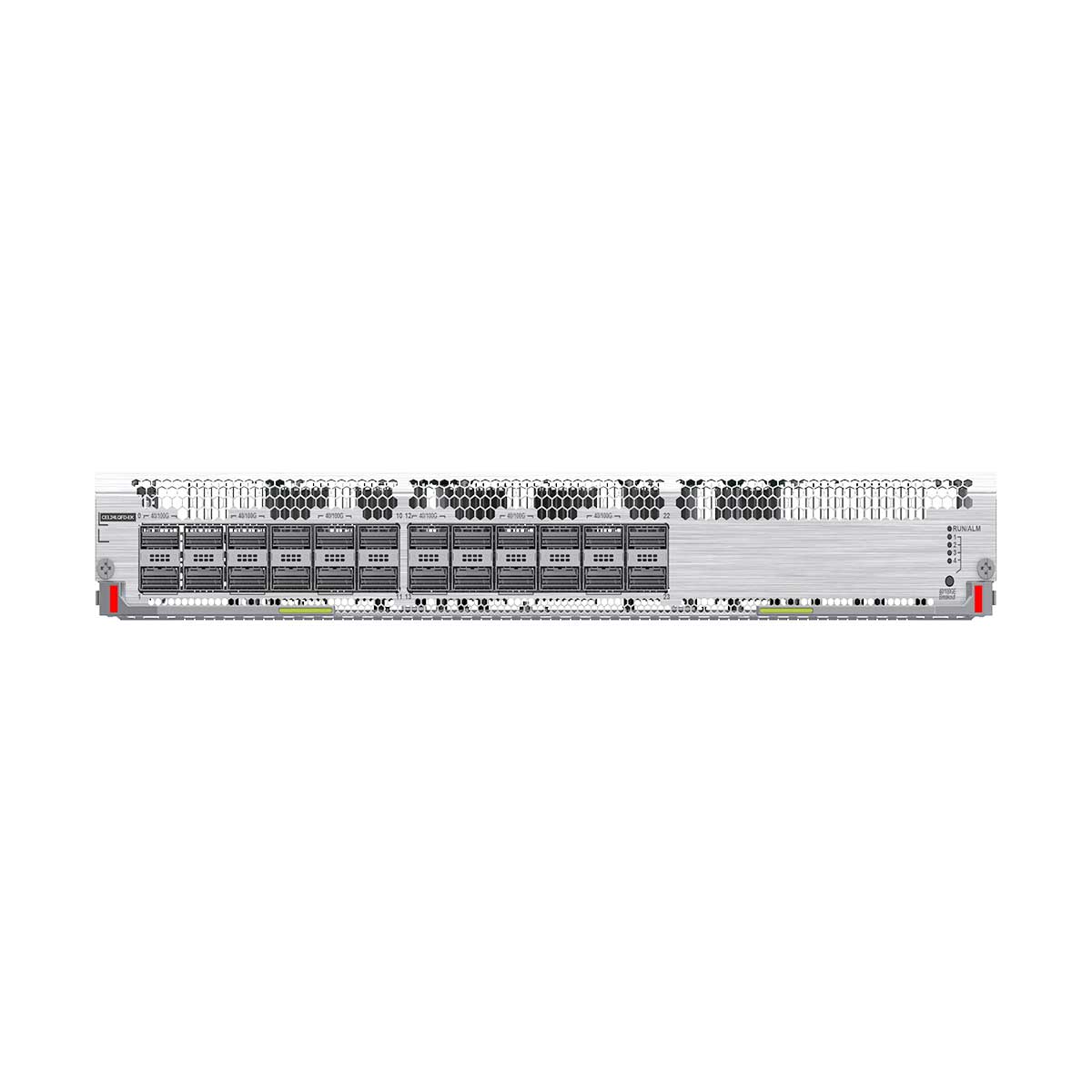

Panel on the CloudEngine CEL24LQFD-EK

CEL24LQFD EK 1

1. Twenty-four 40GE optical ports

Ports on the CEL24LQFD-EK

Port Connector Type Description Available Components
24 x 40GE optical ports QSFP28/QSFP+ Port for inputting and outputting 100GE (supported by half of the ports)/40GE optical signals
  • 40GE QSFP+ optical modules
  • QSFP+ to QSFP+ AOC cable
  • QSFP+ to 4*SFP+ AOC cable
  • QSFP+ to QSFP+ high-speed cable
  • QSFP+ to 4*SFP+ high-speed cable

When twelve 40GE ports (0, 1, 4, 5…) on the card work in 100GE mode, the following cables can be used:

  • 100GE QSFP28 optical modules
  • QSFP28 to QSFP28 AOC cable
Item CEL24LQFD-EK
Basic function The card provides data packet processing and traffic management on 24 40GE optical ports, which can be split into 96 10GE optical ports.
Maximum port density If all LPUs are these cards:
  • The CloudEngine 16804 chassis provides a maximum of 96 40GE ports.
  • The CloudEngine 16808 chassis provides a maximum of 192 40GE ports.
  • The CloudEngine 16816 chassis provides a maximum of 384 40GE ports.
40GE port A 40GE port on the card can be split into four 10GE ports. That is, a card provides a maximum port density of 96 x 10GE. All the 24 40GE ports are independent, and each can be split into four 10GE ports. On the card, the 12 40GE ports that can be used as 100GE ports are marked with silkscreen 40/100G. Their IDs are: 0, 1, 4, 5, 8, 9, 12, 13, 16, 17, 20, and 21. These port IDs are represented by (0, 1, 4, 5...) in the following descriptions. The 24 ports on the card are divided into groups, each of which contains four ports starting from port 0. The total port rate of a group cannot exceed 200GE. When port n is used as a 100GE port, port n+2 becomes unavailable and is in DOWN(Port unavailable) state. For example: Ports 0 to 3 are in the same group. If ports 0 and 1 are used as 100GE ports, ports 2 and 3 become unavailable and are in DOWN(Port unavailable) state. If only one port (for example, port 0) is used as a 100GE port, port 2 becomes unavailable and is in DOWN(Port unavailable) state. Ports 1 and 3 can work as 40GE ports or each of them can be split into four 10GE ports.
Hot swapping Supported
Restrictions and remarks Ports 0 to 11 form a group, and ports 12 to 23 form another group.
  • When the total port bandwidth of each group does not exceed 480 Gbit/s, SFUs can forward data at the line rate in 4+1 backup mode.
  • When the total port bandwidth of each group does not exceed 600 Gbit/s, SFUs can forward data at the line rate in 5+1 backup mode.
Typical power consumption [W] 163 W
Typical heat dissipation [BTU/hour] 557 BTU/hour
Static power consumption [W] 120 W
Static heat dissipation [BTU/hour] 410 BTU/hour
Maximum power consumption [W] 307 W
Maximum heat dissipation [BTU/hour] 1048 BTU/hour
CPU 4-core, 1.4 GHz clock speed
Memory Standard 4 GB
Dimensions without packaging (H x W x D) [mm (in.)] 55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm (in.)] 225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.)
Weight without packaging [kg (lb)] 7.3 kg (16.09 lb)
Weight with packaging [kg (lb)] 12.2 kg (26.9 lb)

Additional information

Brand

Huawei
Item CEL24LQFD-EK
Basic function The card provides data packet processing and traffic management on 24 40GE optical ports, which can be split into 96 10GE optical ports.
Maximum port density If all LPUs are these cards:
  • The CloudEngine 16804 chassis provides a maximum of 96 40GE ports.
  • The CloudEngine 16808 chassis provides a maximum of 192 40GE ports.
  • The CloudEngine 16816 chassis provides a maximum of 384 40GE ports.
40GE port A 40GE port on the card can be split into four 10GE ports. That is, a card provides a maximum port density of 96 x 10GE. All the 24 40GE ports are independent, and each can be split into four 10GE ports. On the card, the 12 40GE ports that can be used as 100GE ports are marked with silkscreen 40/100G. Their IDs are: 0, 1, 4, 5, 8, 9, 12, 13, 16, 17, 20, and 21. These port IDs are represented by (0, 1, 4, 5...) in the following descriptions. The 24 ports on the card are divided into groups, each of which contains four ports starting from port 0. The total port rate of a group cannot exceed 200GE. When port n is used as a 100GE port, port n+2 becomes unavailable and is in DOWN(Port unavailable) state. For example: Ports 0 to 3 are in the same group. If ports 0 and 1 are used as 100GE ports, ports 2 and 3 become unavailable and are in DOWN(Port unavailable) state. If only one port (for example, port 0) is used as a 100GE port, port 2 becomes unavailable and is in DOWN(Port unavailable) state. Ports 1 and 3 can work as 40GE ports or each of them can be split into four 10GE ports.
Hot swapping Supported
Restrictions and remarks Ports 0 to 11 form a group, and ports 12 to 23 form another group.
  • When the total port bandwidth of each group does not exceed 480 Gbit/s, SFUs can forward data at the line rate in 4+1 backup mode.
  • When the total port bandwidth of each group does not exceed 600 Gbit/s, SFUs can forward data at the line rate in 5+1 backup mode.
Typical power consumption [W] 163 W
Typical heat dissipation [BTU/hour] 557 BTU/hour
Static power consumption [W] 120 W
Static heat dissipation [BTU/hour] 410 BTU/hour
Maximum power consumption [W] 307 W
Maximum heat dissipation [BTU/hour] 1048 BTU/hour
CPU 4-core, 1.4 GHz clock speed
Memory Standard 4 GB
Dimensions without packaging (H x W x D) [mm (in.)] 55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm (in.)] 225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.)
Weight without packaging [kg (lb)] 7.3 kg (16.09 lb)
Weight with packaging [kg (lb)] 12.2 kg (26.9 lb)
