Huawei CE16800 Series CEL24XS12CQFD-E 24-port 10GE and 12-port 100GE interface card (FD-E, SFP+, QSFP28)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

CEL24XS12CQFD-E overview

Item CEL24XS12CQFD-E
Description 24-port 10GE and 12-port 100GE interface card (FD-E, SFP+, QSFP28)
Part Number 03050JLX
Model CEL24XS12CQFD-E
Silkscreen CEL24XS12CQFD-E
Card Type Interface Card

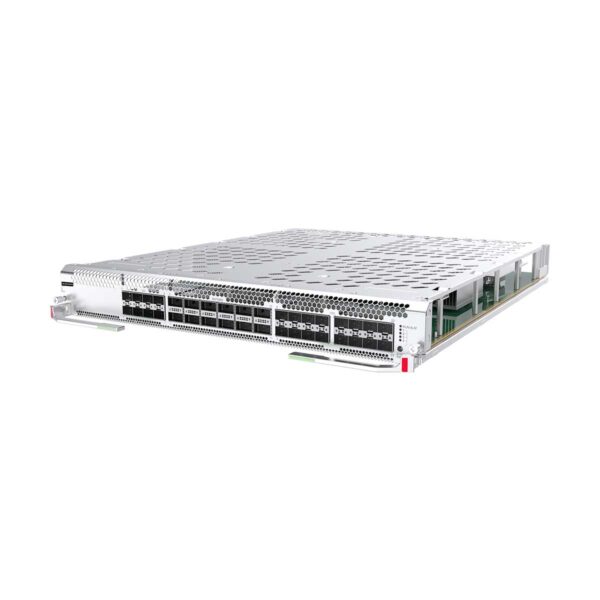

CEL24XS12CQFD-E Appearance

Panel on the CloudEngine CEL24XS12CQFD-E

CEL24XS12CQFD-E

1. Twenty-four 10GE optical ports 2. Twelve 100GE optical ports



Ports on the CEL24XS12CQFD-E

Port Connector Type Description Available Components
24 x 10GE optical ports SFP+/SFP Port for inputting and outputting 10GE/GE optical signals
  • GE eSFP optical modules
    GE SFP copper modules
    10GE SFP+ optical modules
    SFP+ to SFP+ AOC cable
    SFP+ to SFP+ high-speed cable
12 x 100GE optical ports QSFP28/QSFP+ Port for inputting and outputting 100GE/40GE optical signals
  • 40GE QSFP+ optical modules
    100GE QSFP28 optical modules
    QSFP+ to QSFP+ AOC cable
    QSFP28 to QSFP28 AOC cable
    QSFP+ to 4*SFP+ AOC cable
    QSFP+ to QSFP+ high-speed cable
    QSFP+ to 4*SFP+ high-speed cable
Show More Show Less
Item CEL24XS12CQFD-E
Dimensions without packaging (H x W x D) [mm (in.)] 55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.6 in.)
Dimensions with packaging (H x W x D) [mm (in.)] 225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.)
Weight without packaging [kg (lb)] 7.9 kg (17.41 lb)
Weight with packaging [kg (lb)] 11.8 kg (26.01 lb)
Typical power consumption [W] 275 W
Typical heat dissipation [BTU/hour] 939 BTU/hour
Static power consumption [W] 212 W
Static heat dissipation [BTU/hour] 724 BTU/hour
Maximum power consumption [W] 390 W
Maximum heat dissipation [BTU/hour] 1331 BTU/hour
CPU 4-core, 1.4 GHz clock speed
Memory Standard 4 GB
NOR Flash Standard 128 MB

Additional information

Brand

Huawei
Item CEL24XS12CQFD-E
Dimensions without packaging (H x W x D) [mm (in.)] 55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.6 in.)
Dimensions with packaging (H x W x D) [mm (in.)] 225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.)
Weight without packaging [kg (lb)] 7.9 kg (17.41 lb)
Weight with packaging [kg (lb)] 11.8 kg (26.01 lb)
Typical power consumption [W] 275 W
Typical heat dissipation [BTU/hour] 939 BTU/hour
Static power consumption [W] 212 W
Static heat dissipation [BTU/hour] 724 BTU/hour
Maximum power consumption [W] 390 W
Maximum heat dissipation [BTU/hour] 1331 BTU/hour
CPU 4-core, 1.4 GHz clock speed
Memory Standard 4 GB
NOR Flash Standard 128 MB
