CEL36CQFD-EK

0 Reviews Write a review
PN03050ESS
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Huawei CE16800 Series CEL36CQFD-EK 36-port 100GE interface card (FD-EK, QSFP28)

Description

CEL36CQFD-EK overview

Item CEL36CQFD-EK
Description 36-port 100GE interface card (FD-EK, QSFP28)
Part Number 03050ESS
Model CEL36CQFD-EK
Silkscreen CEL36CQFD-EK
Card Type Interface Card

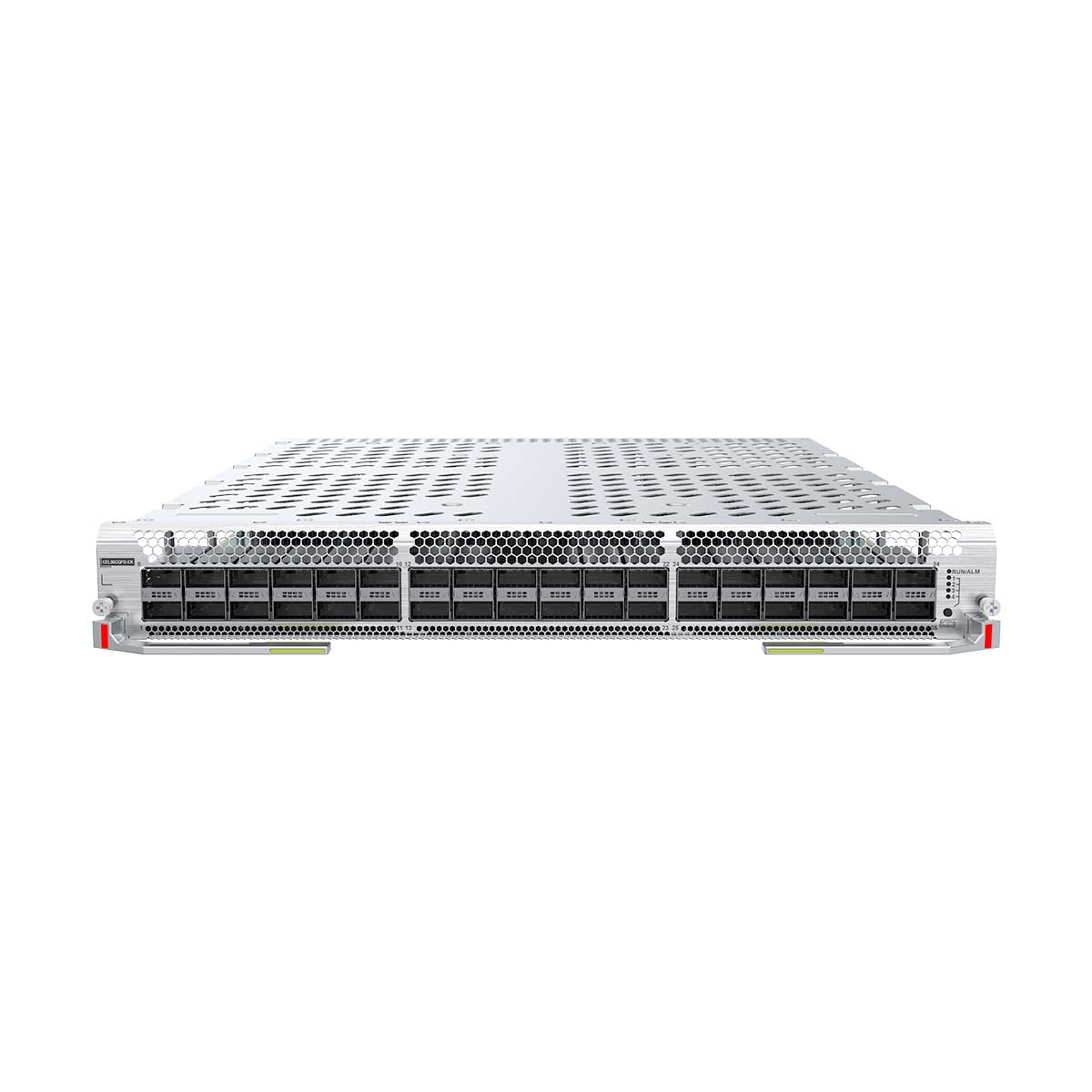

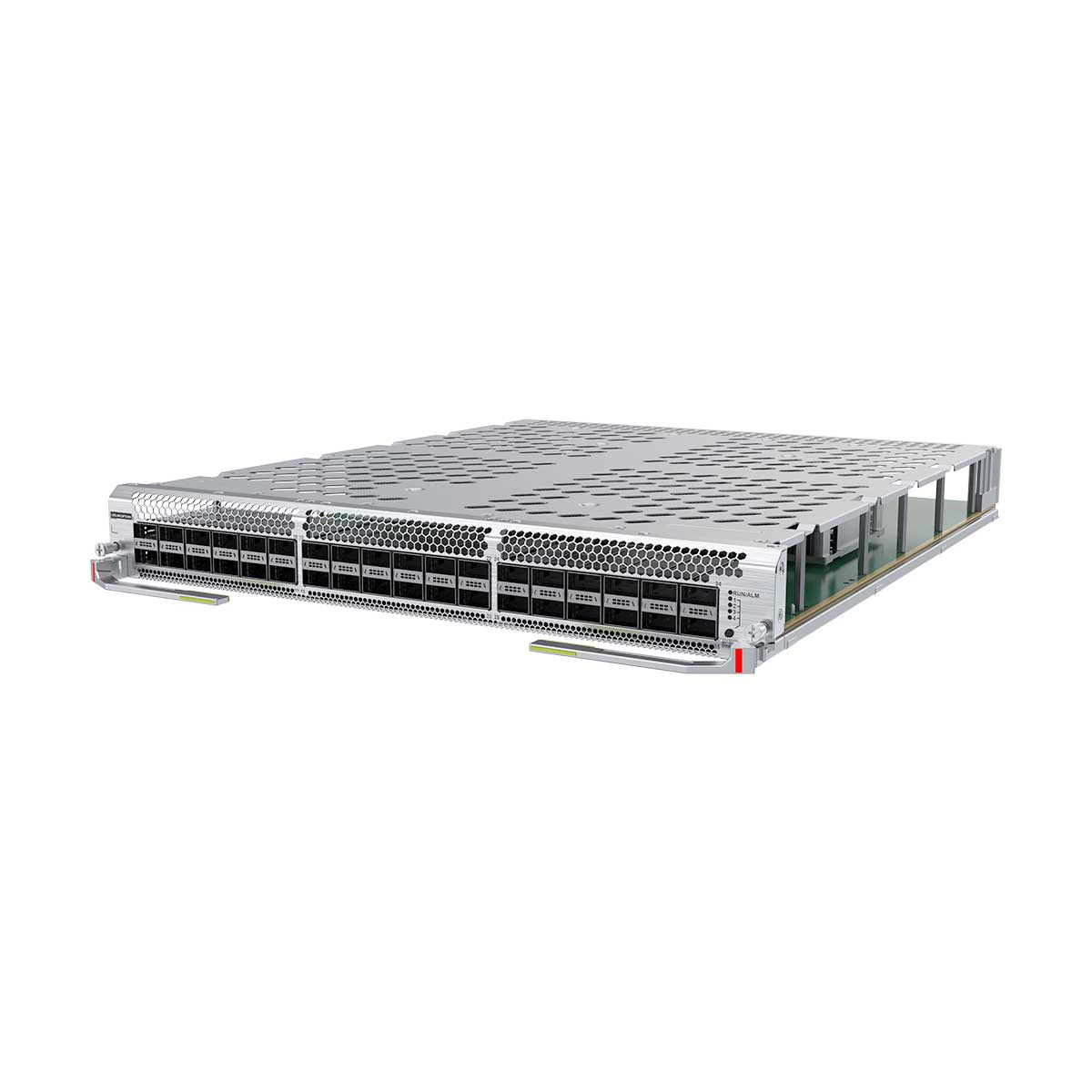

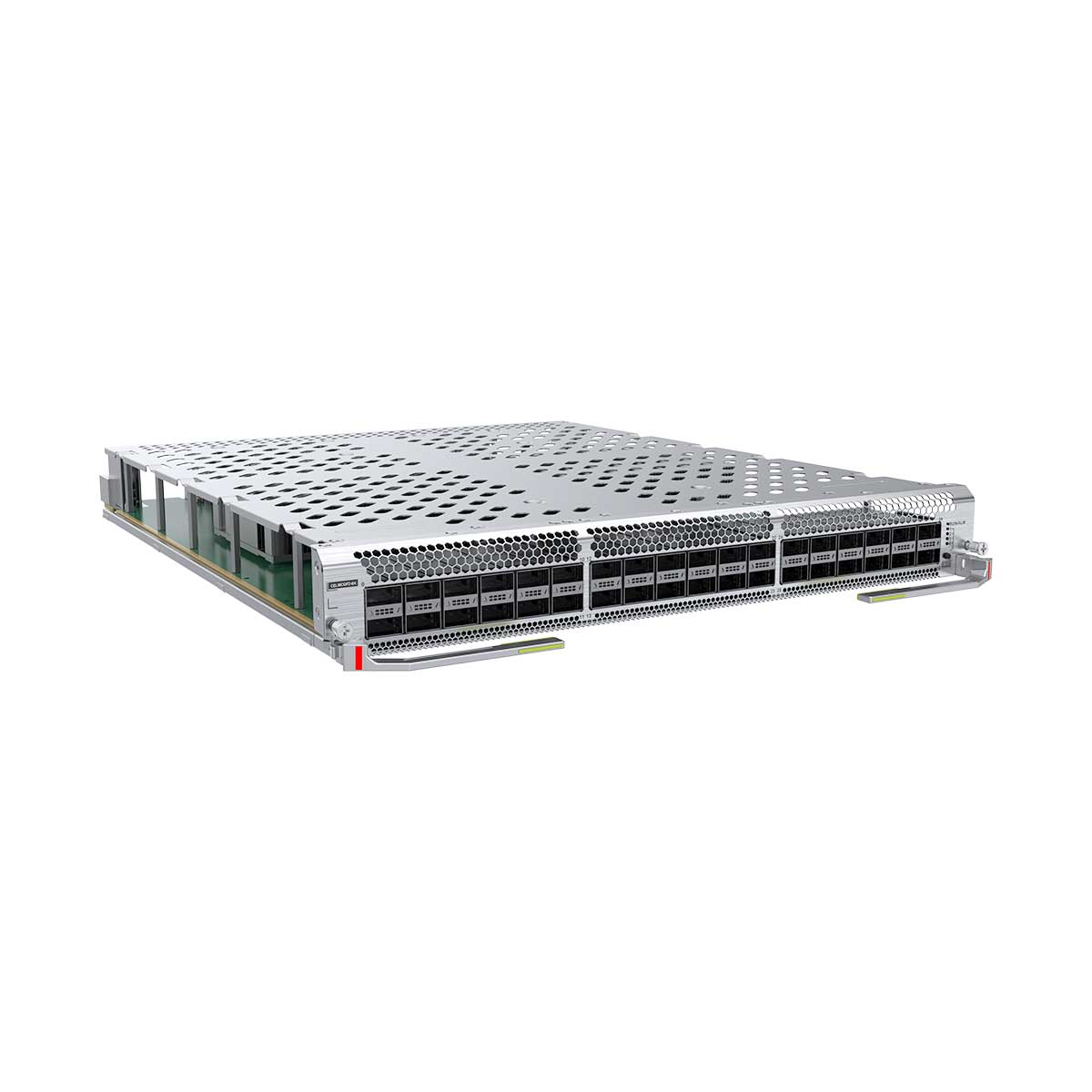

CEL36CQFD-EK Appearance

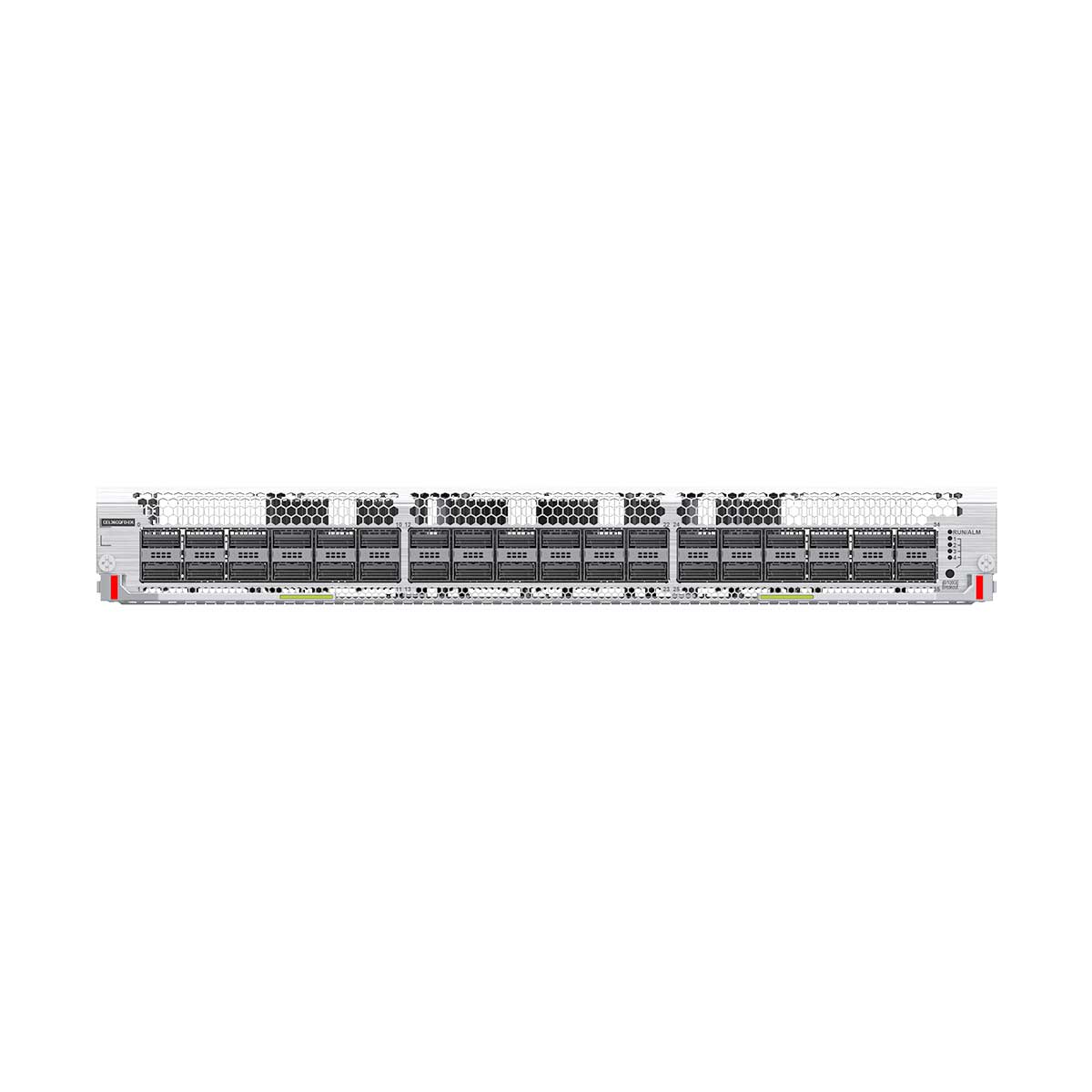

Panel on the CloudEngine CEL36CQFD-EK

CEL36CQFD EK

1. Thirty-six 100GE optical ports



Ports on the CEL36CQFD-EK

Port Connector Type Description Available Components
Thirty-six 100GE optical ports QSFP28/QSFP+ Port for inputting and outputting 100GE/40GE optical signals
  • 40GE QSFP+ optical modules
  • 100GE QSFP28 optical modules
  • QSFP+ to QSFP+ AOC cable
  • QSFP28 to QSFP28 AOC cable
  • QSFP+ to 4*SFP+ AOC cable
  • QSFP+ to QSFP+ high-speed cable
  • QSFP+ to 4*SFP+ high-speed cable
Item CEL36CQFD-EK
Basic function The card provides data packet processing and traffic management on 36 100GE optical ports, which can be used as 36 40GE optical ports or split into 144 25GE or 144 10GE optical ports.
Maximum port density All LPUs are of this model:
  • The CloudEngine 16804 chassis provides a maximum of 144 100GE ports.
  • The CloudEngine 16808 chassis provides a maximum of 288 100GE ports.
  • The CloudEngine 16816 chassis provides a maximum of 576 100GE ports.
100GE port Supports QSFP28 and QSFP+ optical modules. 100GE ports can work as 40GE ports through auto-sensing or be split into four 25GE or 10GE ports. Provides up to 36 x 40GE, 144 x 25GE, or 144 x 10GE ports. The 36 optical ports are independent, and each can work as a 40GE port or be split into four 25GE or 10GE ports.
Hot swapping Supported
Typical power consumption [W] 525 W
Typical heat dissipation [BTU/hour] 1793 BTU/hour
Static power consumption [W] 406 W
Static heat dissipation [BTU/hour] 1386 BTU/hour
Maximum power consumption [W] 764 W
Maximum heat dissipation [BTU/hour] 2609 BTU/hour
CPU 4-core, 1.4 GHz clock speed
Memory Standard 8 GB
Dimensions without packaging (H x W x D) [mm (in.)] 55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm (in.)] 225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.)
Weight without packaging [kg (lb)] 8.4 kg (18.52 lb)
Weight with packaging [kg (lb)] 13.3 kg (29.32 lb)

Additional information

Brand

Huawei

Item CEL36CQFD-EK
Basic function The card provides data packet processing and traffic management on 36 100GE optical ports, which can be used as 36 40GE optical ports or split into 144 25GE or 144 10GE optical ports.
Maximum port density All LPUs are of this model:
  • The CloudEngine 16804 chassis provides a maximum of 144 100GE ports.
  • The CloudEngine 16808 chassis provides a maximum of 288 100GE ports.
  • The CloudEngine 16816 chassis provides a maximum of 576 100GE ports.
100GE port Supports QSFP28 and QSFP+ optical modules. 100GE ports can work as 40GE ports through auto-sensing or be split into four 25GE or 10GE ports. Provides up to 36 x 40GE, 144 x 25GE, or 144 x 10GE ports. The 36 optical ports are independent, and each can work as a 40GE port or be split into four 25GE or 10GE ports.
Hot swapping Supported
Typical power consumption [W] 525 W
Typical heat dissipation [BTU/hour] 1793 BTU/hour
Static power consumption [W] 406 W
Static heat dissipation [BTU/hour] 1386 BTU/hour
Maximum power consumption [W] 764 W
Maximum heat dissipation [BTU/hour] 2609 BTU/hour
CPU 4-core, 1.4 GHz clock speed
Memory Standard 8 GB
Dimensions without packaging (H x W x D) [mm (in.)] 55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm (in.)] 225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.)
Weight without packaging [kg (lb)] 8.4 kg (18.52 lb)
Weight with packaging [kg (lb)] 13.3 kg (29.32 lb)
