CEL36CQFD-G

0 Reviews Write a review
SKU2008275
AvailabilityIn Stock
CE16800 Switch 100GE Card
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

CEL36CQFD-G Huawei CE16800 series Switch 36-Port 100GE Interface Card (FD-G, QSFP28)

Description

CEL36CQFD-G overview

CEL36CQFD-G Huawei CE16800 series Switch 36-Port 100GE Interface Card (FD-G, QSFP28)

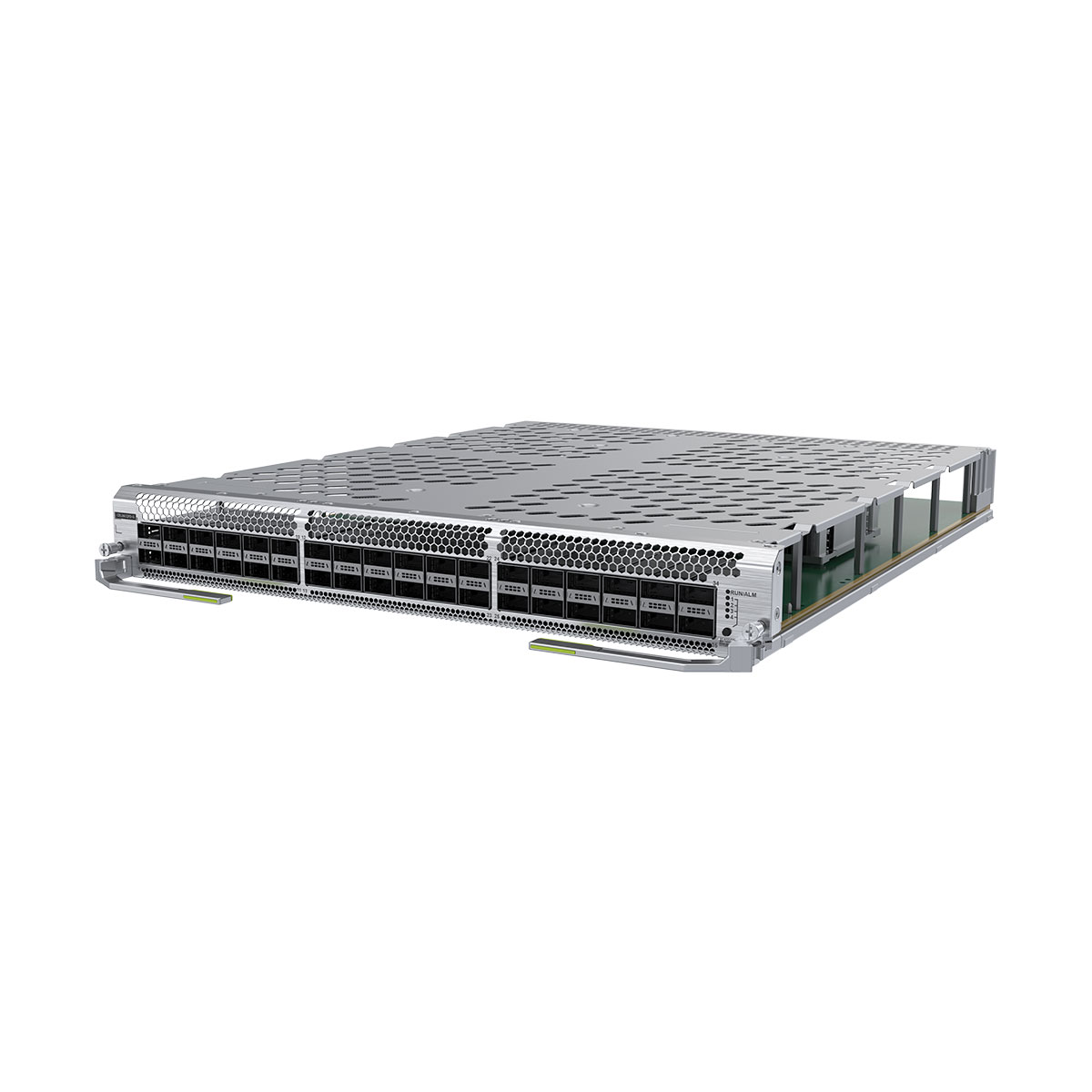

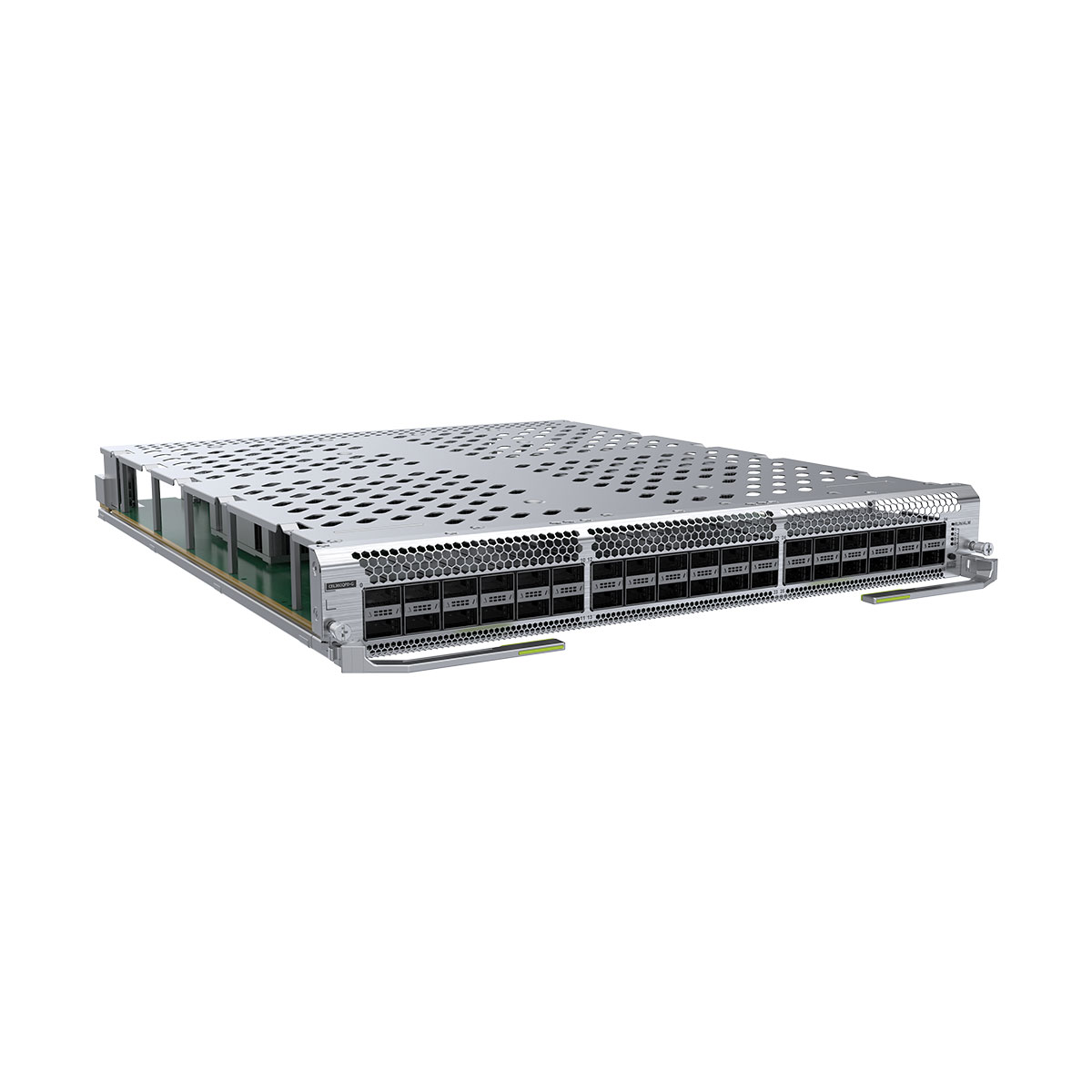

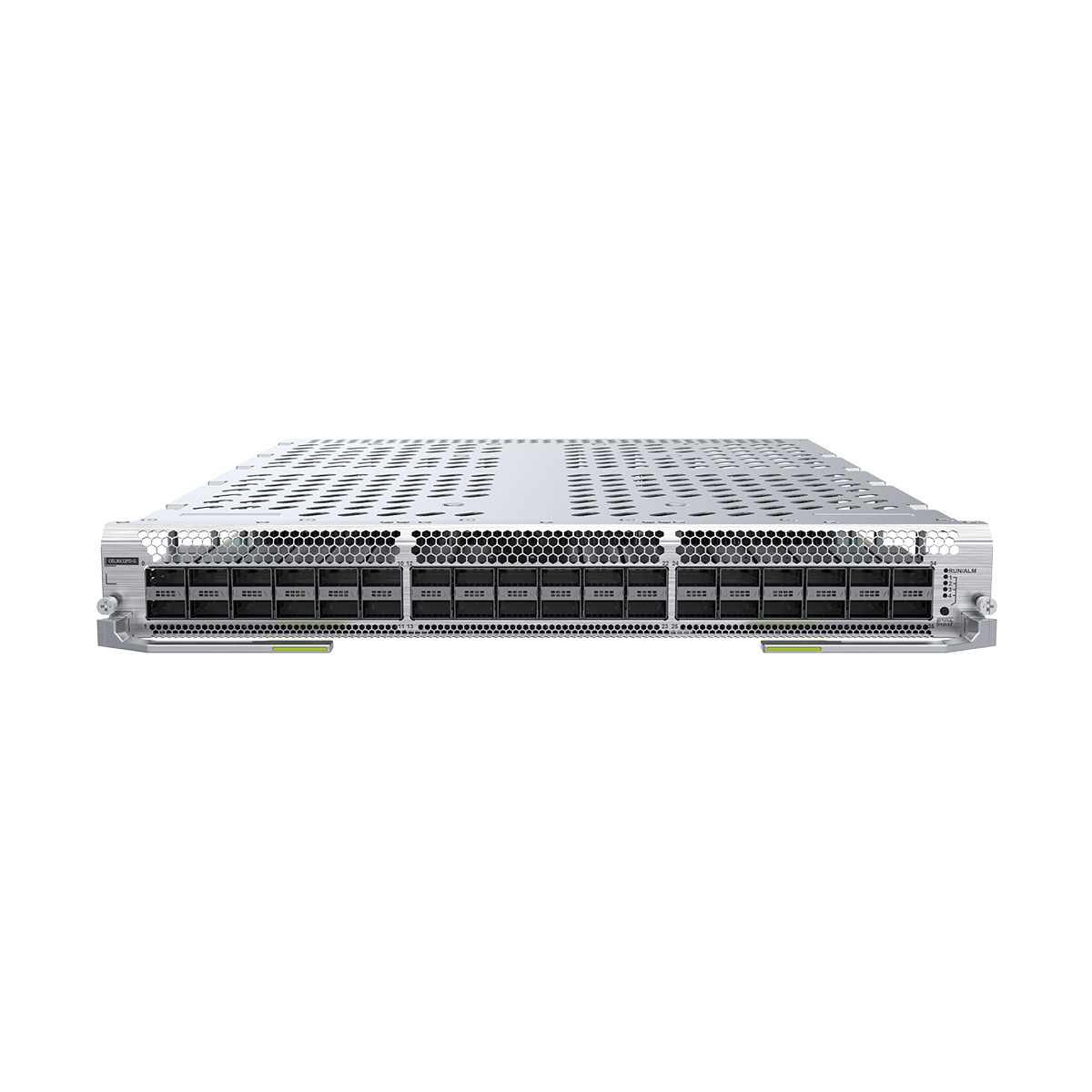

CEL36CQFD-G appearance

CEL36CQFD-G

CEL36CQFD-G application
Product First Supported Version Last Supported Version Unsupported Version Unsupported Model Limitations IDs of available slots
CloudEngine 16804 V200R005C20 1–4
CloudEngine 16808 V200R005C20 1–8
CloudEngine 16816 V200R005C20 1–16
CEL36CQFD-G function and feature
Functions and Features Description
Basic function The card provides data packet processing and traffic management on 36 100GE optical ports, which can be used as 36 40GE optical ports or split into 144 25GE or 144 10GE optical ports.
Maximum port density If all LPUs are these cards:

  • The CloudEngine 16804 chassis provides a maximum of 144 100GE ports.
  • The CloudEngine 16808 chassis provides a maximum of 288 100GE ports.
  • The CloudEngine 16816 chassis provides a maximum of 576 100GE ports.
100GE port 100GE ports on the card support QSFP28 and QSFP+ optical modules. A 100GE port can be used as a 40GE port through auto-sensing, or split into four 25GE or four 10GE ports.

That is, a card can provide a maximum port density of 36x40GE, 144x25GE, or 144x10GE.

All the 36 100GE ports are independent, and each port can used as a 40GE port through auto-sensing, or split into four 25GE or four 10GE ports.

Hot swapping Supported
Item CEL36CQFD-G
Typical power consumption [W] 525 W
Typical heat dissipation [BTU/hour] 1793 BTU/hour
Static power consumption [W] 406 W
Static heat dissipation [BTU/hour] 1386 BTU/hour
Maximum power consumption [W] 764 W
Maximum heat dissipation [BTU/hour] 2609 BTU/hour
CPU Quad-core, 1.4 GHz clock speed
Memory Standard 8 GB
Flash memory Standard 128 MB
Dimensions without packaging (H x W x D) [mm (in.)] 55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm (in.)] 225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.)
Weight without packaging [kg (lb)] 8.4 kg (18.52 lb)
Weight with packaging [kg (lb)] 13.3 kg (29.33 lb)

Additional information

Brand

Huawei

CE16800 Switch

Ship From

Shenzhen Warehouse

Item CEL36CQFD-G
Typical power consumption [W] 525 W
Typical heat dissipation [BTU/hour] 1793 BTU/hour
Static power consumption [W] 406 W
Static heat dissipation [BTU/hour] 1386 BTU/hour
Maximum power consumption [W] 764 W
Maximum heat dissipation [BTU/hour] 2609 BTU/hour
CPU Quad-core, 1.4 GHz clock speed
Memory Standard 8 GB
Flash memory Standard 128 MB
Dimensions without packaging (H x W x D) [mm (in.)] 55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm (in.)] 225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.)
Weight without packaging [kg (lb)] 8.4 kg (18.52 lb)
Weight with packaging [kg (lb)] 13.3 kg (29.33 lb)
