CEL36CQFD-GK overview
CEL36CQFD-GK Huawei CE16800 series Switch 36-port 100GE interface card (FD-GK, QSFP28)

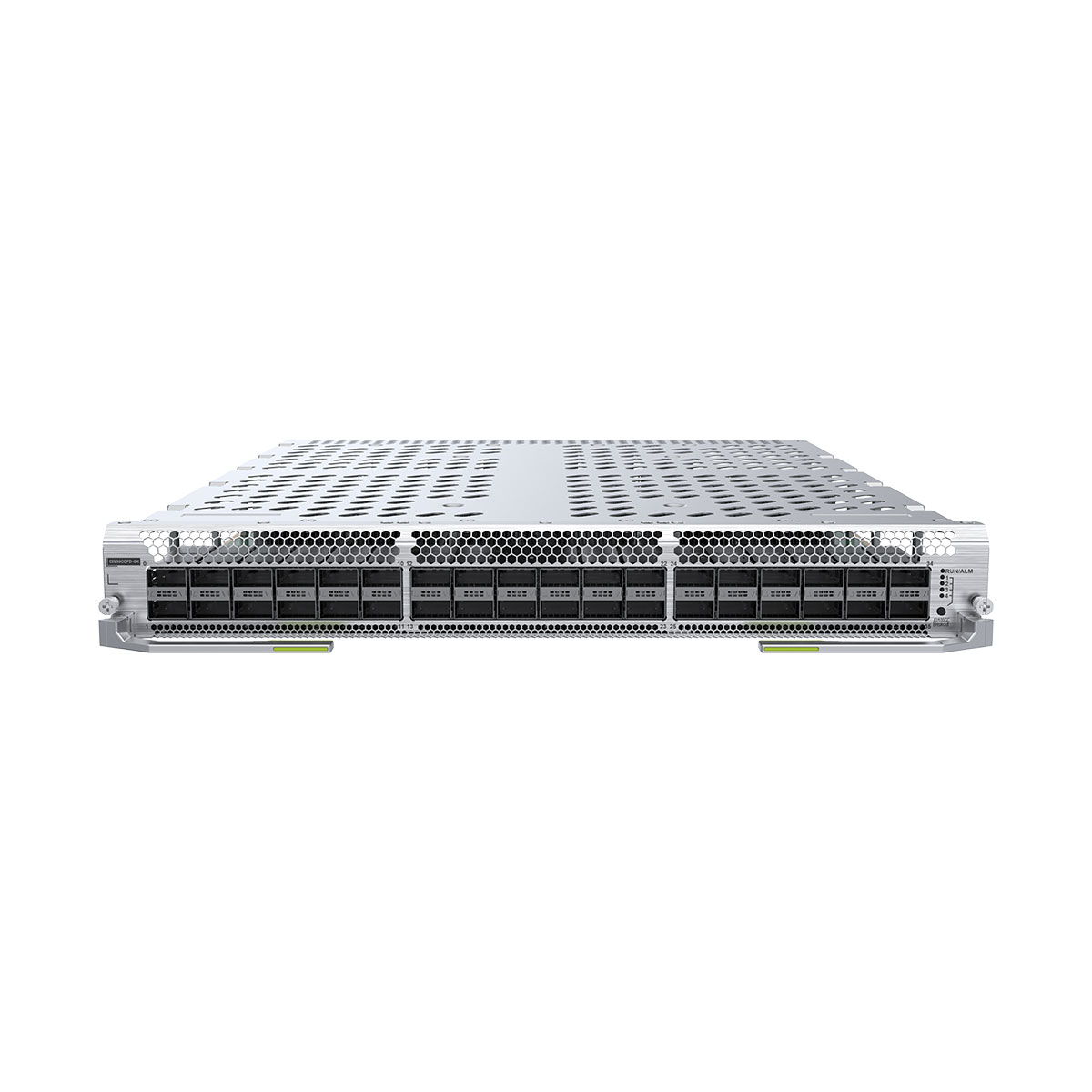

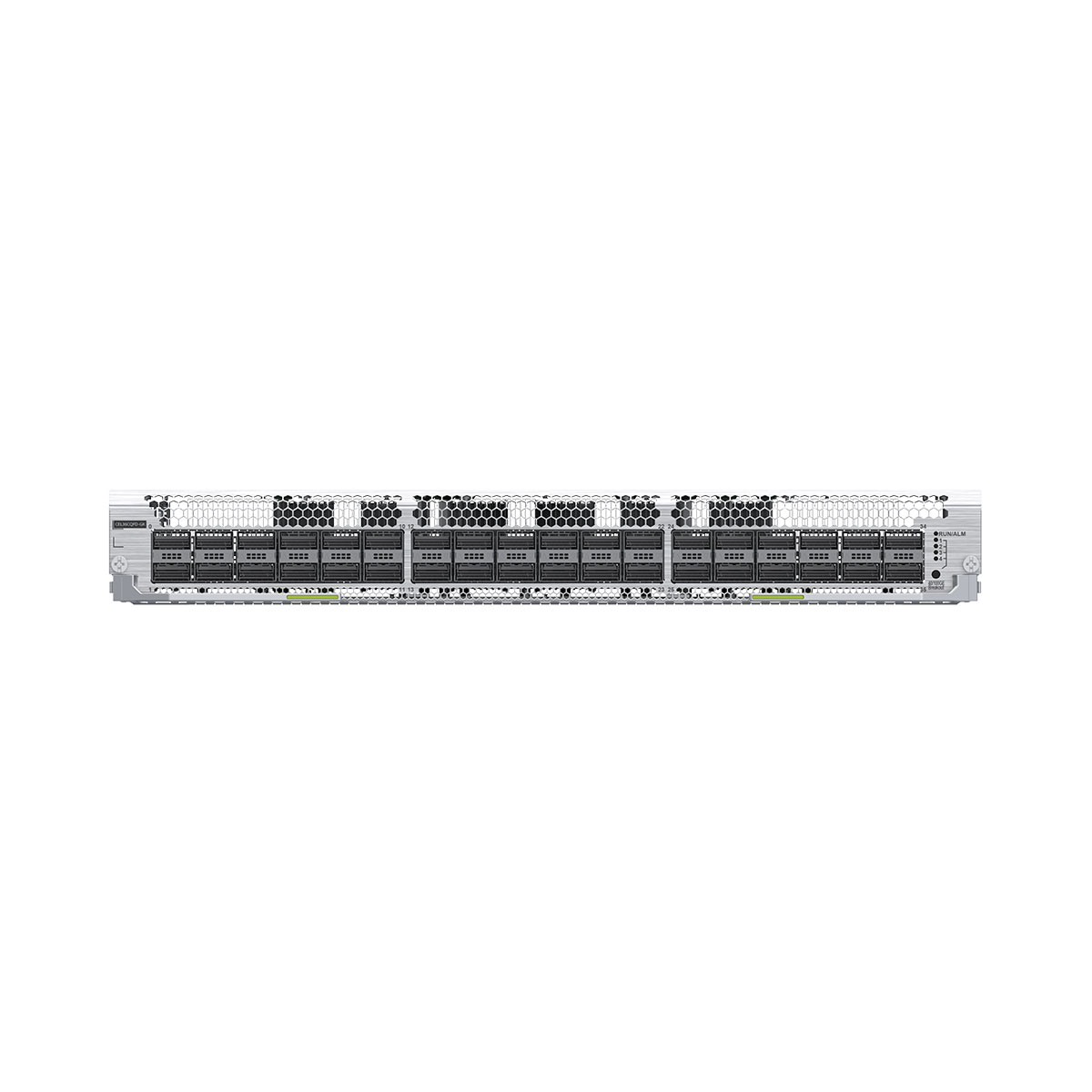

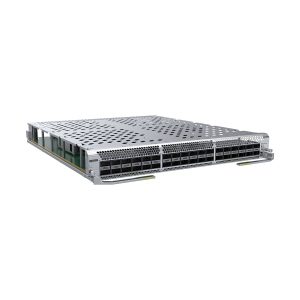

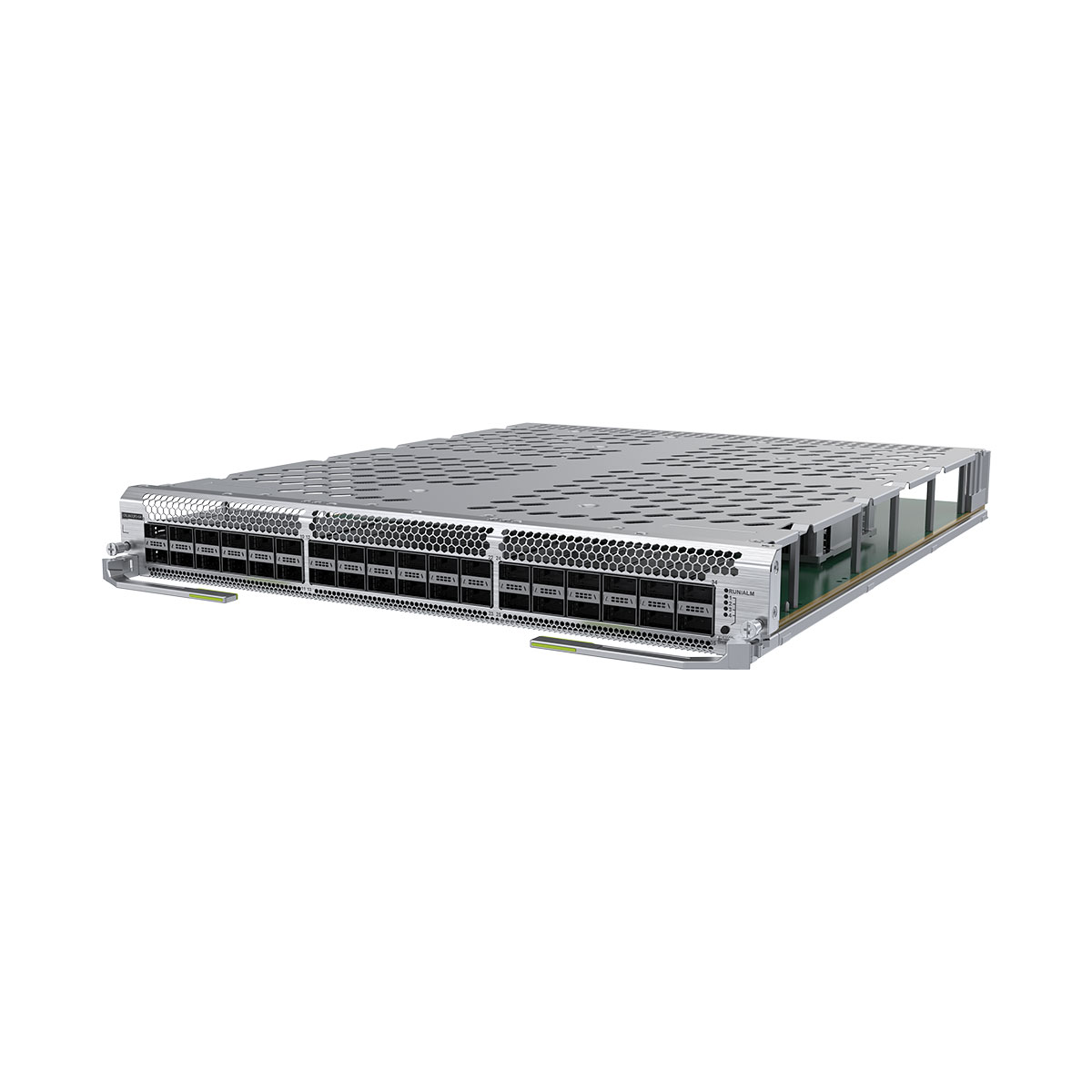

CEL36CQFD-GK appearance
CEL36CQFD-GK application
Product | First Supported Version | Last Supported Version | Unsupported Version | Unsupported Model | Limitations | IDs of available slots |
---|---|---|---|---|---|---|
CloudEngine 16804 | V200R019C10 | – | – | – | – | 1–4 |
CloudEngine 16808 | V200R019C10 | – | – | – | – | 1–8 |
CloudEngine 16816 | V200R019C10 | – | – | – | – | 1–16 |
CEL36CQFD-GK function and feature
Functions and Features | Description |
---|---|
Basic function | The card provides data packet processing and traffic management on 36 100GE optical ports, which can be used as 36 40GE optical ports or split into 144 25GE or 144 10GE optical ports. |
Maximum port density | If all LPUs are these cards:
|
100GE port | 100GE ports on the card support QSFP28 and QSFP+ optical modules. A 100GE port can be used as a 40GE port through auto-sensing, or split into four 25GE or four 10GE ports.
That is, a card can provide a maximum port density of 36x40GE, 144x25GE, or 144x10GE. All the 36 100GE ports are independent, and each port can used as a 40GE port through auto-sensing, or split into four 25GE or four 10GE ports. |
Hot swapping | Supported |
Item | CEL36CQFD-GK |
Typical power consumption [W] | 525 W |
Typical heat dissipation [BTU/hour] | 1793 BTU/hour |
Static power consumption [W] | 406 W |
Static heat dissipation [BTU/hour] | 1386 BTU/hour |
Maximum power consumption [W] | 764 W |
Maximum heat dissipation [BTU/hour] | 2609 BTU/hour |
CPU | Quad-core, 1.4 GHz clock speed |
Memory | Standard 8 GB |
Flash memory | Standard 128 MB |
Dimensions without packaging (H x W x D) [mm (in.)] | 55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.) |
Dimensions with packaging (H x W x D) [mm (in.)] | 225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.) |
Weight without packaging [kg (lb)] | 8.4 kg (18.52 lb) |
Weight with packaging [kg (lb)] | 13.3 kg (29.33 lb) |
