CEL36LQFD-A

0 Reviews Write a review
PN03050ECB
AvailabilityIn Stock
CE16800 Switch 40GE Card
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

CEL36LQFD-A Huawei CE16800 series Switch 36-port 40GE interface card (FD-A, QSFP+)

Description

CEL36LQFD-A overview

CEL36LQFD-A Huawei CE16800 series Switch 36-port 40GE interface card (FD-A, QSFP+)

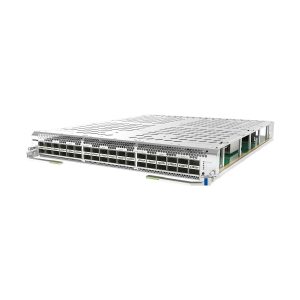

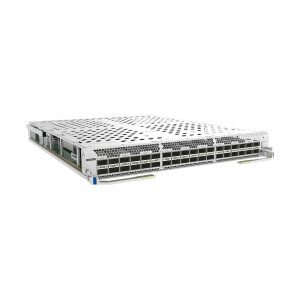

CEL36LQFD-A appearance

CEL36LQFD-A

CEL36LQFD-A application
Product First Supported Version Last Supported Version Unsupported Version Unsupported Model Limitations IDs of available slots
CloudEngine 16804 V200R021C00SPC100 1–4
CloudEngine 16808 V200R021C00SPC100 1–8
CEL36LQFD-A function and feature
Functions and Features Description
Basic function The card provides data packet processing and traffic management on 36 40GE optical ports, which can be split into 144 10GE optical ports.
Maximum port density If all LPUs are these cards:

  • The CloudEngine 16804 chassis provides a maximum of 144 40GE ports.
  • The CloudEngine 16808 chassis provides a maximum of 288 40GE ports.
40GE port A 40GE port on the card can be split into four 10GE ports. That is, a card provides a maximum port density of 144 x 10GE. All the 36 40GE ports are independent, and each can be split into four 10GE ports.

On the card, the 18 40GE ports that can be used as 100GE ports are marked with silkscreen 40/100G. The port IDs are 0, 1, 4, 5, 8, 9, 12, 13, 16, 17, 20, 21, 24, 25, 28, 29, 32, and 33. These port IDs are represented by (0, 1, 4, 5…) in the following descriptions.

Line-rate forwarding performance When 18 ports on an LPU are configured to work at 100 Gbit/s, the other 18 ports are configured to work at 40 Gbit/s, and all these 36 ports work at the same time, they cannot forward data at the line rate.

Ports 0 to 11 are in a group, ports 12 to 23 are in a group, and ports 24 to 35 are in a group.

  • When the total port bandwidth of each group does not exceed 480 Gbit/s, SFUs can forward data at the line rate in the 4+1 backup mode.
  • When the total port bandwidth of each group does not exceed 600 Gbit/s, SFUs can forward data at the line rate in the 5+1 backup mode.
Hot swapping Supported
Item CEL36LQFD-A
Typical power consumption [W] 349 W
Typical heat dissipation [BTU/hour] 1191 BTU/hour
Static power consumption [W] 249 W
Static heat dissipation [BTU/hour] 850 BTU/hour
Maximum power consumption [W] 596 W
Maximum heat dissipation [BTU/hour] 2035 BTU/hour
CPU Quad-core, 1.4 GHz clock speed
Memory Standard 8 GB
Flash memory Standard 128 MB
Dimensions without packaging (H x W x D) [mm (in.)] 55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm (in.)] 225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.)
Weight without packaging [kg (lb)] 7.9 kg (17.41 lb)
Weight with packaging [kg (lb)] 11.4 kg (25.13 lb)
